Engineering Drawings (Residential & Consumer) – Unstamped

EVONOMY Energy offers complete permit-ready Engineering Drawings with stamped electrical & structural certification options for all 50 states.

Why purchase Engineering Drawings?

• Frequently required by AHJs (Authority Holding Jurisdiction), Utilities, Electricians, and building contractors. Very useful for DIY (Do-It-Yourself) installers which need professional support for their application.
• When stamped (option available here), Engineering Drawings are legally liable, providing assurance of the design’s correctness and code compliance.

What is included when purchasing Unstamped Engineering Drawings?

• Site Layout & Project Information Summary
• Approved Equipment Summary (Solar Panels, Inverters, Batteries, Accessories, etc.)
• Electrical Plan, Solar Attachment Plan

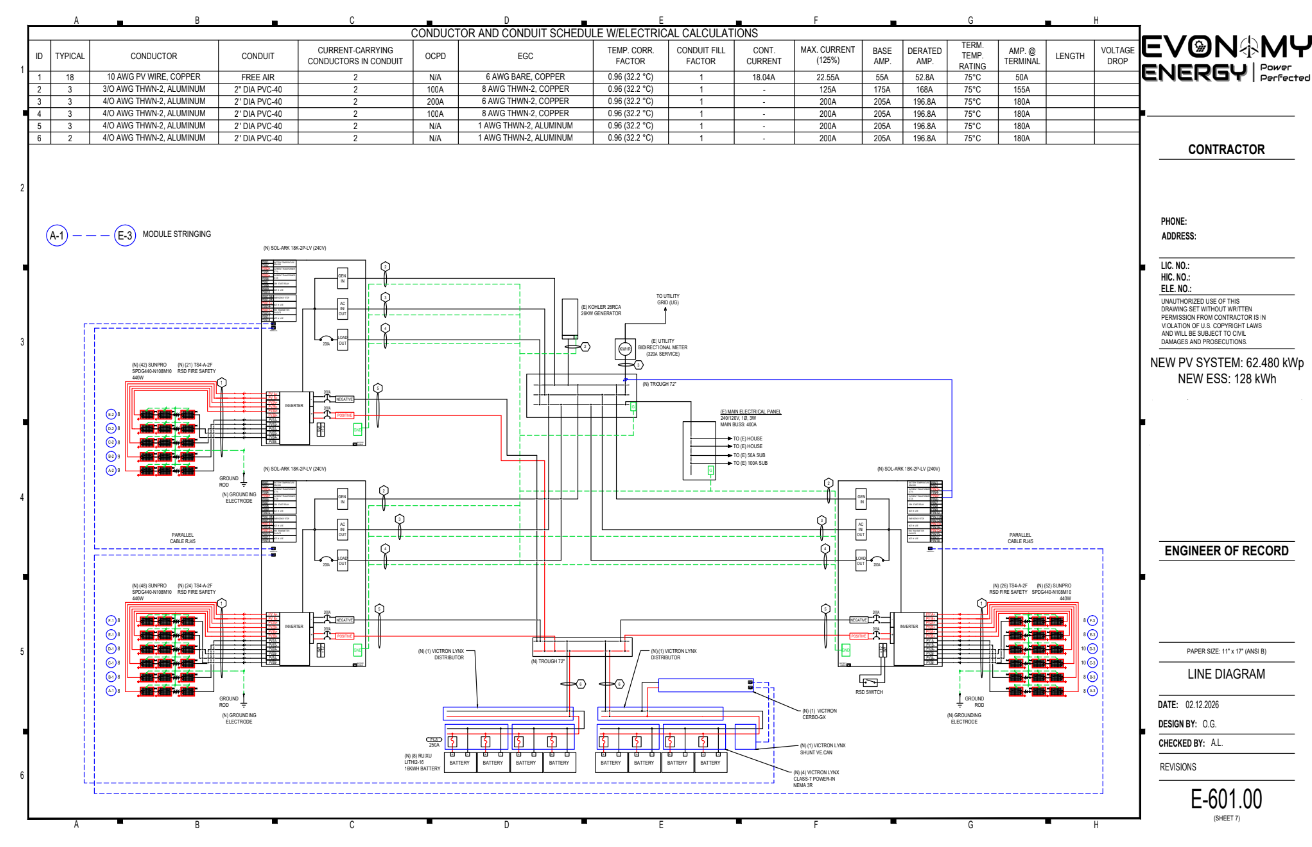

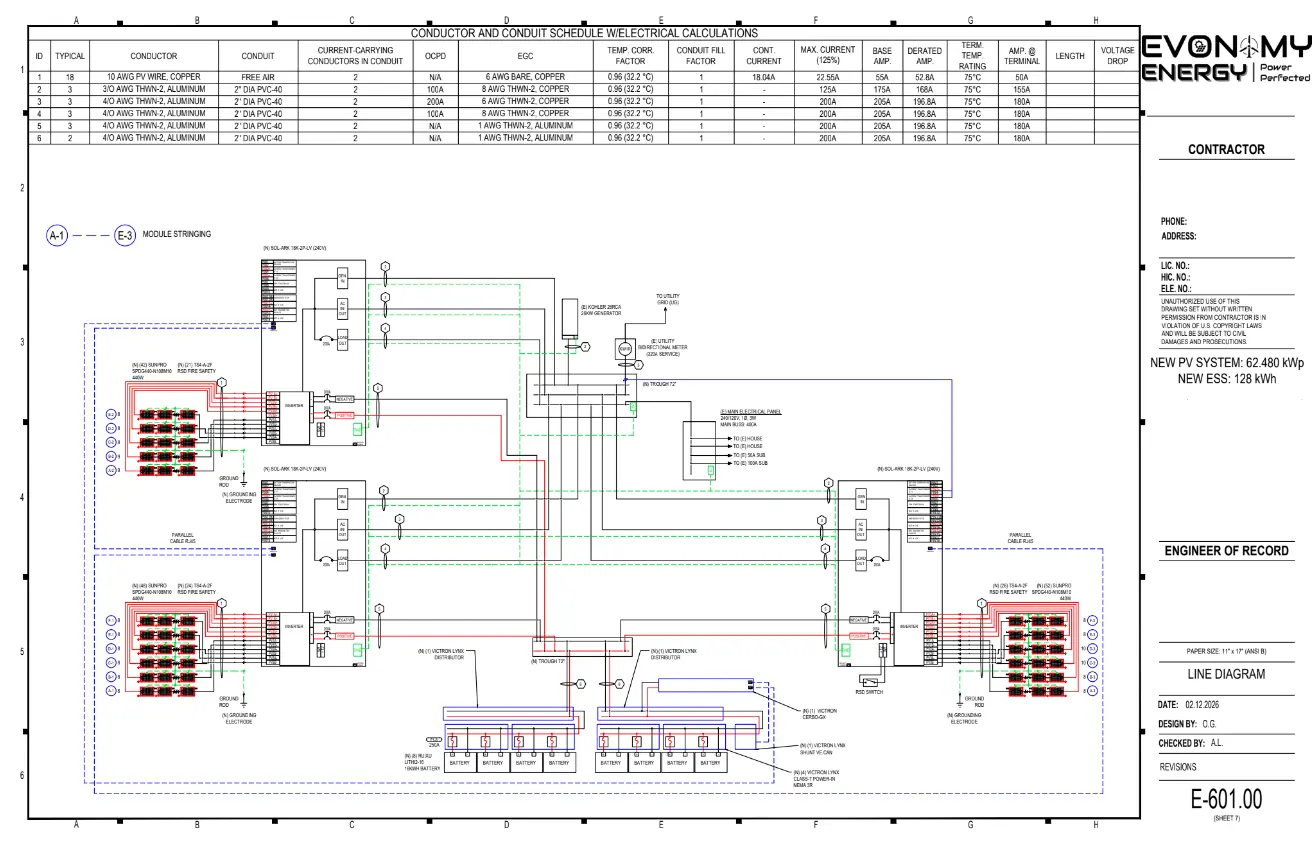

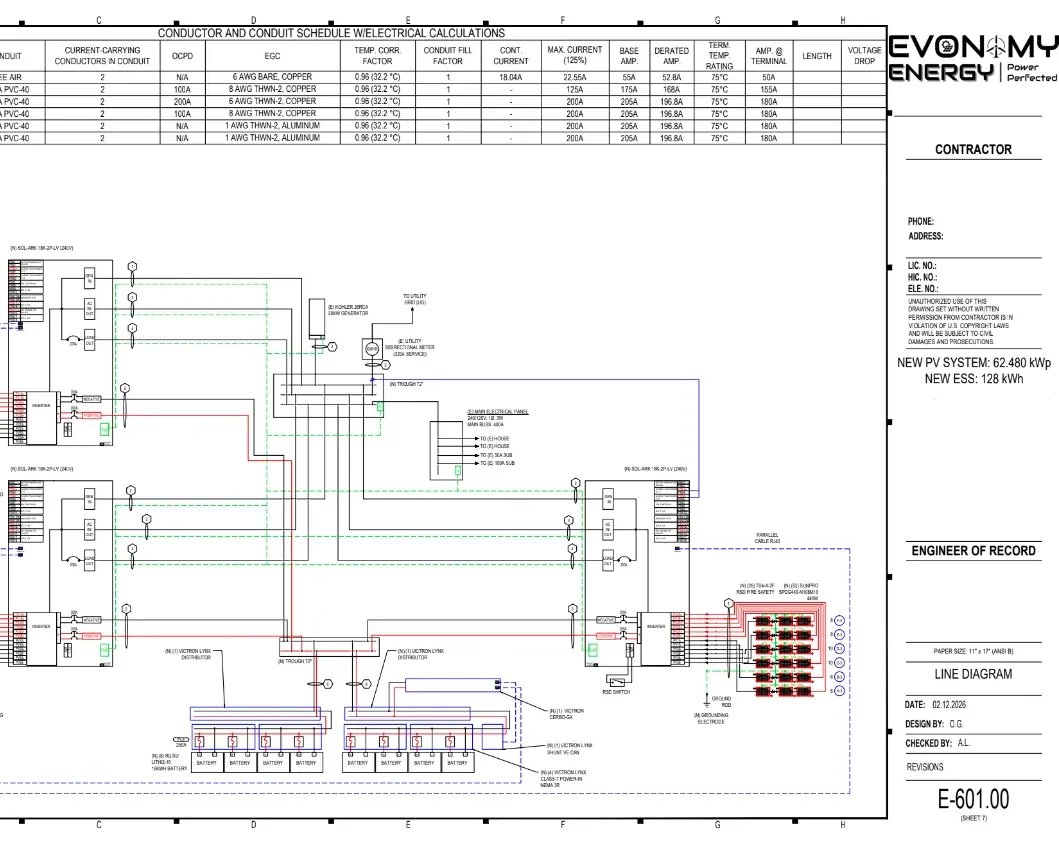

• Line Diagram showing all connections
• Design Tables
• Placards
• Resource Documents – Datasheets for core components
