Amensolar 430W Bifacial Black N-Type Solar Panels (Pallet)

SKU:

SKT430M10-108D5

Brand:

SKU:

SKT430M10-108D5

Brand:

Solar Panel

(37) 430W Solar Panels

Black Finish

Efficiency: 22.0%

UL Certified

Original price was: $5,200.00.Current price is: $4,000.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary
  • (37) 430W Monocrystalline Solar Panel
  • Bifacial Dual Glass Module (gain up to 25% more energy, up to 537W)
  • TOPcon N-Type Technology (22.0% Efficiency)
  • Black Finish
  • IP68 with Waterproof Connectors
  • Rated to 5400 Pa (Snow Load) and 2400 Pa (Wind Pressure)

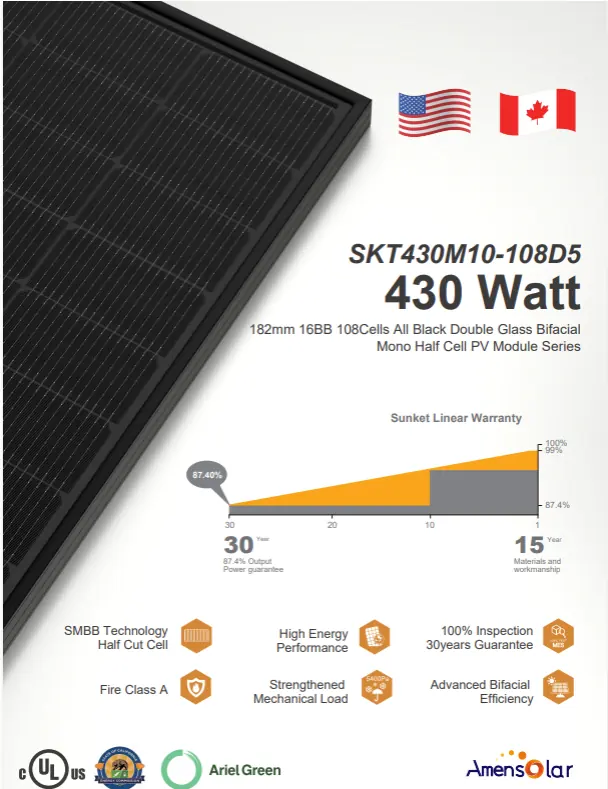

  • 15 year materials & workmanship warranty
  • 30 year 87.4% output warranty
  • UL Certified
  ★ Application
  • Supports off-grid, on grid or hybrid solar systems.
  • Ideal for installations where the panels can capture sunlight on both the front & back sides, capturing reflected light and generating up to 2% more energy than conventional monofacial solar panels.

★ Detailed Specifications

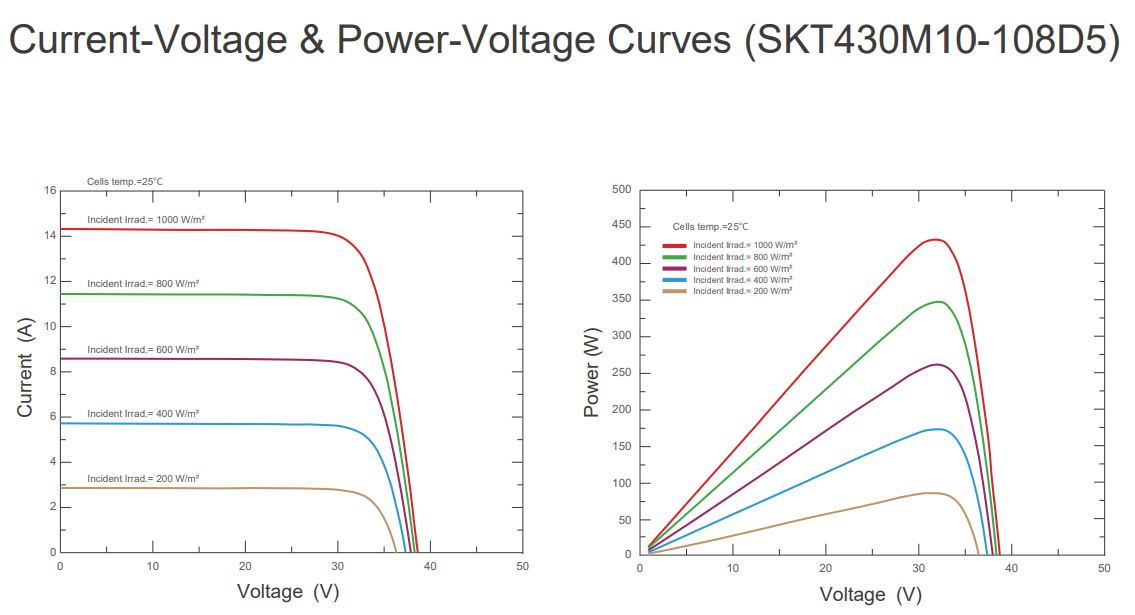

  • Peak Power Output (Pmax) = 430 W ± 4.99W
  • Max Power Current (Imp) = 13.30 A
  • Max Power Voltage (Vmp) = 32.34 V
  • Short-Circuit Current (Isc) = 13.91 A
  • Open Circuit Voltage (Voc) = 38.72 V
  • Weight = 46.30 lbs

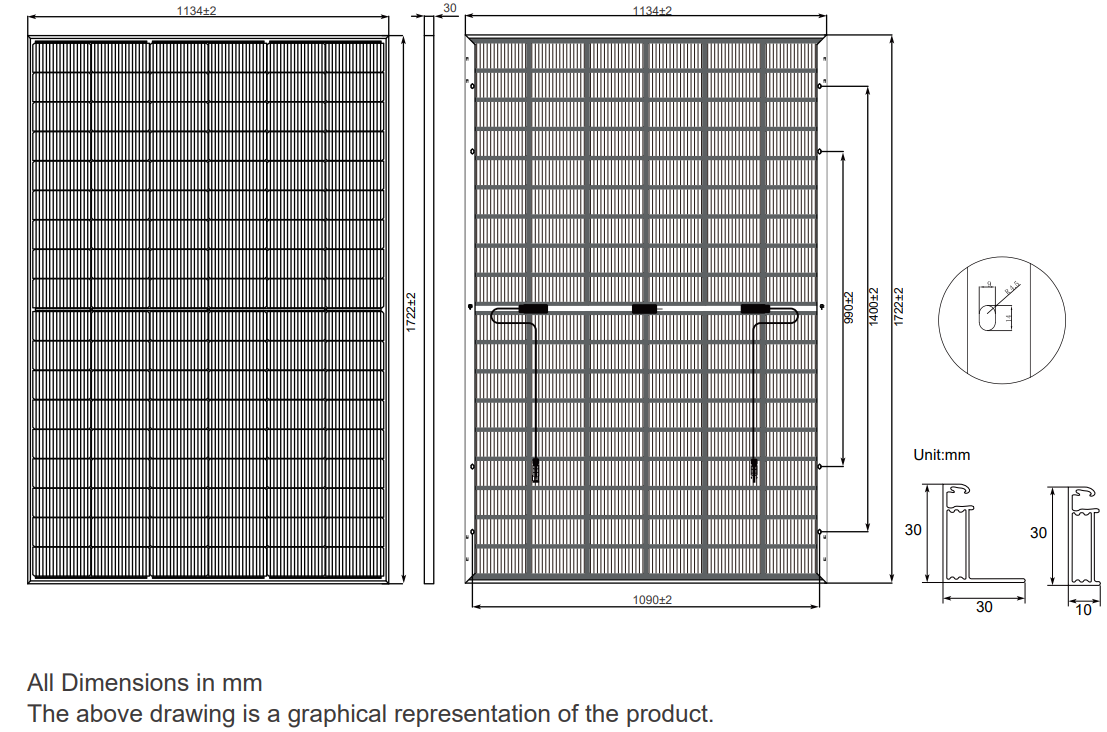

  • Dimensions (inches) = 67.8″ x 44.65″ x 1.18″
  • Max System Voltage (VDC) = 1500 V


Additional information

Weight 2000 lbs
Dimensions 67.8 × 44.65 × 1.18 in
Quantity

Pallet (37 Panels)

DATASHEET

USER MANUAL
