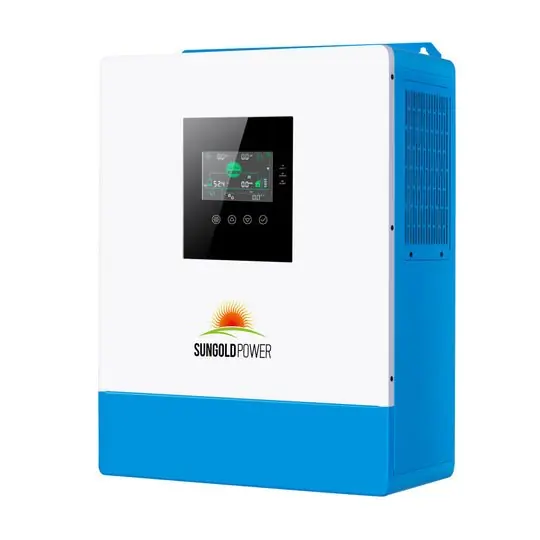

SunGoldPower 5kW 48V Solar Inverter Charger

• 5kW Pure Sine Wave Inverter
• Single Phase (120V)

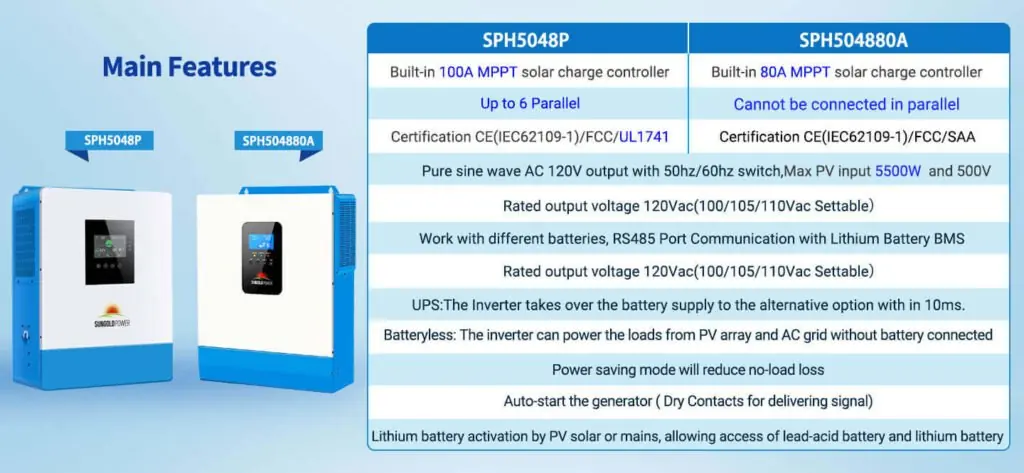

• Integrated 80A or 100A MPPT (unique part numbers)
• Supports PV input sized up to 5500W @ 500V
• Supports grid-tied (AC-Charging) & off-grid system operation

• Parallel up to (6) units together, supporting up to 30kW power output
• (1) Unit = Single Phase (120V)
• (2+) Units = Single or Split-Phase (120/240V)
• (3+) Units = 3-Phase Support (208V)
• Parallel function increases net inverter power and surge capacity.

• Supports up to 4HP of motor load capacity with overload protection
• Powers various household / office loads including refrigerators, computers, televisions, ovens, air conditioners, etc.

• Charging Modes: AC Priority / Solar Priority / Only Solar / Mains & Solar Hybrid Charging
• Output Modes: PV Priority / Utility Priority / Inverter Priority / Hybrid Output
• Supports grid-tie operation

• Voltage Range: 40-60V
• AGM / Sealed, Gel, Flooded, Lithium, and User-Mode for custom inputs
• RS485 port for supporting BMS communication
