Solar Kit – 14.4kW PV Input, 20kW Output, Multiple Batteries

SKU:

SGR-20K

Brand:

Solar Bundles & Kits

(2) 10 kW Solar Inverters

14.4 kW Solar Panel Bundle

Multiple Battery Options

Availability: In-Stock

Price range: $15,975.00 through $17,535.00

PRICE MATCH GUARANTEE

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

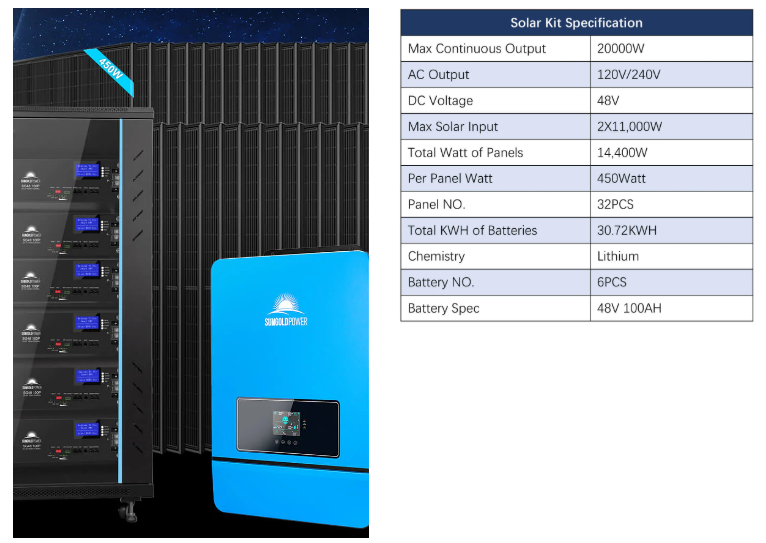

★ Solar Kit Summary

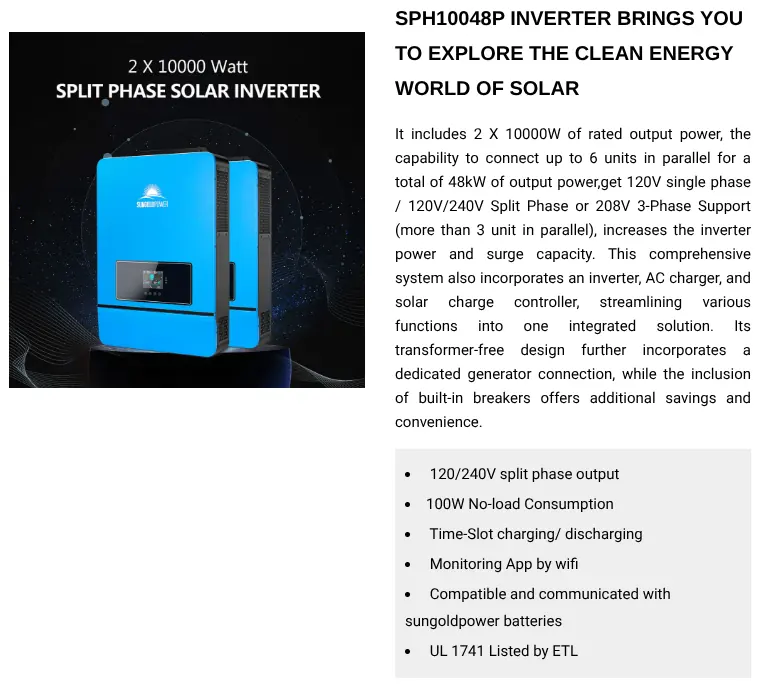

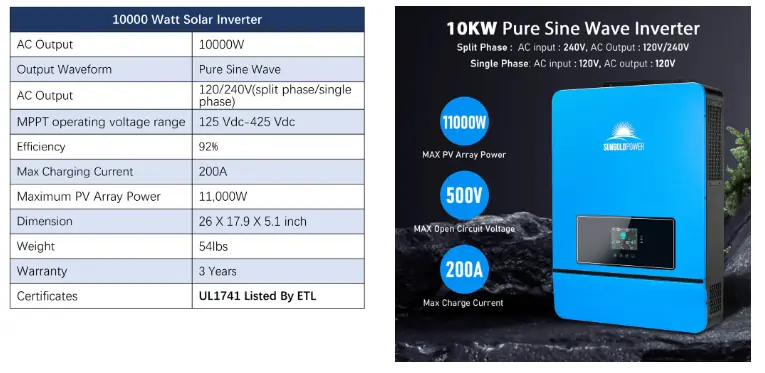

(2) 10kW 48V Split-Phase 120/240Vac Inverters (SPH10048P)

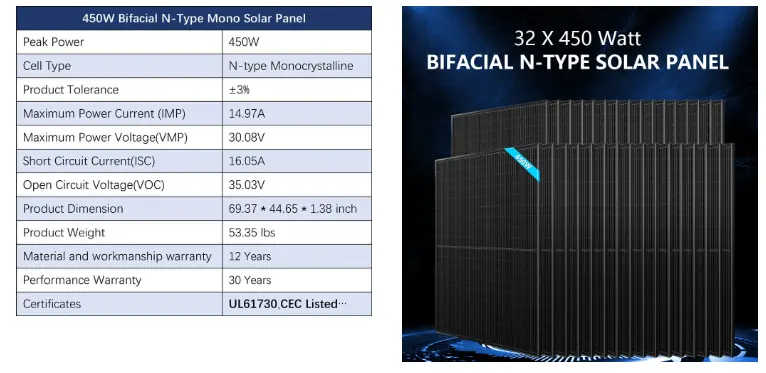

(32) 450W Bifacial N-Type Monocrystalline Solar Panels (SGN-450-BDG5)
(4) Sets x 50′, Solar Extension Cables (Link)
(32) Sets of Mounting Z-Brackets (Link)
(2) 200A DC Breakers (Link)
(4) 25A PV Breakers (Link)
Battery Options:

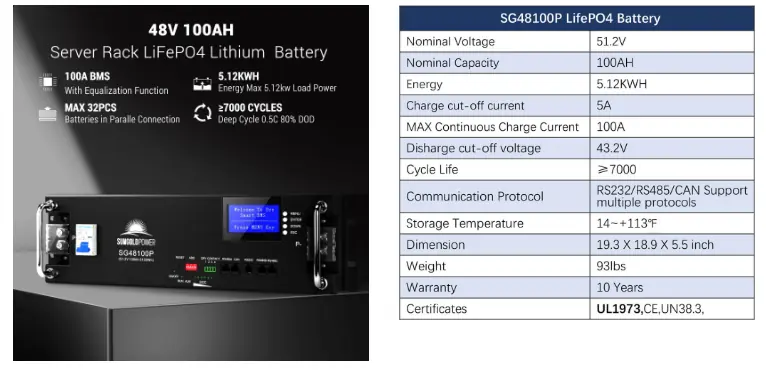

- (6) 100Ah 51.2V LFP Batteries (SG48100P) + Enclosed Cabinet (Link)

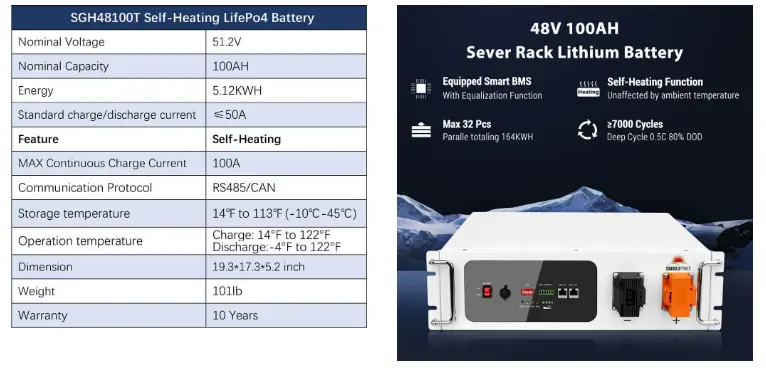

- (6) 100Ah 51.2V Self-Heating LFP Batteries (SGH48100T) + Enclosed Cabinet (Link)

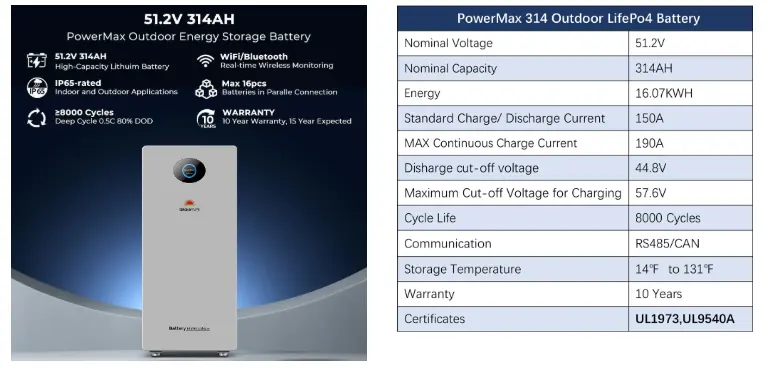

- (2) 314Ah 51.2 LFP Power Max 314 Outdoor Batteries (Link)

Features

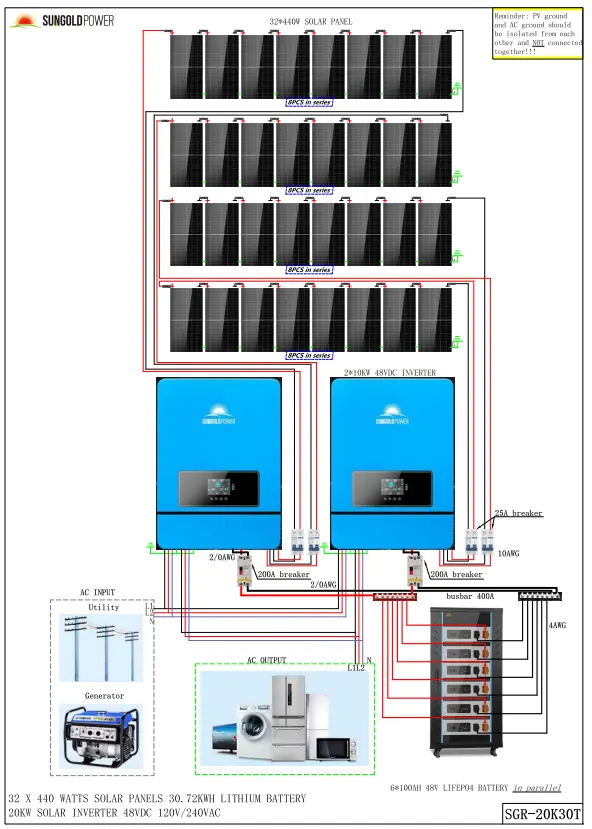

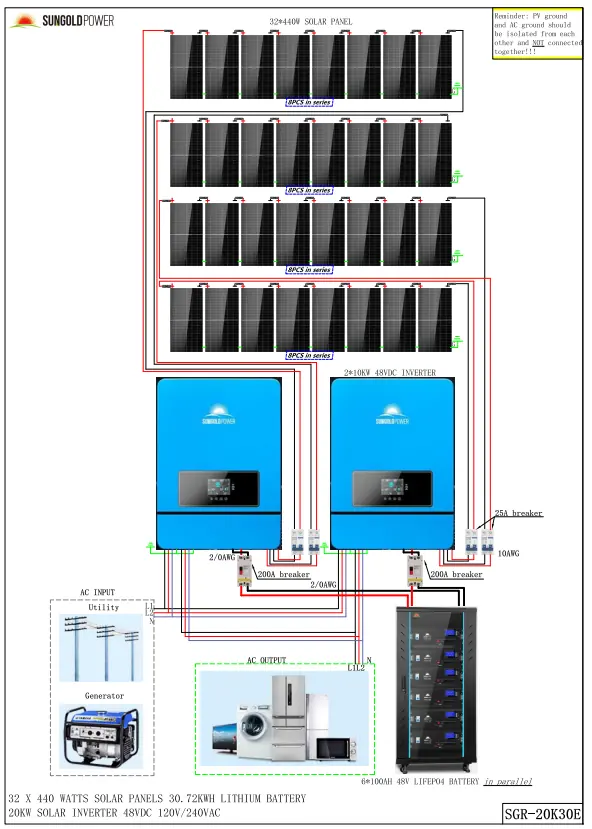

This solar package includes (32) 450W solar panels, 30.72-32.14 kWh LFP batteries, (2) 10kW split-phase solar inverters (120/240V) and the necessary cables and mounting brackets. It will produce up to 56kWh per day with only 4 hours of sunlight. With 20kW of 120/240V split-phase capability, this system is powerful enough to run high-demand appliances like an air conditioner, well pump, refrigerator, power tools, office equipment, and more! Easily expand to suit growing power needs by adding solar panels, batteries and up to 6 identical inverters connected in single-phase (120Vac), split-phase (240Vac) or three-phase (208Vac) arrangements.
