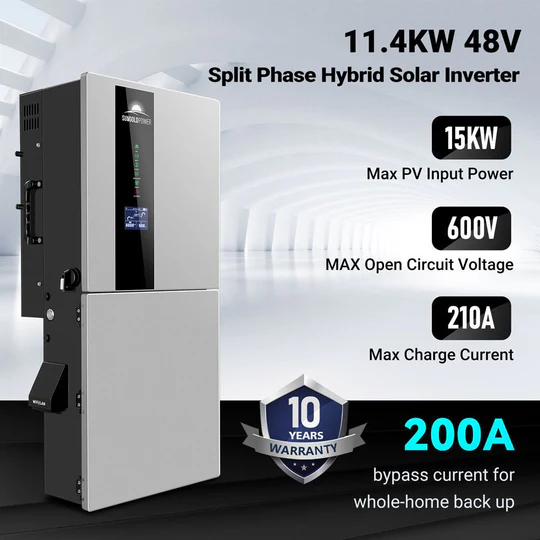

SunGoldPower 11.4KW 48V Whole Home (200A) Inverter

★ All-In-One (AIO) Solar Hybrid Inverter

• 11.4kW Pure Sine Wave Inverters
• 200A Whole-Home Backup Capability
• Split-Phase (120/240V)
• (3) Integrated MPPTs (30A / 22A / 22A each)
• Supports PV input sized up to 15kW @ 600V

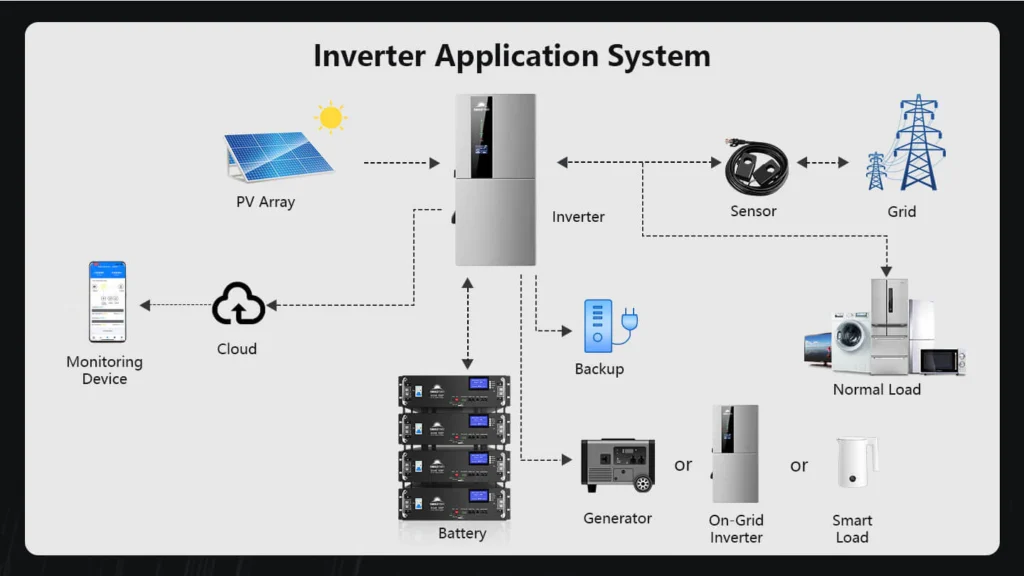

• Supports grid-tied (AC-Charging) & off-grid system operation

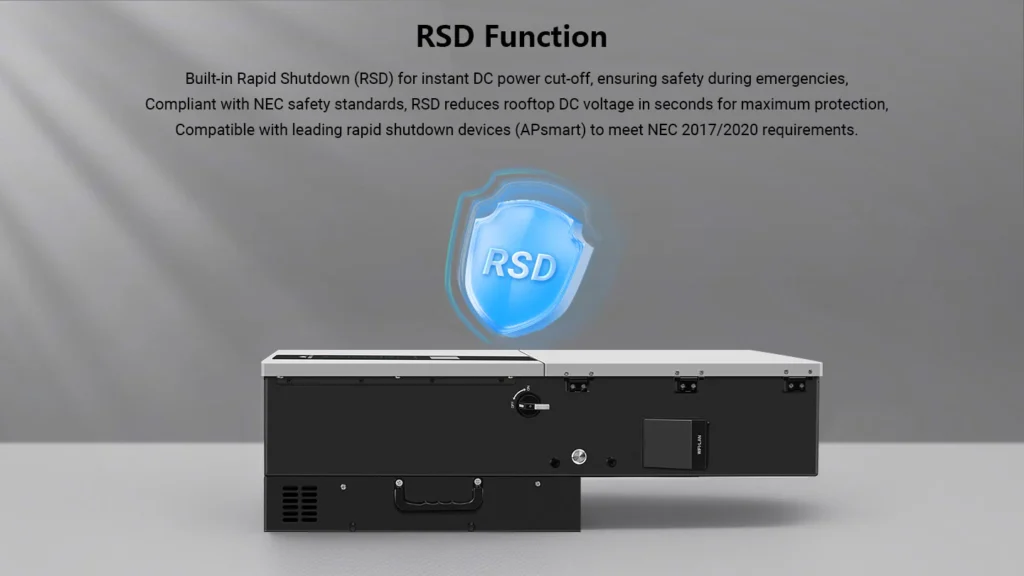

• Built-In Rapid Shutdown (RSD) function

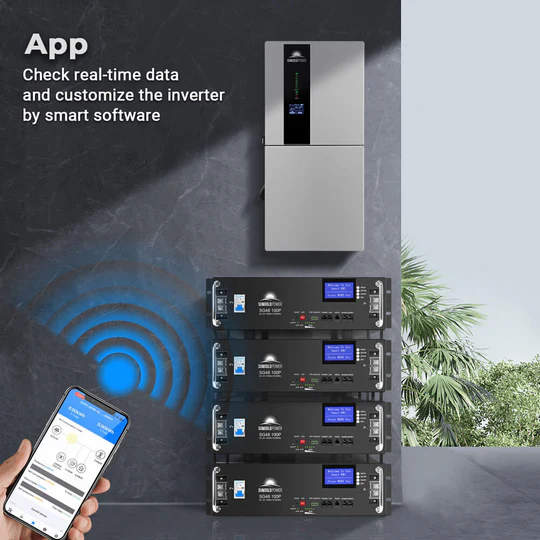

• Bluetooth-enabled for monitoring & adjusting settings
• WiFi-enabled for remote monitoring

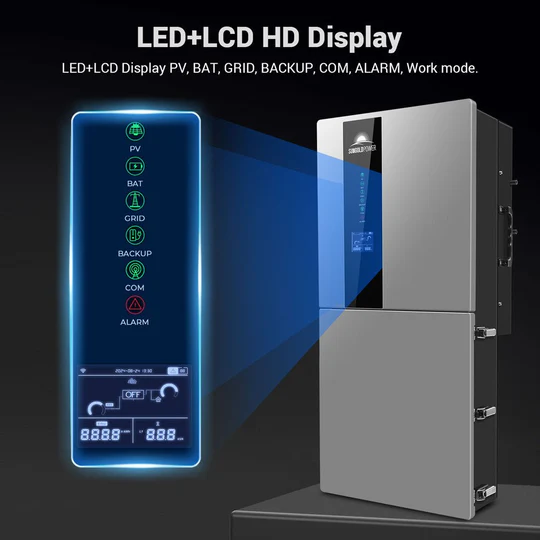

• LED + LCD with user-friendly Interface

  ★ Parallel Function

• Parallel up to (9) units together, supporting up to 102.6kW power output
• (1) Unit = Single or Split-Phase (120/240V) or 2/3 Phase (208V)
• Parallel function increases net inverter power and surge capacity.

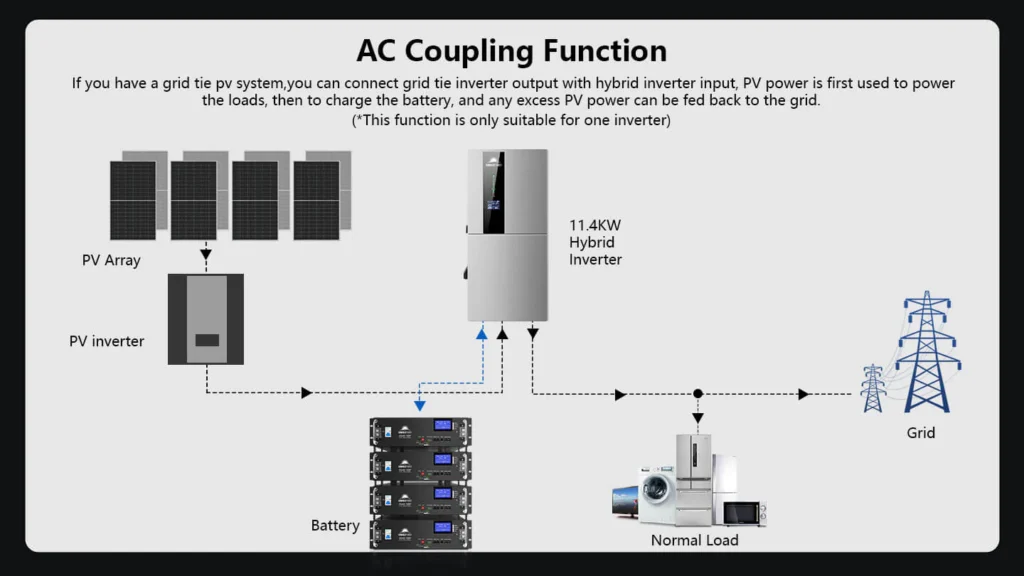

  ★ Advanced AC Coupling

• Integrates with grid-tie systems and supports smart load
• Smart load support is suitable for one inverter

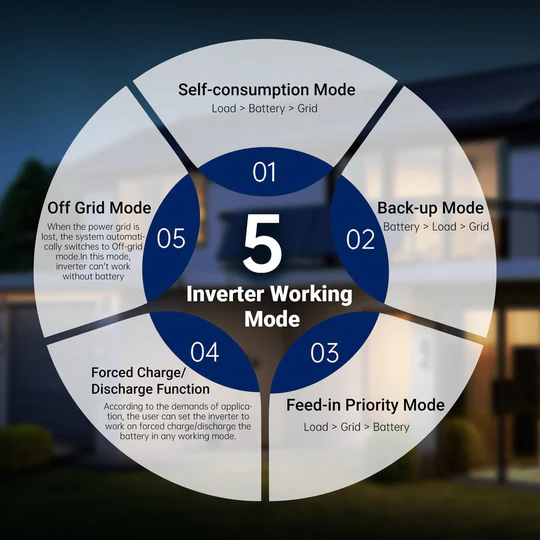

  ★ (4) Inverter Work Modes

• Self-Consumption / Feed-in Priority / Back-Up / Off-Grid

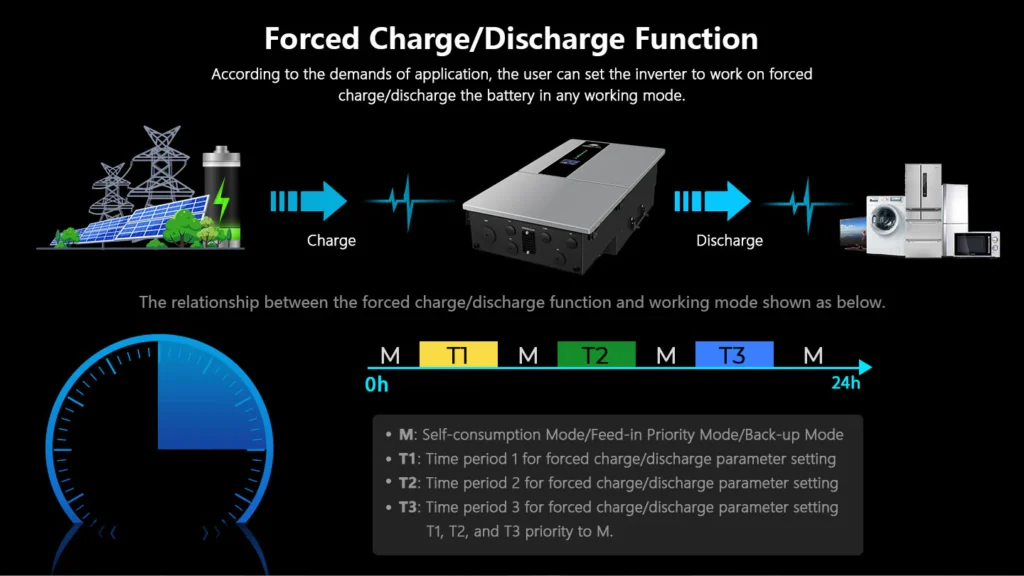

• Supports Forced Charge/Discharge Function
• Supports grid-tie operation

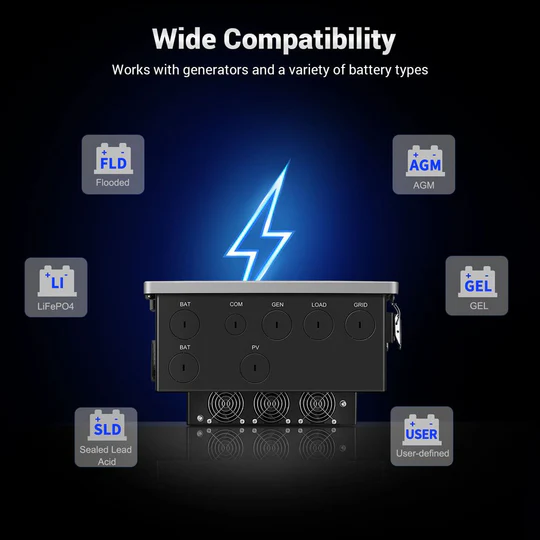

  ★ Battery Compatibility

• Voltage Range: 40-64V
• Lithium-Ion, Lead-Acid, and User-Mode for custom inputs
• RS485 & CAN-bus support for BMS communication

  ★ Durable & Safe

• IP65 rated, Wall-mounted design, 10-year warranty
• Ensure continuous power to critical loads with battery backup when the grid fails
• Certificates: UL1741, IEEE1547.1-2020, Rule 21, HECO, and CEC Listed

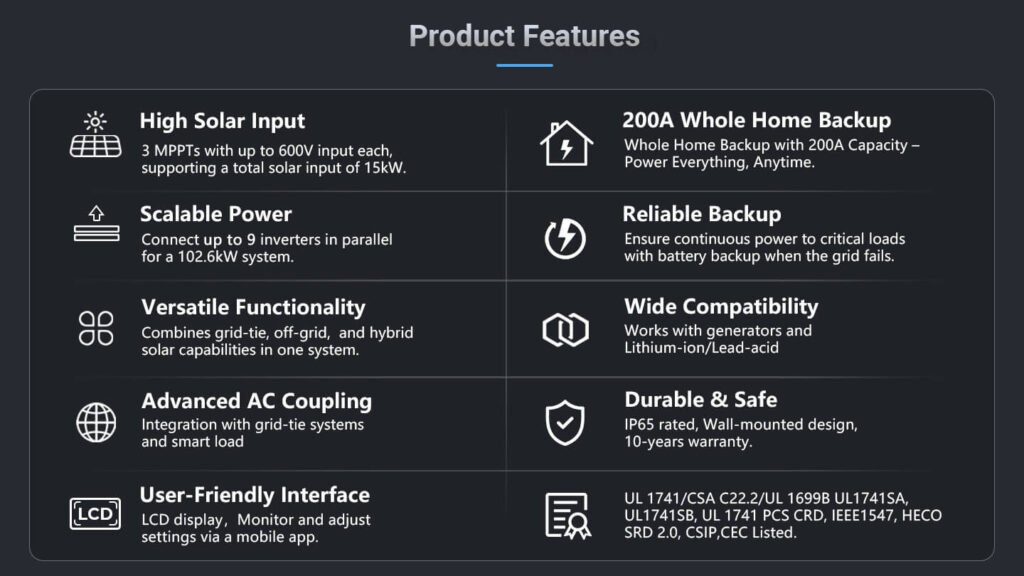

Features

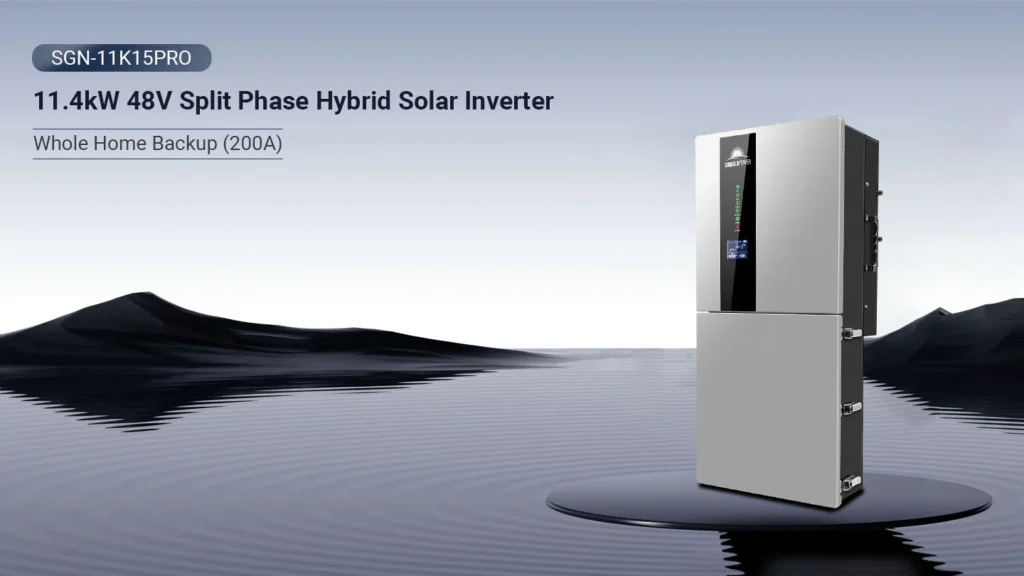

11.4kW 48V Split-Phase Hybrid Solar Inverter

Whole Home Backup (200A)

This high-performance hybrid inverter is engineered to efficiently convert solar energy into AC power, store excess energy in batteries, or feed it back into the grid. Supporting up to 15kW PV input and delivering 11.4kW continuous output, it offers unmatched flexibility for off-grid, grid-tied, or hybrid solar systems.

Equipped with AC-coupled functionality and a robust 200A whole-home backup capability, it ensures uninterrupted power supply during outages. Its IP65-rated enclosure makes it ideal for both indoor and outdoor installations, providing durable, weather-resistant performance in any environment.



Stay Powered, No Matter What.

With the 200A bypass, your home instantly switches to grid power when needed—no interruptions, no worries. It handles your entire home’s energy needs, from air conditioning to kitchen appliances, keeping you safe, comfortable, and always connected.

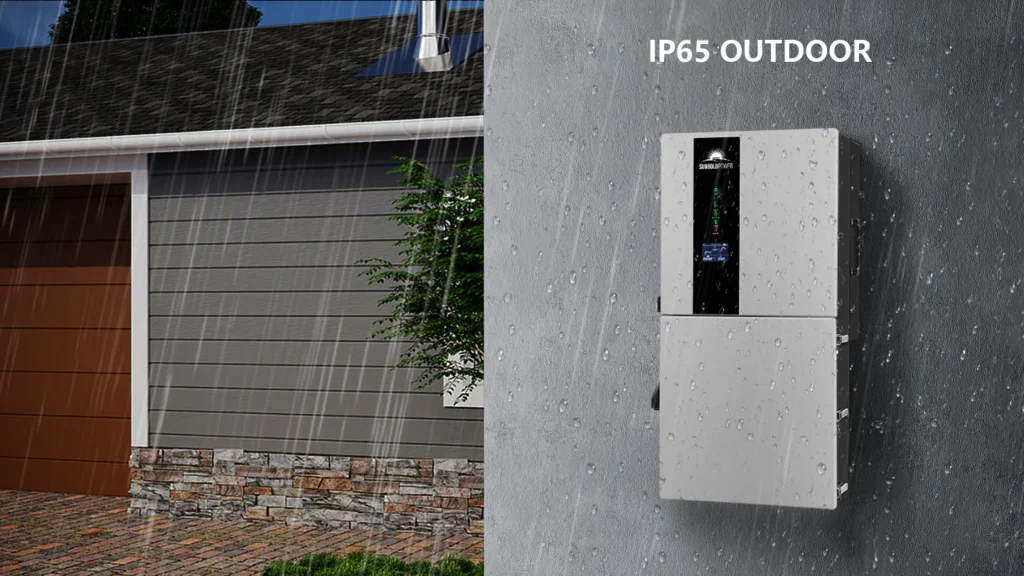

IP 65 Outdoor / Indoor



All-Weather Reliability. Anytime. Anywhere.
