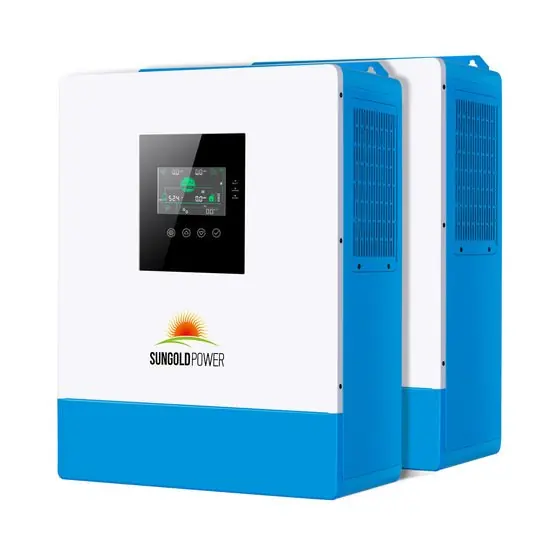

SunGoldPower 10kW 48V Solar Inverter Charger (2 Units Parallel)

• (2) 5kW Pure Sine Wave Inverters
• (2) Units enables Single or Split-Phase (120/240V) configurations
• Integrated 100A MPPT
• Supports PV input sized up to 5500W @ 500V
• Supports grid-tied (AC-Charging) & off-grid system operation

• Includes (2) units to support 10kW power output
• Up to (4) additional units can be added to yield 30kW power output
• Add (1) or more units to support 3-Phase (208V) operation
• Parallel function increases net inverter power and surge capacity.

• Supports up to 4HP of motor load capacity with overload protection
• Powers various household / office loads including refrigerators, computers, televisions, ovens, air conditioners, etc.

• Charging Modes: AC Priority / Solar Priority / Only Solar / Mains & Solar Hybrid Charging
• Output Modes: PV Priority / Utility Priority / Inverter Priority / Hybrid Output
• Supports grid-tie operation

• Voltage Range: 40-60V
• AGM / Sealed, Gel, Flooded, Lithium, and User-Mode for custom inputs
• RS485 port for supporting BMS communication
