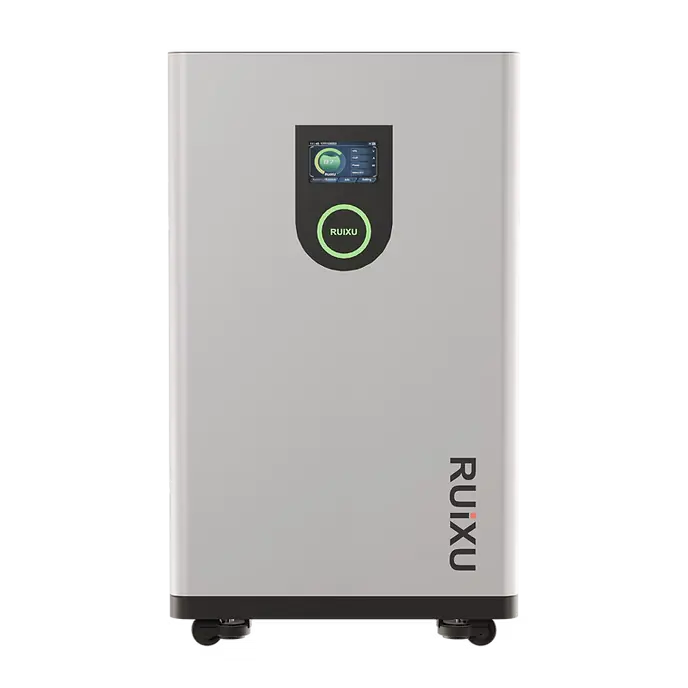

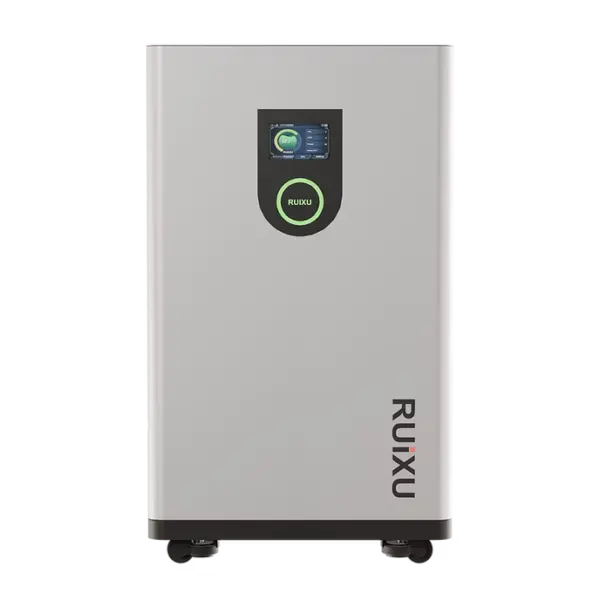

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh)

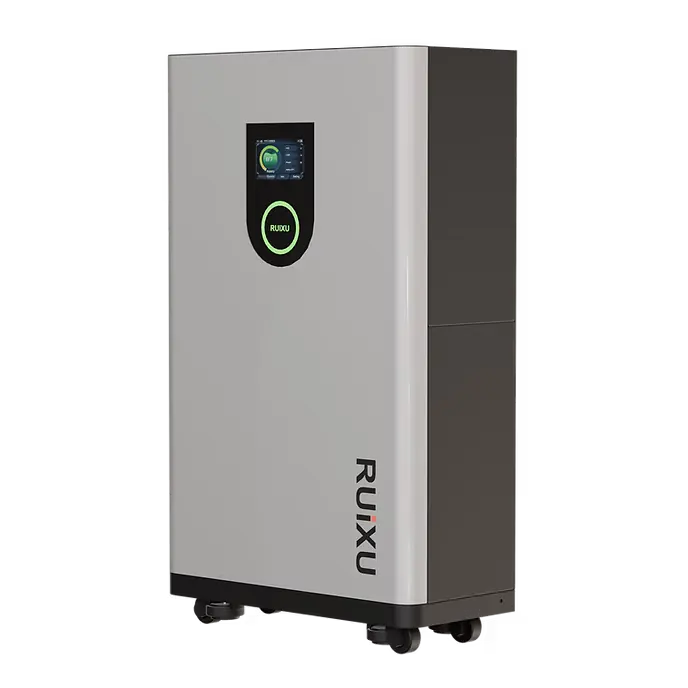

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 2

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 3

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 4

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 5

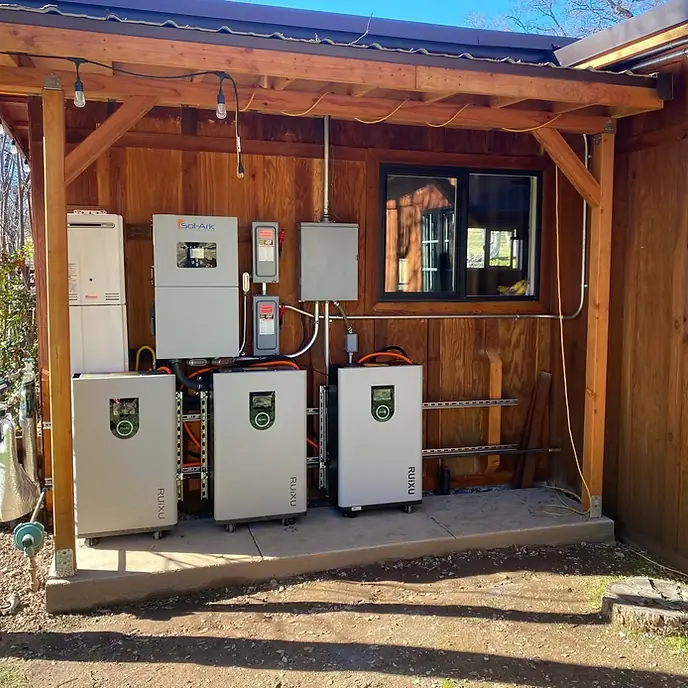

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 6

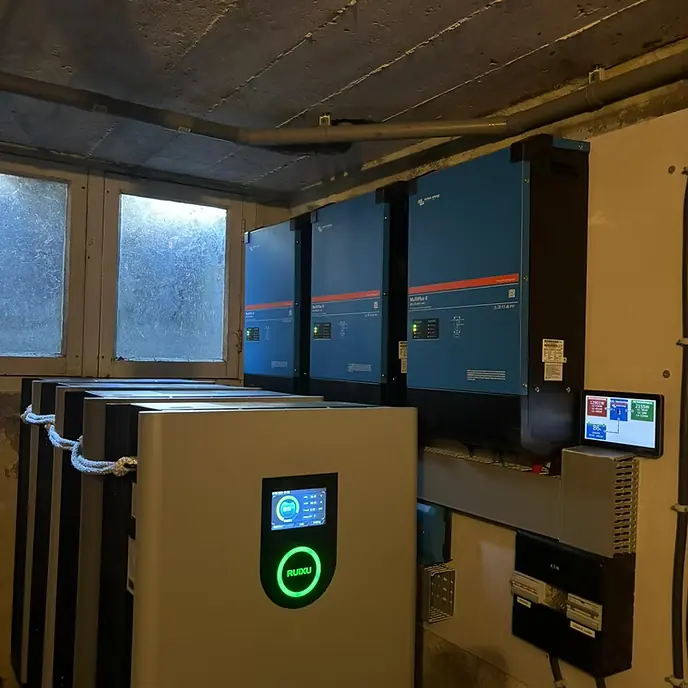

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 7

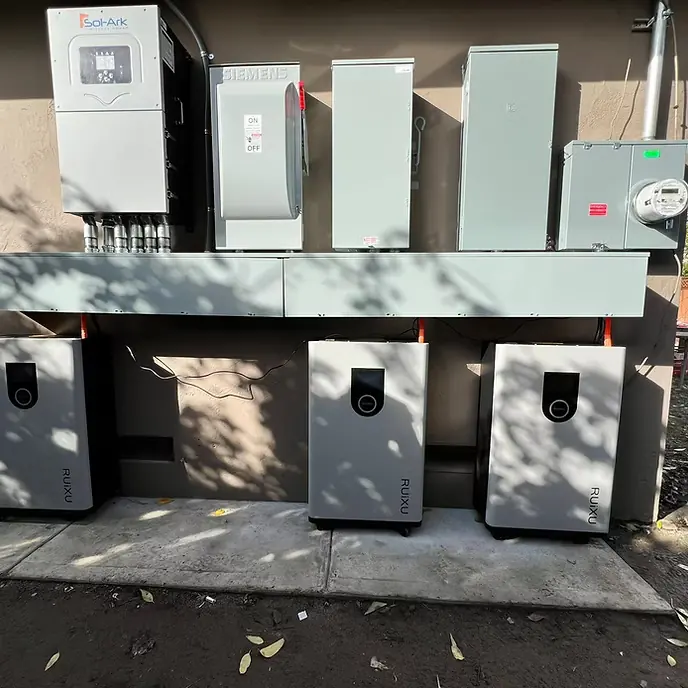

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 8

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 9

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 10

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 11

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 12

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh) - Image 13

RUiXU Lithi2-16 48V 314Ah (51.2V, 16kWh)

SKU:

Lithi2-16

Brand:

SKU:

Lithi2-16

Brand:

LFP Battery

51.2V 314Ah (16kWh) Battery

Parallel Support

Integrated BMS (CAN / RS485)

10-Year Warranty

Self Heating

CE, IEC62619, UN 38.3

UL1973, UL9540A

Price range: $3,430.00 through $13,196.00

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

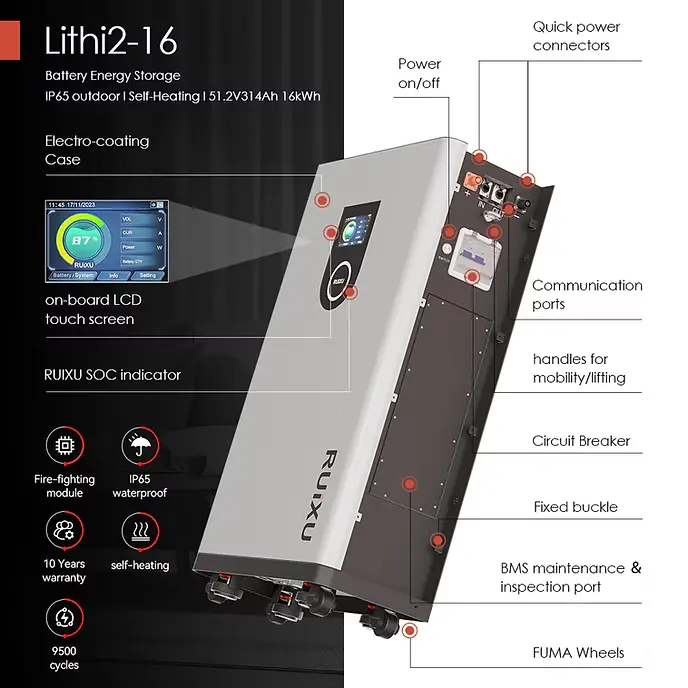

★ Key Features

51.2V 314Ah (16kWh) LFP Battery
Parallel up to (32) units together, expanding from 16kWh to 257kWh
Self-Heating, supports battery charging in cold temperatures
IP55-Rated
5″ LCD Touch Screen
≥ 9500 cycles @ 80% DOD

★ Easy Portability

Features (4) heavy-duty wheels to make moving around easy

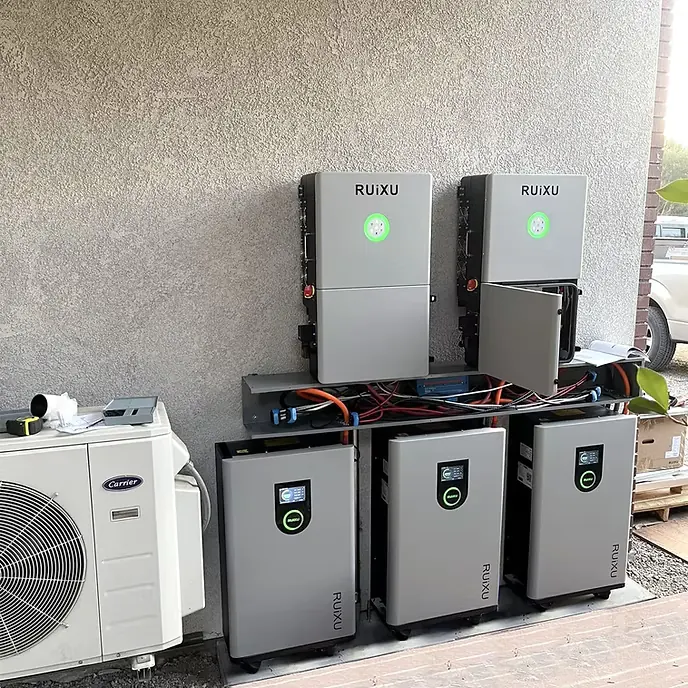

★ Wall-Mount Supported

Supports Wall-Mounting (Bracket Included)
Integrated anti-tipping mount helps anchor unit to the wall

★ Intelligent Balancing

A double equilibrium approach achieves efficient cell balancing by calculating capacity differences between battery cells from charging-process data and by extending the balancing time, improving the efficiency and reliability compared to general passive and active balancing modes.

★ Communication

CAN-Bus – Victron, SMA, Studer, Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
RS485 – MPP, Voltronic, RCT, Alpha Outback

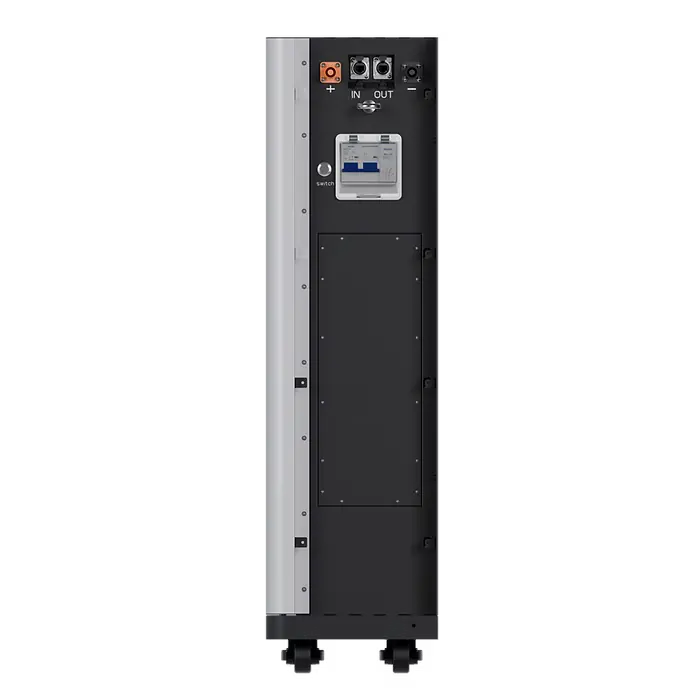

★ Quick Plugs

250A (continuous) over current capacity
Simple tool-less connection
Long-term anti-loosening & heating protection

What’s In The Box:

(1) RUiXU Lithi2-16
(1) RJ45/CAT5e Patch Cable
(1) Ground Cable
(1) Set of parallel 1/0 AWG OP140/PP140 cables

Optional Accessories (Sold Separately)

Wall Mount Kit

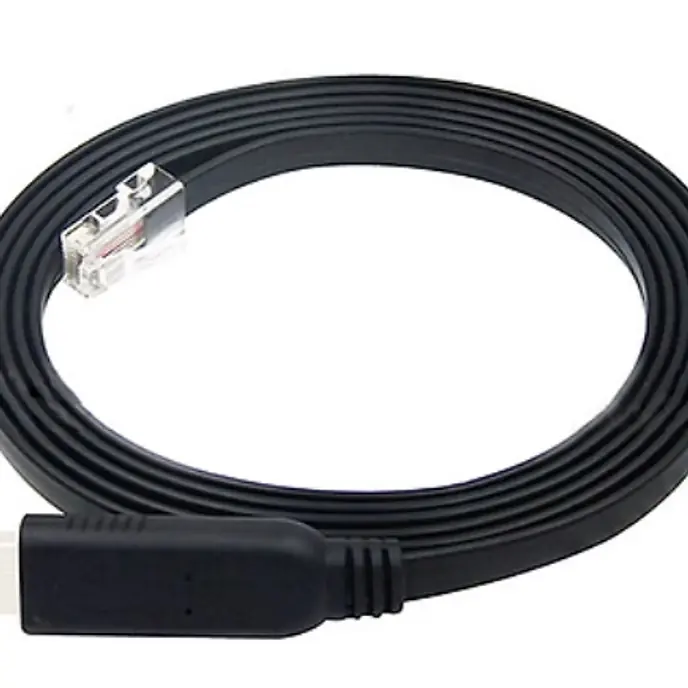

RS485 Cable – Used for firmware updates & monitoring the battery
CAT6 Cable – Used for communicating between battery bank & inverter
Busbars
- RUiXU 800A RX9MP Quick-Connect Busbar
- RUiXU 600A RX5600 5-Post Busbar
- RUiXU 600A RX8600 8-Post Busbar
- Wiring Differences: RX9MP vs RX5600 vs RX8600

Additional information

Weight	302.01 lbs

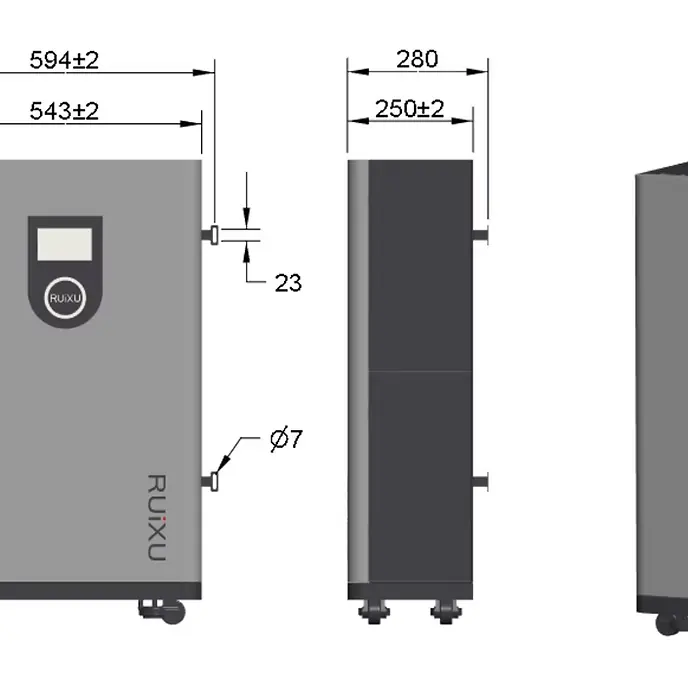

Dimensions	36.3 × 21.3 × 10 in
Quantity	1, 2, 4

DATASHEET

USER MANUAL
