Solar Kit – 14.4kW PV Input, 20kW Output, Multiple Batteries

SKU:

SGR-20K

Brand:

SKU:

SGR-20K

Brand:

Price range: $15,124.00 through $16,493.00

Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

Solar Kit Summary

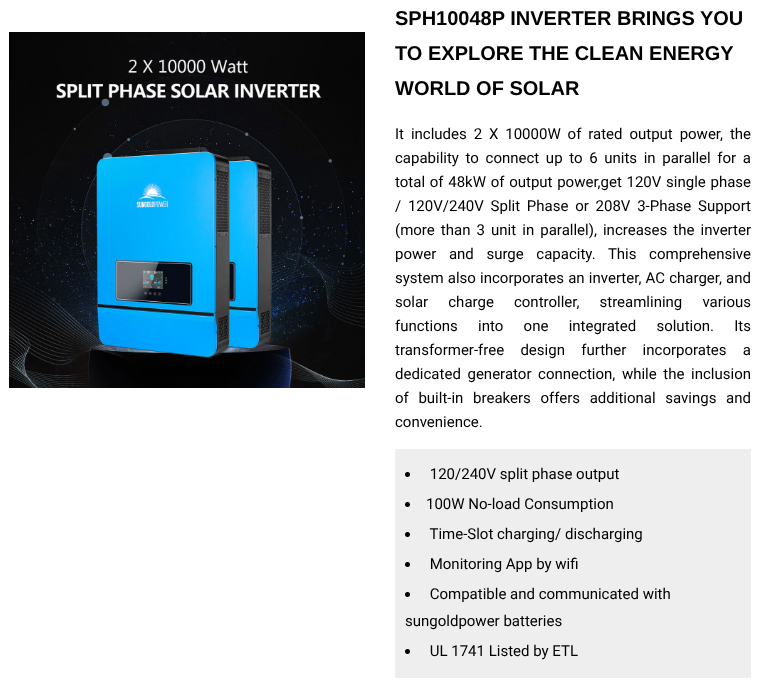

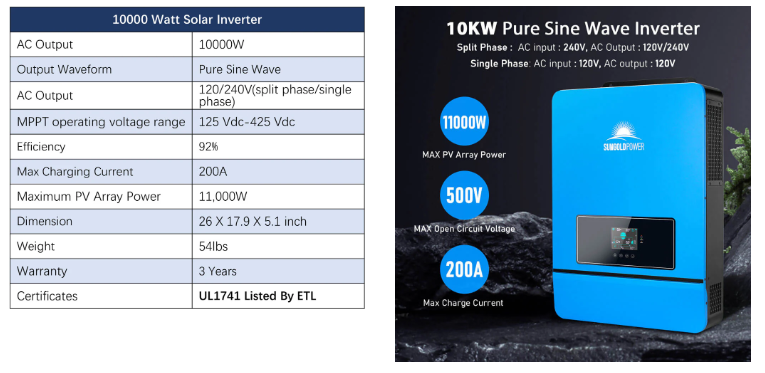

  • (2) 10kW 48V Split-Phase 120/240Vac Inverters (SPH10048P)

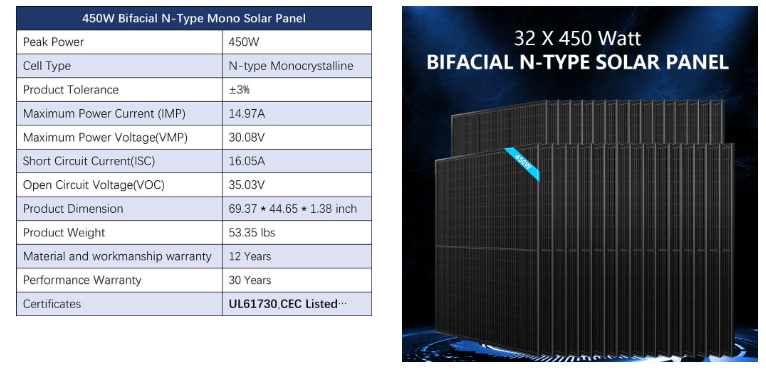

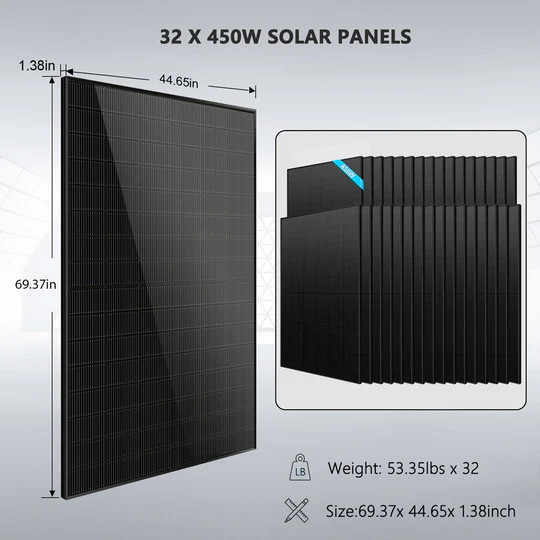

  • (32) 450W Bifacial N-Type Monocrystalline Solar Panels (SGN-450-BDG5)
  • (4) Sets x 50′, Solar Extension Cables (Link)
  • (32) Sets of Mounting Z-Brackets (Link)
  • (2) 200A DC Breakers (Link)
  • (4) 25A PV Breakers (Link)

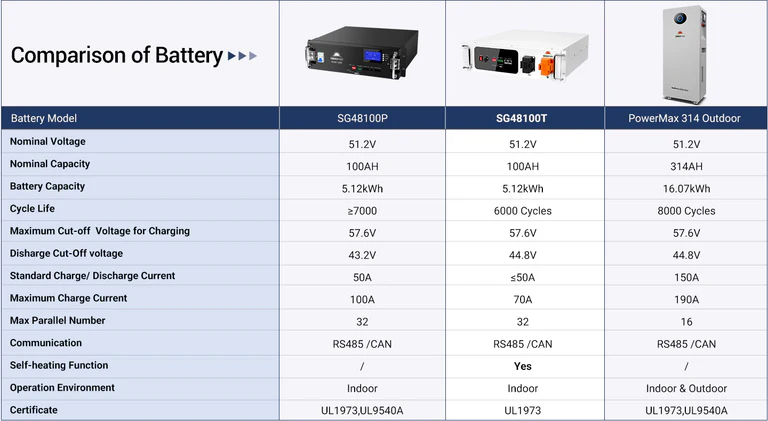

  • Battery Options:

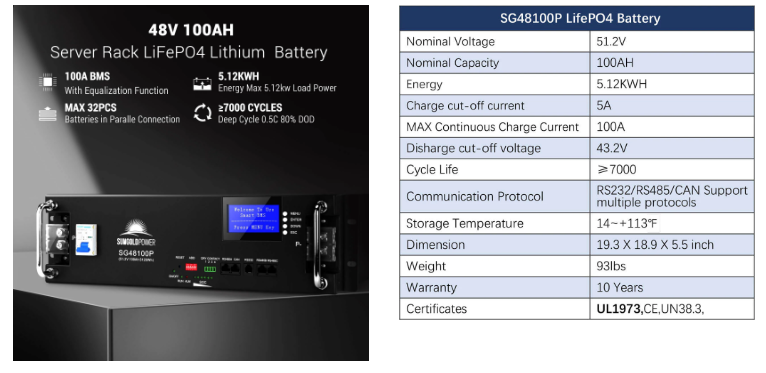

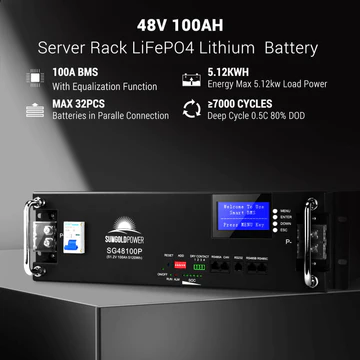

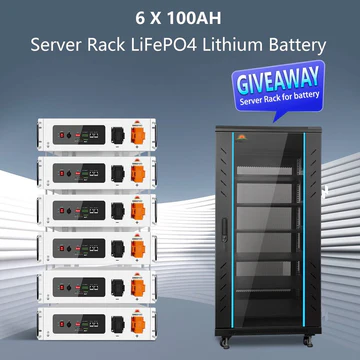

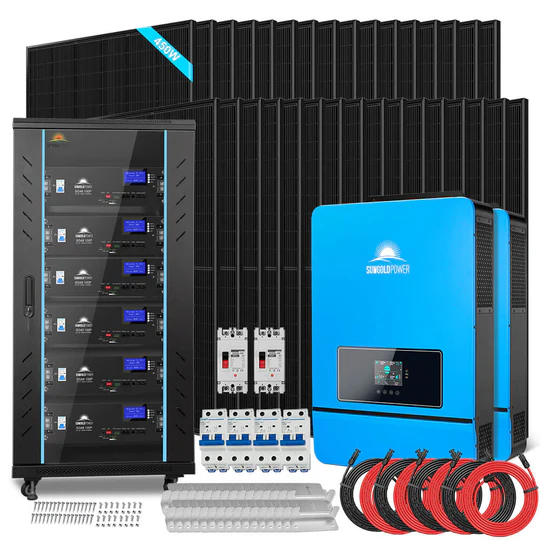

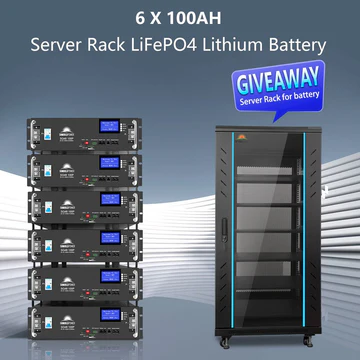

    • (6) 100Ah 51.2V LFP Batteries (SG48100P) + Enclosed Cabinet (Link)

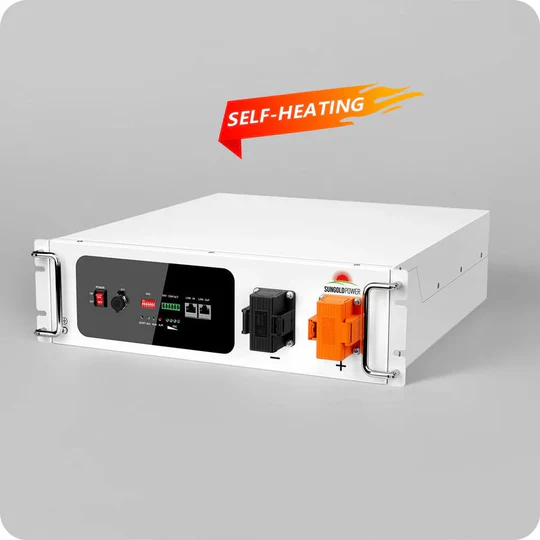

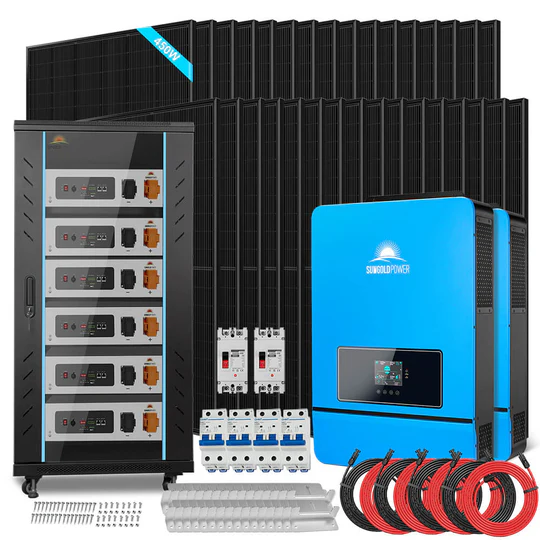

    • (6) 100Ah 51.2V Self-Heating LFP Batteries (SGH48100T) + Enclosed Cabinet (Link)

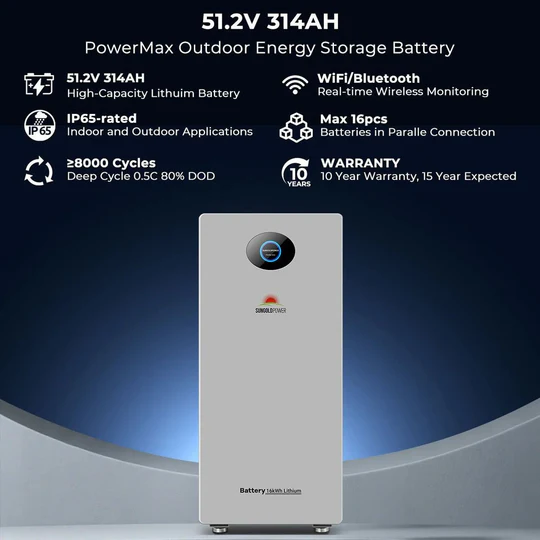

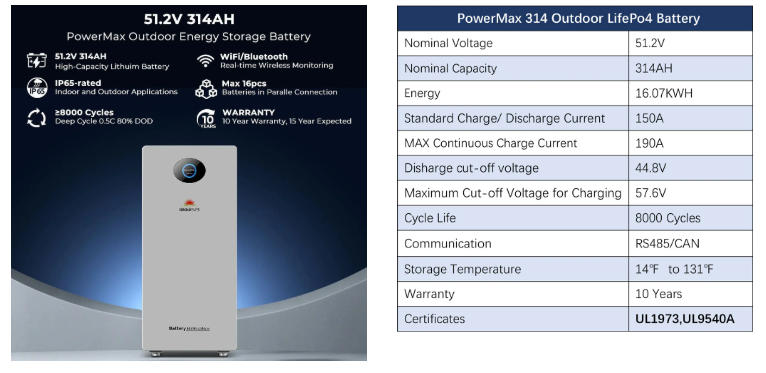

    • (2) 314Ah 51.2 LFP Power Max 314 Outdoor Batteries (Link)


Features

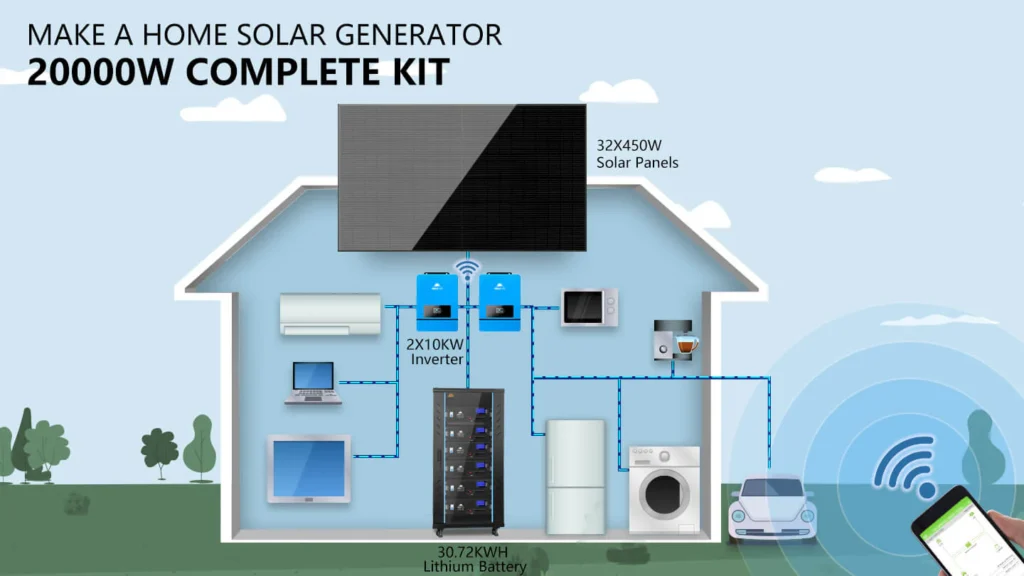

This solar package includes (32) 450W solar panels, 30.72-32.14 kWh LFP batteries, (2) 10kW split-phase solar inverters (120/240V) and the necessary cables and mounting brackets. It will produce up to 56kWh per day with only 4 hours of sunlight. With 20kW of 120/240V split-phase capability, this system is powerful enough to run high-demand appliances like an air conditioner, well pump, refrigerator, power tools, office equipment, and more! Easily expand to suit growing power needs by adding solar panels, batteries and up to 6 identical inverters connected in single-phase (120Vac), split-phase (240Vac) or three-phase (208Vac) arrangements.

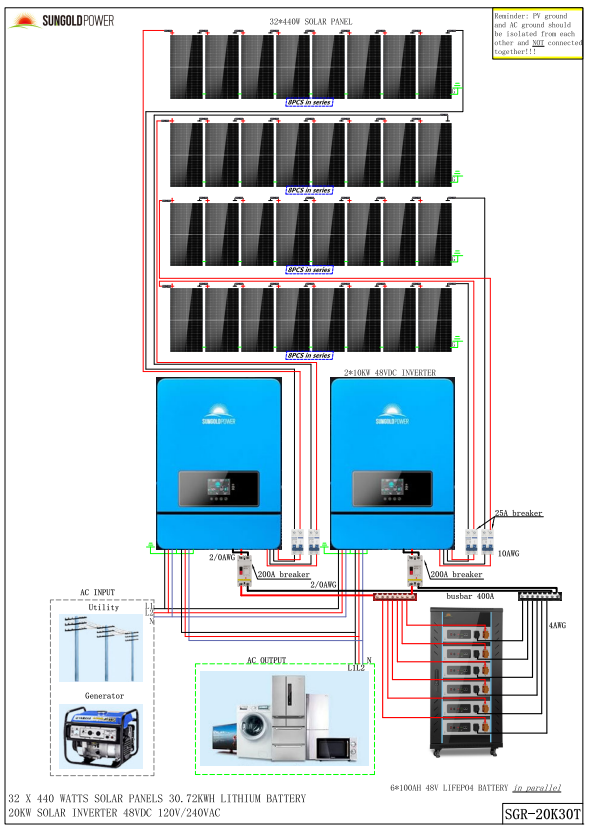

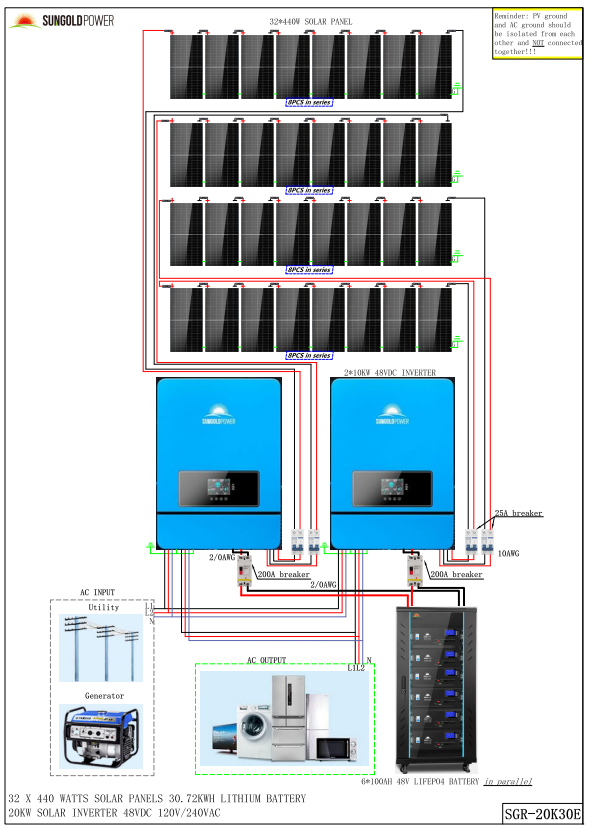

Wiring Diagram

Additional information

Weight 2000 lbs
Battery Option

30.72 kWh, 30.72 kWh Self-Heating, 32.14 kWh
