SunGoldPower 11.4kW High Voltage (HV) Split-Phase Inverter

SKU:

SG11.4KHB-HV

Brand:

SKU:

SG11.4KHB-HV

Brand:

11.4kW High Voltage (HV) Inverter

Battery Voltage: 120-500V (HV)

18kW Max PV Input (up to 600V)

Grid Input

Bluetooth/WiFi

UL1741/SA/SB, UL1699/B

Original price was: $2,488.00.Current price is: $1,990.00.

PRICE MATCH GUARANTEE

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

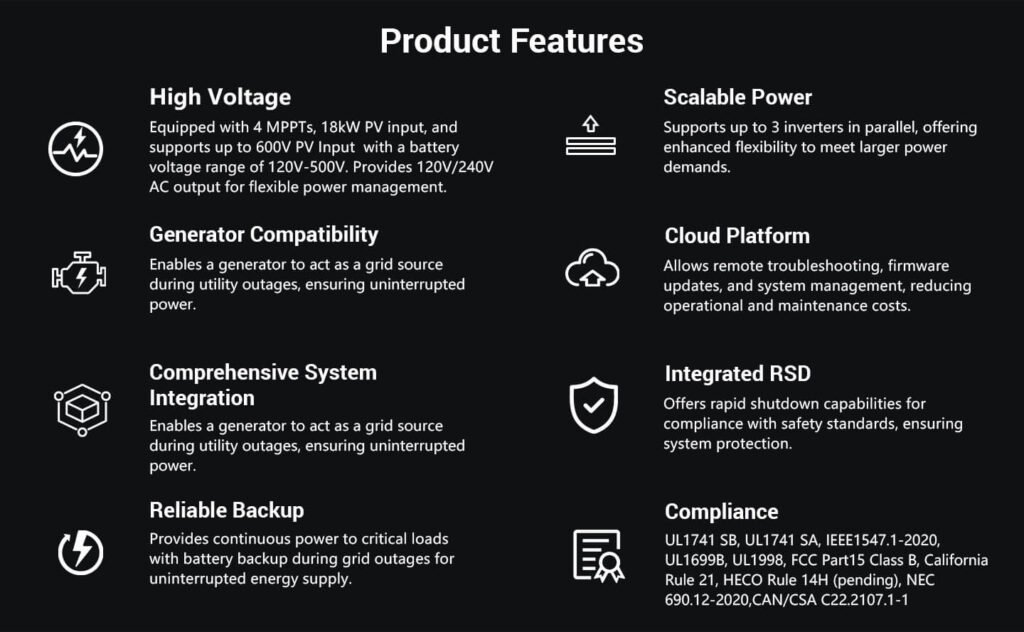

★ All-In-One (AIO) Solar Hybrid Inverter

11.4kW Hybrid Inverter Inverter
Battery Voltage: 120-500V
Split-Phase (120/240V)
(4) Integrated MPPTs (16A each)
Supports PV input sized up to 18.24kW @ 600V
Supports grid-tied (AC-Charging) & off-grid system operation
Bluetooth-enabled for monitoring & adjusting settings
WiFi-enabled for remote monitoring
LCD with user-friendly Interface

★ Parallel Function

Parallel up to (3) units together, supporting up to 34.2kW power output
Parallel function increases net inverter power and surge capacity.

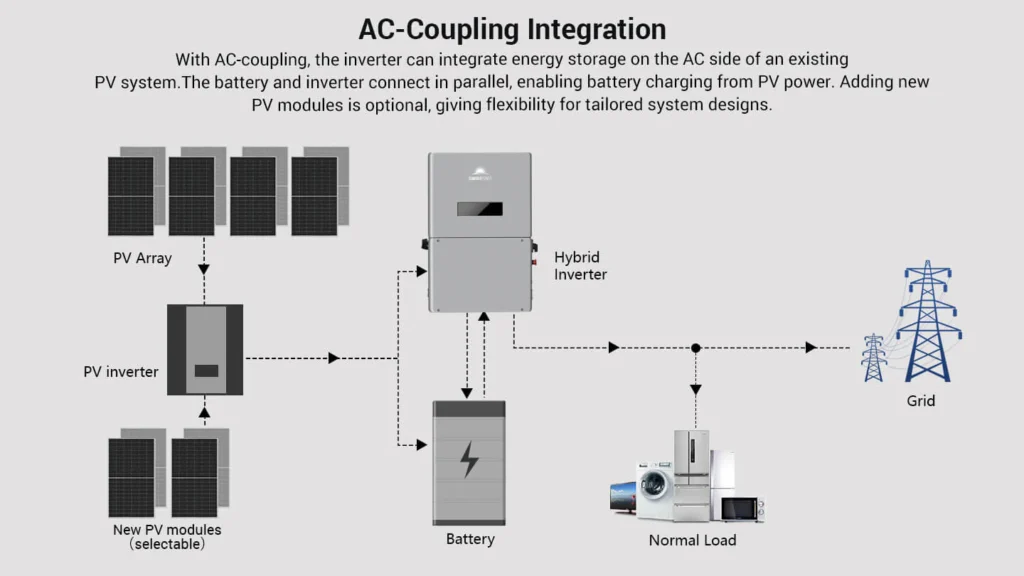

★ Advanced AC Coupling

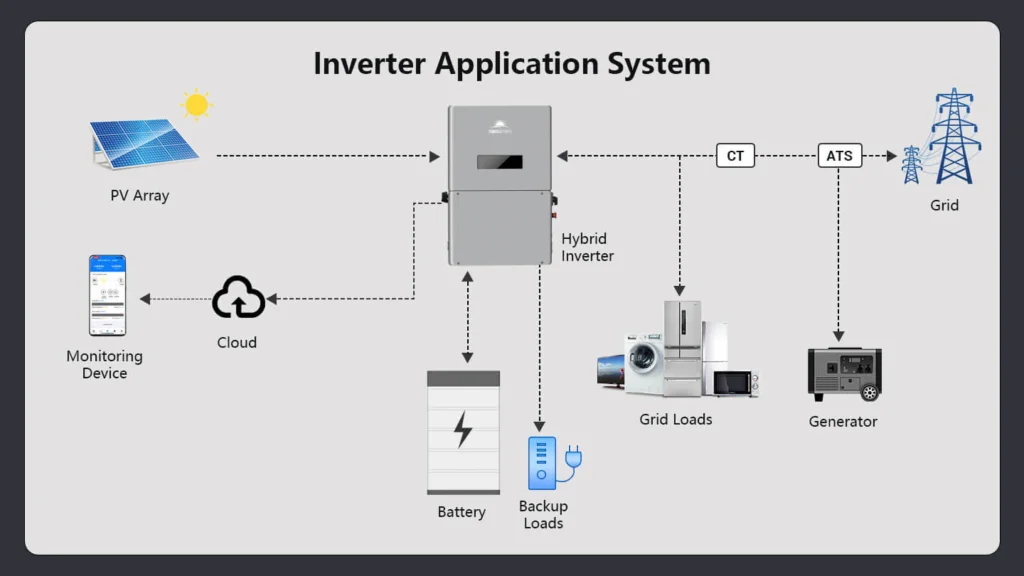

Integrates with grid-tied, off-grid, and hybrid solar systems
Highly adaptable to meet diverse power needs

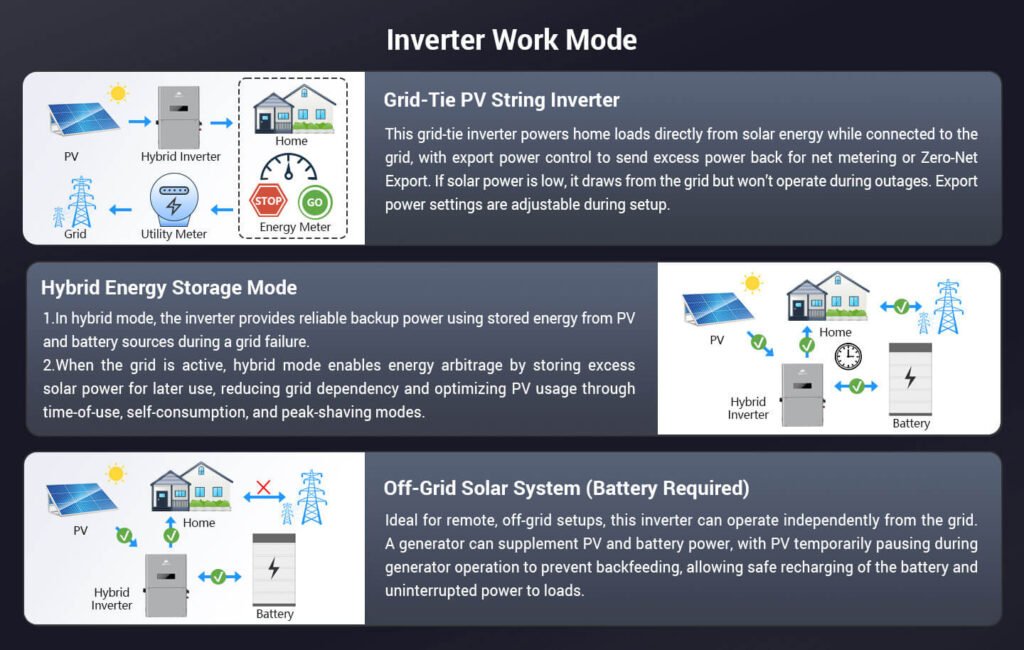

★ (7) Operating Modes

PV-Only / Energy Storage / Backup Power / Energy Arbitrage / Off-Grid / AC-Coupling / DC-Coupling

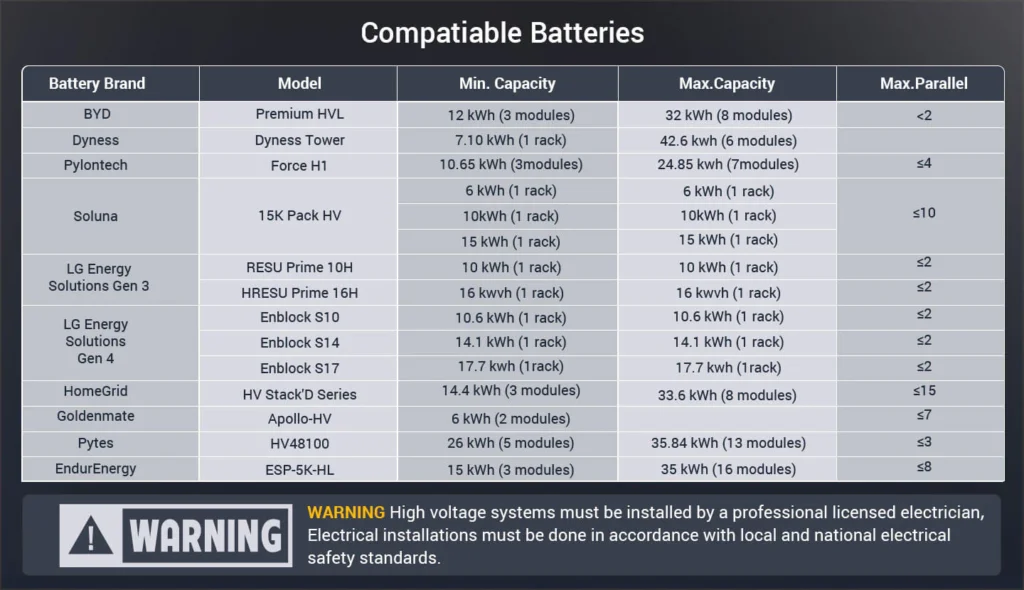

★ Battery Compatibility

Voltage Range: 120-500V
Compatible with approved batteries from BYD, Dyness, Pylontech, Soluna, LG Energy Solutions Gen 3 & 4, HomeGrid, Goldenmate, Pytes, and EndurEnergy
RS485 & CAN-bus support for BMS communication

★ Durable & Safe

IP66 rated, Wall-mounted design, 10-year warranty
Certificates: UL1741/SA/SB, UL1699/B, CAN/CSA C22.107.1-1, IEEE 1547.1-2020, FCC Part 15 Class B, California Rule 21, HECO Rule 14H (pending), NEC 690.12-2020

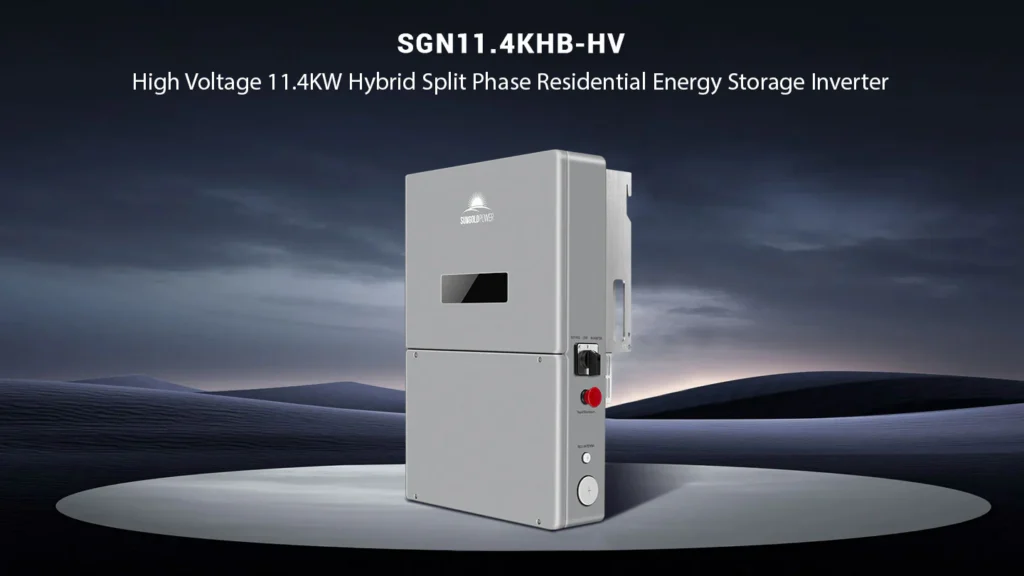

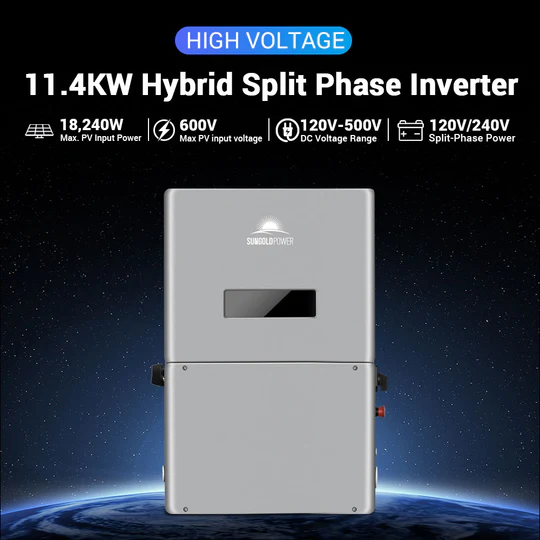

High Voltage 11.4kW Hybrid Split-Phase Inverter

with APS Transmitter (SG11.4KHB-HV)

This inverter delivers 11.4kW continuous output at 120V/240VAC while supporting a maximum PV input of 18.24kW. It is designed to work with high voltage lithium-ion batteries (120V-500V), optimizing self-consumption and providing reliable backup power in case of grid failure or when PV power is insufficient. It operates efficiently in both on-grid and off-grid applications and can be AC coupled and DC-coupled with various batteries, providing a versatile and flexible solution for different energy needs.
