SunGoldPower 13kW 48V Solar Inverter (2 Units Parallel)

SKU:

SPH6548Px2

Brand:

SKU:

SPH6548Px2

Brand:

Solar Inverter

(2) 6.5kW 48V Split-Phase Inverters

13kW Continuous Output

20kW Max PV Input

UL1741

Price range: $2,480.00 through $4,630.00

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ All-In-One (AIO) Solar Hybrid Inverter

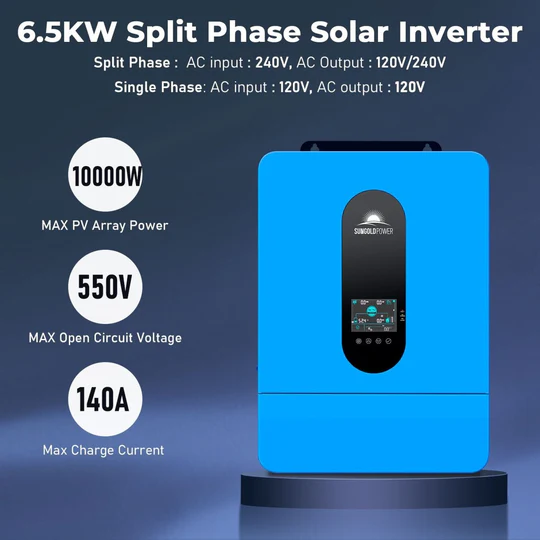

  • (2) 6.5kW Watt Pure Sine Wave Inverter

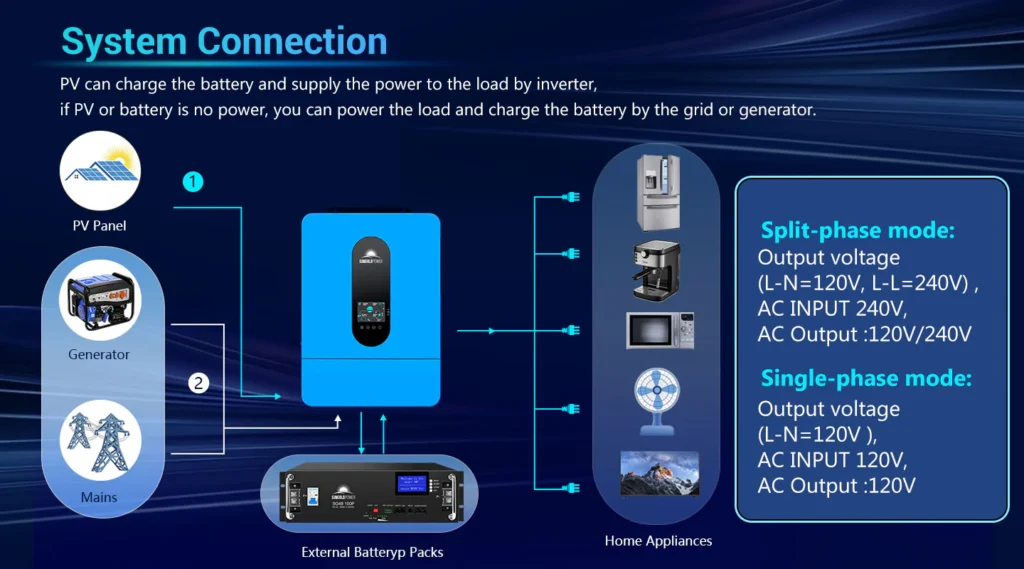

  • Single or Split-Phase (120/240V)
  • (2) Integrated 18A MPPT each
  • Supports PV input sized up to 20kW @ 550V
  • Supports grid-tied & off-grid system operation

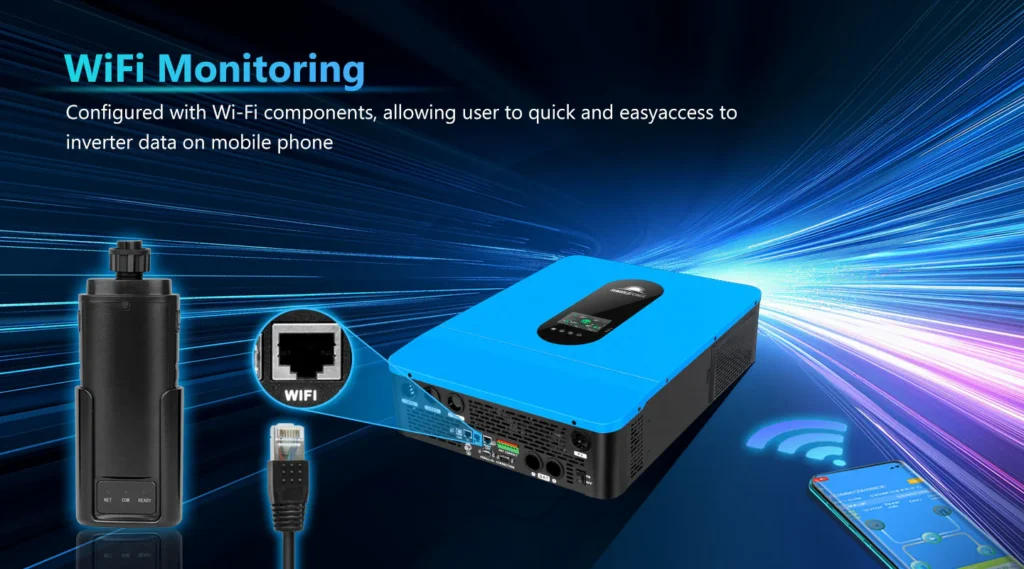

  • Smart-enabled (WiFi) for remote app control

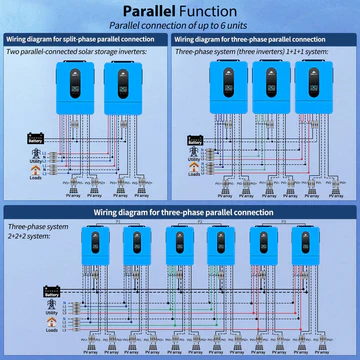

  ★ Parallel Kit
  • Includes (2) units to support 13kW power output
  • Up to (4) additional units can be added to yield 39kW power output
  • Add (1) or more units to support 3-Phase (208V) operation
  • Parallel function increases net inverter power and surge capacity.
  ★ Stable AC Output
  • 13kW Inverter Pure Sine Wave output @ 120/240V AC
  • 26kW Peak Capacity
  • PV input over-voltage / current protection, AC input over-voltage protection, Battery over-voltage protection, Overload protection
  • Powers various household / office loads including refrigerators, computers, televisions, ovens, air conditioners, etc.

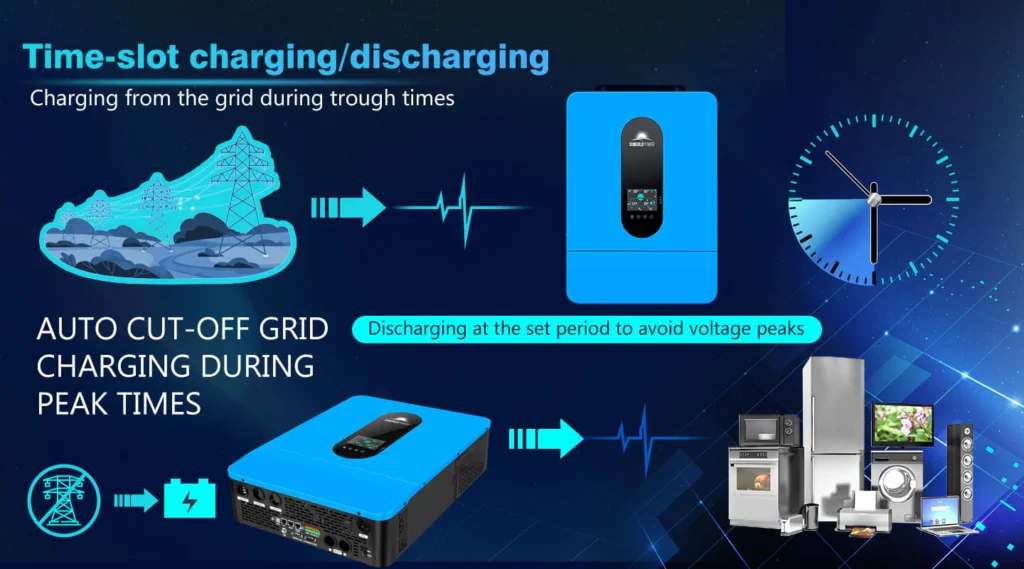

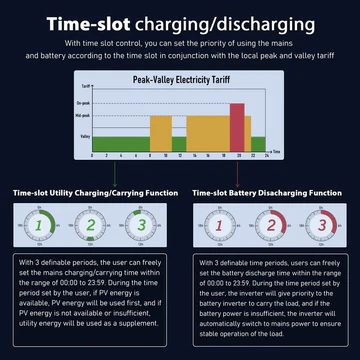

  ★ Time-slot Charging / Discharging Function
  • The SPH series is equipped with a time-slot charging and discharging function which allows users to set different charging and discharging periods according to the local peak and valley tariffs so that the utility power & PV energy can be used rationally.

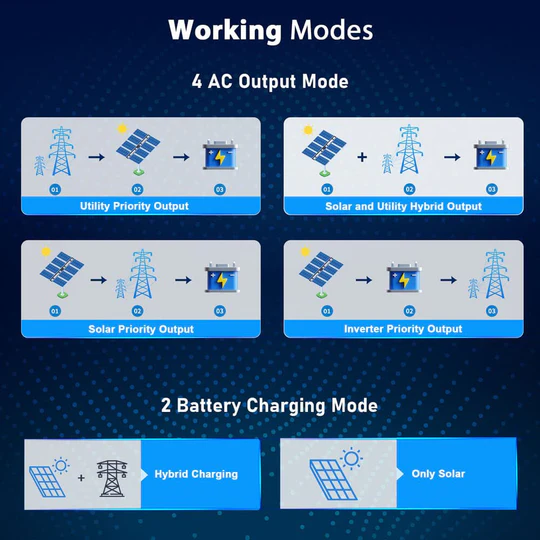

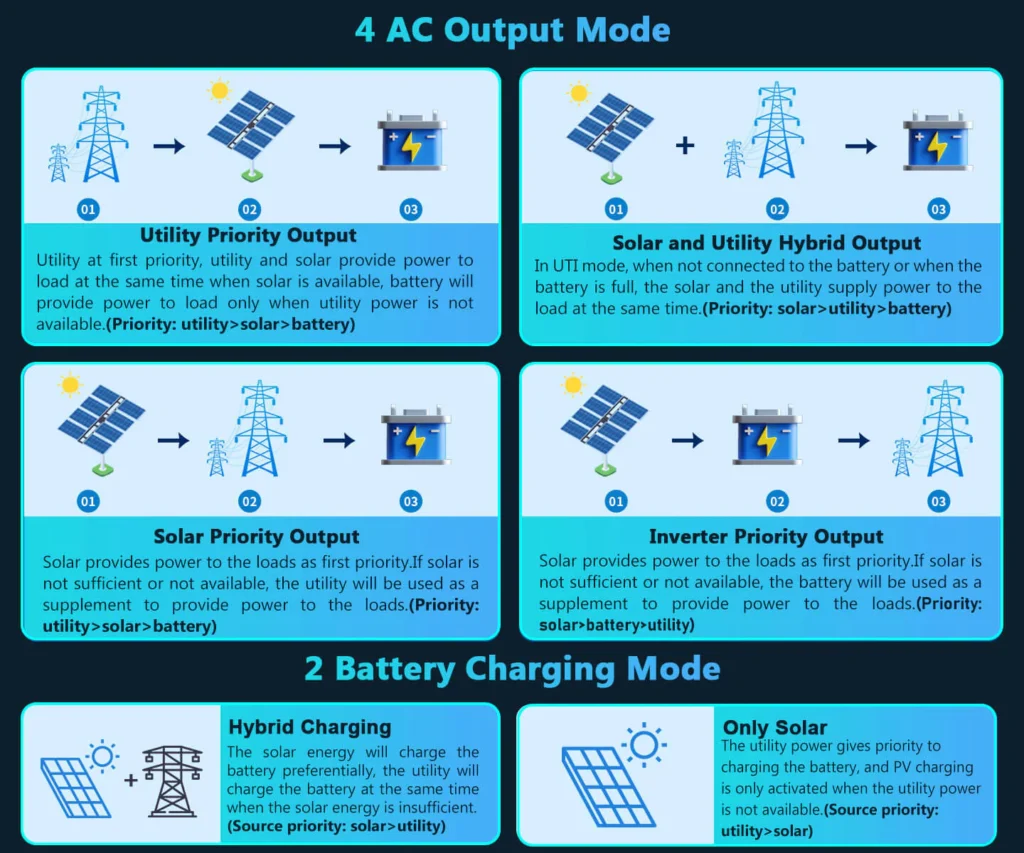

  ★ (2) Charging Modes & (4) Output Modes
  • Charging Modes: Hybrid Charging, Solar Only
  • Output Modes: Utility Priority / Solar & Utility Hybrid / Solar Priority / Inverter Priority
  • Supports grid-tie operation
  ★ Battery Compatibility
  • Rated Voltage: 48V
  • Voltage Range: 40-60V
  • Lithium-Ion, Lead-Acid, and User-Mode for custom inputs
  • CAN, USB, RS485 port for supporting BMS communication with SunGoldPower batteries


Additional information

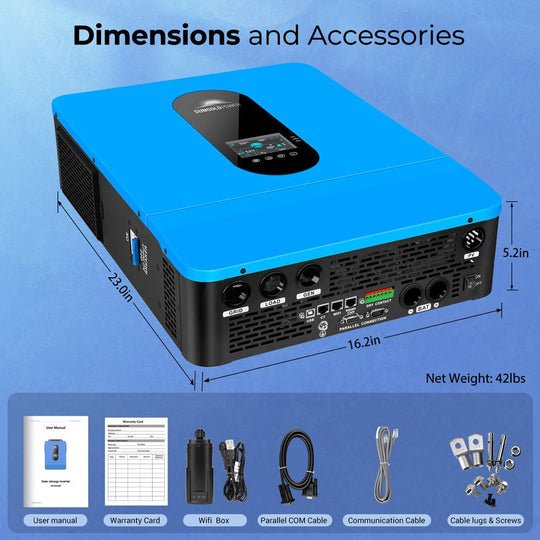

Weight 42 lbs
Dimensions 23.0 × 16.2 × 5.2 in
Battery

Inverters Only, (2) SG48100P (5.12kWh each)

DATASHEET

USER MANUAL
