SunGoldPower 3kW Inverter/Charger (24VDC)

SKU:

LFP3K24V120VSG

Brand:

SKU:

LFP3K24V120VSG

Brand:

Inverter/Charger

3kW 120Vac Output

24V Battery Input

Remote Control Included

Price range: $859.00 through $2,019.00

Options

Clear

PRICE MATCH GUARANTEE

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary

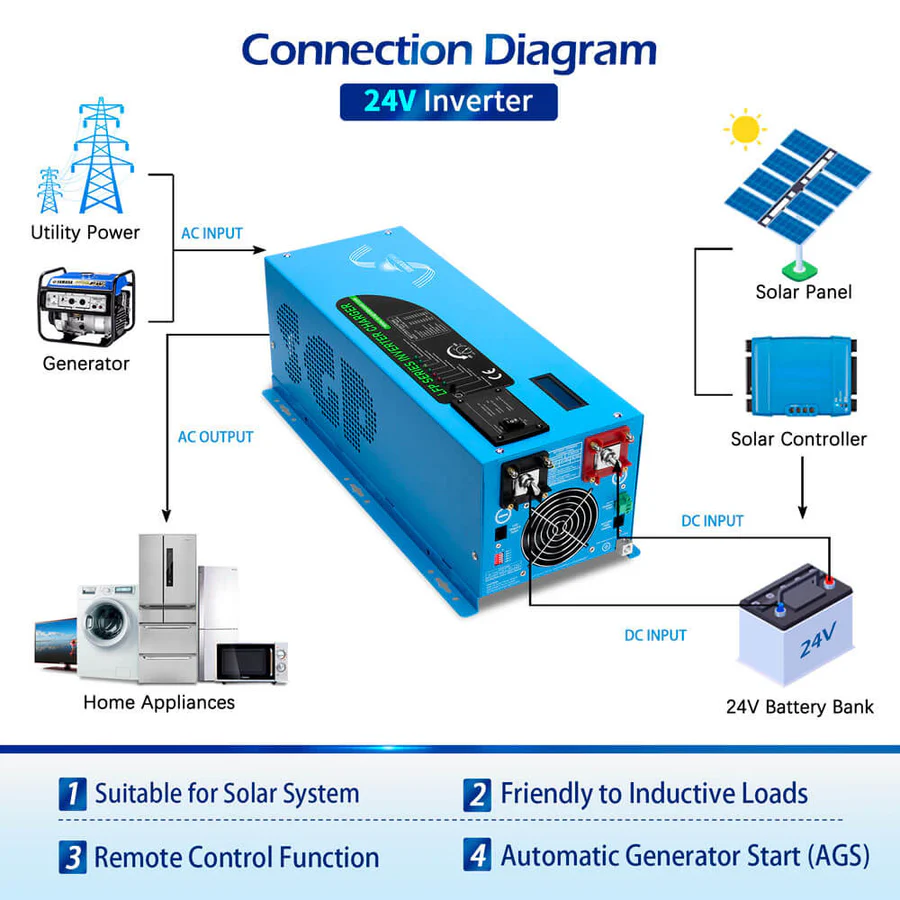

Combines pure sine wave inverter, battery charger, and AC auto-transfer switch.
Converts 120Vac input to 3kW 120Vac output (50/60 Hz)
Surge output up to 9kW (20 seconds)

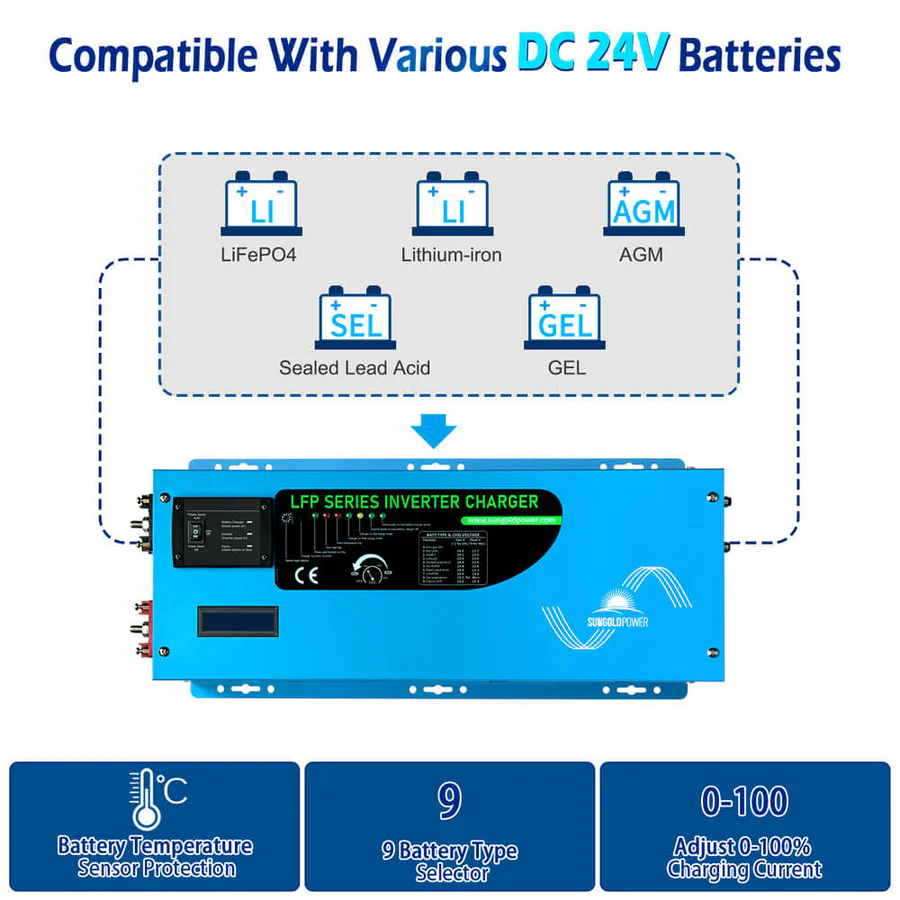

Compatible with 24V batteries

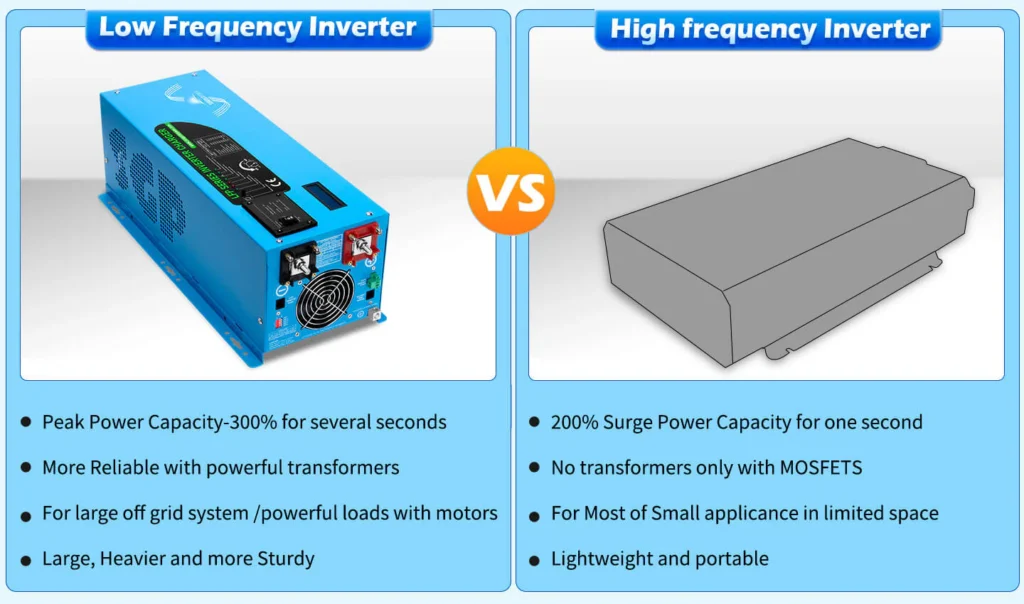

Low frequency, low idle current
Automatic Generator Start capable

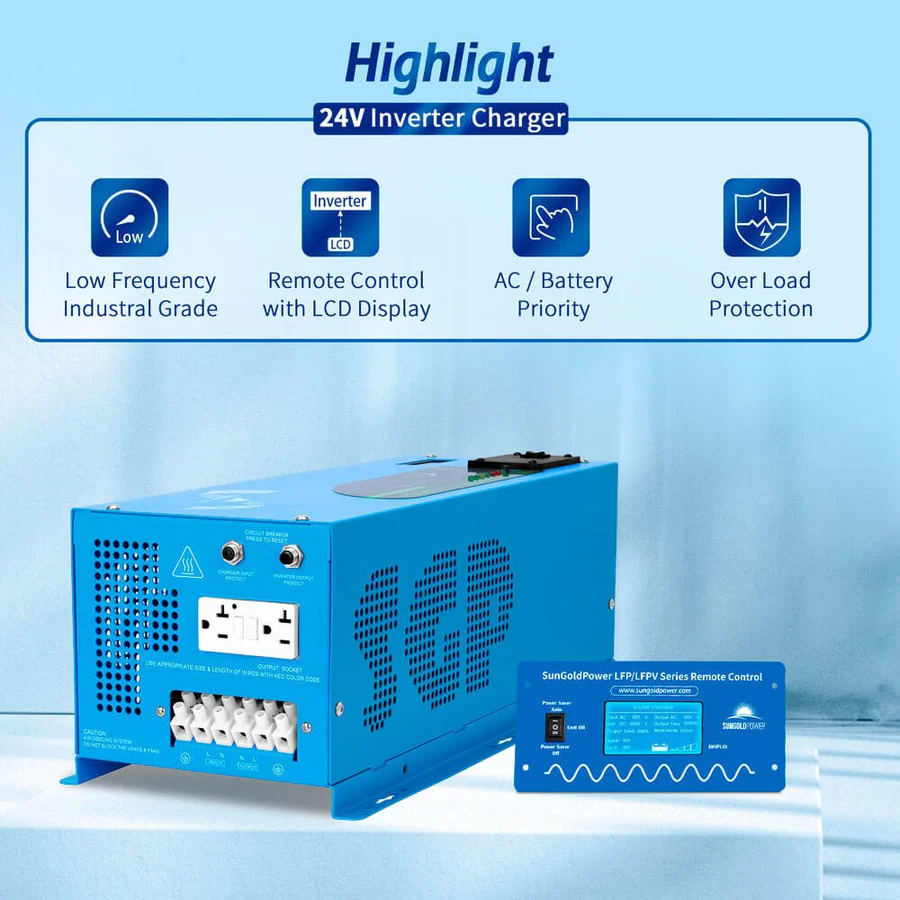

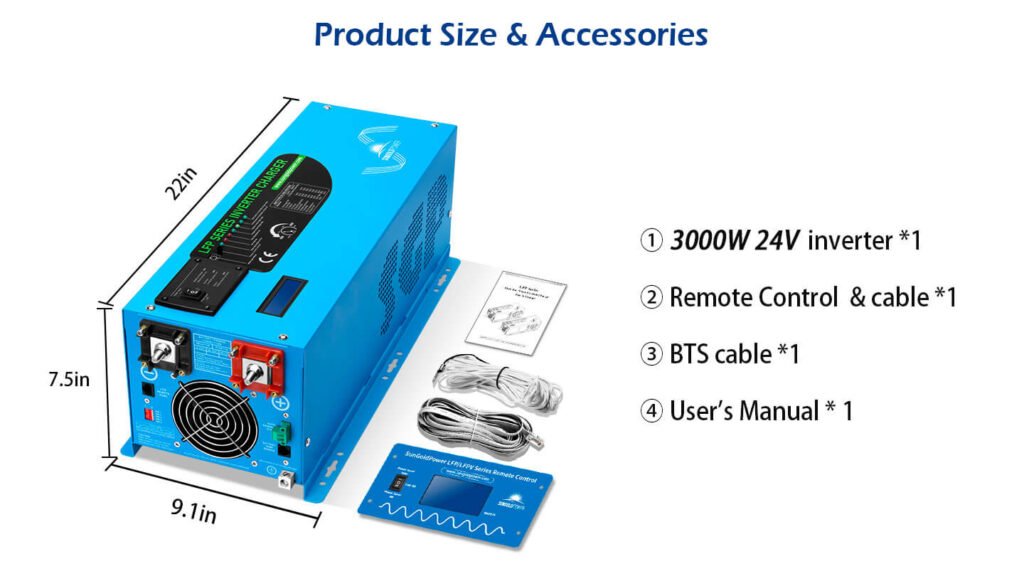

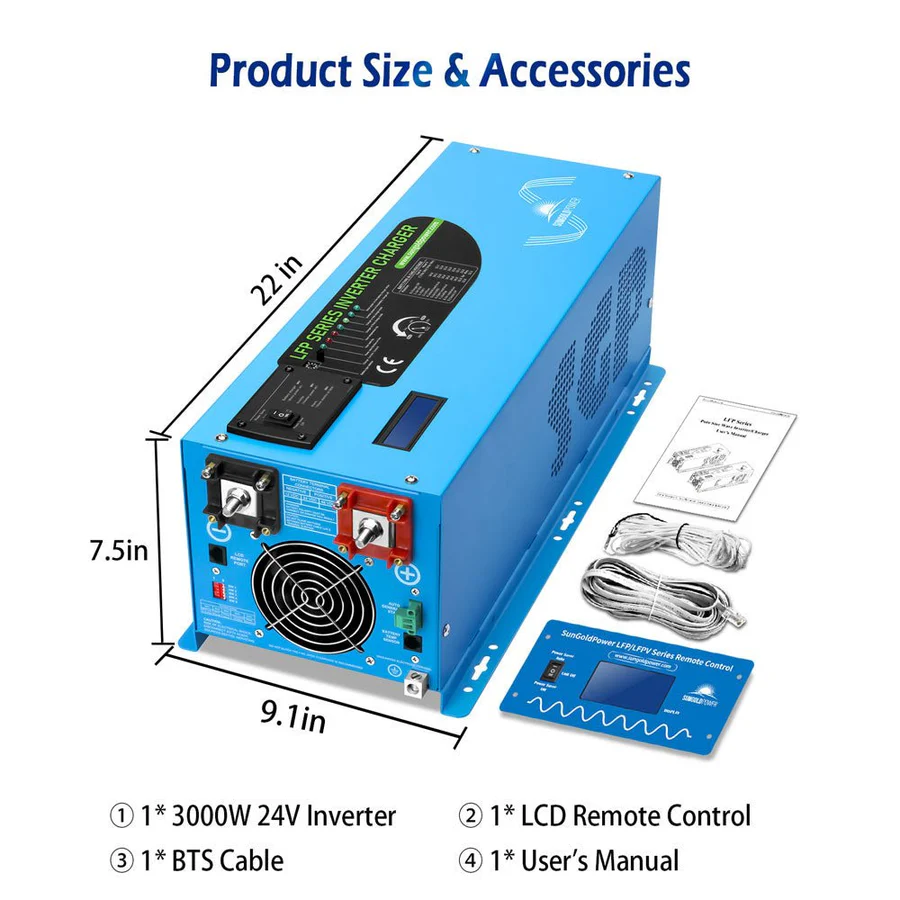

Includes LCD Display, Remote Control, and BTS cable

★ Other Properties

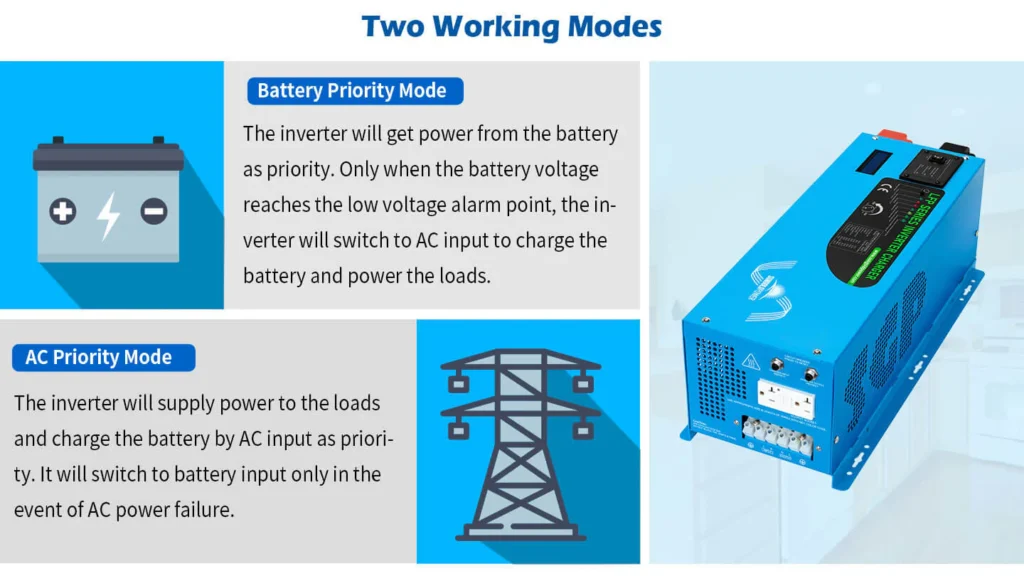

AC priority mode by default, change to Battery priority using switch
Max charge current can be adjusted from 0-100% via a linear switch
Can start up a generator when the battery voltage goes low and turn it off once the battery is fully charged

Features

If you are looking for a pure sine-wave inverter/charger, the 3000W SunGoldPower low-frequency pure sine-wave inverter is an excellent choice. It combines inverter, battery charger and transfer switch functionality into one complete system, This 24V DC to 120V AC inverter boasts a 300% surge capacity for 20 seconds to reliably support tools and equipment longer.

Specifications

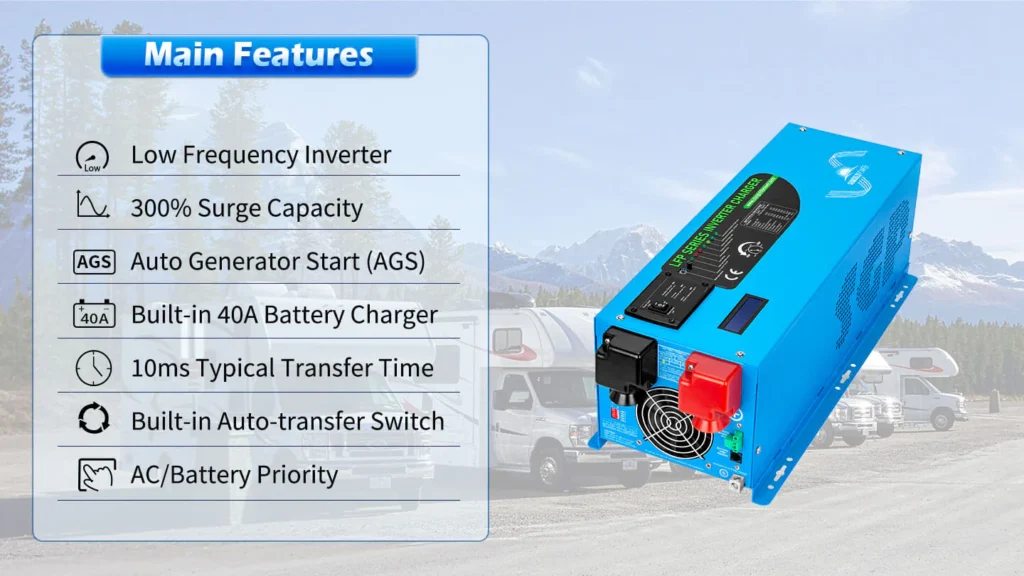

Main Features

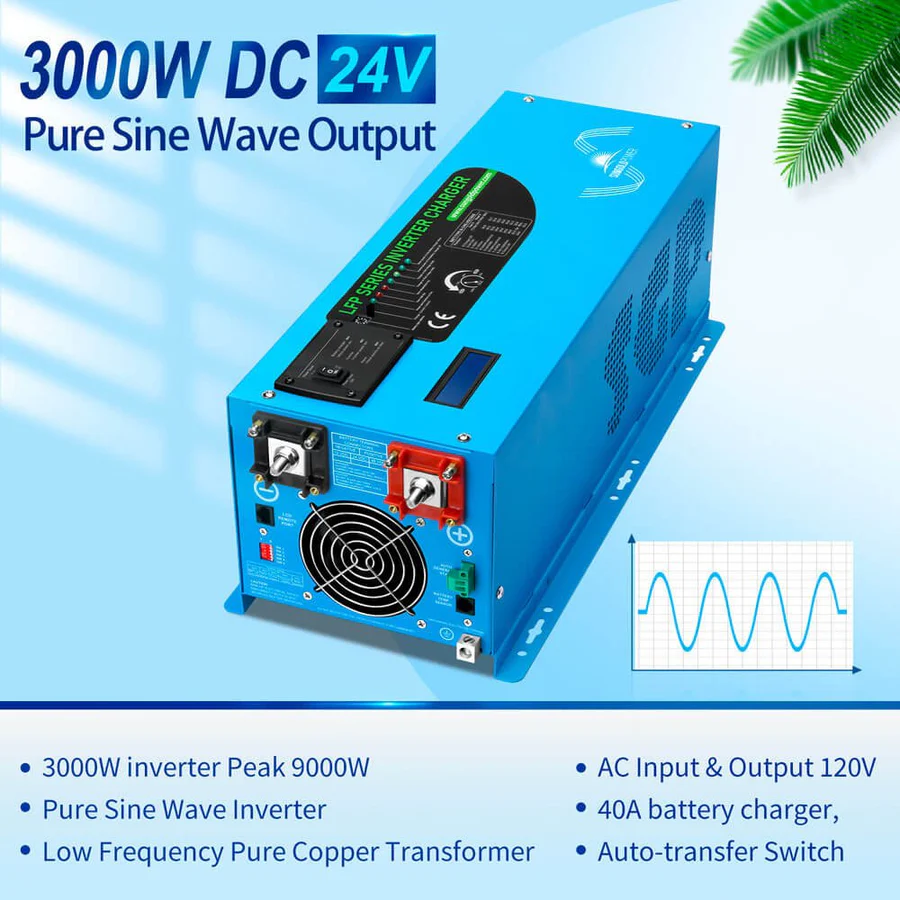

3000W Low Frequency Pure Sine Inverter With Charger.
AC/Battery Priority Selector.
Automatic Generator Start.
GFCI Socket, Safety and Convenient.
The low frequency inverter can power all kinds of appliances.
LCD Display, Remote Control, BTS including.
Low Idle Consumption.

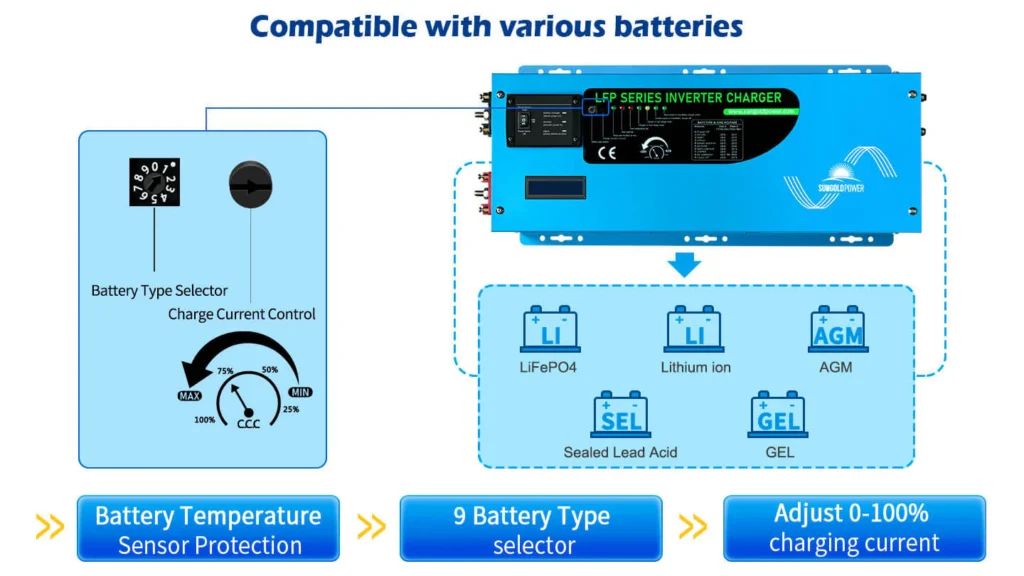

9 battery type settings for charger.
Multi Stage Smart charger Max 40A, charger can be disable.
10msec typical transfer time.

Inverter Output

Continuous Output Power: 3000W
Surge Rating: 9000W (20 Seconds)
AC Output: 120VAC
AC Input: 120VAC
Output Wave: Pure Sine Wave (bypass mode)
Typical Transfer Time: 10ms (MAX)
Nominal Efficiency: >88%

DC Input

Nominal Input Voltage: 24.0Vdc
Minimum Start Voltage: 20.0Vdc
Low Battery Alarm: 21.0Vdc-22.0Vdc
Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
High Voltage Alarm: 32.0Vdc
Low battery Voltage Restart: 26Vdc
Idle Consumption: 39W
Power Saver Mode Idle Consumption: 16W

AC Charger

Charger Rate: Max 40A
AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2)
Over Charge Protection Shutdown: 31.4V
Selectable Charge Setting based on battery type Adjustable charge current: off 0%-100%
3-step intelligent battery charger
