SunGoldPower 22.8kW 48V Solar Inverter (2 Units Parallel)

• (2) 11.4kW Pure Sine Wave Inverters
• Split-Phase (120/240V)
• (3) Integrated MPPTs (30A / 22A / 22A)
• Supports PV input sized up to 15kW @ 600V each
• Supports grid-tied (AC-Charging) & off-grid system operation

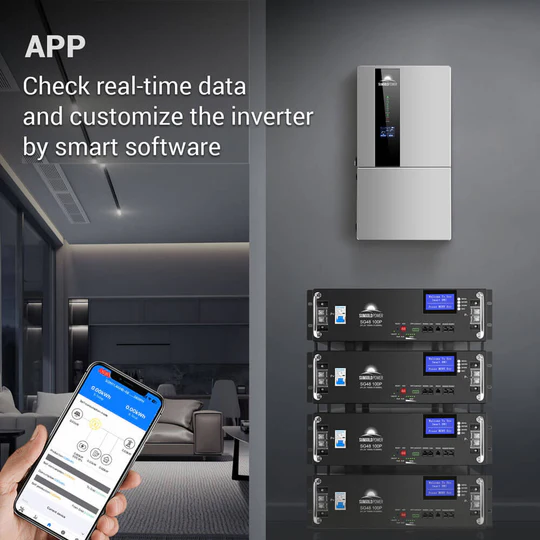

• Bluetooth-enabled for monitoring & adjusting settings
• WiFi-enabled for remote monitoring

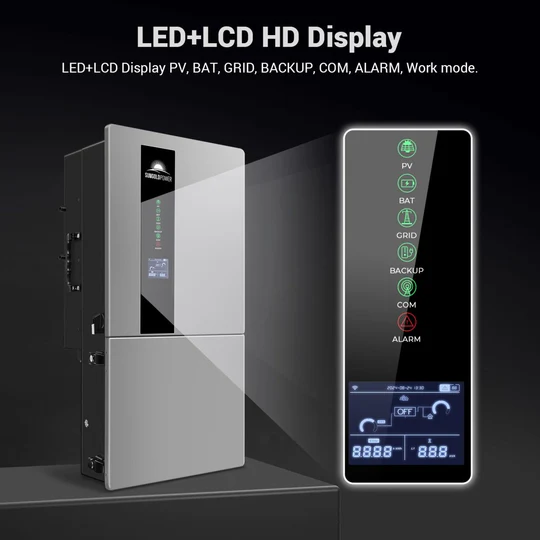

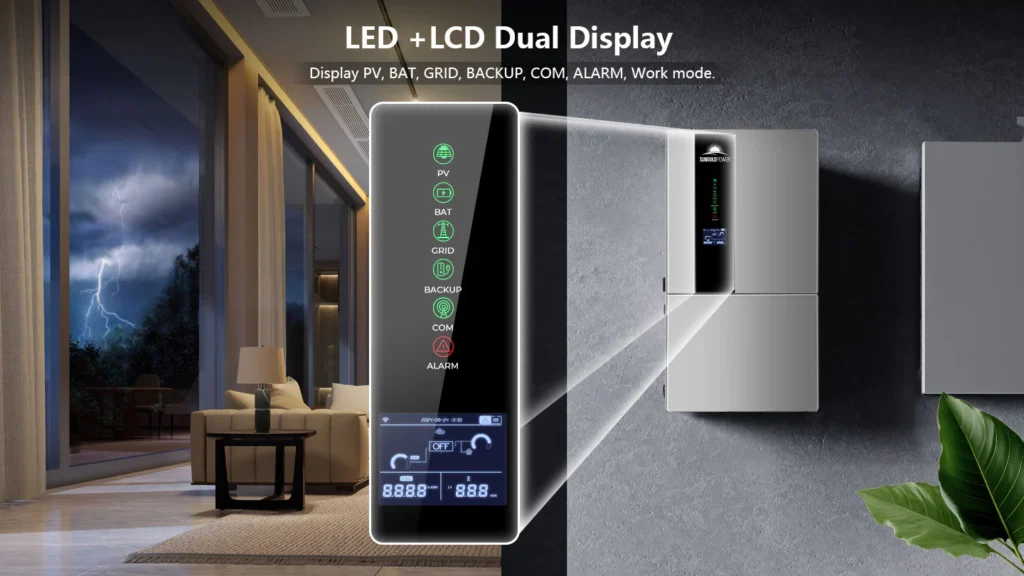

• LCD with user-friendly Interface

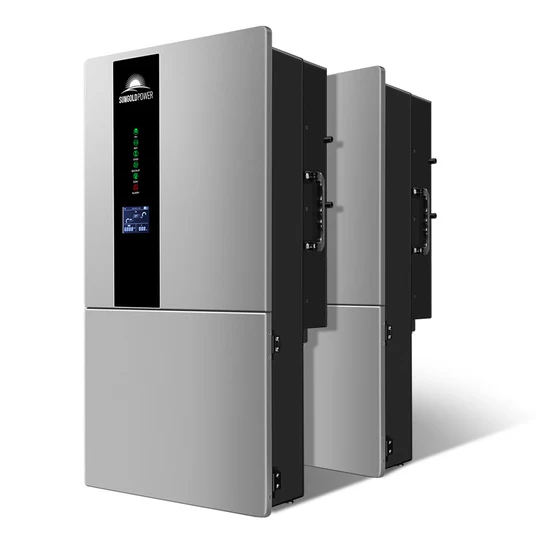

• Includes (2) units to support 22.8kW power output

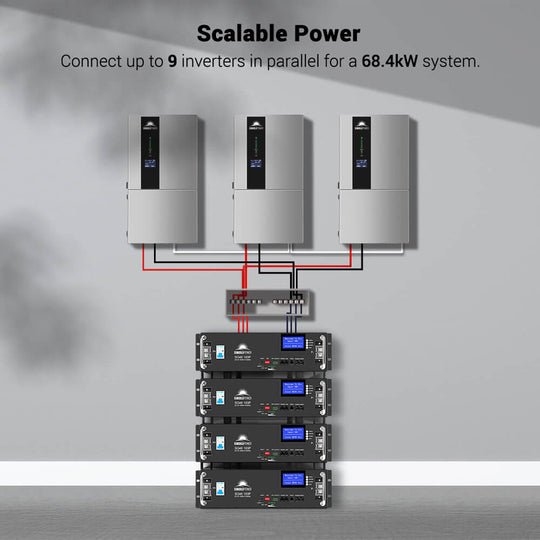

• Up to (7) additional units can be added to yield 102.6kW power output
• Add (1) or more units to support 3-Phase (208V) operation
• Parallel function increases net inverter power and surge capacity.

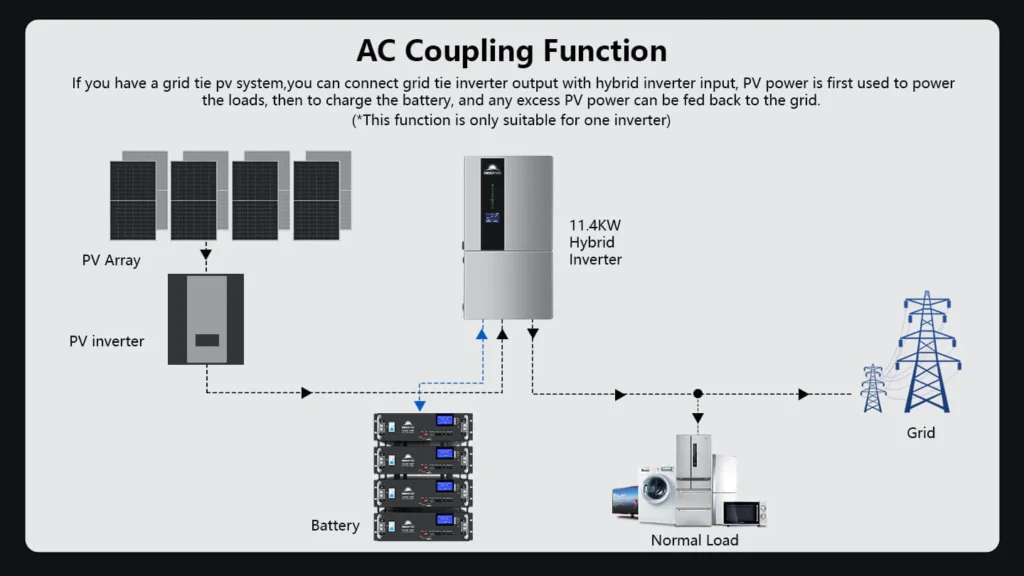

• Integrates with grid-tie systems and supports smart load
• Smart load support is suitable for one inverter

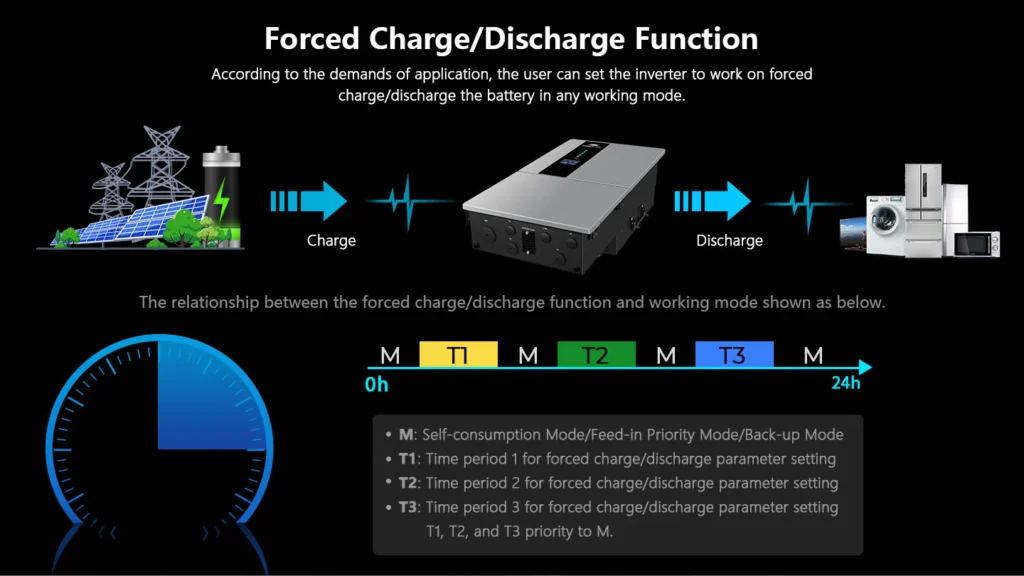

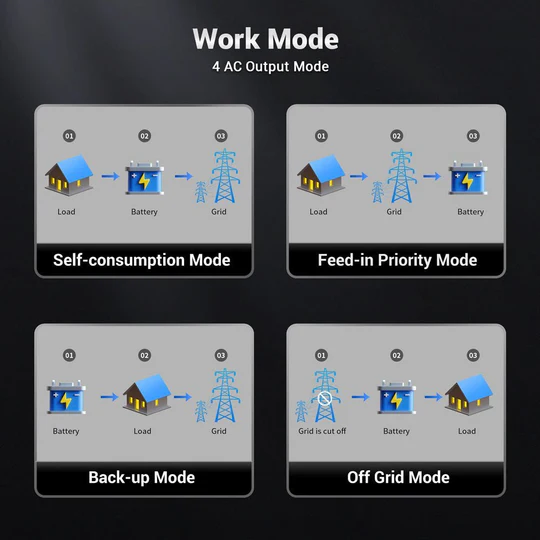

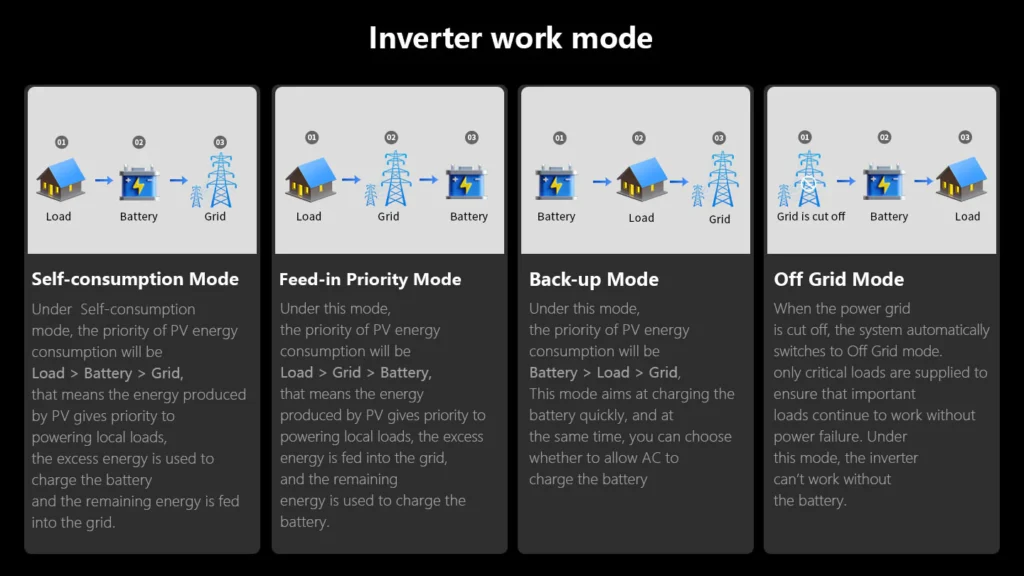

• Self-Consumption / Feed-In Priority / Back-Up Mode / Off-Grid Mode
• Supports grid-tie operation

• Voltage Range: 40-64V
• AGM / Sealed, Gel, Flooded, Lithium, and User-Mode for custom inputs
• RS485 & CAN-bus support for BMS communication

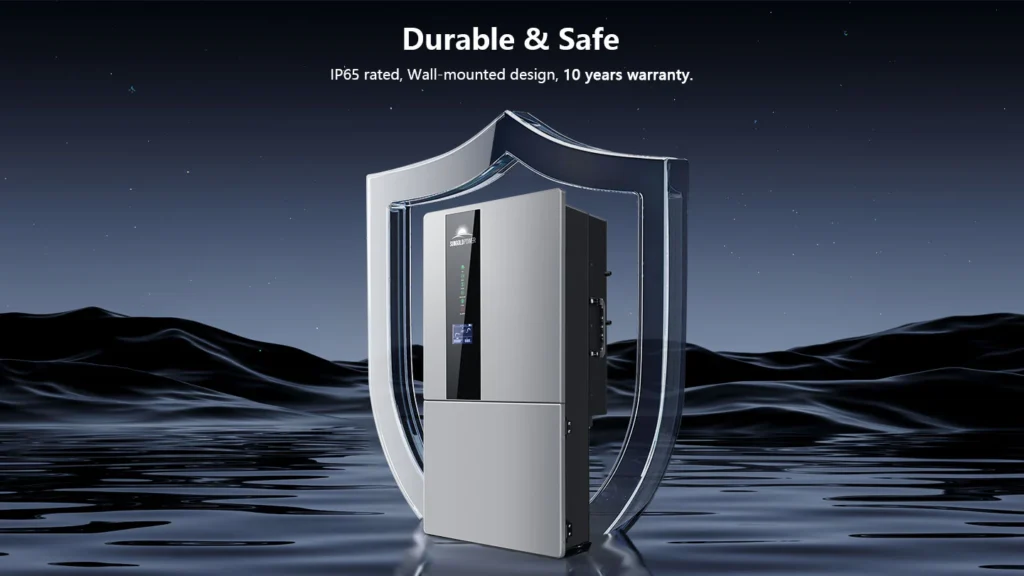

• IP65 rated, Wall-mounted design, 10-year warranty
• Ensure continuous power to critical loads with battery backup when the grid fails
• Certificates: UL1741/SB, UL1699B, CSA C22.2, IEEE 1547:2018, HECO SRD2.0

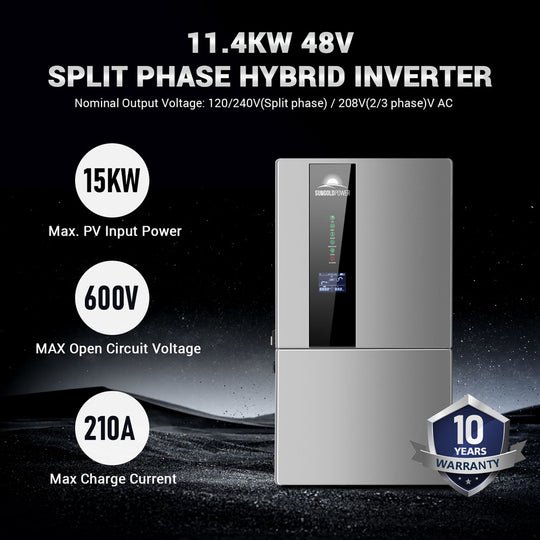

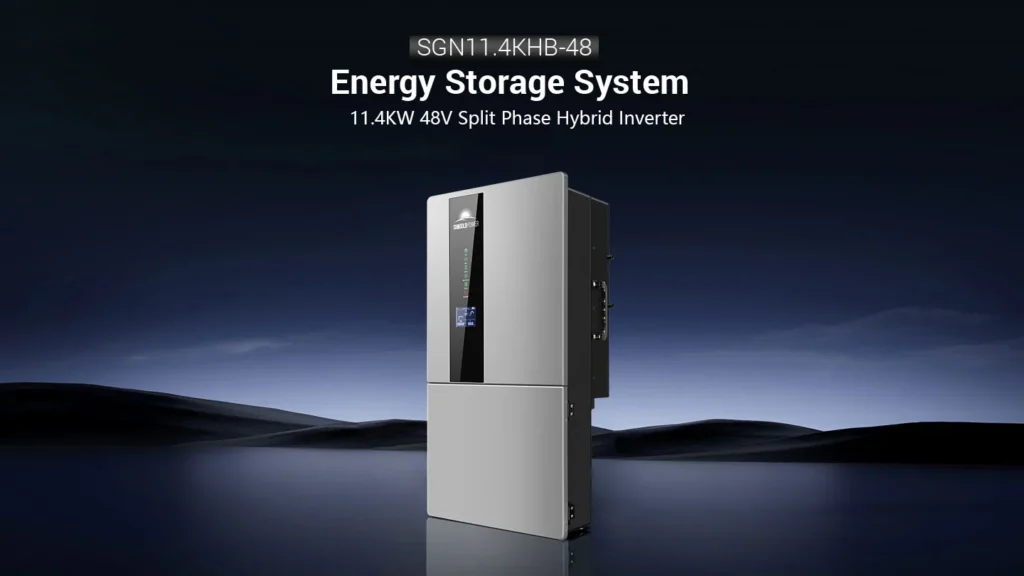

11.4kW 48V Split-Phase Hybrid Inverter

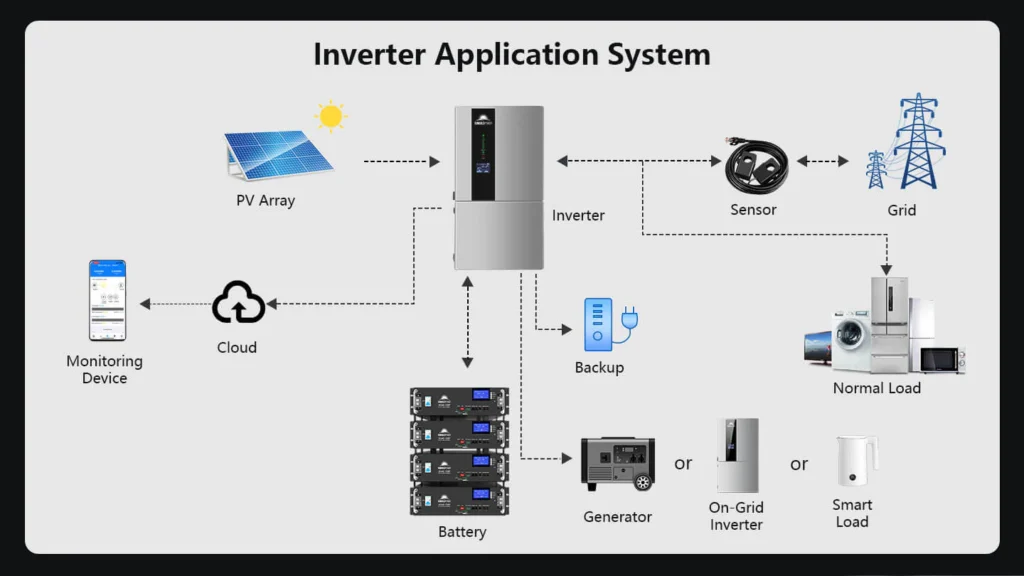

This high-quality inverter designed to convert solar energy into AC power, store energy in a battery for future use or feed it into the public grid. With 15kW solar input and 11.4kW continuous output, this unit offers the flexibility to go off-grid, implement a hybrid solar system, or sell excess energy back to the grid, providing a range of options to suit your energy needs.
