SunGoldPower 5kW 48V Solar Inverter Charger

SKU:

SPH5048P / SPH504880A

Brand:

SKU:

SPH5048P / SPH504880A

Brand:

Solar Inverter

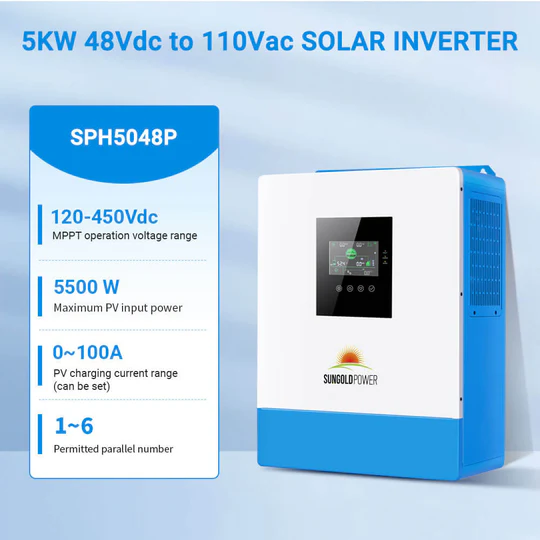

5000W 48V Solar Inverter

120V Output, 80A or 100A MPPT

Parallel Support (SPH5048P)

CE, UL1741 (100A), SAA (80A)

Price range: $589.00 through $750.00

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

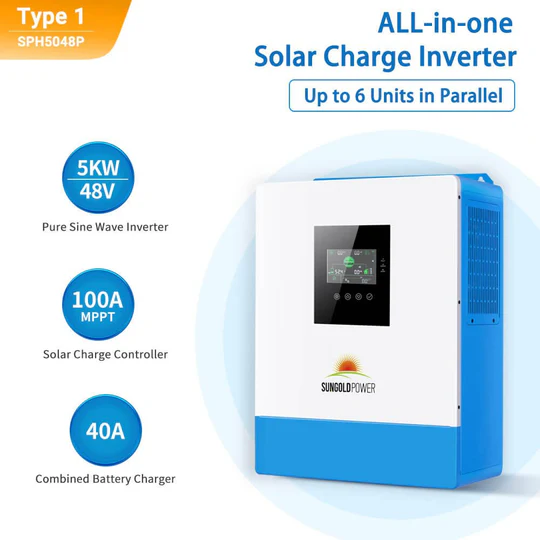

★ Solar Inverter Charger

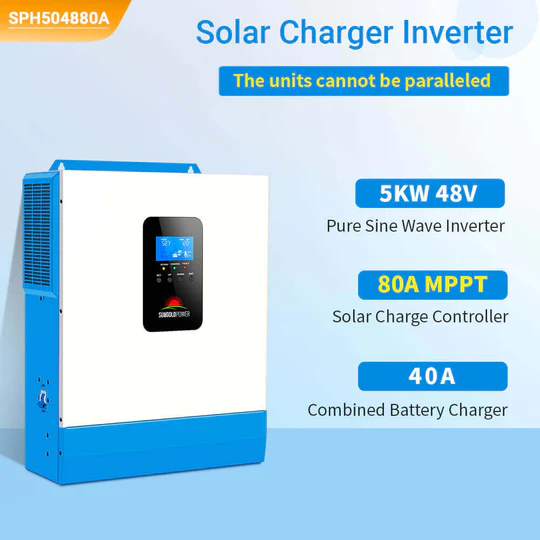

  • 5kW Pure Sine Wave Inverter
  • Single Phase (120V)

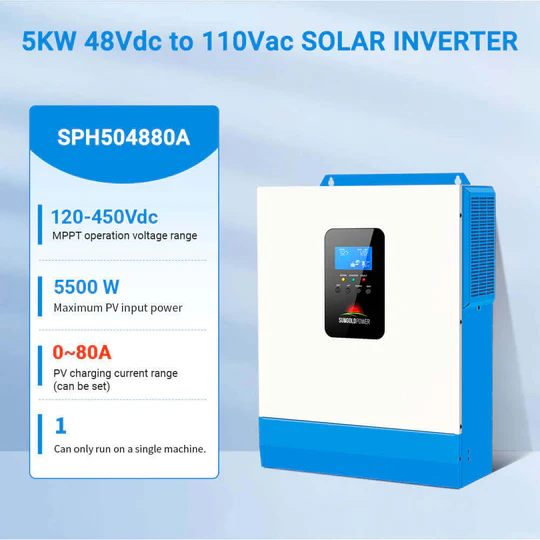

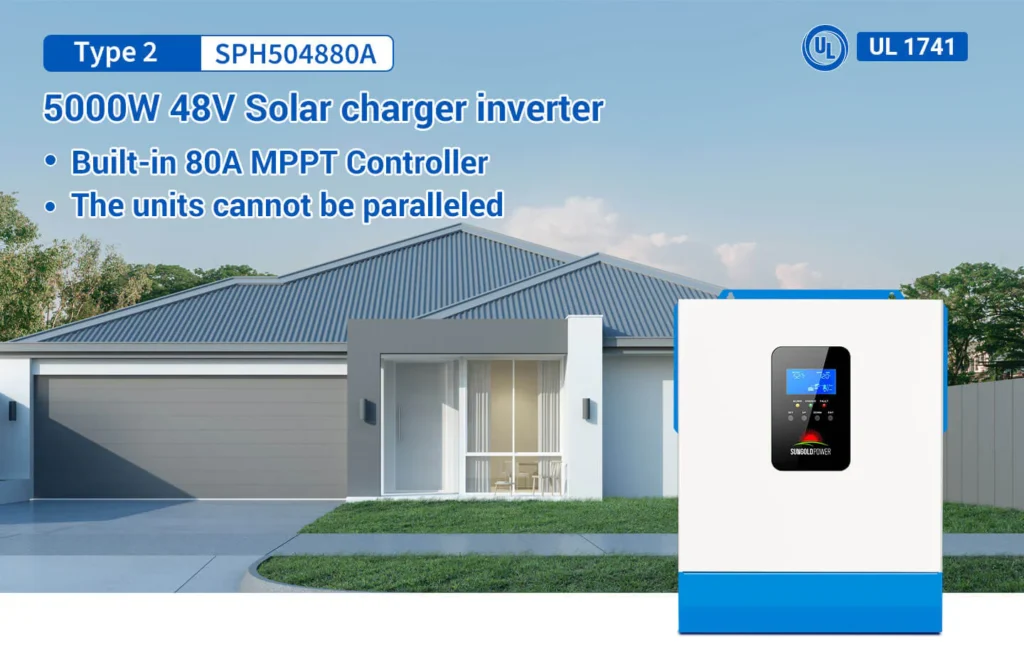

  • Integrated 80A or 100A MPPT (unique part numbers)
  • Supports PV input sized up to 5500W @ 500V

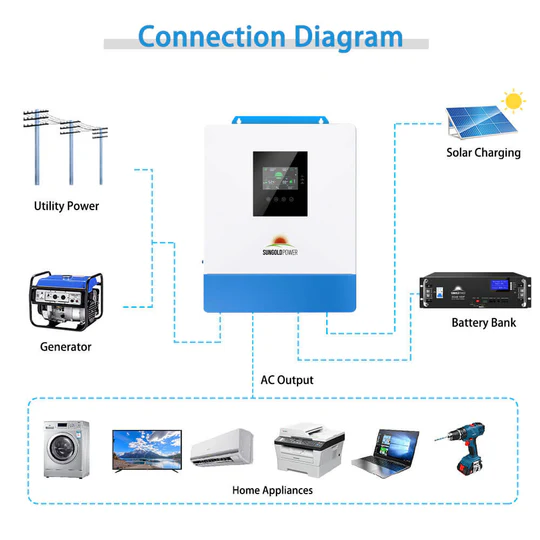

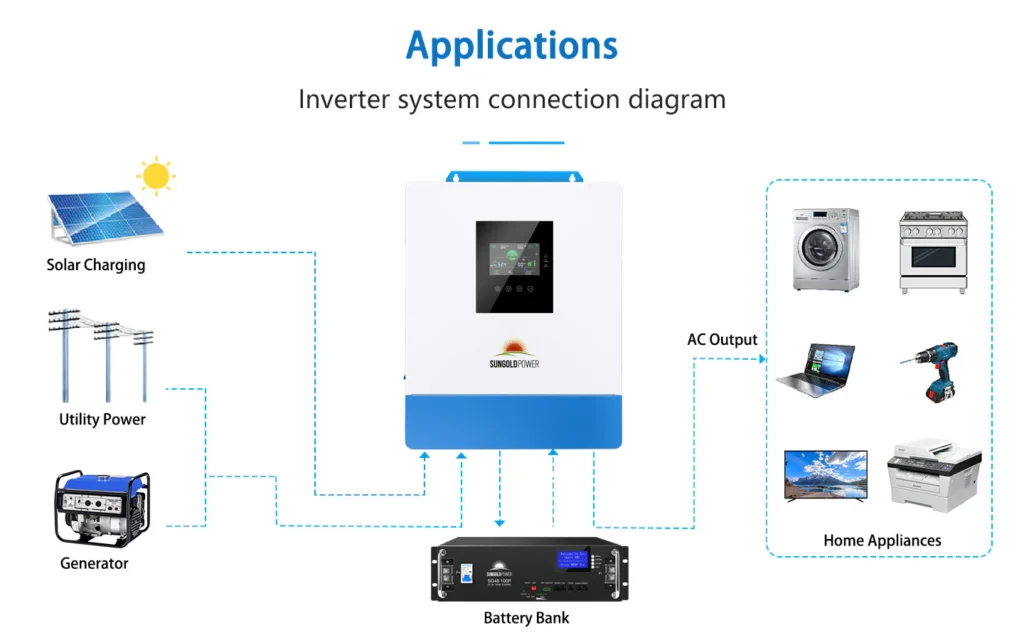

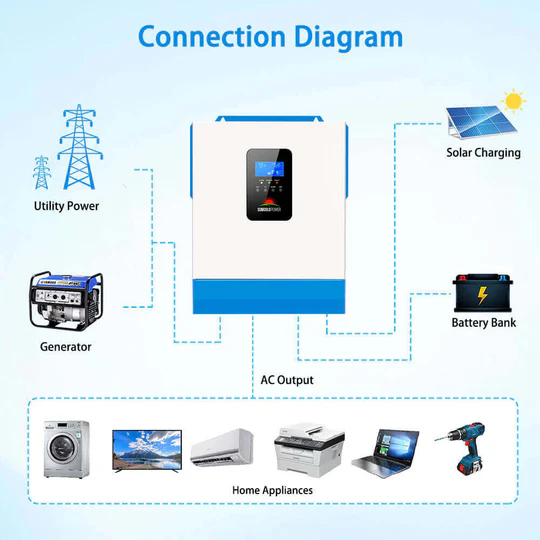

  • Supports grid-tied (AC-Charging) & off-grid system operation

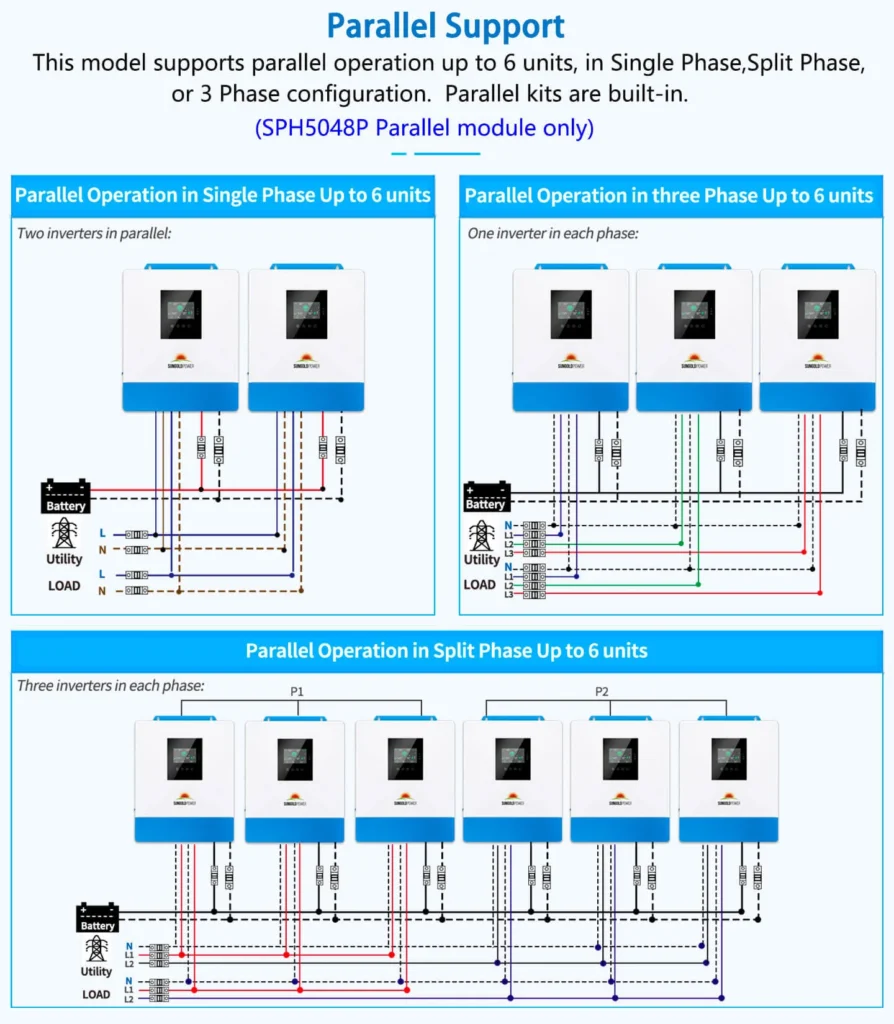

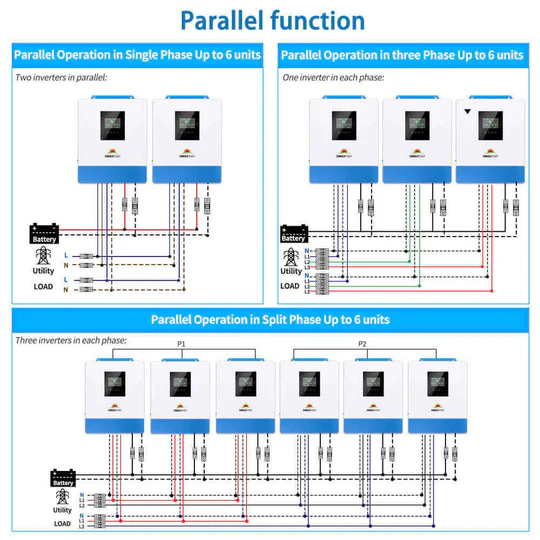

  ★ Parallel Function (SPH5048P Only)
  • Parallel up to (6) units together, supporting up to 30kW power output
  • (1) Unit = Single Phase (120V)
  • (2+) Units = Single or Split-Phase (120/240V)
  • (3+) Units = 3-Phase Support (208V)
  • Parallel function increases net inverter power and surge capacity.
  ★ Stable AC Output
  • Supports up to 4HP of motor load capacity with overload protection
  • Powers various household / office loads including refrigerators, computers, televisions, ovens, air conditioners, etc.

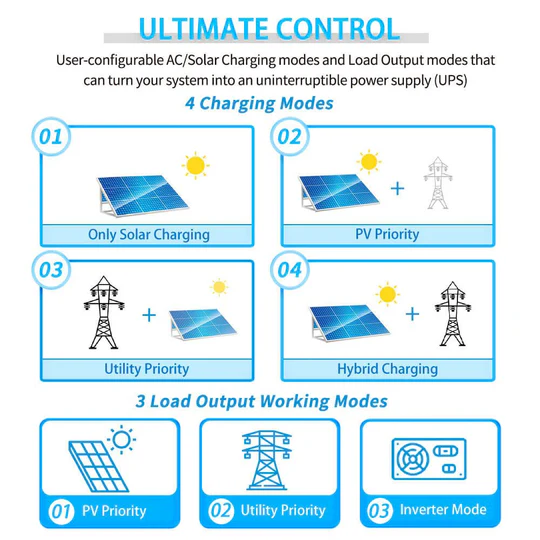

  ★ (4) Charging Modes & (4) Output Modes

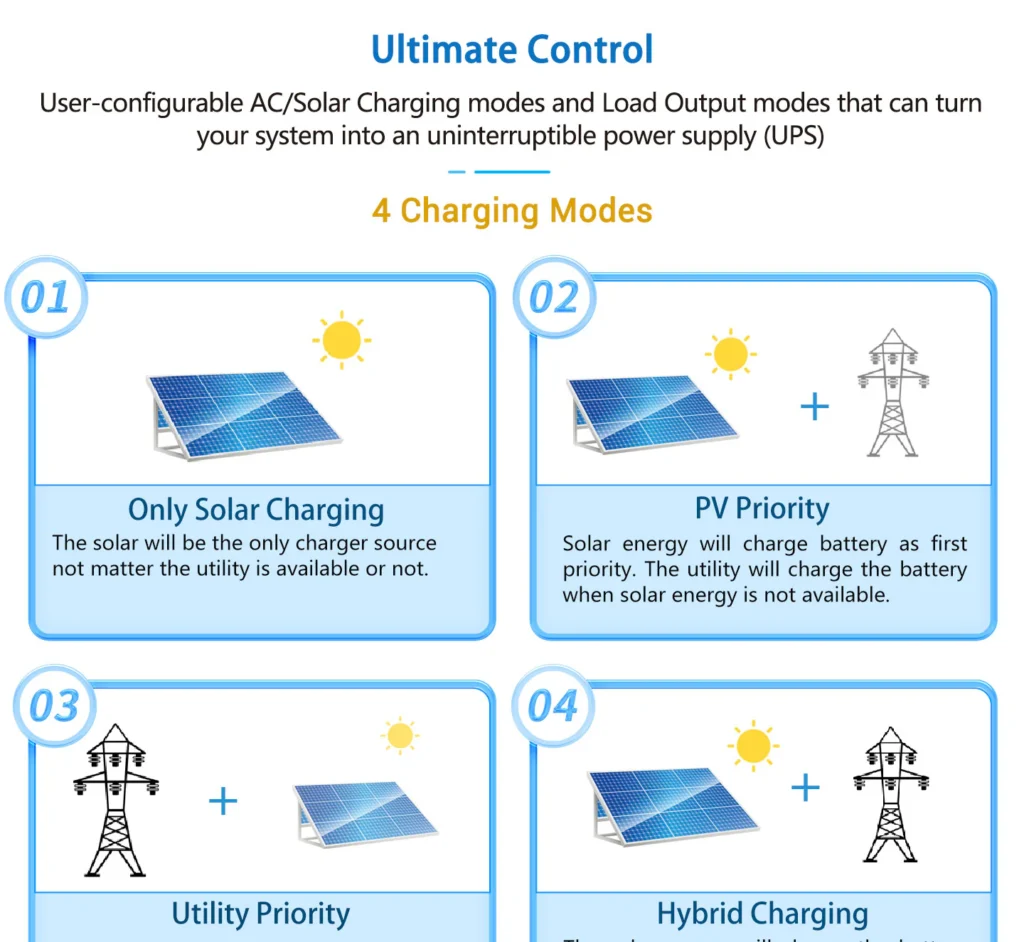

  • Charging Modes: AC Priority / Solar Priority / Only Solar / Mains & Solar Hybrid Charging

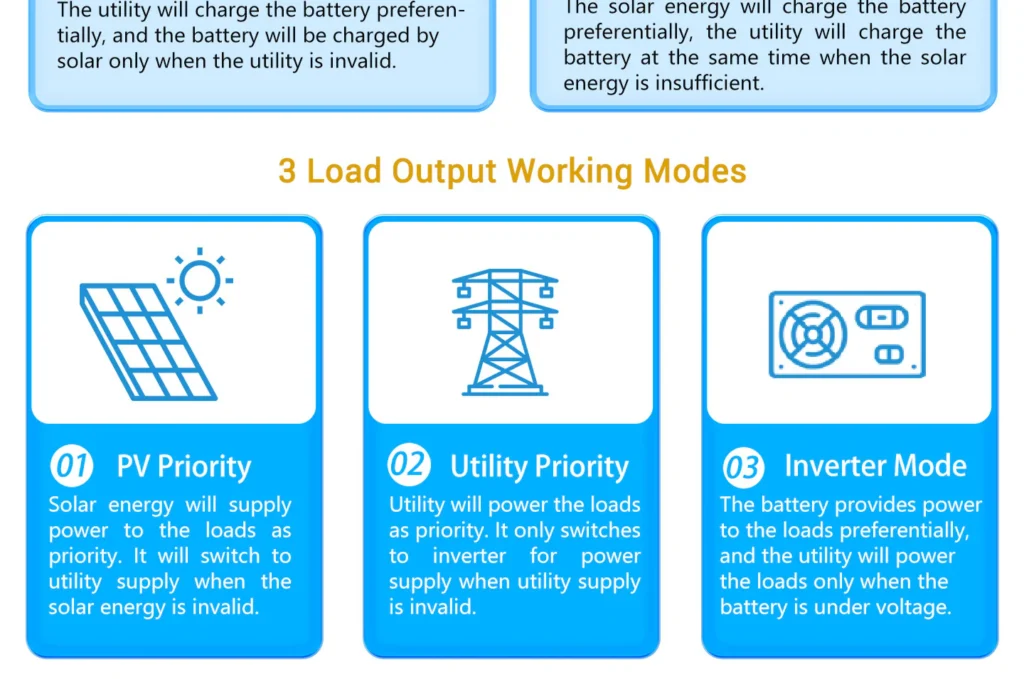

  • Output Modes: PV Priority / Utility Priority / Inverter Priority / Hybrid Output
  • Supports grid-tie operation

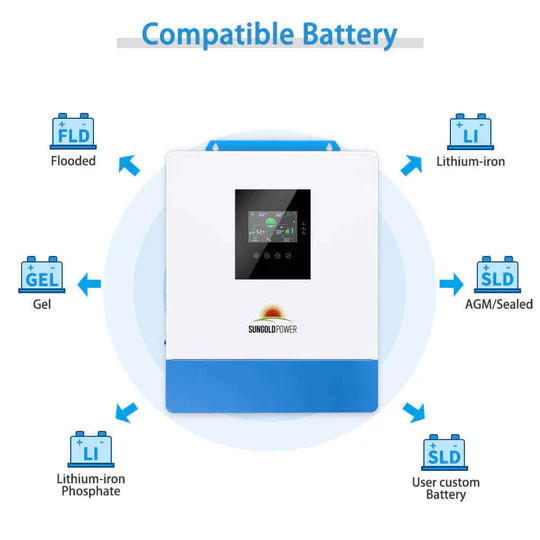

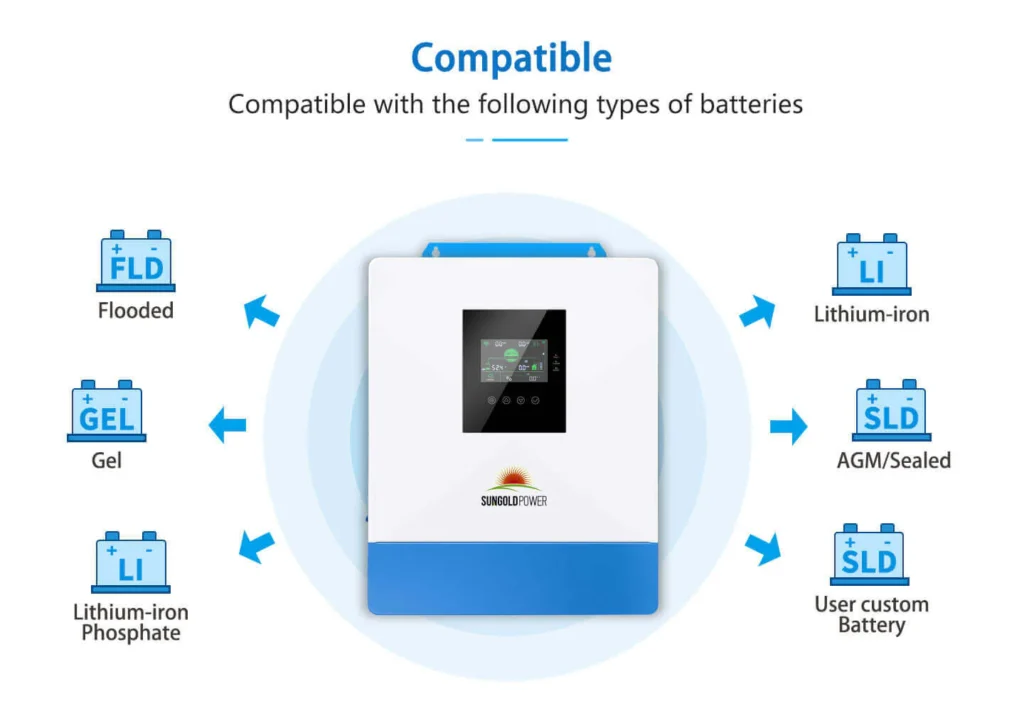

  ★ Battery Compatibility
  • Voltage Range: 40-60V
  • AGM / Sealed, Gel, Flooded, Lithium, and User-Mode for custom inputs

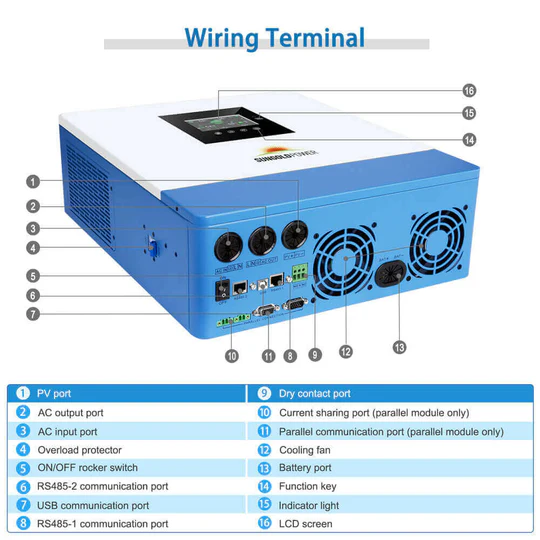

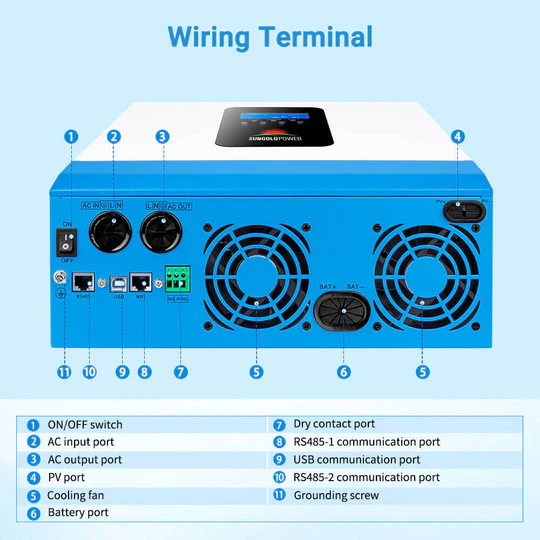

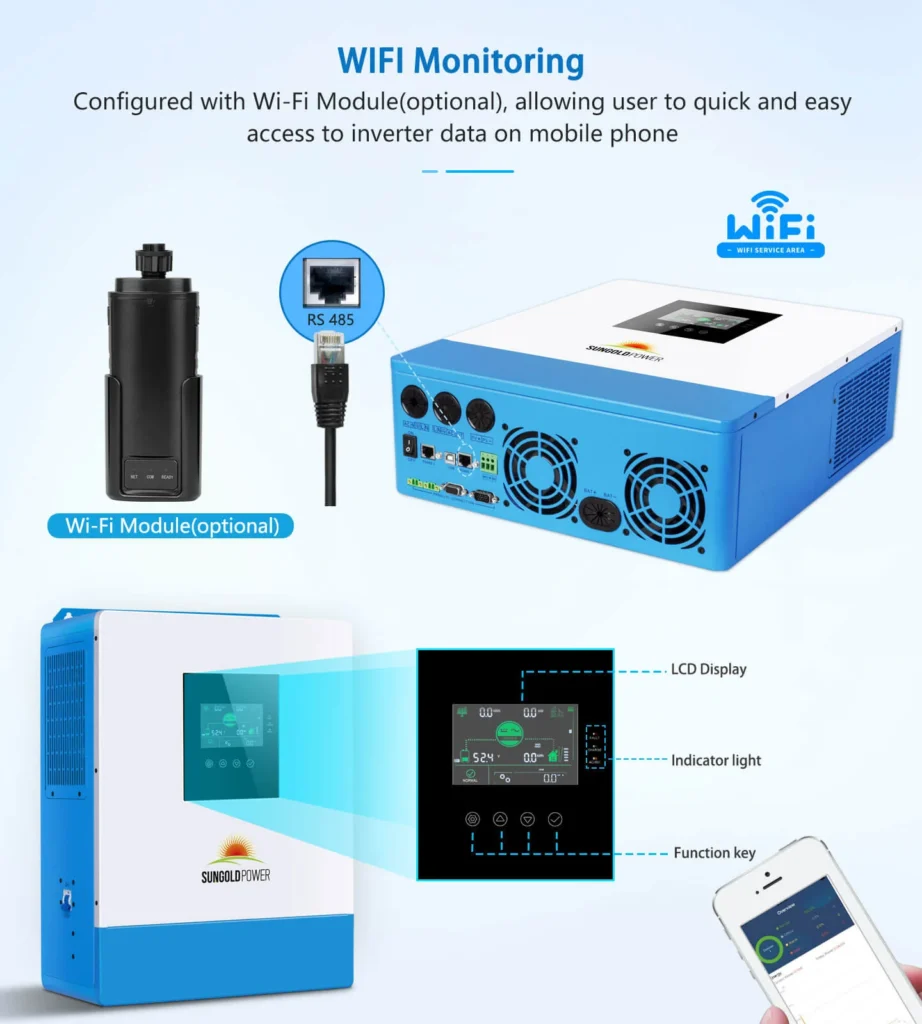

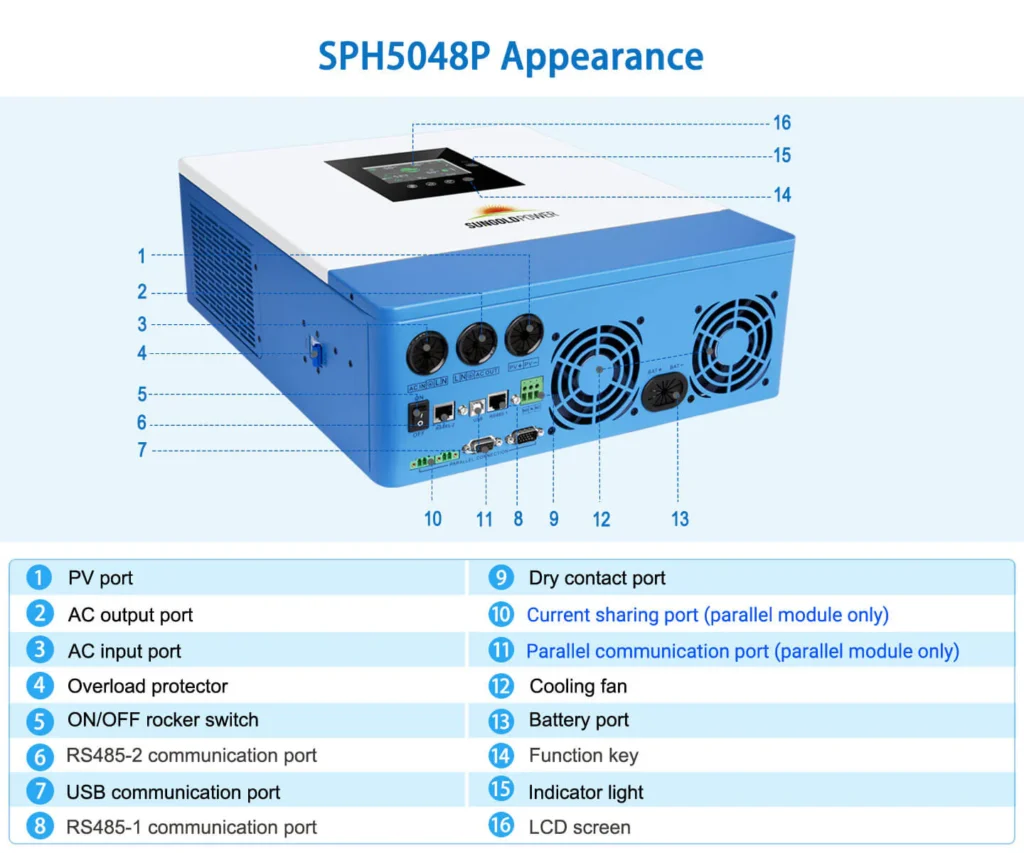

  • RS485 port for supporting BMS communication


Features

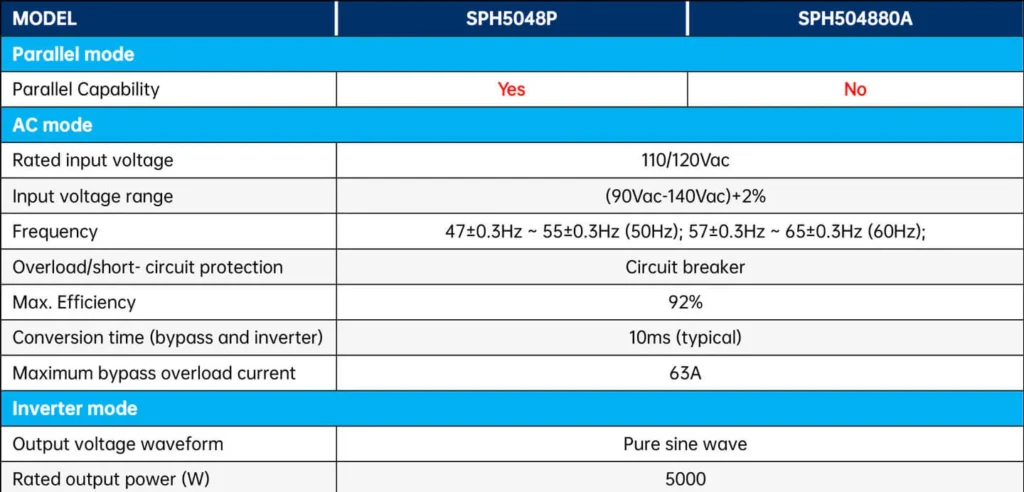

Specifications

Additional information

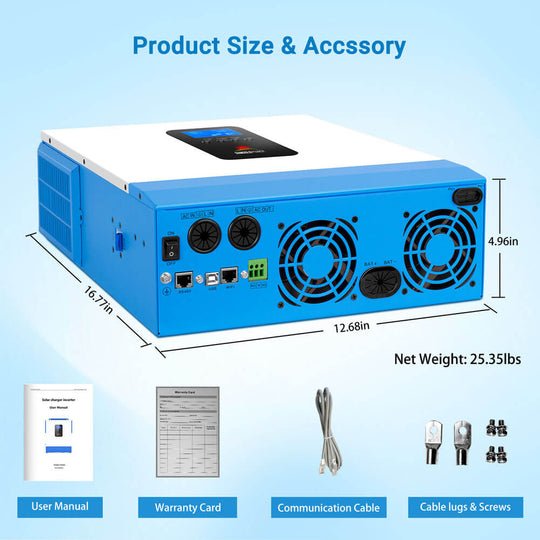

Weight N/A
Dimensions N/A
Model

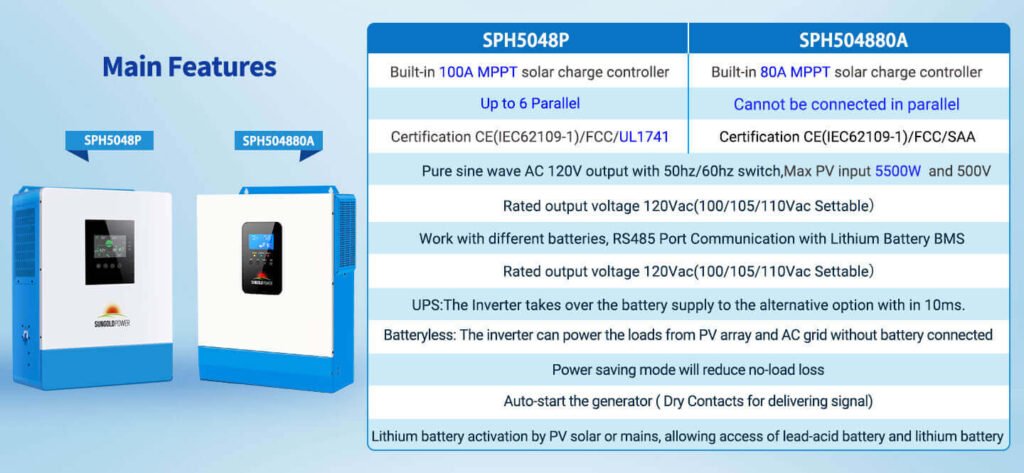

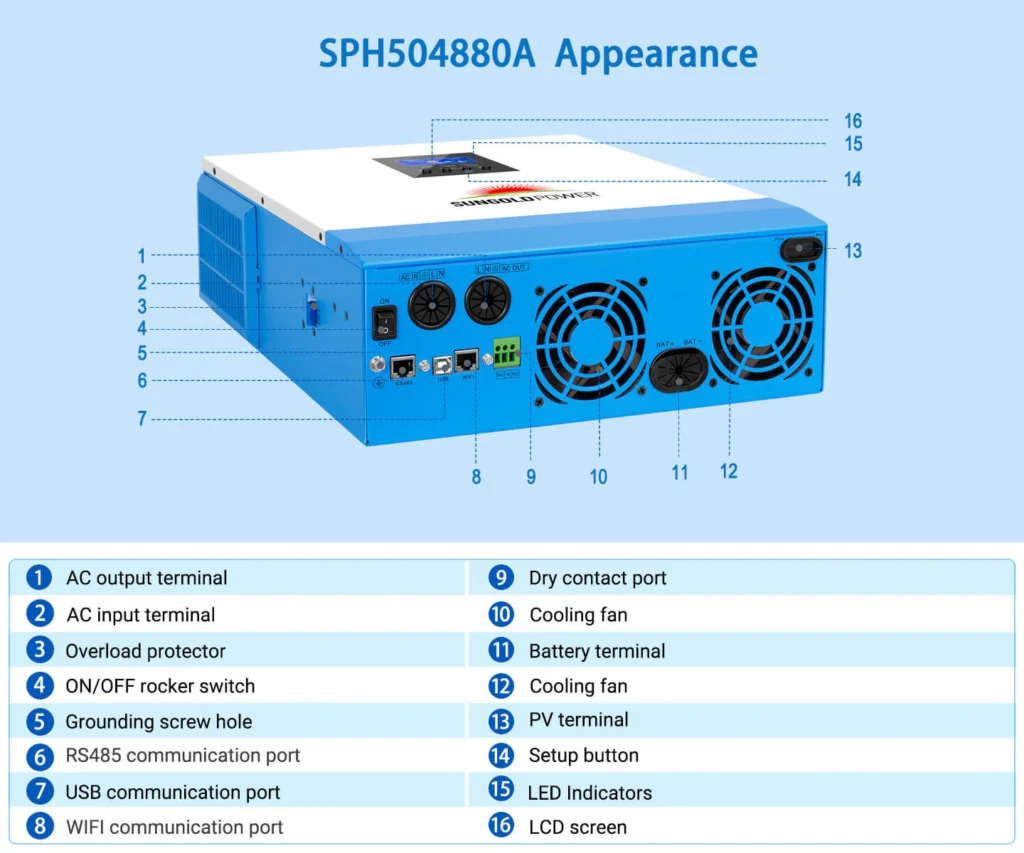

SPH5048P (Parallel, 100A MPPT), SPH504880A (80A MPPT)

DATASHEET

USER MANUAL
