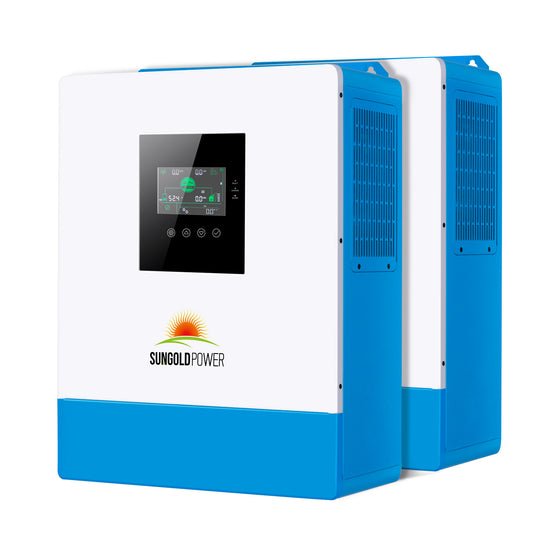

SunGoldPower 10kW 48V Solar Inverter Charger (2 Units Parallel)

SKU:

SPH5048Px2

Brand:

SKU:

SPH5048Px2

Brand:

Solar Inverter

(2) 5kW 48V Solar Inverters

10kW Continuous Output

11kW Max PV Input (up to 500V)

CE, FCC, UL1741

Original price was: $1,898.00.Current price is: $1,518.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

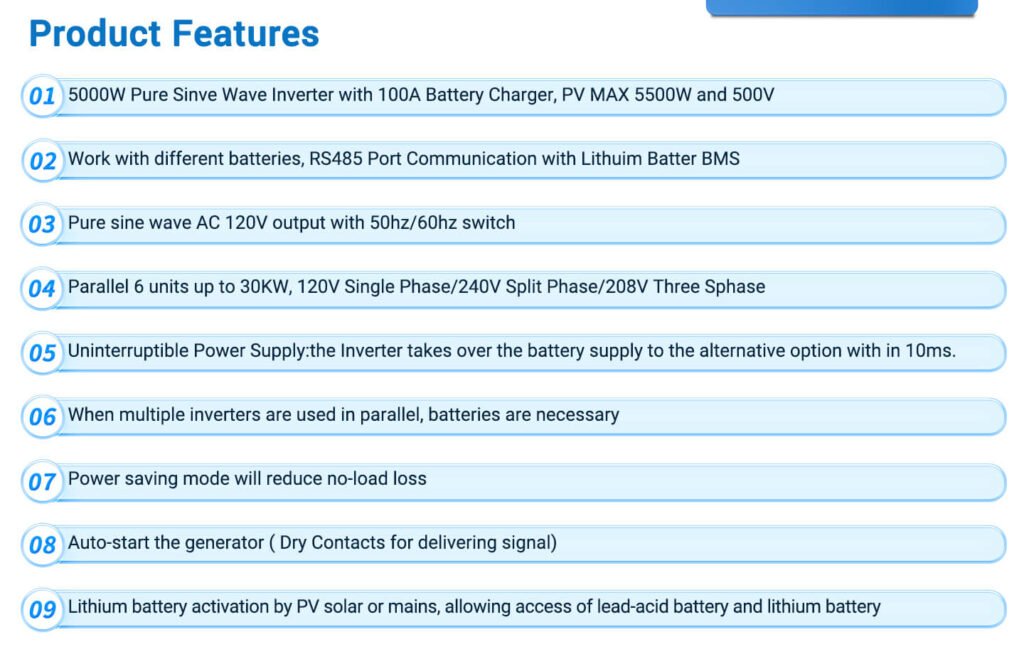

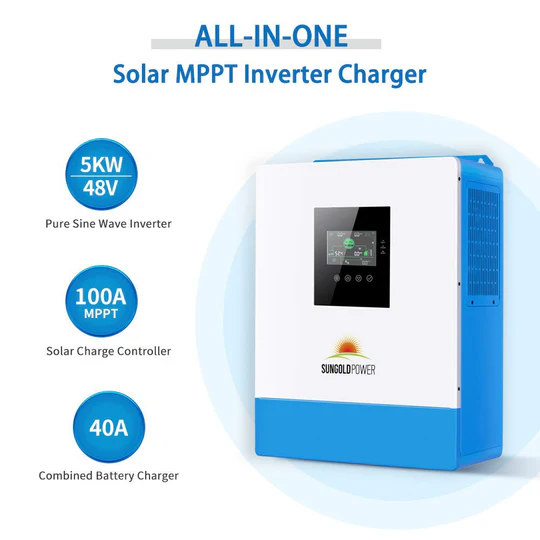

★ Solar Inverter Charger
  • (2) 5kW Pure Sine Wave Inverters
  • (2) Units enables Single or Split-Phase (120/240V) configurations
  • Integrated 100A MPPT
  • Supports PV input sized up to 5500W @ 500V

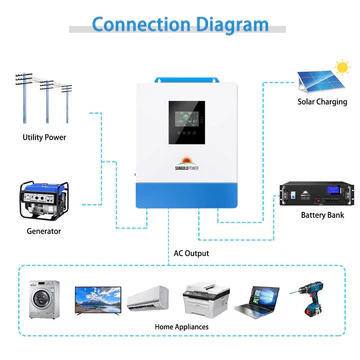

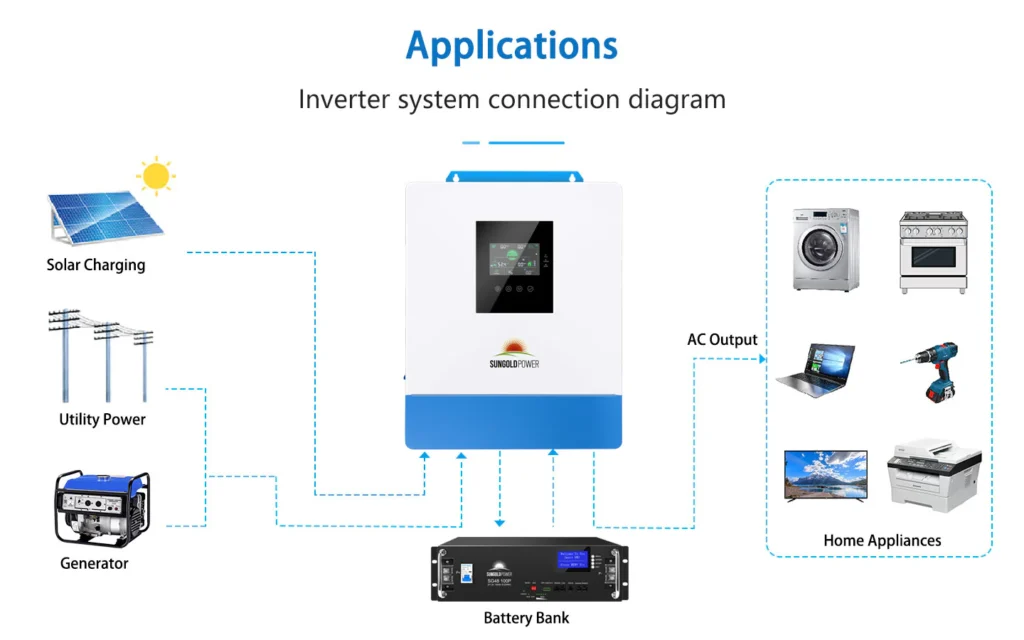

  • Supports grid-tied (AC-Charging) & off-grid system operation

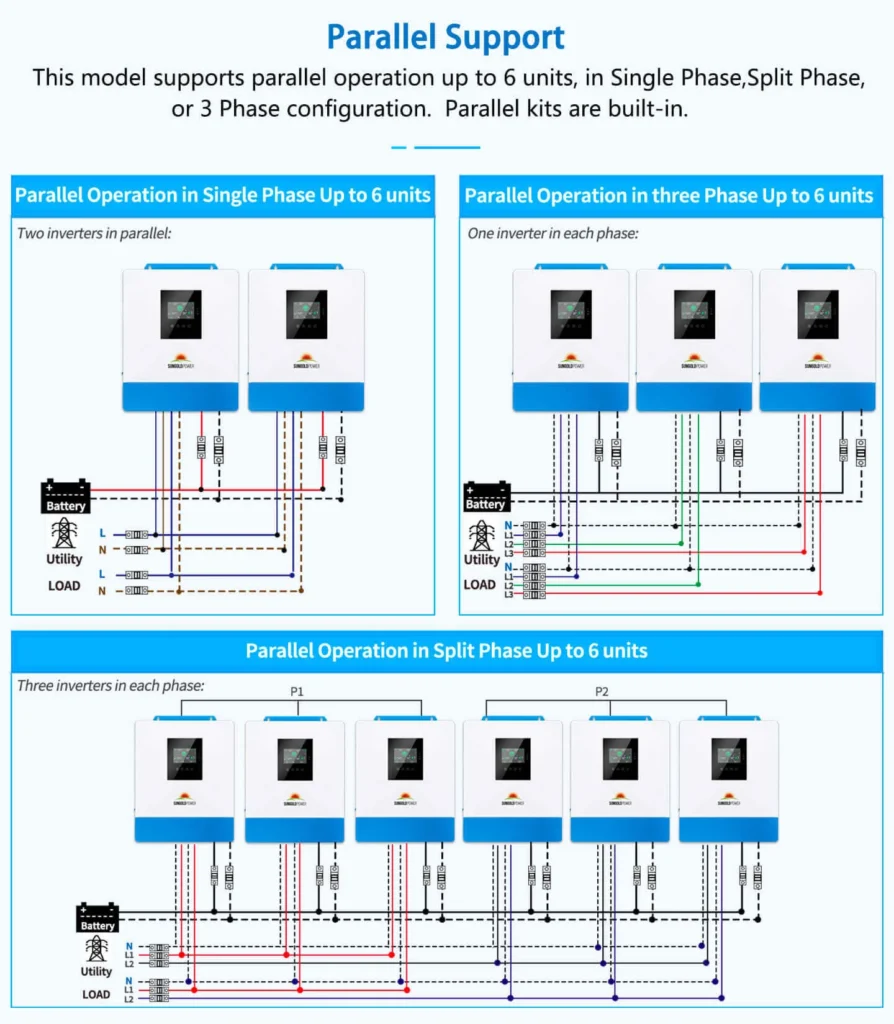

  ★ Parallel Kit
  • Includes (2) units to support 10kW power output
  • Up to (4) additional units can be added to yield 30kW power output
  • Add (1) or more units to support 3-Phase (208V) operation
  • Parallel function increases net inverter power and surge capacity.
  ★ Stable AC Output
  • Supports up to 4HP of motor load capacity with overload protection
  • Powers various household / office loads including refrigerators, computers, televisions, ovens, air conditioners, etc.
  ★ (4) Charging Modes & (4) Output Modes

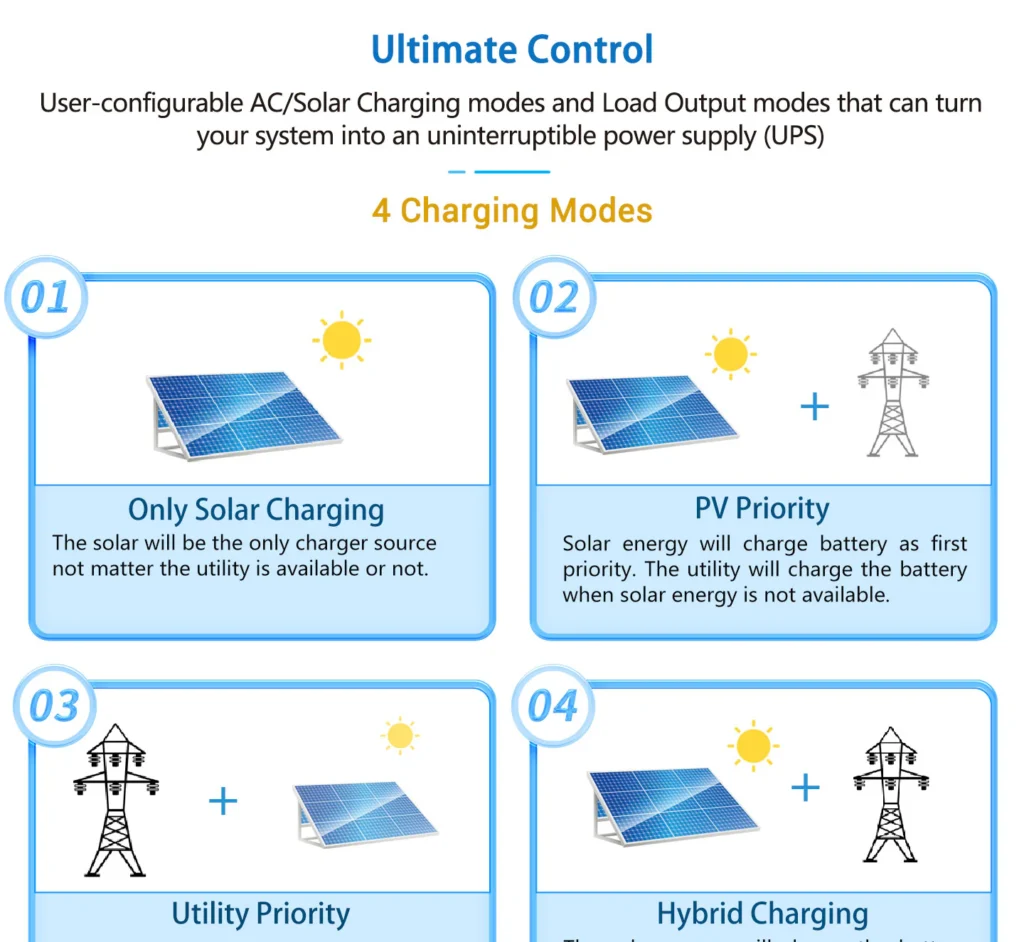

  • Charging Modes: AC Priority / Solar Priority / Only Solar / Mains & Solar Hybrid Charging

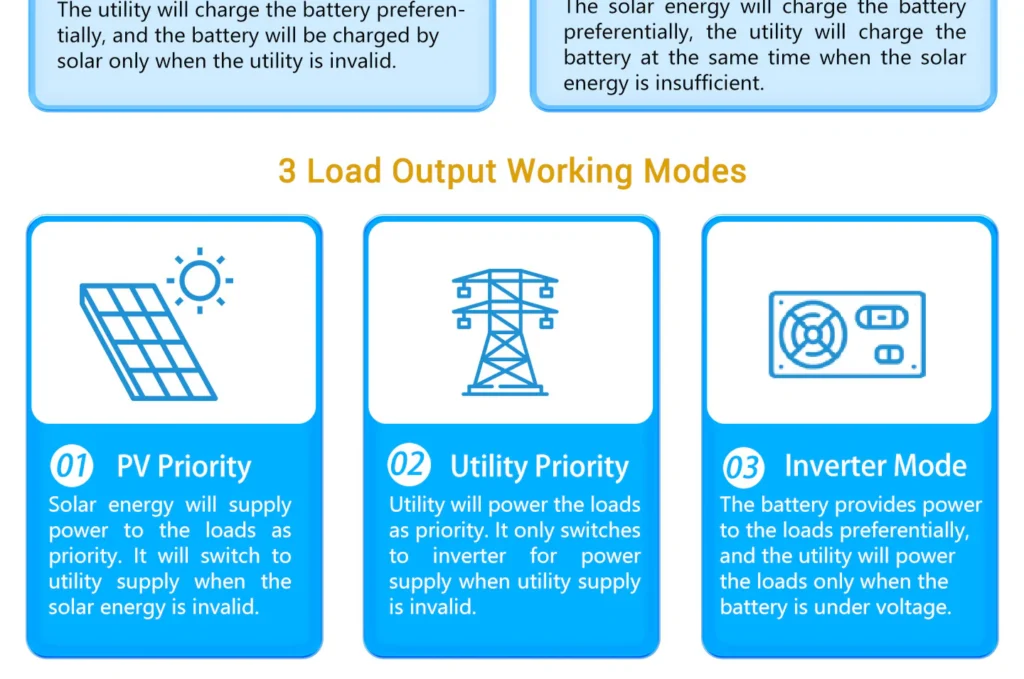

  • Output Modes: PV Priority / Utility Priority / Inverter Priority / Hybrid Output
  • Supports grid-tie operation

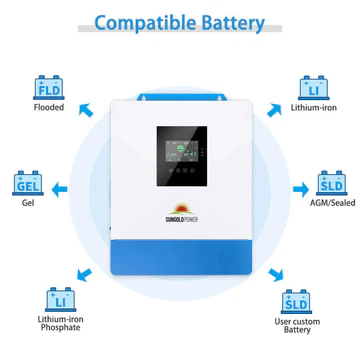

  ★ Battery Compatibility
  • Voltage Range: 40-60V
  • AGM / Sealed, Gel, Flooded, Lithium, and User-Mode for custom inputs

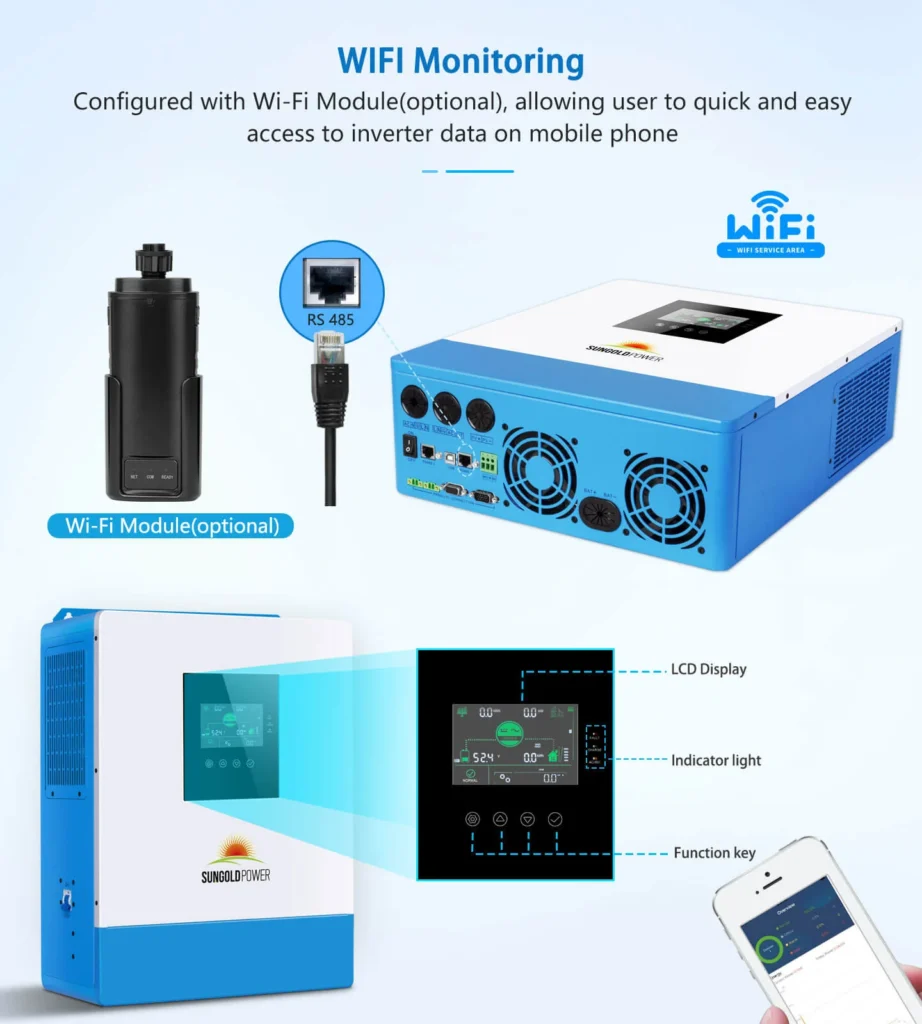

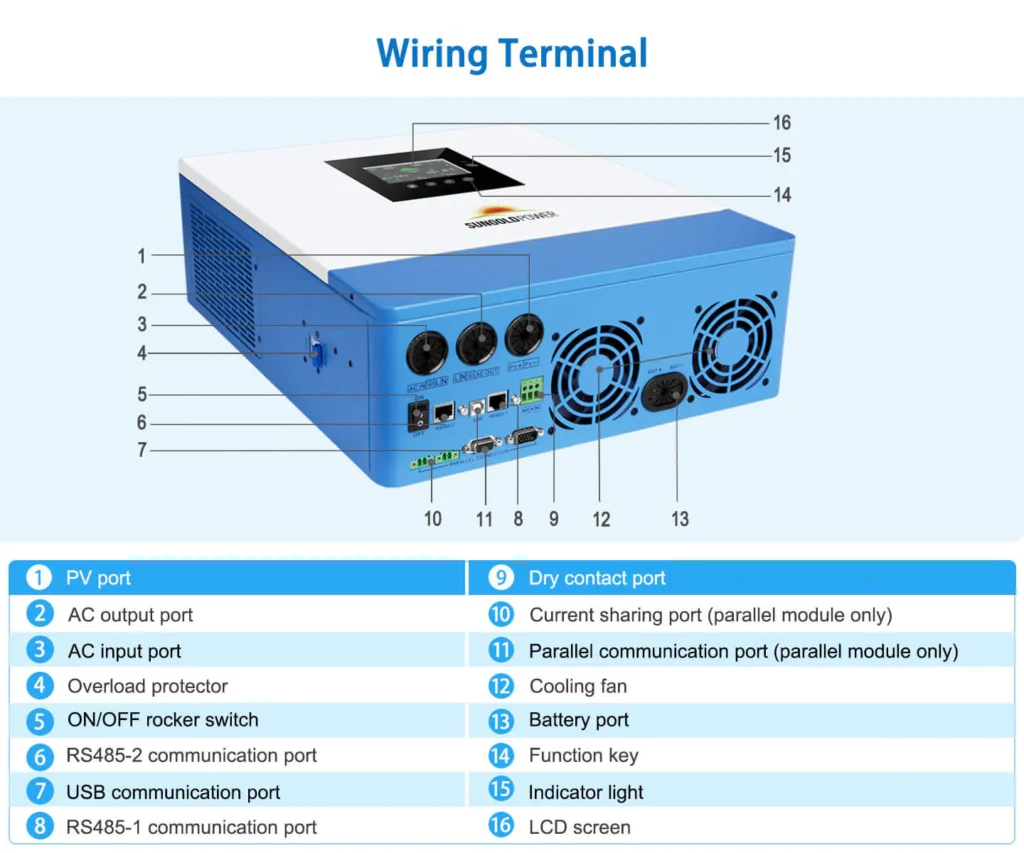

  • RS485 port for supporting BMS communication


Features



Product Details

Additional information

Dimensions 17.3 × 13.8 × 5.1 in

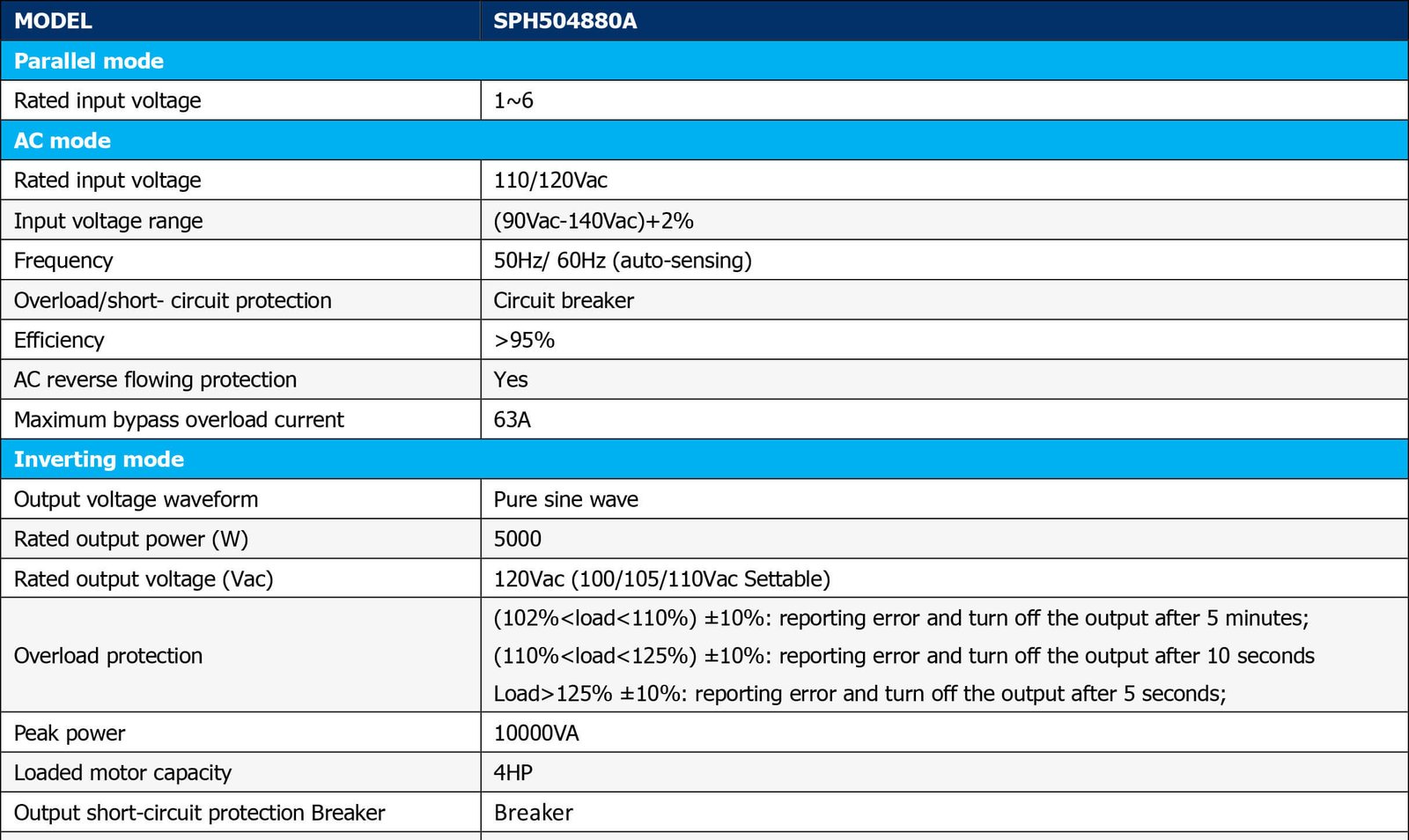

DATASHEET
