SunGoldPower 11.4kW High Voltage (HV) Split-Phase Inverter
SKU:
SG11.4KHB-HV
Brand:
Availability: In-Stock
Original price was: $2,488.00.$1,990.00Current price is: $1,990.00.
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!
PRICE MATCH GUARANTEE
Contact us if you found a better deal anywhere else! We’ll beat it!
Call Us
855-386-6669
Live Chat
100% US-based Support
Authorized
Dealer
Full Warranty &
Customer Service
Free
Shipping*
Available on
most items!
Best Pricing &
Product Support
Real Engineers.
Real Support.

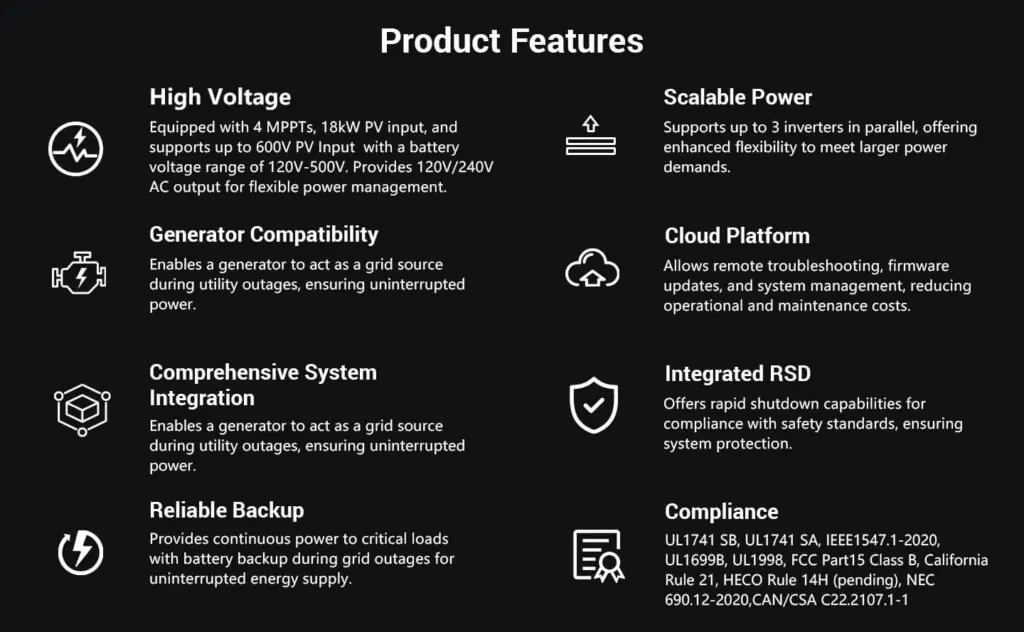

- 11.4kW Hybrid Inverter Inverter
- Battery Voltage: 120-500V
- Split-Phase (120/240V)
- (4) Integrated MPPTs (16A each)
- Supports PV input sized up to 18.24kW @ 600V
- Supports grid-tied (AC-Charging) & off-grid system operation
- Bluetooth-enabled for monitoring & adjusting settings
- WiFi-enabled for remote monitoring
- LCD with user-friendly Interface
- Parallel up to (3) units together, supporting up to 34.2kW power output
- Parallel function increases net inverter power and surge capacity.

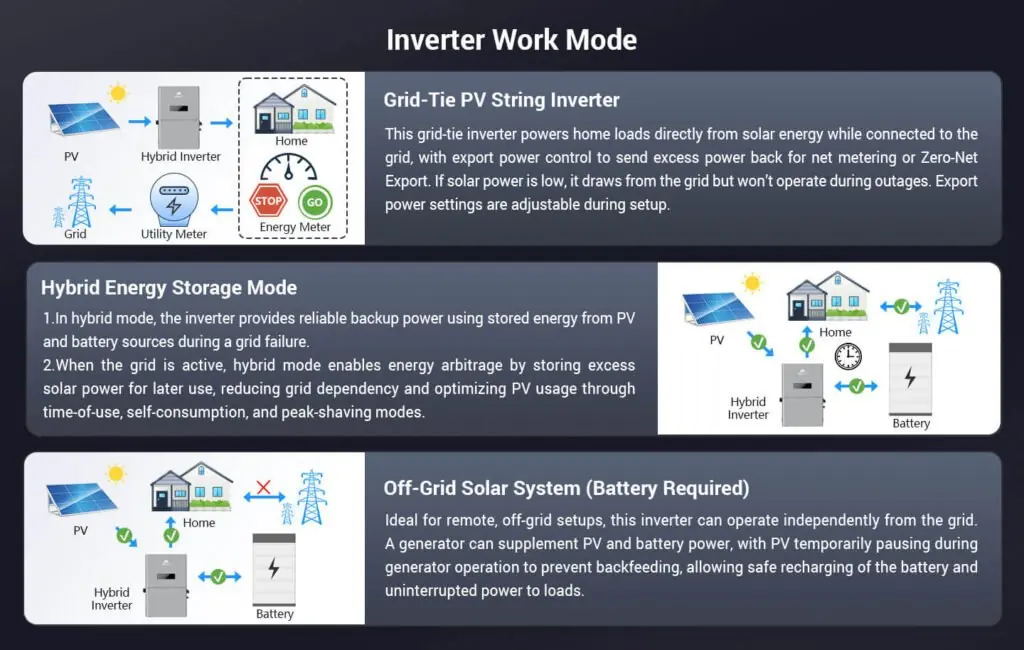

- Integrates with grid-tied, off-grid, and hybrid solar systems
- Highly adaptable to meet diverse power needs
- PV-Only / Energy Storage / Backup Power / Energy Arbitrage / Off-Grid / AC-Coupling / DC-Coupling
- Voltage Range: 120-500V
- Compatible with approved batteries from BYD, Dyness, Pylontech, Soluna, LG Energy Solutions Gen 3 & 4, HomeGrid, Goldenmate, Pytes, and EndurEnergy
- RS485 & CAN-bus support for BMS communication
- IP66 rated, Wall-mounted design, 10-year warranty
- Certificates: UL1741/SA/SB, UL1699/B, CAN/CSA C22.107.1-1, IEEE 1547.1-2020, FCC Part 15 Class B, California Rule 21, HECO Rule 14H (pending), NEC 690.12-2020
High Voltage 11.4kW Hybrid Split-Phase Inverter
with APS Transmitter (SG11.4KHB-HV)
This inverter delivers 11.4kW continuous output at 120V/240VAC while supporting a maximum PV input of 18.24kW. It is designed to work with high voltage lithium-ion batteries (120V-500V), optimizing self-consumption and providing reliable backup power in case of grid failure or when PV power is insufficient. It operates efficiently in both on-grid and off-grid applications and can be AC coupled and DC-coupled with various batteries, providing a versatile and flexible solution for different energy needs.
