Solar Kit – 2.2kW PV Input, 6kW Output, 800Ah Batteries

SKU:

SGK-PRO64

Brand:

SKU:

SGK-PRO64

Brand:

Solar Bundles & Kits

6 kW Inverter/Charger

2.22 kW Solar Panel Bundle

800Ah (10.24 kWh) LFP Capacity

UL 1741

Original price was: $7,539.00.Current price is: $5,654.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

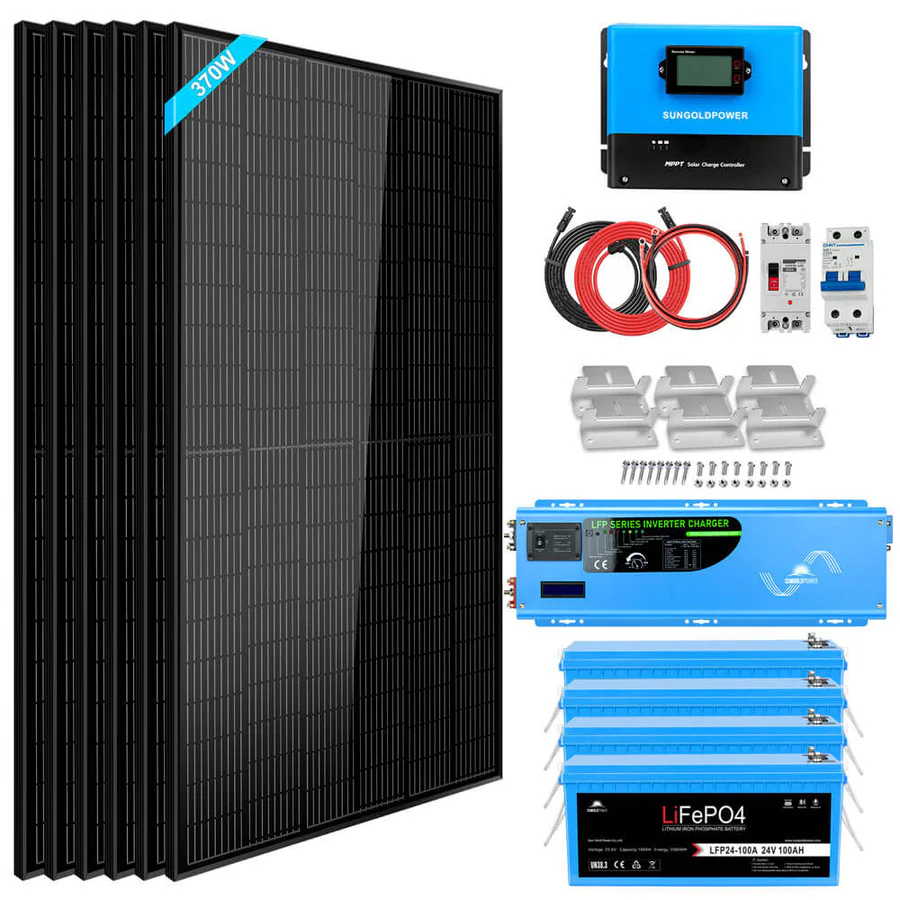

★ Solar Kit Summary

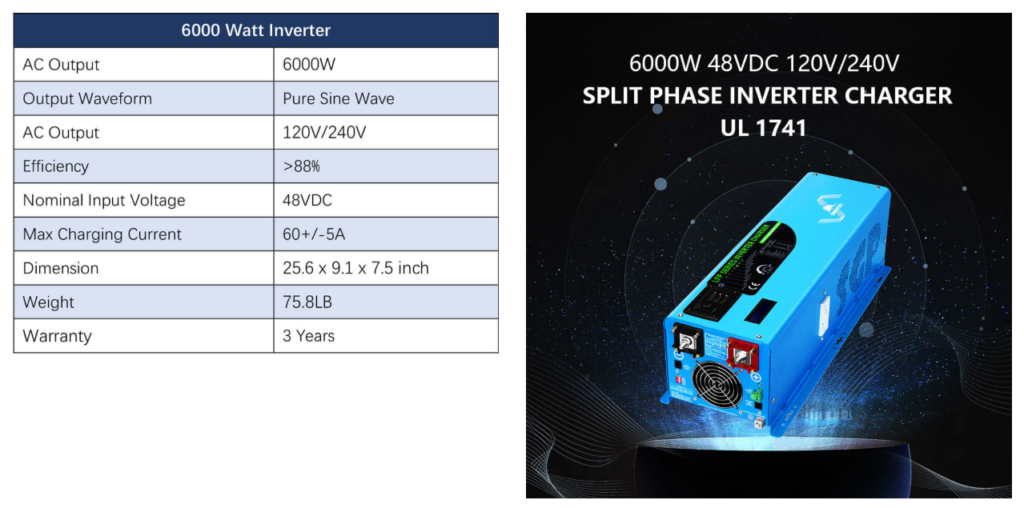

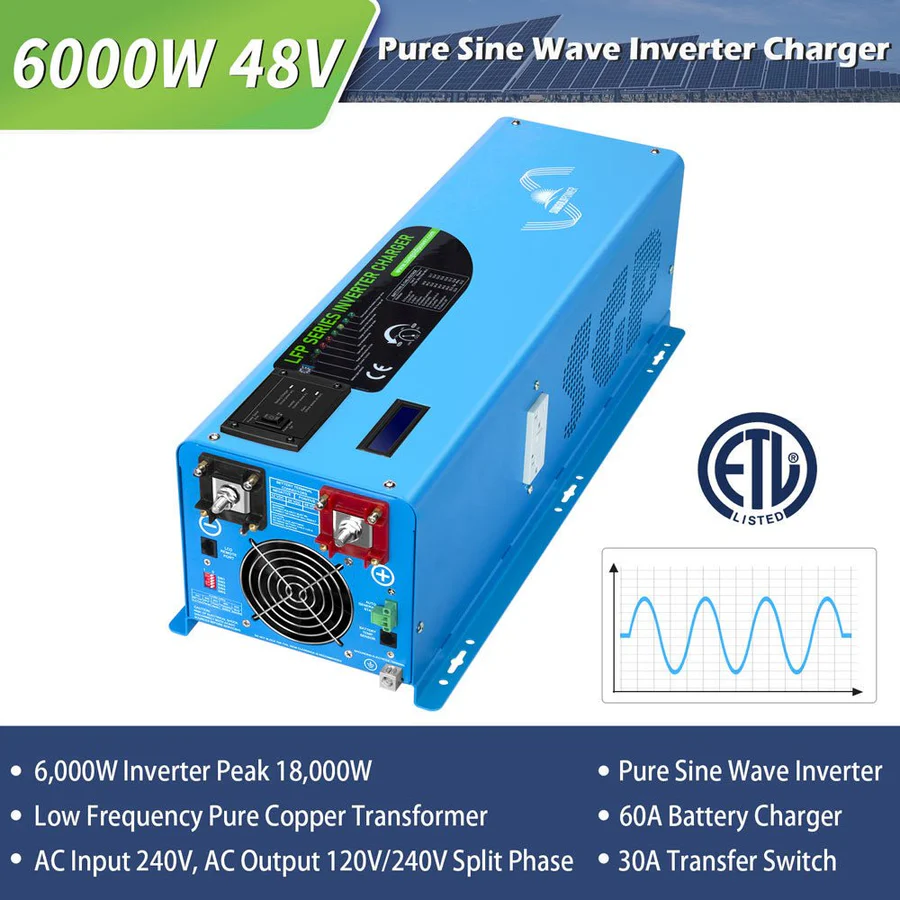

  • (1) 6kW 48V Split-Phase 120/240Vac Inverter/Charger (LFP6K48V240VSP)

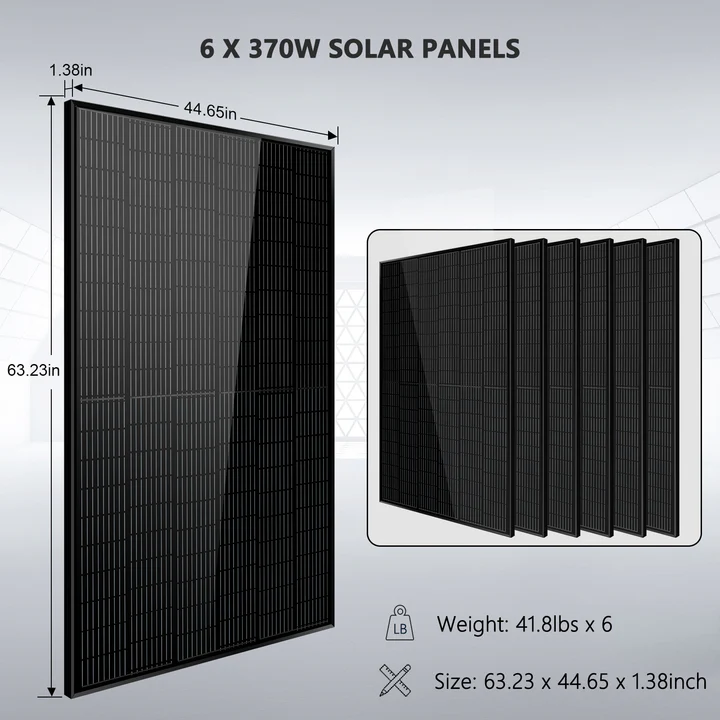

  • (6) 370 Watt Monocrystalline Solar Panels (SG370WM)

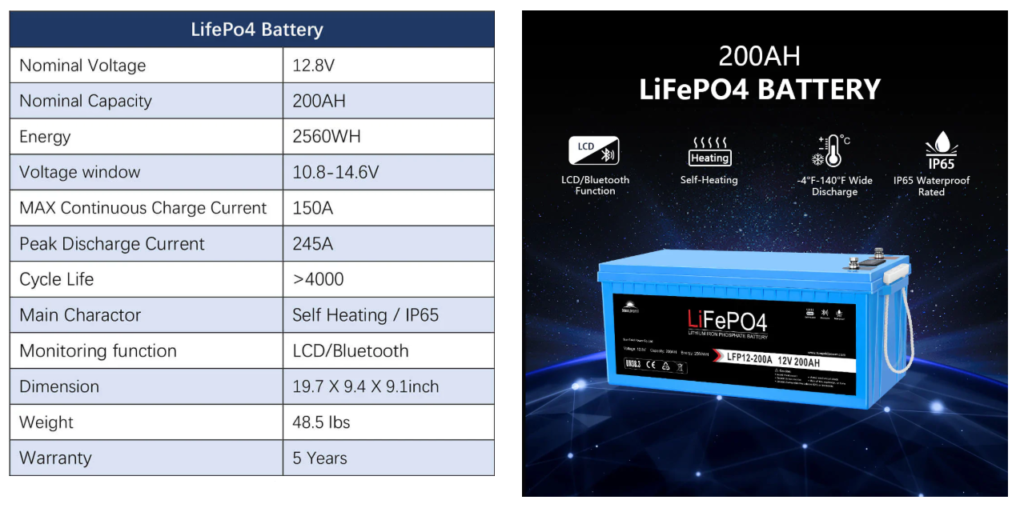

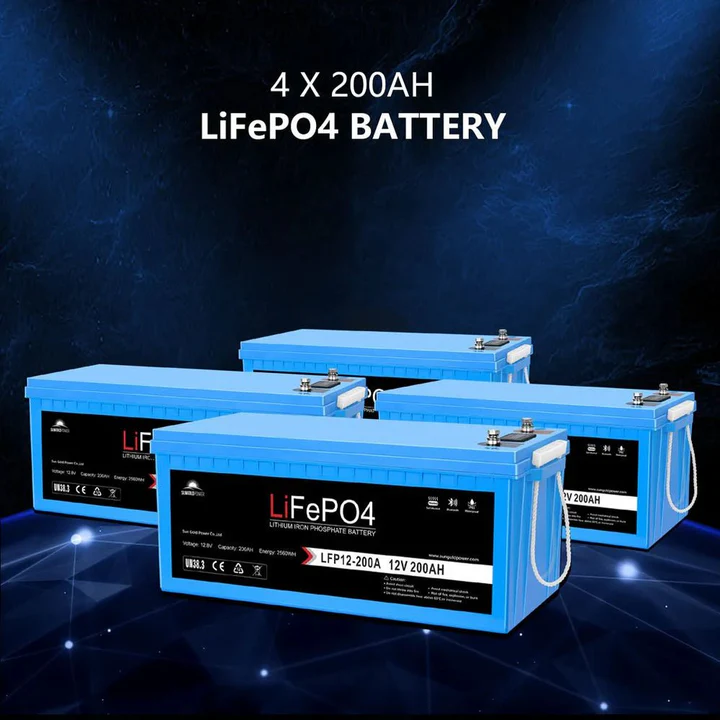

  • (4) 12V 200Ah LFP Batteries with Bluetooth (LFP12-200A)

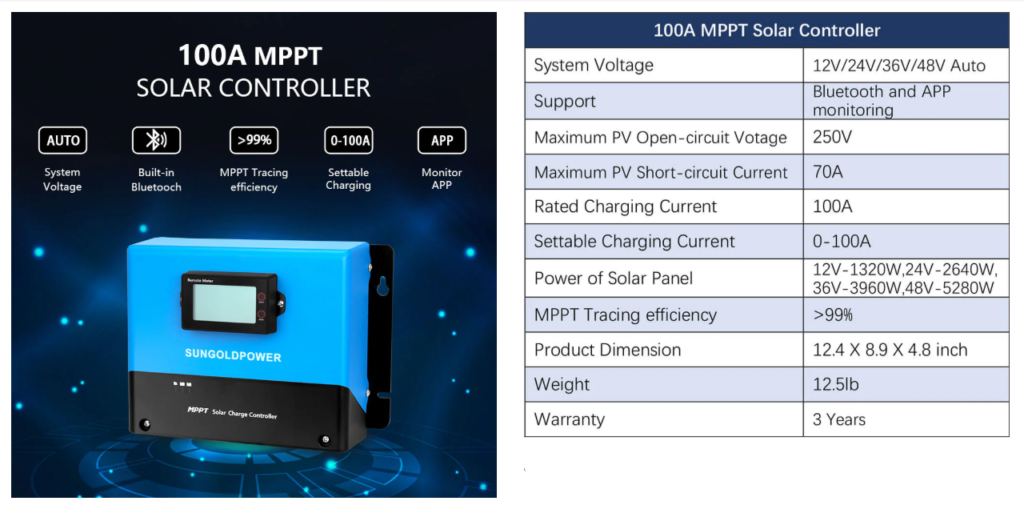

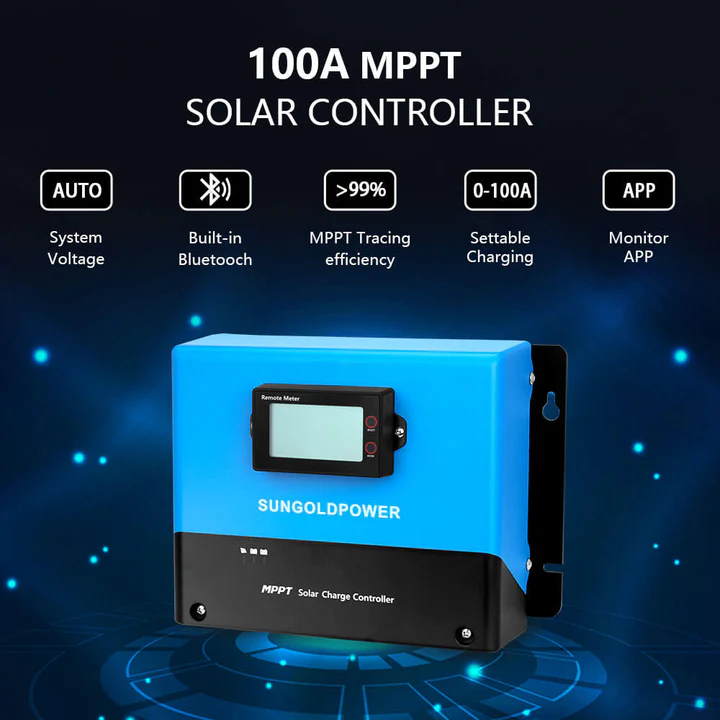

  • (1) 100A MPPT Solar Charge Controller (SGC4825100A)
  • (1) Set x 50′, Solar Extension Cables (Link)
  • (1) Set of Cable for Battery & MPPT Controller connection
  • (6) Sets of Mounting Z-Brackets (Link)
  • (1) 200A DC Breaker (Link)
  • (1) 25A PV Breaker (Link)


Features

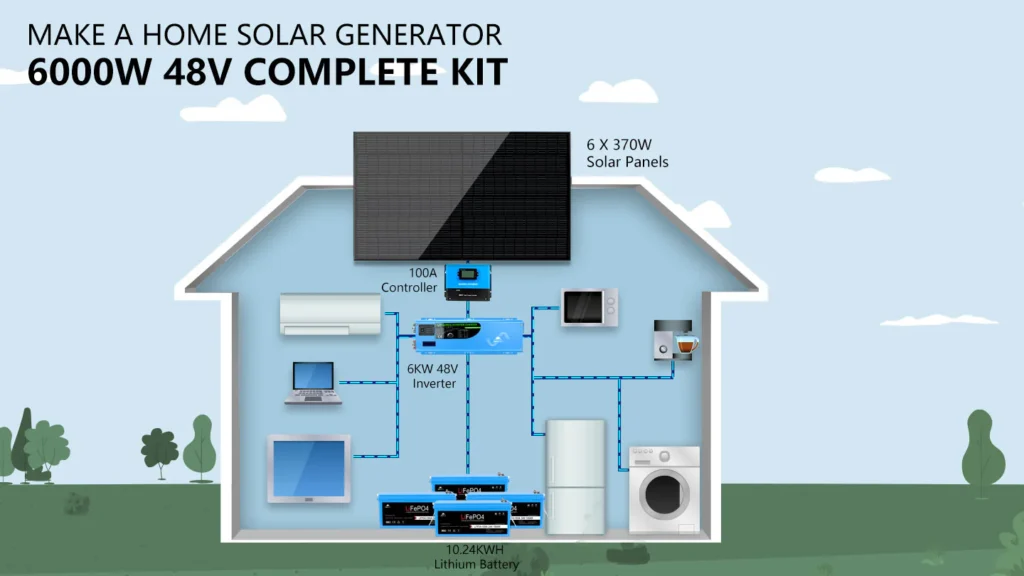

SunGoldPower’s off-grid solar system kit contains nearly everything you need to bring 2.22kW off-grid solar power and storage to mid-sized off-grid homes or remote cabins. This 6000 watt solar system includes a 6 kW split-phase Inverter/Charger to power most 120V and 240V home appliances plus 10.24kWh of storage. The inverter is also equipped with auto-generator start, providing you a clean, quiet, and amazing off-grid experience!



Wiring Diagram



Additional information

Weight 2000 lbs
Options

SGH-11N2E [with 16x450w solar panels], SGH-11N2E-s [without solar panels], SGH-11N5E [with 36x450w solar panels], SGH-11N5E-s [without solar panels]

DATASHEET

USER MANUAL
