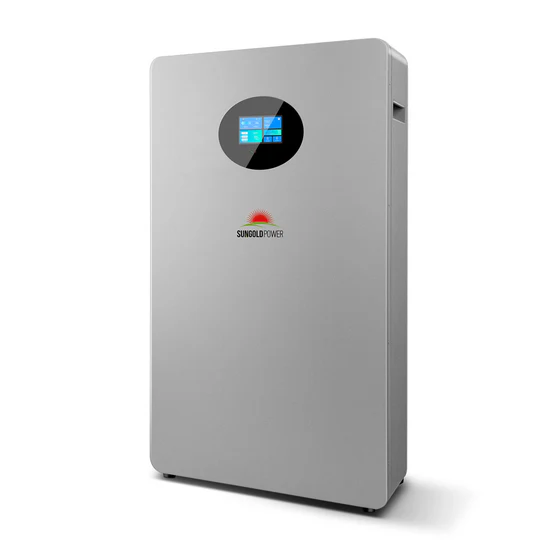

SunGoldPower PowerWall X 48V 200Ah (51.2V, 10.24kWh)

SKU:

SG48200T

Brand:

SKU:

SG48200T

Brand:

LFP Battery

51.2V 200Ah (10.24kWh) Battery

Parallel Support

Integrated BMS (CAN / RS485)

10-Year Warranty

UL1973, UL9540A (Coming Soon)

Original price was: $2,813.00.Current price is: $2,250.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

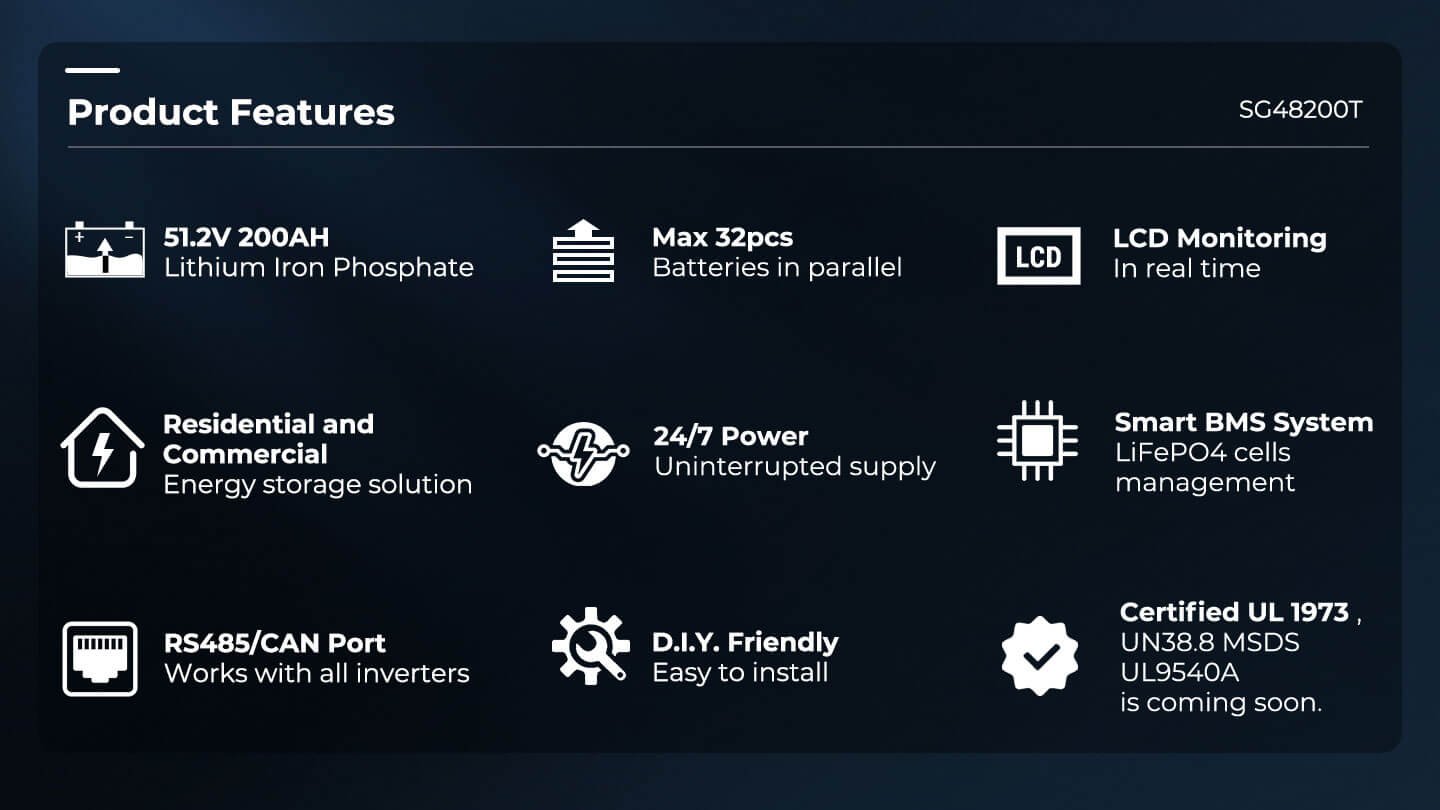

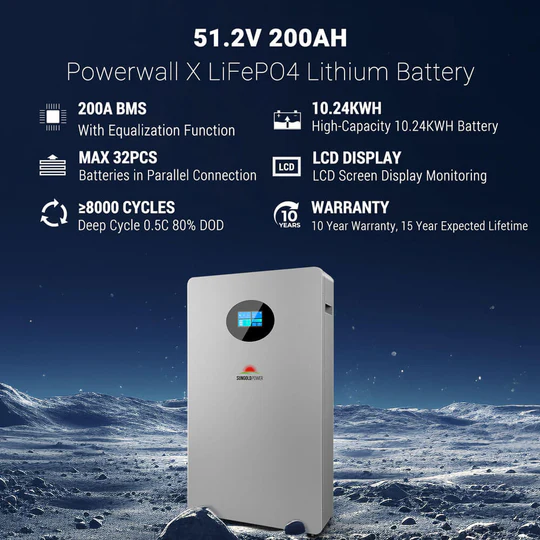

★ Key Features
  • 51.2V 200Ah (10.24kWh) LFP Battery
  • IP65-Rated

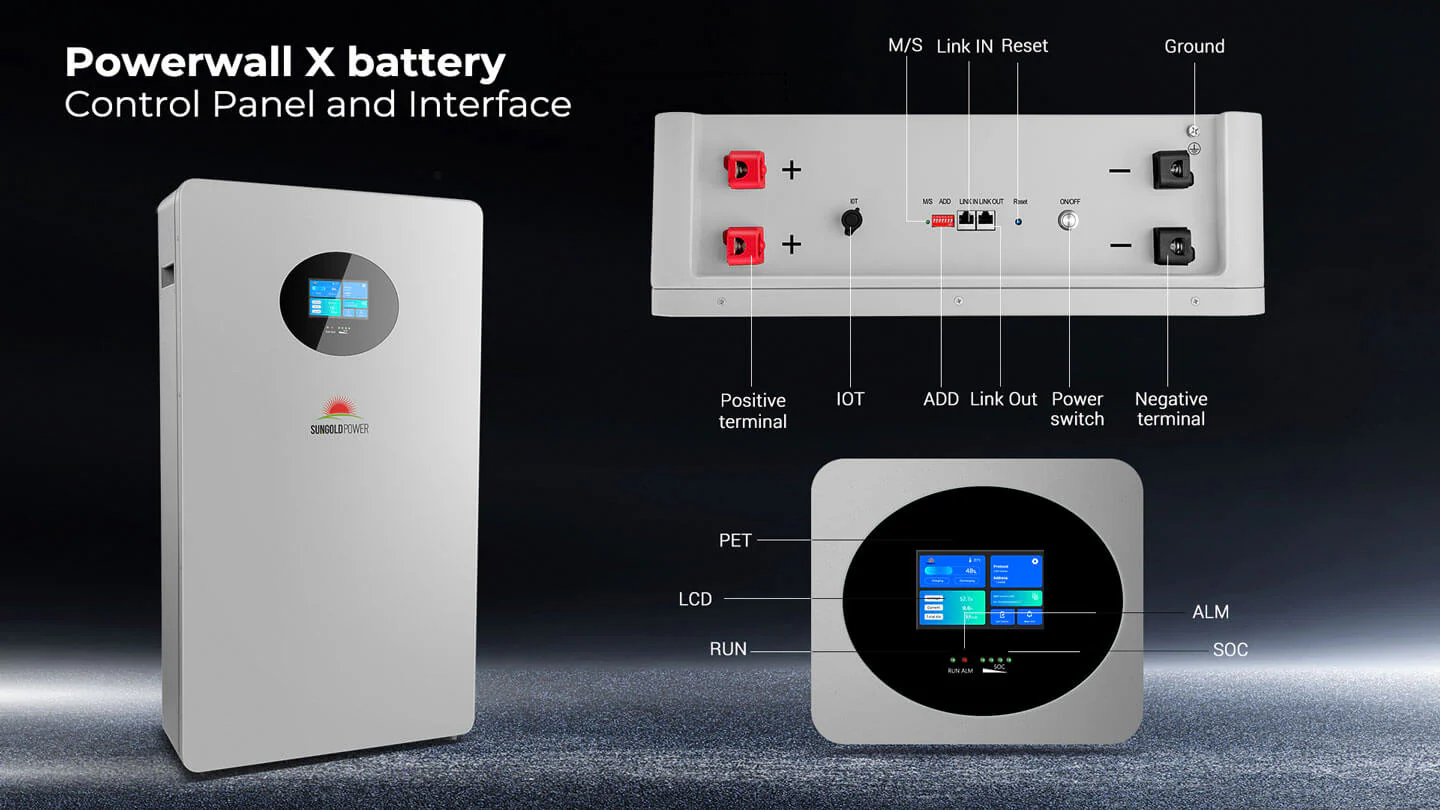

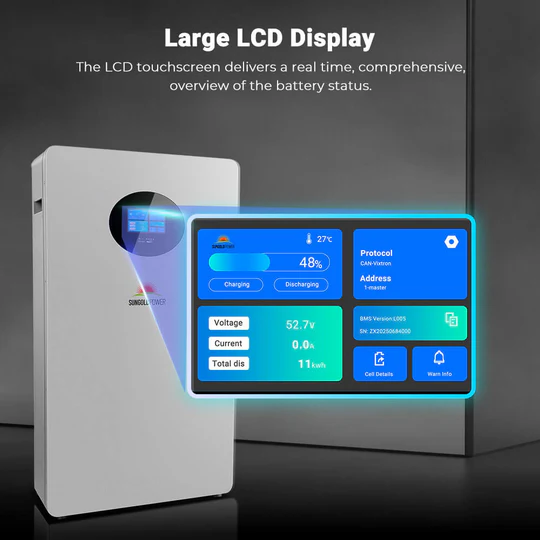

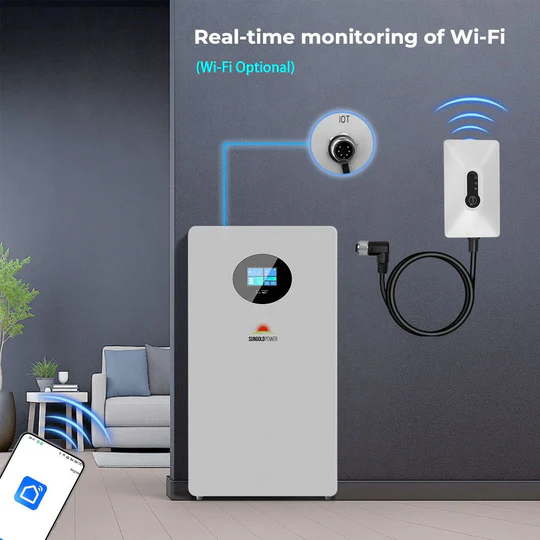

  • LCD Touchscreen Panel allows for real-time monitoring of vital information like state of charge, current, and voltage
  • ≥ 8000 cycles @ 80% DOD
  • 10-year Warranty

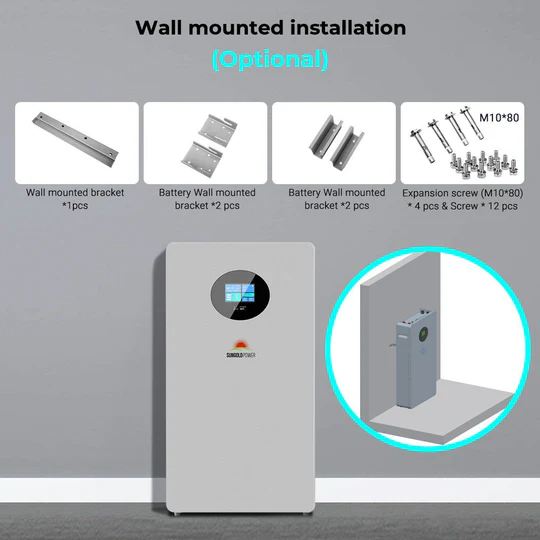

  • Wall mount available (order SG48200T-WMKIT separately)
    ★ Parallel & Series Flexibility

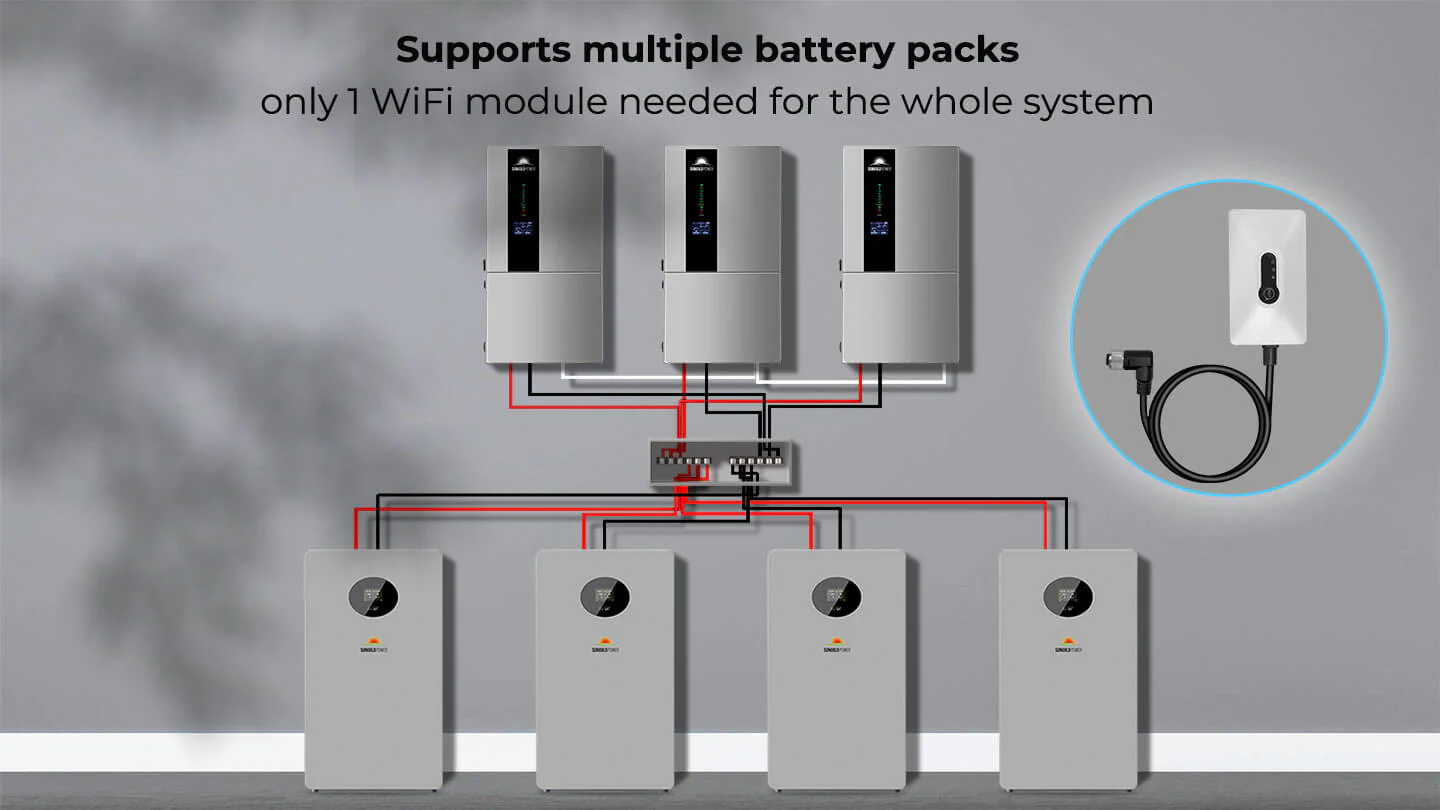

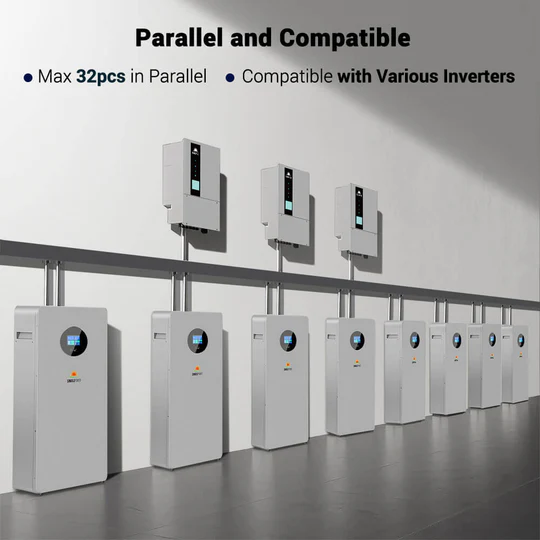

  • Parallel connection up to (32) units together, total parallel capacity of 328kWh
  • Ideal for Residential and Commercial energy storage
    ★ Intelligent BMS
  • Provides comprehensive protection to the battery from overcharging, discharging, over-current, short-circuits, and high-temperature cut-off
    ★ Communication
  • Compatible with RS485 and CAN-Bus
  • Compatible with major inverters including Growatt, Deye, SunGoldPower, Luxpower, Victron Energy, Schneider, EG4, Sol-Ark, Victron, Mppsolar, Megarevo, and others


Features

PowerWall X 51.2V 200Ah 10.24kWh LiFePO4 Battery

The PowerWall X was designed with maximum storage in mind. It can absorb energy from the sun all day for use at night, during a blackout, or in emergency situations.  With 10kWh of energy capacity, you can rest easy knowing your appliances will have the power they need.

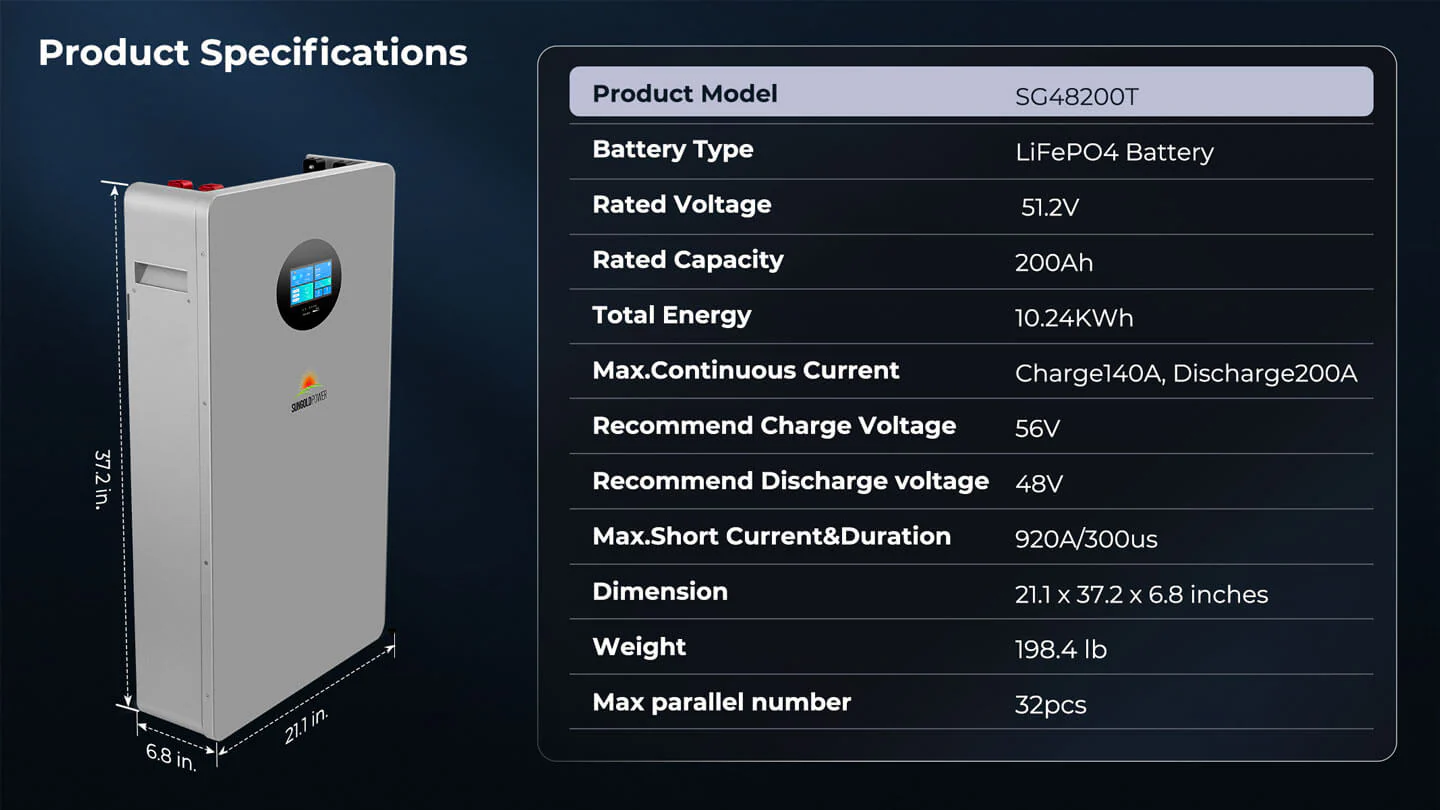

Additional information

Weight 198.4 lbs
Dimensions 21.1 × 37.2 × 6.8 in

DATASHEET

USER MANUAL

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
