Amensolar N3H-X10 10kW 48V Split-Phase Solar Inverter

SKU:

N3H-X10

Brand:

SKU:

N3H-X10

Brand:

Solar Inverter

10kW 48V Solar Inverter

Parallel Support

15kW Max PV Input (up to 500V)

UL1741SA, UL1699B, CSA 22.2

Original price was: $3,200.00.Current price is: $2,950.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ All-In-One (AIO) Solar Hybrid Inverter
  • Split-Phase Inverter with 10kW output
  • (4) Integrated MPPTs supporting 14A each
  • Supports PV input sized up to 15kW @ 500V
  • Supports grid-tied (AC coupling) & off-grid system operation
  • Remote Monitoring over WiFi using SOLARMAN app or web portal
  • Integrated Rapid Shutdown (RSD) button
  • LCD Touch Panel

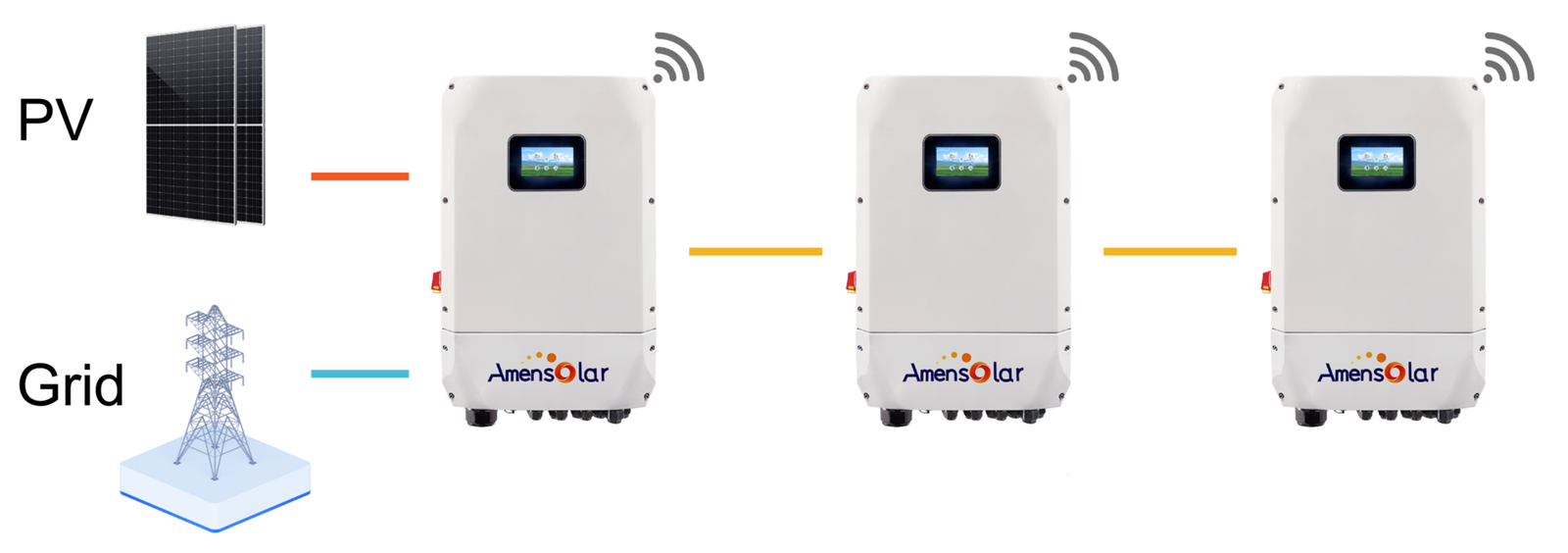

  ★ Parallel Function
  • Parallel up to (3) units together, supporting up to 30kW power output
  • 110-120/220-240V (Split-Phase) or 208V (2/3 Phase) or 230V (1-Phase)
  • Parallel function increases net inverter power and surge capacity.
  ★ (3) Work Modes
  • Charging Modes: AC Priority / Solar Priority / Only Solar / Grid & Solar Hybrid Charging
  • Output Modes: PV Priority / Utility Priority / Inverter Priority / Hybrid Output
  ★ Battery Compatibility
  • Voltage Range: 40-60V
  • Lithium and Lead Acid Battery
  • RS485 port for supporting BMS communication
  description-img

Solar Hybrid Inverter Application

inverter-images

Product Highlights

  • The N3H-X10 hybrid inverter supports flexible application modes, including battery priority, peak shaving, and valley filling, as well as self-consumption, cater to various energy management requirements.
  • Supports 3 parallel connections including the simultaneous input of PV, batteries, diesel generators, power grids, and loads.
  • The color LCD provides users with configurable and easily accessible push button operation. with RS485/CAN port for battery communication.
  • Operates within an acceptable input voltage range of 120~500VAC.


Additional information

Weight 90.4 lbs
Dimensions 16.92 × 27.95 × 8.66 in
Model

N3H-X10US (10kW), N3H-X12US (12kW), N3H-X16US (16kW)

DATASHEET

USER MANUAL

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
