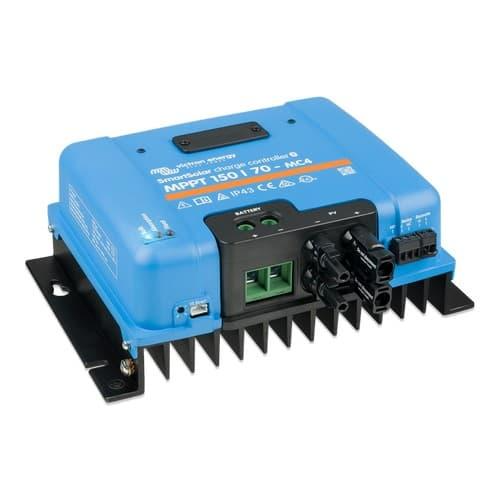

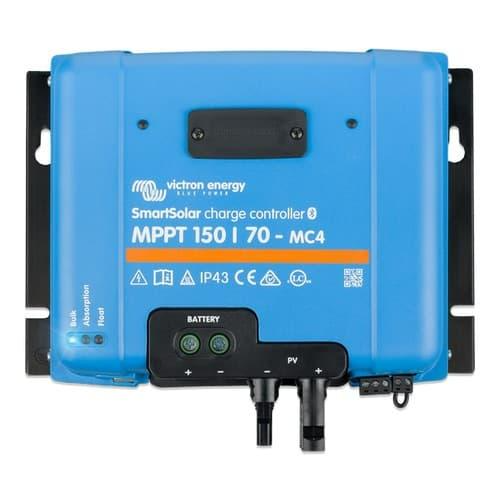

Victron Energy 150/70 MC4 VE.Can Solar Charge Controller

SKU:

SCC115070511

Brand:

SKU:

SCC115070511

Brand:

Solar Charge Controller

70A MPPT Output

150V / 50A Max PV Input

MC4 Connectors

12/24/36/48V Support

UL 1741, EN/IEC 62109-1, CSA C22.2

$512.00

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary
  • 70A Rated Charge Current
  • 50A Max PV Short Circuit Current
  • Automatically detects 12V, 24V, and 48V DC system voltages (can manually set 36V)
    • Nominal PV Power (12V) = 1000W
    • Nominal PV Power (24V) = 2000W
    • Nominal PV Power (36V) = 3000W
    • Nominal PV Power (48V) = 4000W
  • 145V start-up & operating maximum (150V absolute maximum)
  • MPPT Tracking efficiency can be as much as 98%

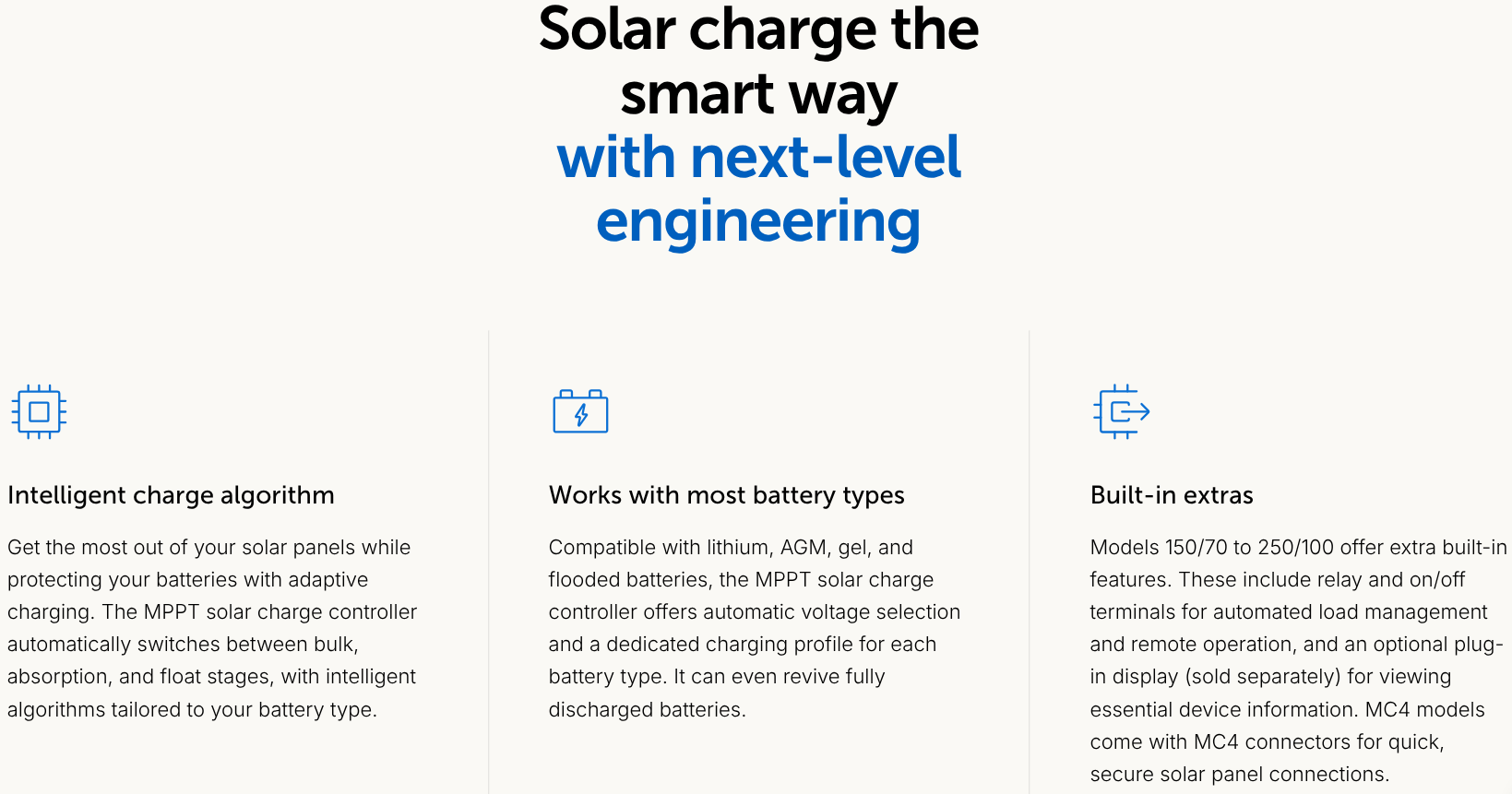

  • Battery Types:                Lithium, AGM, Gel, and Flooded Batteries

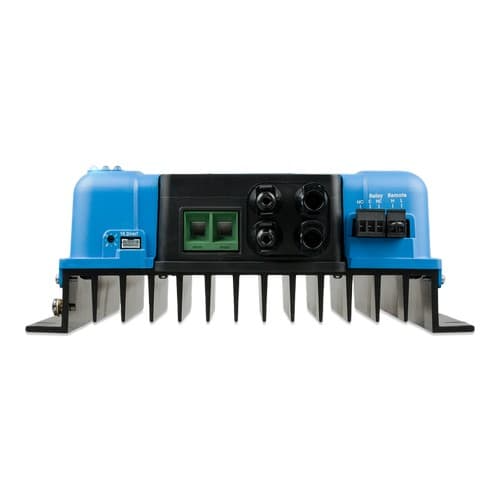

  • Connection Options:
    • Solar Input:             (2) Pairs of MC4 Connectors
    • Battery:                   2 AWG Wiring
    • Communication:     VE.Can, VE.Direct, Bluetooth
  • Indoor Use Only, IP43 (Electronic Components), IP22 (Connection Area)

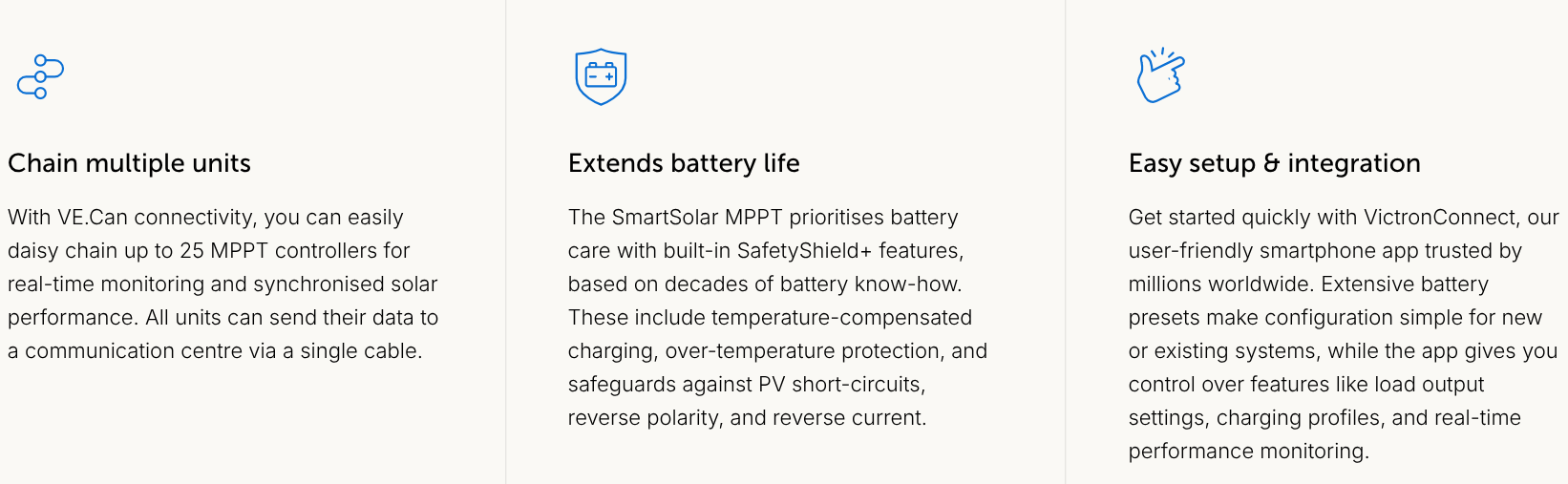

  • Supports parallel function (up to 25 units via VE.Can, up to 10 units via Bluetooth)
  • Integrates with Victron Remote Management (VRM) System (connects via Cerbo-GX device, sold separately)
  • Optional SmartSolar pluggable display available


Additional information

Weight 6.6 lbs
Dimensions 8.46 × 9.84 × 3.74 in
