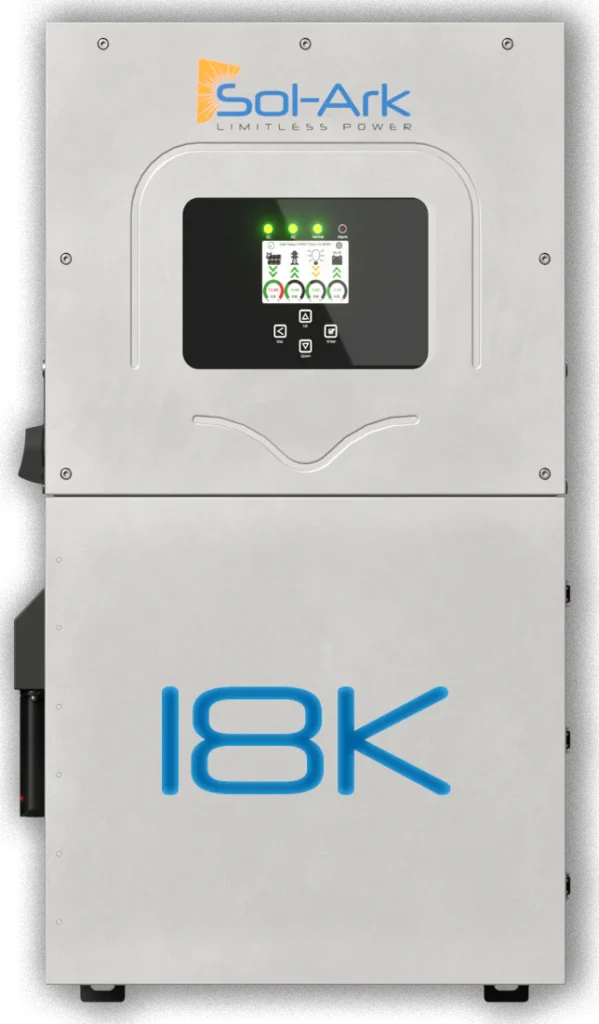

Sol-Ark 18K-2P-LV Split-Phase Hybrid Inverter

SKU:

18K-2P-LV

Brand:

SKU:

18K-2P-LV

Brand:

Hybrid Inverter

18kW 48V Solar Inverter

Parallel Support, FEOC-Compliant

32.4kW Max PV Input

UL1741, UL1699B, IEEE 1547

Original price was: $9,870.00.Current price is: $6,948.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

  ★ All-In-One (AIO) Solar Hybrid Inverter
  • 18 kW Continuous Pure Sine Wave Inverter, up to 36kW Surge Power (10 seconds)
  • 200 A Integrated Bypass
  • Split-Phase (120/240V) Output
  • (3) Integrated MPPTs (36A each, Max Short Circuit Current = 54A per MPPT)
  • Rapid Shutdown (RSD) Function
  • Supports PV input sized up to 32.4kW @ 500V
  • Supports grid-tied (AC-Charging) & off-grid system operation

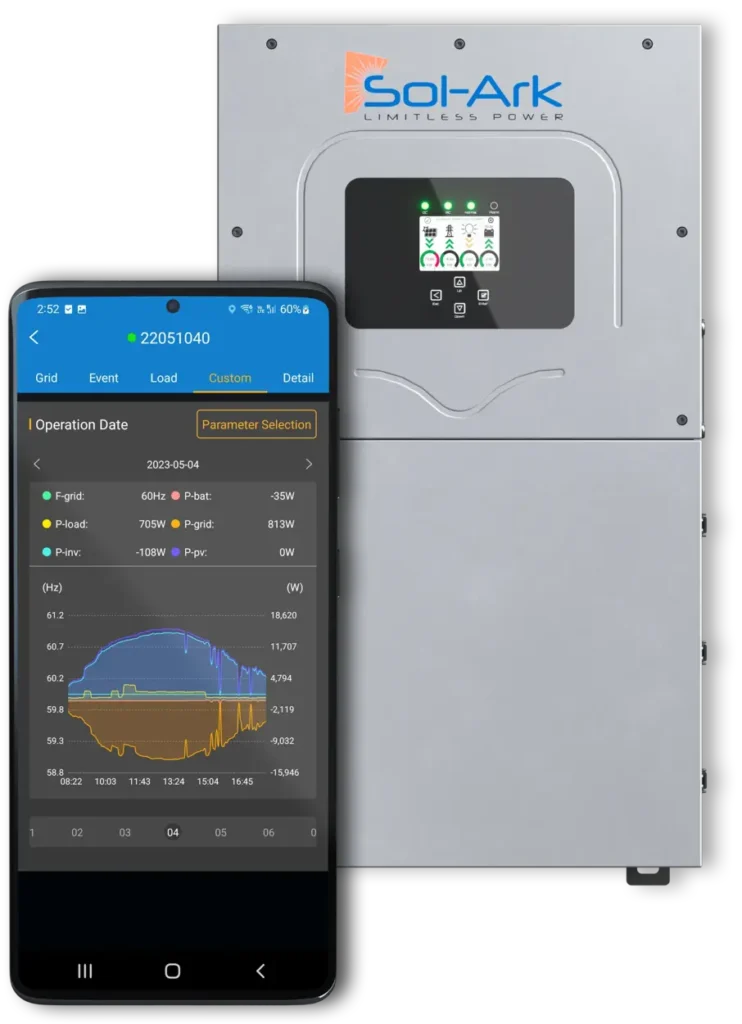

  • WiFi-enabled for remote monitoring
  • FEOC-Compliant
  ★ Parallel Function
  • Parallel up to (12) units together, supporting up to 216 kW power output
  • (1) Unit = Single or Split-Phase (120/240V) or 2/3 Phase (208V)
  • Parallel function increases net inverter power and surge capacity.
  ★ Advanced AC Coupling
  • Integrates with grid-tie systems and supports smart load
  • Smart load support is suitable for one inverter
  ★ (6) Work Modes
  1. Grid Sell
  2. Limited Power to Home (Meter Zero)
  3. Limited Power to Home + Grid Sell
    • Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
  4. Limited Power to Load
    • Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
  5. Limited to Load + Grid Sell
  6. Time of Use
    • Energy Priority: 1) Solar PV Power, 2) Batteries, 3) Grid Power, 4) Generator
  ★ Battery Compatibility
  • Voltage Range: 41-63V
  • Capacity: 50 – 9900Ah
  • Continuous Battery Charge / Discharge Current: 350A
  • CANBus & RS485 MODBUS support for BMS communication
  ★ Durable & Safe
  • IP65 / NEMA 3R rated, Wall-mounted design, 10-year warranty
  • Ensure continuous power to critical loads with battery backup when the grid fails
  • Certificates: UL1741 CRD-Multimode, UL1741 3rd SB, UL1741 CRD-PCS, IEEE1547-2018 and interoperability using IEEE2030.5, Hawaiian Electric SRD V2.0, UL1699B PVDC AFCI, UL1998, CSA C22.2 No 107

Additional information

Weight 137 lbs
Dimensions 34 × 18.2 × 11.1 in

DATASHEET

USER MANUAL

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related Products

Solar Inverter

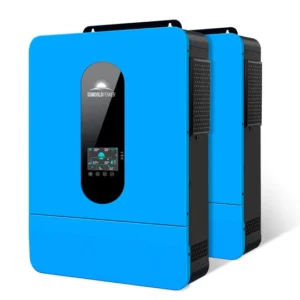

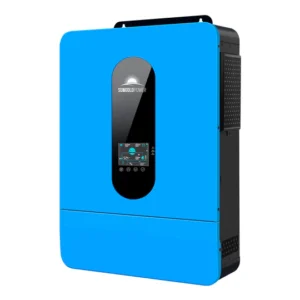

SPH6548Px2
