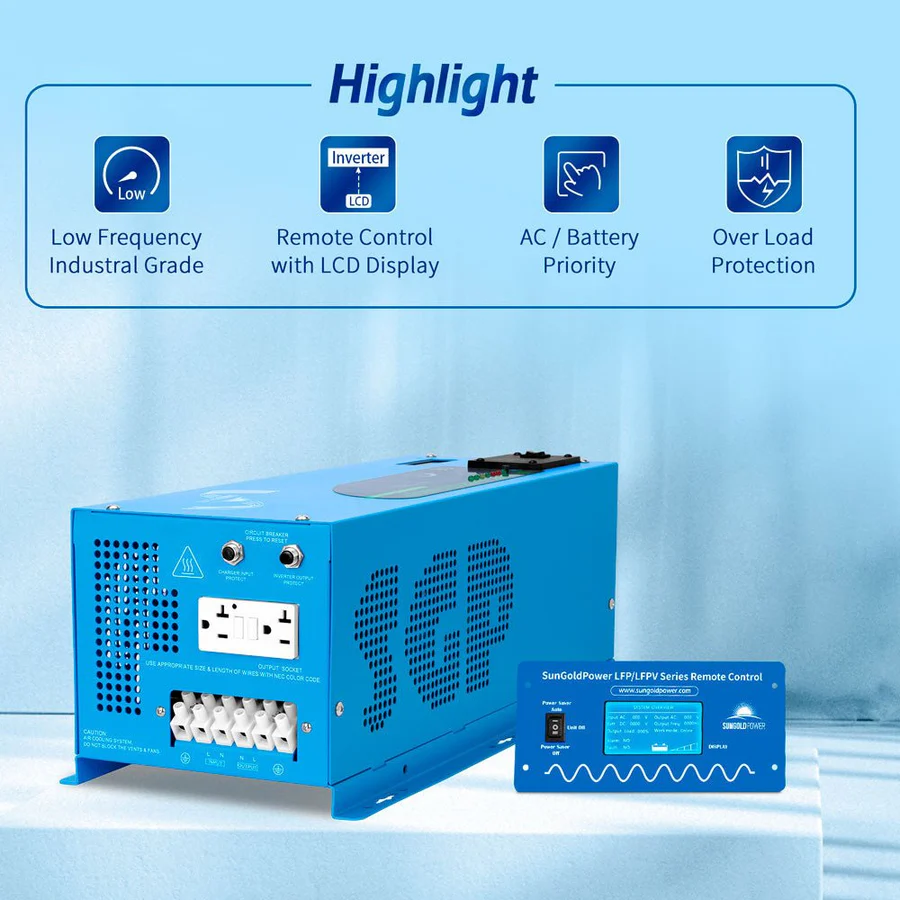

★ Product Summary

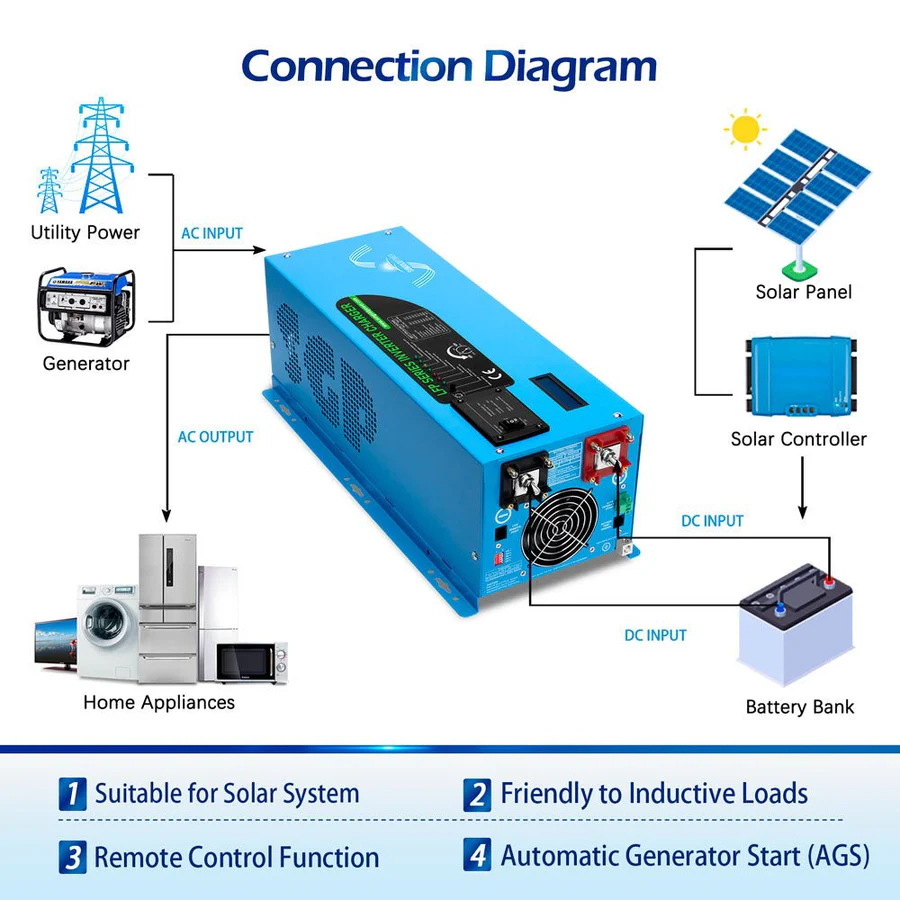

- Combines pure sine wave inverter, battery charger, and AC auto-transfer switch.
- Converts 120Vac input to 2kW 120Vac output (50/60 Hz)
- Surge output up to 6kW (20 seconds)
- Compatible with 12V batteries

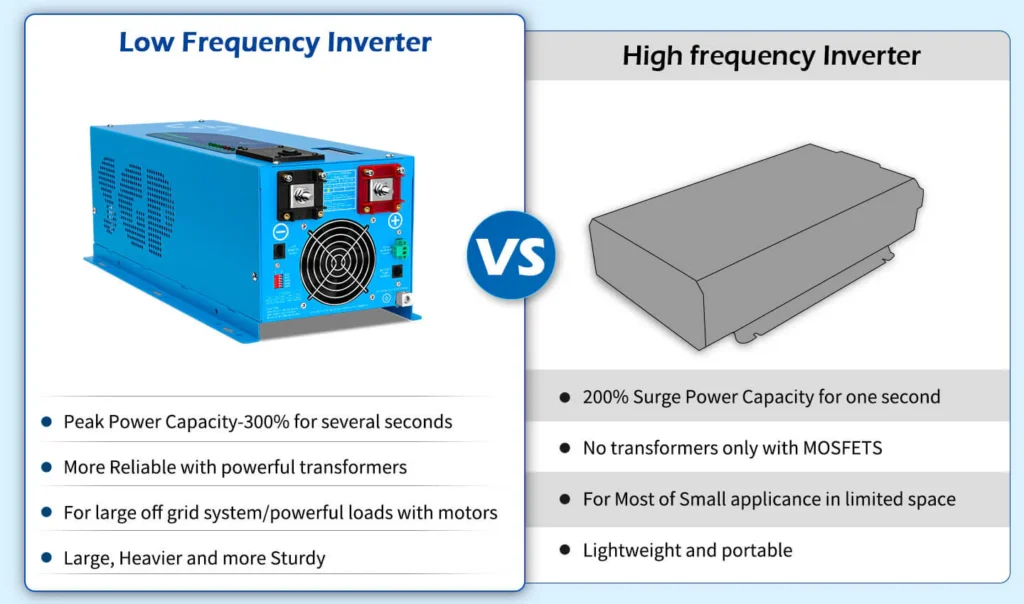

- Low frequency, low idle current
- Automatic Generator Start capable
- Includes LCD Display, Remote Control, and BTS cable
★ Other Properties

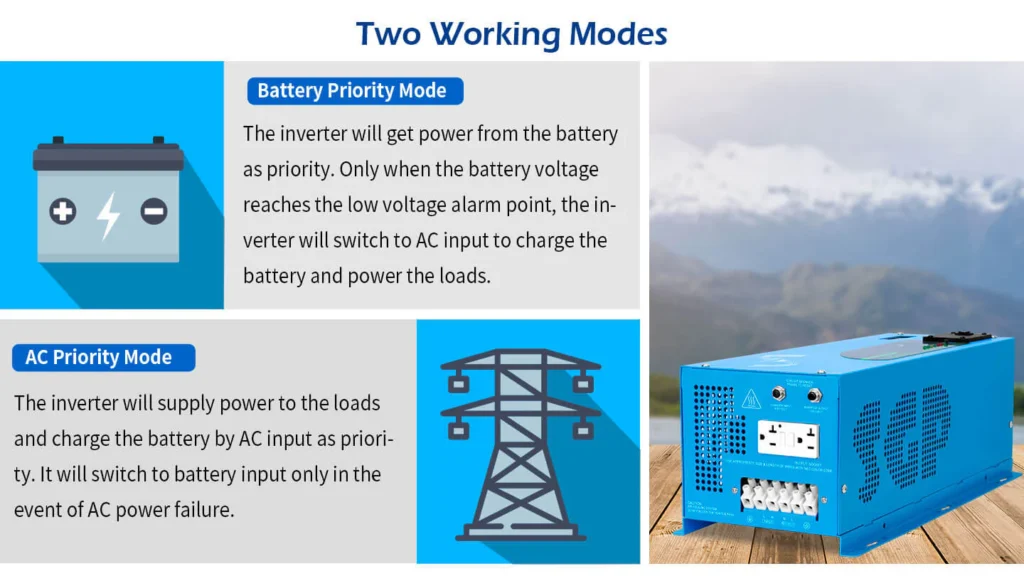

- AC priority mode by default, change to Battery priority using switch
- Max charge current can be adjusted from 0-100% via a linear switch
- Can start up a generator when the battery voltage goes low and turn it off once the battery is fully charged
Features
If you are looking for a pure sine-wave inverter/charger, the 2000W SunGoldPower low-frequency pure sine-wave inverter is an excellent choice. It combines inverter, battery charger and transfer switch functionality into one complete system, This 12V DC to 120V AC inverter boasts a 300% surge capacity for 20 seconds to reliably support tools and equipment longer.
Specifications

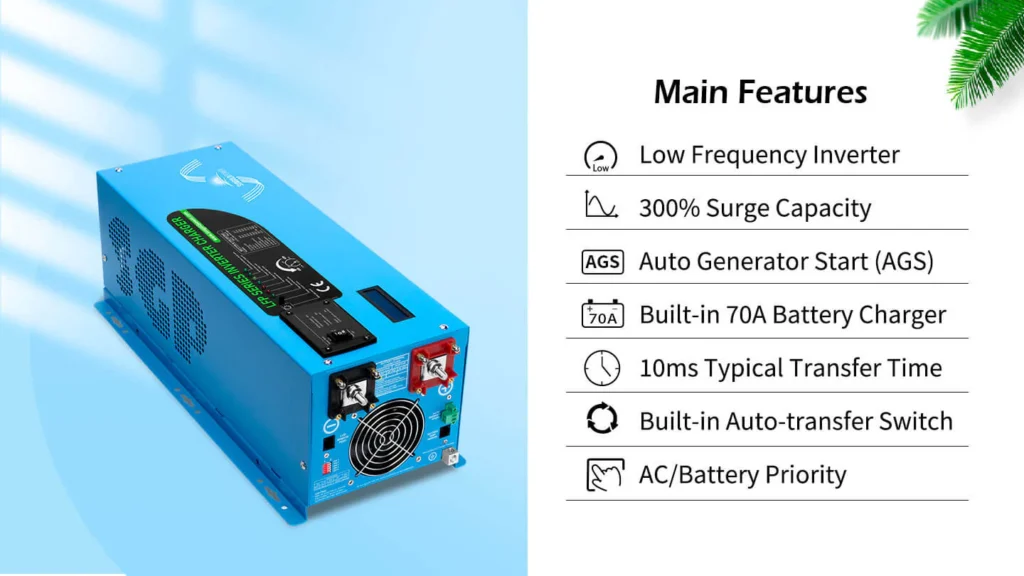

Main Features

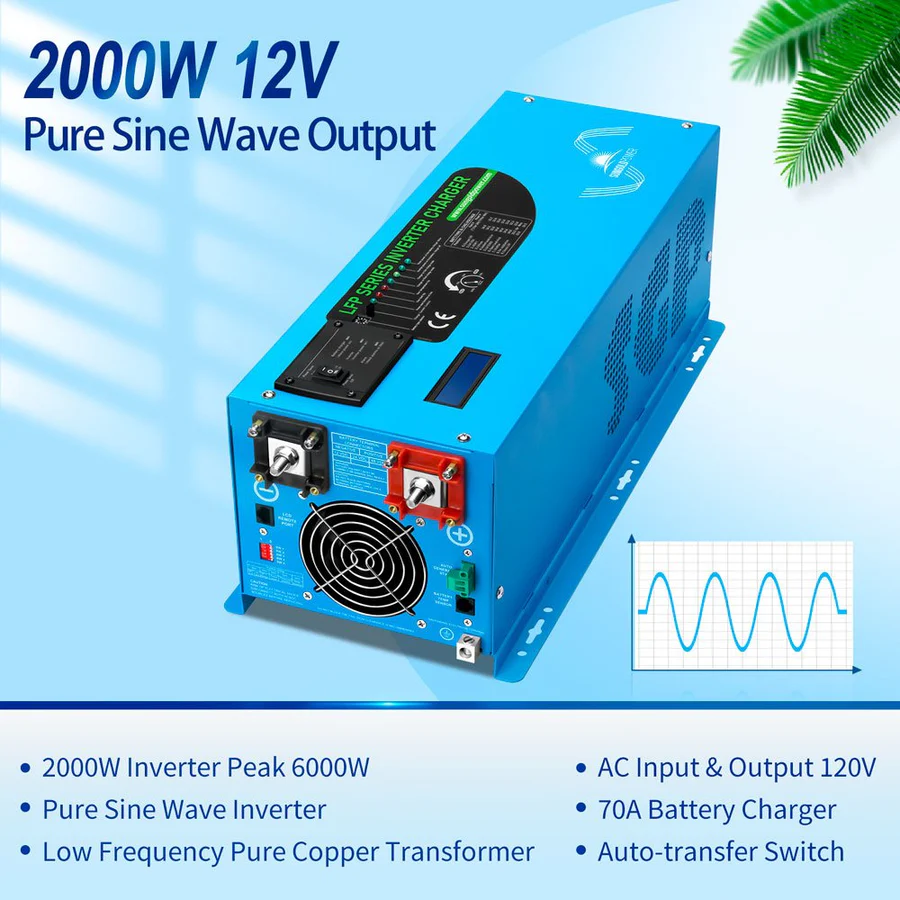

- 2000W Low Frequency Pure Sine Inverter With Charger.
- AC/Battery Priority Selector.
- Automatic Generator Start.
- GFCI Socket, Safety and Convenient.
- The low frequency inverter can power all kinds of appliances.
- LCD Display, Remote Control, BTS including.
- Low Idle Consumption.

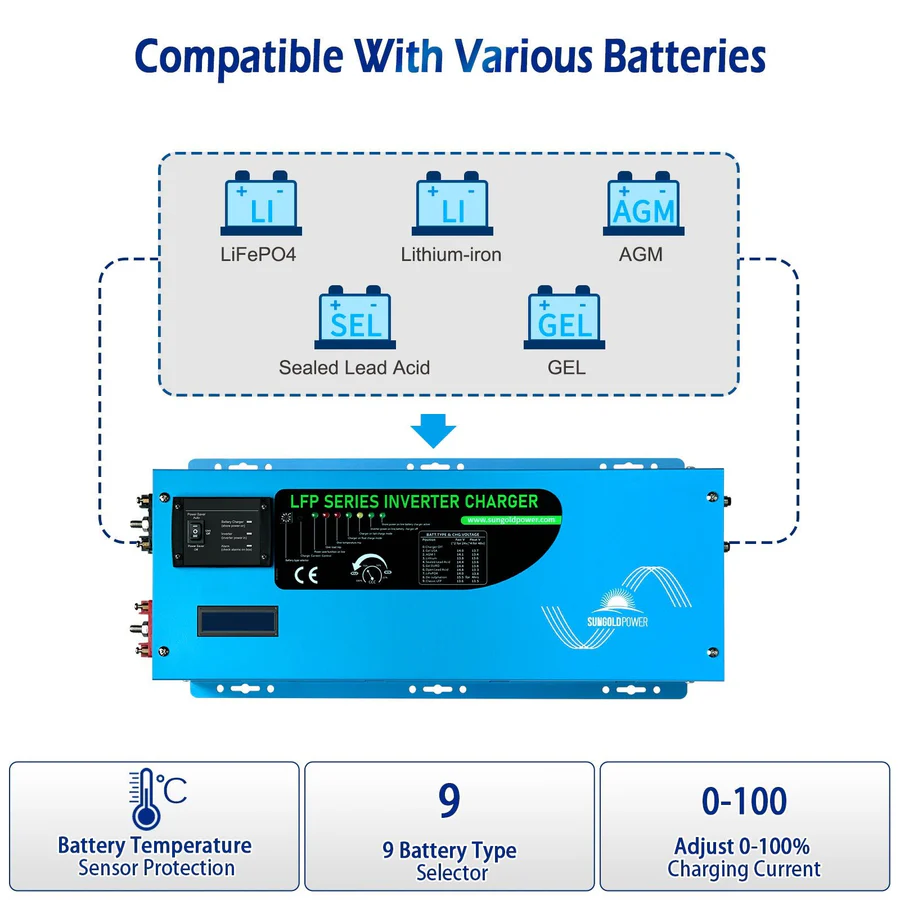

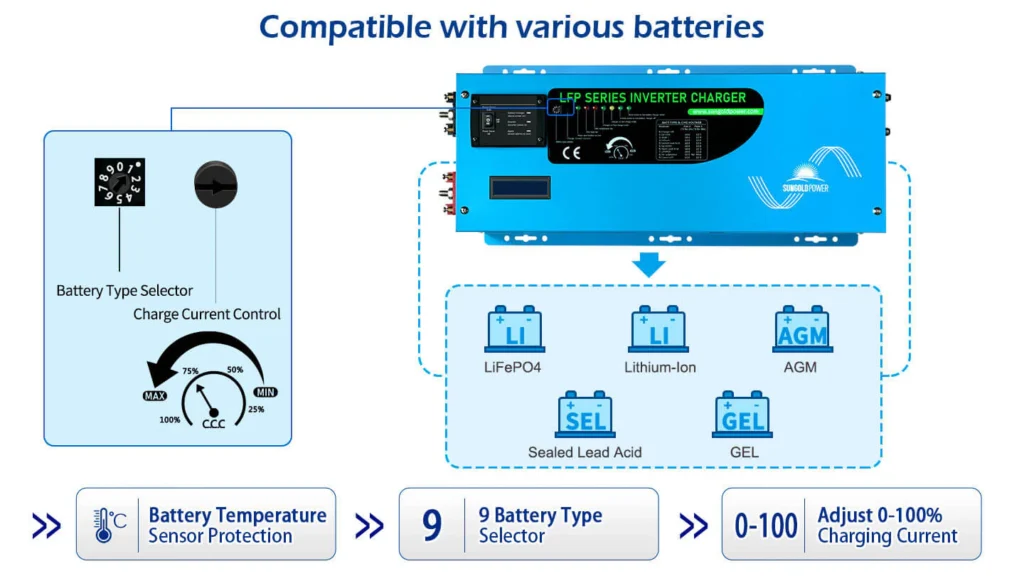

- 9 battery type settings for charger.
- Multi Stage Smart charger 70+/-5A, charger can be disable.
- 10msec typical transfer time.
Inverter Output
- Continuous Output Power: 2000W
- Surge Rating: 6000W (20 Seconds)
- AC Output: 20Vac
- AC Input: 120Vac
- Output Wave: Pure Sine Wave (bypass mode)
- Typical Transfer Time: 10ms (MAX)
- Nominal Efficiency: >88%
DC Input
- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
- High Voltage Alarm: 16.0Vdc
- Low battery Voltage Restart: 13Vdc
- Idle Consumption: 28W
- Power Saver Mode Idle Consumption: 13W
AC Charger
- Charger Rate: 70+/-5A
- AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2)
- Over Charge Protection Shutdown: 15.7V
- Selectable Charge Setting based on battery type
- Adjustable charge current: off 0%-100%
- 3-step intelligent battery charger

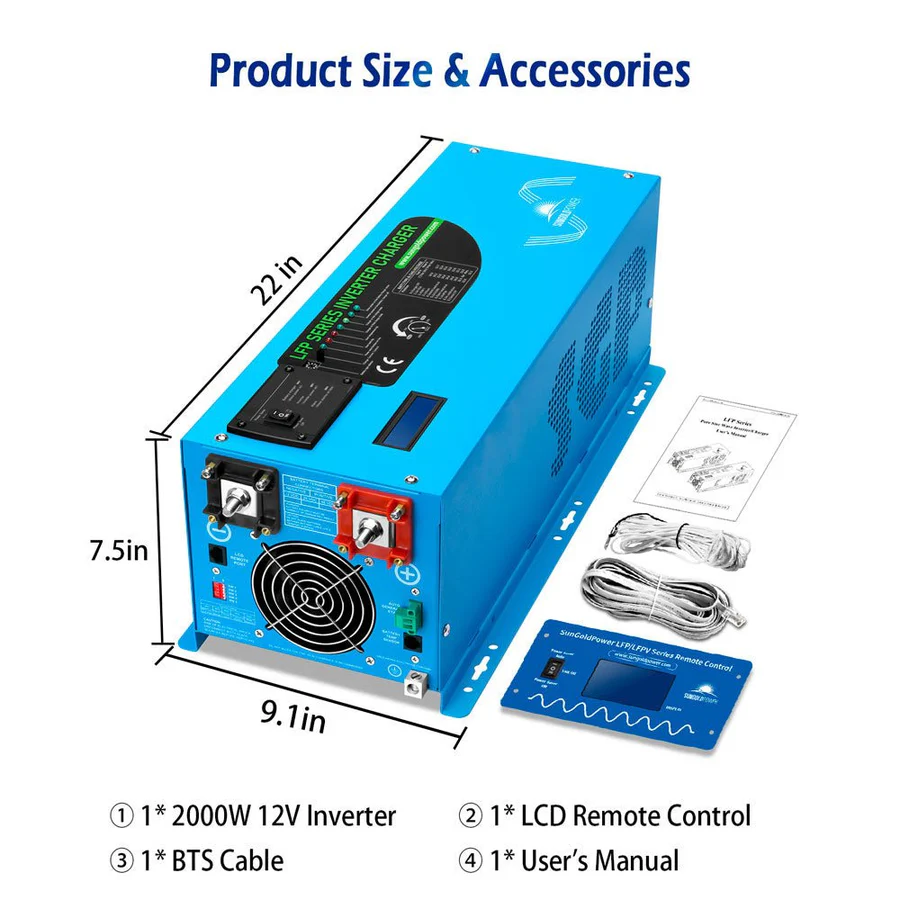

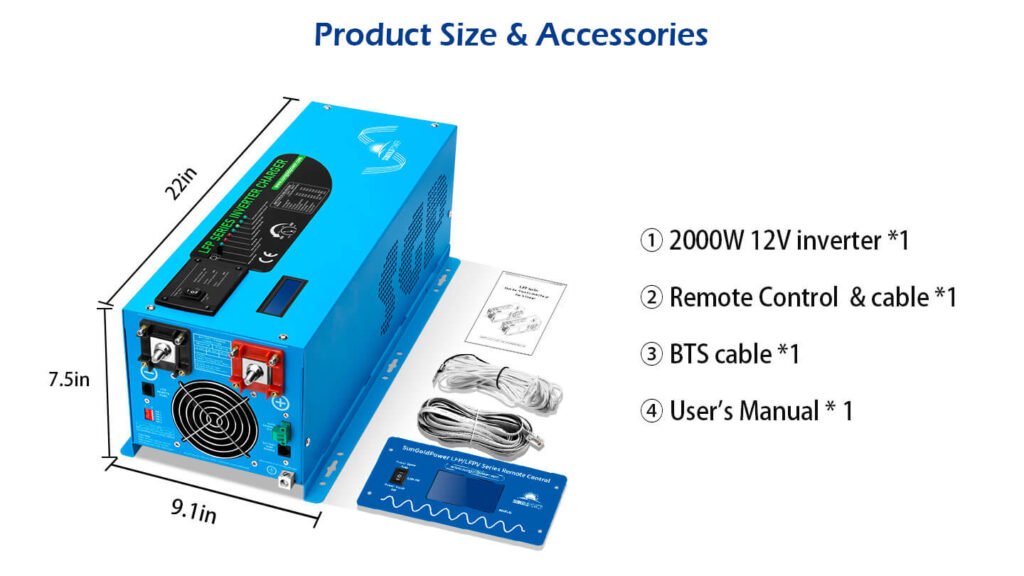

Packaging
- 2000W 12V Low Frequency Pure Sine Inverter
- English Manual
- Remote Control
- BTS Cable
- Unit Weight: 41.9LB
- Unit Size: 22 x 9.1 x 7.5 inch
- Shipping Weight: 50.3 LB
- Shipping Size: 26.8 x 13.4 x 13 inch
