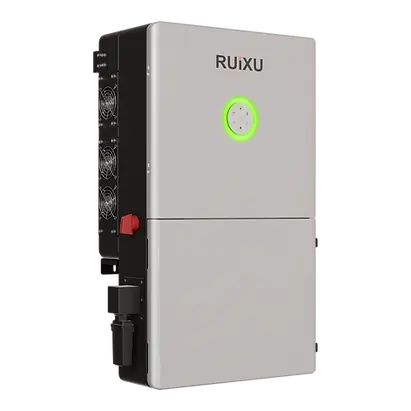

RUiXU 11.4kW Split-Phase Hybrid Inverter

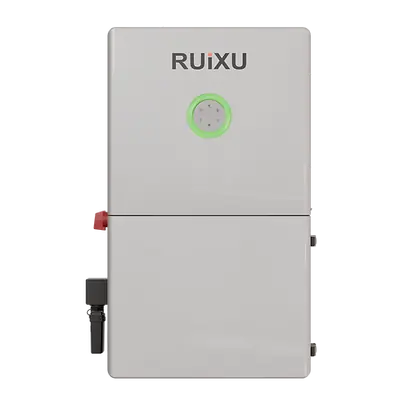

RUiXU 11.4kW Split-Phase Hybrid Inverter - Image 2

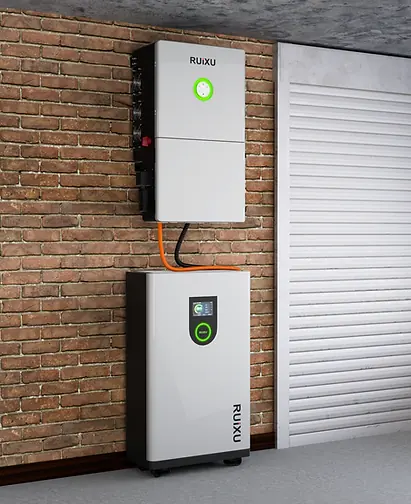

RUiXU 11.4kW Split-Phase Hybrid Inverter - Image 3

RUiXU 11.4kW Split-Phase Hybrid Inverter - Image 4

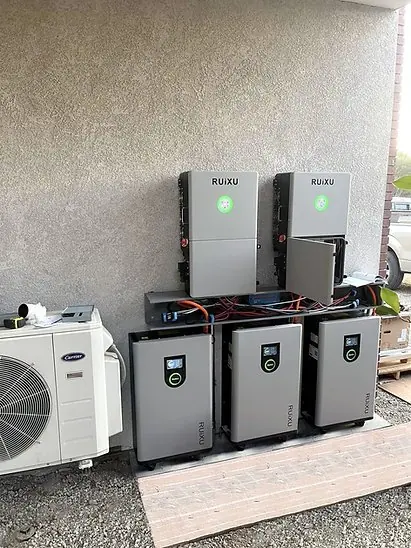

RUiXU 11.4kW Split-Phase Hybrid Inverter - Image 5

RUiXU 11.4kW Split-Phase Hybrid Inverter

SKU:

RX-12K

Brand:

SKU:

RX-12K

Brand:

Hybrid Inverter

11.4kW 48V Solar Inverter

200A Integrated Bypass

Parallel Support

17.1kW Max PV Input

Grid Input

Bluetooth/WiFi

UL1741, UL1699B, IEEE 1547

Price range: $3,299.00 through $19,799.00

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ All-In-One (AIO) Solar Hybrid Inverter

11.4 kW Pure Sine Wave Inverters
200 A Integrated Bypass
Split-Phase (120/240V) Output
(4) Integrated MPPTs (16A each)
Rapid Shutdown (RSD) Function
Supports PV input sized up to 17.1kW @ 550V
Supports grid-tied (AC-Charging) & off-grid system operation
Bluetooth-enabled for monitoring & adjusting settings
Bluetooth & WiFi-enabled for remote monitoring

★ Parallel Function

Parallel up to (4) units together, supporting up to 52.6 kW power output
(1) Unit = Single or Split-Phase (120/240V) or 2/3 Phase (208V)
Parallel function increases net inverter power and surge capacity.

★ Advanced AC Coupling

Integrates with grid-tie systems and supports smart load
Smart load support is suitable for one inverter

★ (4) Work Modes

Self-Consumption / Peak-Shaving / Back-Up / Time-Based
Supports grid-tie operation

★ Battery Compatibility

Voltage Range: 40-60V
AGM / Sealed, Gel, Flooded, Lithium, and User-Mode for custom inputs
RS485 support for BMS communication

★ Durable & Safe

IP65 rated, Wall-mounted design, 10-year warranty
Ensure continuous power to critical loads with battery backup when the grid fails
Certificates: UL1741 CRD, UL1699B, UL1998, IEEE 1547, CAN/CSA C22.2107.1-1, FCC Part 15 Class B, SRD2.0-UL1741

Additional information

Dimensions	24.13 × 10.57 × 9.06 in
Options	Inverter Only, Inverter + 16kWh Battery, Inverter + 2x 16kWh Batteries, 2x Inverters + 4x 16kWh Batteries

DATASHEET

USER MANUAL

Reviews

There are no reviews yet.

Be the first to review “RUiXU 11.4kW Split-Phase Hybrid Inverter”

Related Products

LFP Battery

LFP 16kWh / LV

51.2V 3140Ah (16kWh) Battery

Parallel Support

Integrated BMS (CAN / RS485)

10-Year Warranty

UL1973, UL9540A, CE

Original price was: $3,500.00.Current price is: $3,000.00.

LFP Battery

PowerMax 314 Outdoor

51.2V 314Ah (16.07kWh) Battery

Parallel Support

10-Year Warranty

UL1973, UL9540A

Wifi/Bluetooth

Original price was: $3,744.00.Current price is: $2,995.00.

Hybrid Inverter

SGN11.4KHB-48x2

(2) 11.4kW 48V Hybrid Inverters

22.8kW Continuous Output

30kW Max PV Input

UL1741/SB, UL1699B, CEC

Bluetooth/WiFi

Grid Input

Original price was: $7,350.00.Current price is: $5,880.00.

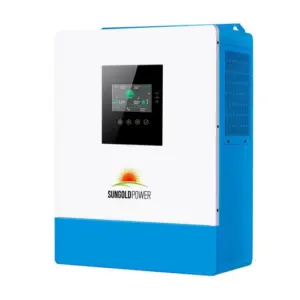

Solar Inverter
