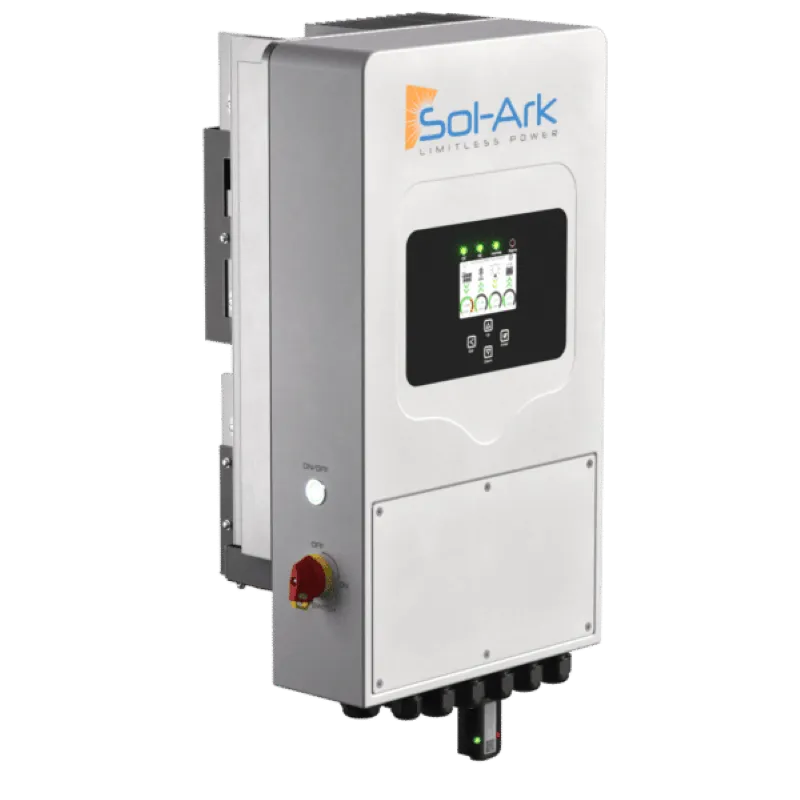

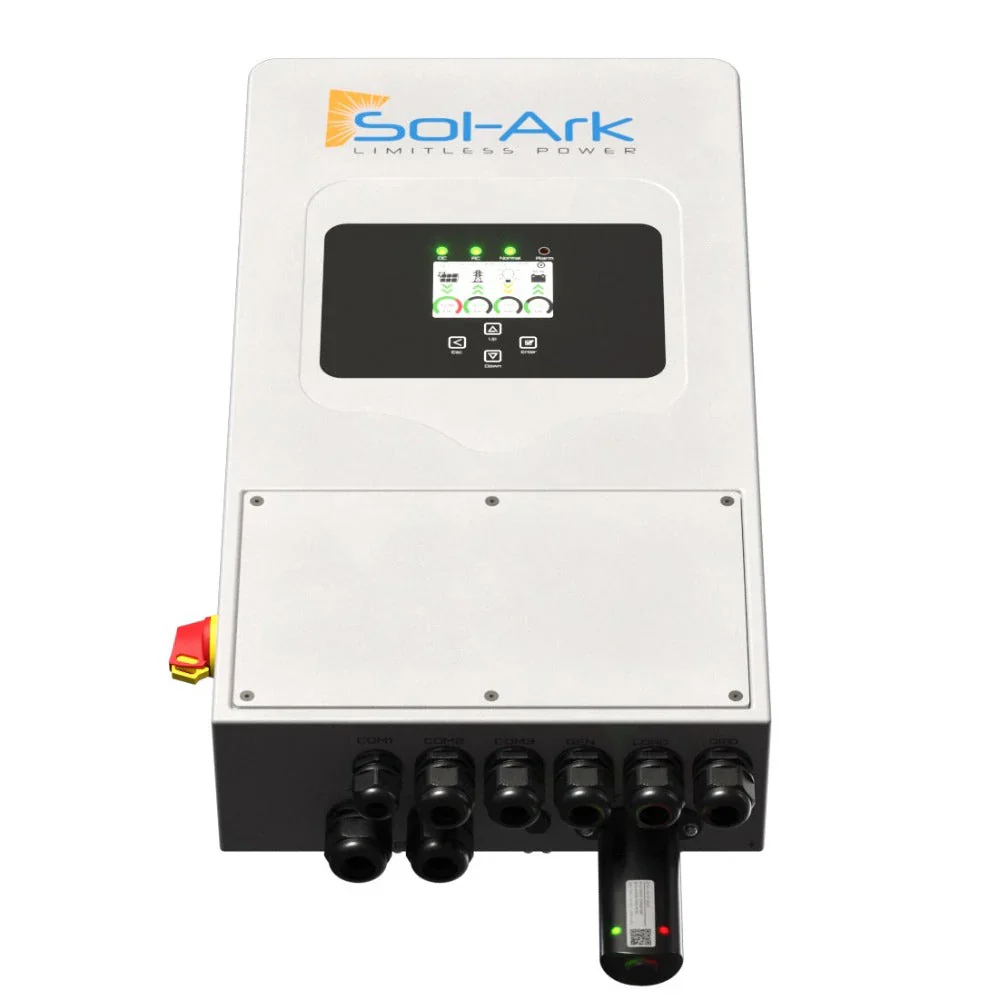

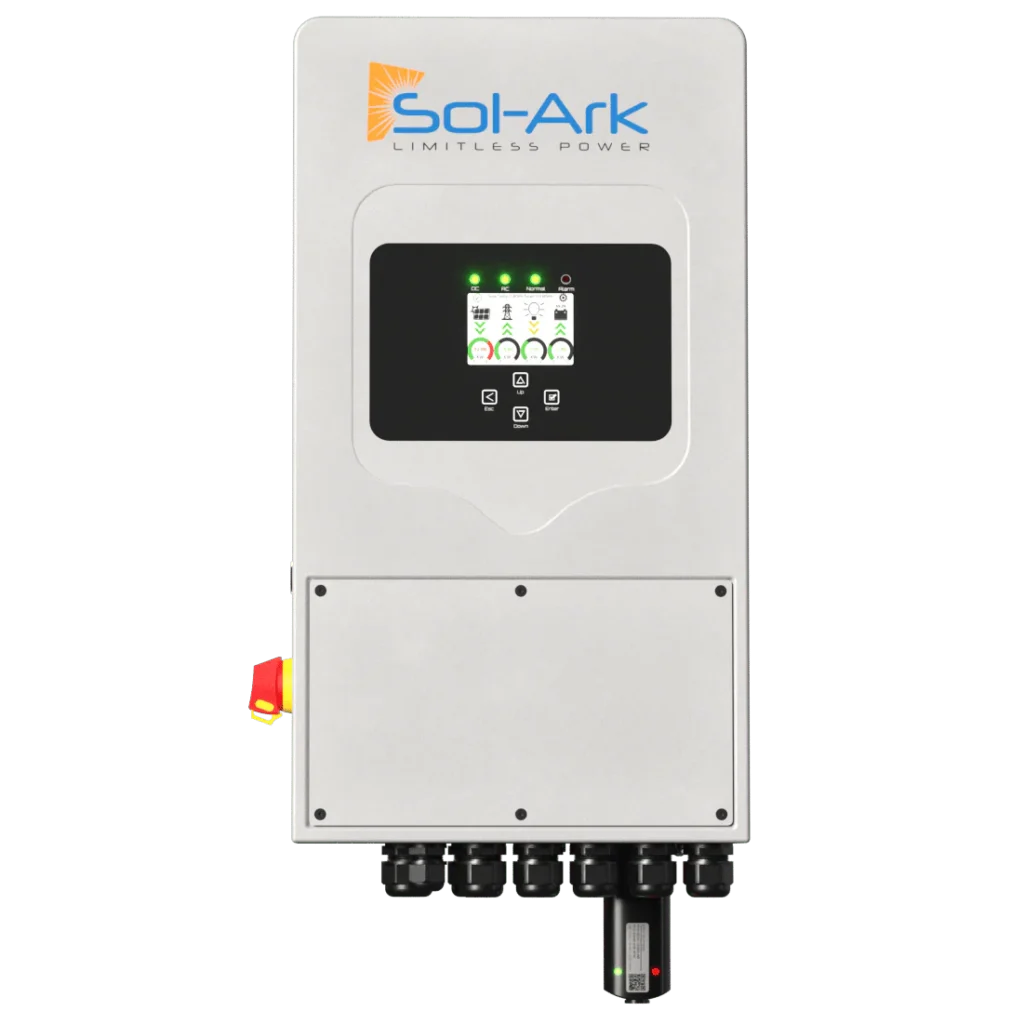

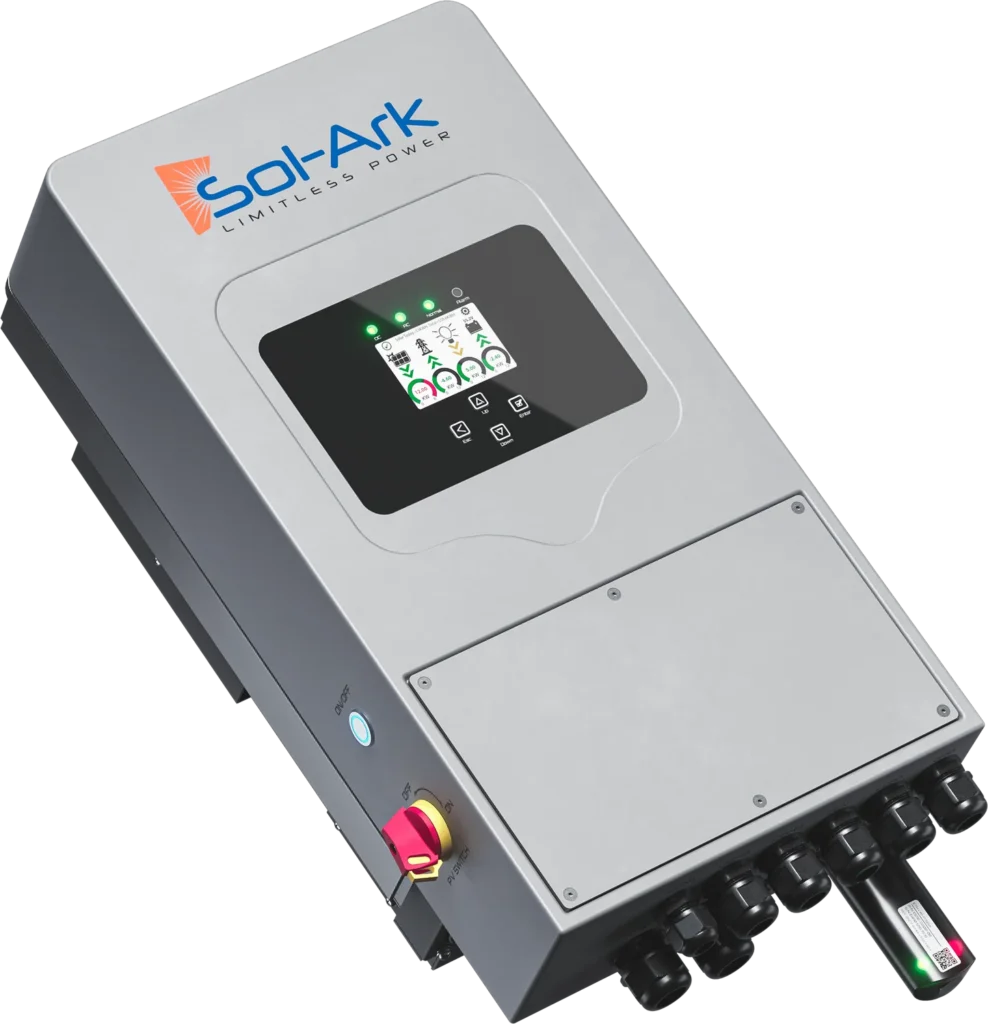

Sol-Ark 5K-1P-N Hybrid Inverter

SKU:

5K-1P-N

Brand:

SKU:

5K-1P-N

Brand:

Hybrid Inverter

4.8kW 48V Solar Inverter

50A Integrated Bypass

Parallel Support, FEOC-Compliant

10.4kW Max PV Input (up to 500V)

UL1741

Original price was: $1,500.00.Current price is: $1,345.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ All-In-One (AIO) Solar Hybrid Inverter
  • 4.8 kW Continuous Pure Sine Wave Inverter
  • 50 A Integrated Bypass
  • 120V Single Phase Output
  • (2) Integrated MPPTs with (2) String Inputs per MPPT
    • 20A MPPT Operating Input Current
    • 26A MPPT Max Short Circuit Current per MPPT
  • Rapid Shutdown (RSD) Function
  • Supports PV input sized up to 10.4 kW @ 500V
  • Supports grid-tied, off-grid, and battery-backup operation
  • WiFi-enabled for remote monitoring
  • FEOC-Compliant
  ★ Parallel Function
  • Parallel up to (8) units together, supporting up to 38.4 kW power output
  • Parallel function increases net inverter power and surge capacity.
  ★ Advanced AC Coupling
  • Integrates with grid-tie systems and supports smart load
  • Smart load support is suitable for one inverter
  ★ (6) Work Modes
  1. Grid Sell
  2. Limited Power to Home (Meter Zero)
  3. Limited Power to Home + Grid Sell
    • Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
  4. Limited Power to Load
    • Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
  5. Limited to Load + Grid Sell
  6. Time of Use
    • Energy Priority: 1) Solar PV Power, 2) Batteries, 3) Grid Power, 4) Generator
  ★ Battery Compatibility
  • Voltage Range: 40-60V
  • Capacity: 50 – 9900Ah
  • Continuous Battery Charge / Discharge Current: 120A
  • CANBus & RS485 MODBUS support for BMS communication
  ★ Durable & Safe
  • IP65 / NEMA 3R rated, Wall-mounted design, 10-year warranty
  • Ensure continuous power to critical loads with battery backup when the grid fails
  • Certificates: UL1741 SB, UL1741 IEEE1547a-2003/2014


Additional information

Weight 53 lbs
Dimensions 23.6 × 13 × 9.3 in

DATASHEET

USER MANUAL

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
