HomeGrid STACK’D (48V, 9.6-38.4kWh)

SKU:

STACK'D Series (Standard)

Brand:

SKU:

STACK'D Series (Standard)

Brand:

LFP Battery

48V 200-800Ah (9.6-38.4kWh)

Parallel Support

Integrated BMS (CAN / RS485)

10-Year Warranty

UL1973, UL9540A, UN 38.3

Price range: $5,600.00 through $17,300.00

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Key Features
  • 48V LFP Batteries (200 – 800Ah, 9.6 – 38.4 kWh)

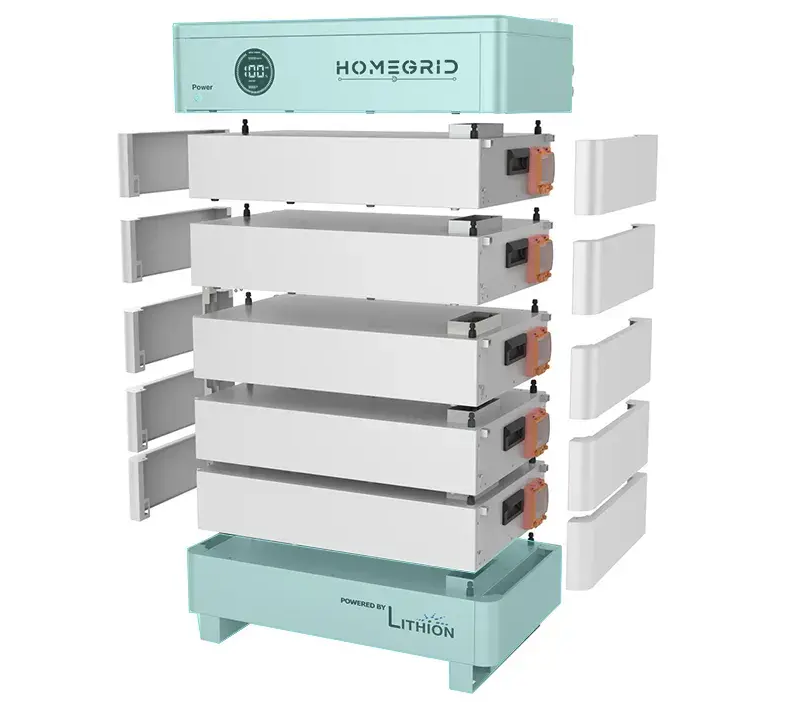

  • Includes All-Weather BMS + Base
  • Parallel up to (15) STACK’D modules together, expanding from 38.4kWh to 576kWh
  • Real-time Display with Mobile Monitoring App
  • IP55-Rated, Maximum Altitude Rating of 11,000 feet
  • 10-Year Warranty
  ★ Specifications
  • Nominal DC Voltage:  48V
  • DC Voltage Range:      46-56V
  • Max Charge Current:  180A (Stack of 2), 270A (Stack of 3), 300A (Stack of 4 or more)
  • Max Continuous Discharge Current:  180A (Stack of 2), 270A (Stack of 3), 300A (Stack of 4 or more)
  • Max Pulse Current (10s):   300A (up to 3 stacks), 500A (Stack of 4 or more)
  • Efficiency:  >98%
  • Charging Temperature Range:   32 to 113°F (0 to 45°C)
  • Discharging Temperature Range:  14 to 131°F (-10 to 55°Stacked4C)
  ★ Communication
  • CAN / RS485
  ★ Compatible Inverters
  • On-Grid (UL 9540): Sol-Ark 12K/15K
  • Off-Grid: Sol-Ark, Schneider, SMA, Victron, Outback, and more
  Certificates
  • UL 1642, UL 1973, UN 38.3, UL 9540, UL 9540a, CEC, SGIP, OGPe

Additional information

Weight 304 lbs
Dimensions 29 × 25.25 × 15.75 in

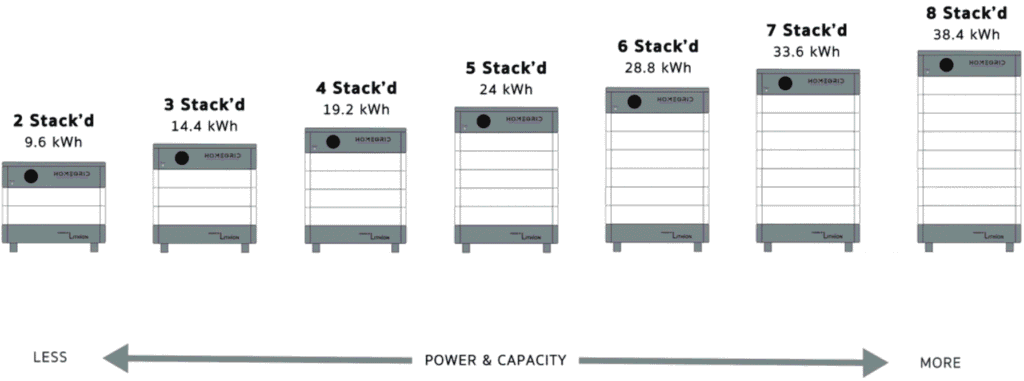

Stack Qty

2 (9.6 kWh), 3 (14.4 kWh), 4 (19.2 kWh), 5 (24 kWh), 6 (28.8 kWh), 7 (33.6 kWh), 8 (38.4 kWh)

DATASHEET

USER MANUAL

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related Products

Hybrid Inverter

FR12K-B

12kW 48V Solar Inverter

Parallel Support

13.2kW Max PV Input

UL1741/SB

Original price was: $2,438.00.Current price is: $1,950.00.

Add to cart

Solar Inverter

SPH5048Px2

(2) 5kW 48V Solar Inverters

10kW Continuous Output

11kW Max PV Input (up to 500V)

CE, FCC, UL1741

Original price was: $1,898.00.Current price is: $1,518.00.

Add to cart

Solar Inverter

SPH8048P

8kW 48V Split-Phase Inverter

Parallel Support

11kW Max PV Input

UL1741

Original price was: $1,813.00.Current price is: $1,450.00.

Add to cart

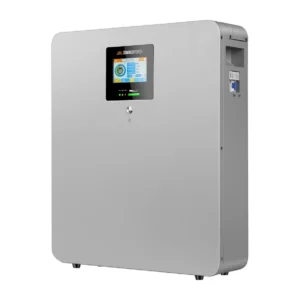

LFP Battery
