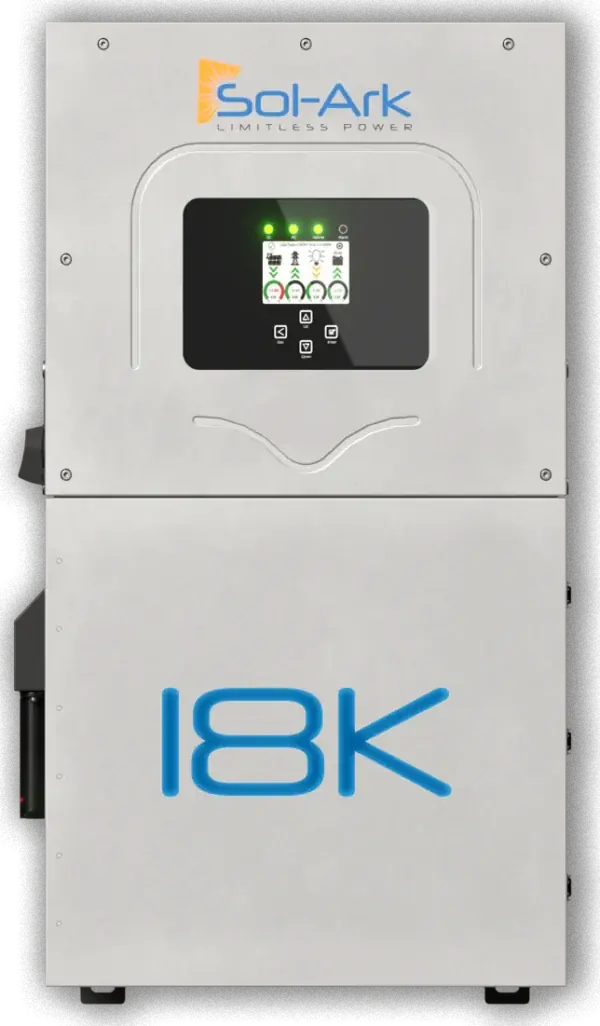

Sol-Ark 18K-2P-LV Split-Phase Hybrid Inverter

Name: Sol-Ark 18K-2P-LV Split-Phase Hybrid Inverter
Brand: Sol-Ark
SKU: 18K-2P-LV
Price: 5837 USD
Availability: InStock

SKU:

Original price was: $6,515.00.Current price is: $5,837.00.

Call Us

855-386-6669

Live Chat

100% US-based Support

Full Warranty &
Customer Service

Available on
most items!

Real Engineers.
Real Support.

★ All-In-One (AIO) Solar Hybrid Inverter

18 kW Continuous Pure Sine Wave Inverter, up to 36kW Surge Power (10 seconds)
200 A Integrated Bypass
Split-Phase (120/240V) Output
(3) Integrated MPPTs (36A each, Max Short Circuit Current = 54A per MPPT)
Rapid Shutdown (RSD) Function
Supports PV input sized up to 32.4kW @ 500V
Supports grid-tied (AC-Charging) & off-grid system operation
WiFi-enabled for remote monitoring
FEOC-Compliant

★ Parallel Function

Parallel up to (12) units together, supporting up to 216 kW power output
(1) Unit = Single or Split-Phase (120/240V) or 2/3 Phase (208V)
Parallel function increases net inverter power and surge capacity.

★ Advanced AC Coupling

★ (6) Work Modes

Grid Sell
Limited Power to Home (Meter Zero)
Limited Power to Home + Grid Sell
- Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
Limited Power to Load
- Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
Limited to Load + Grid Sell
Time of Use
- Energy Priority: 1) Solar PV Power, 2) Batteries, 3) Grid Power, 4) Generator

★ Battery Compatibility

★ Durable & Safe

IP65 / NEMA 3R rated, Wall-mounted design, 10-year warranty
Ensure continuous power to critical loads with battery backup when the grid fails
Certificates: UL1741 CRD-Multimode, UL1741 3rd SB, UL1741 CRD-PCS, IEEE1547-2018 and interoperability using IEEE2030.5, Hawaiian Electric SRD V2.0, UL1699B PVDC AFCI, UL1998, CSA C22.2 No 107
