Sol-Ark 15K-2P-N Hybrid Inverter

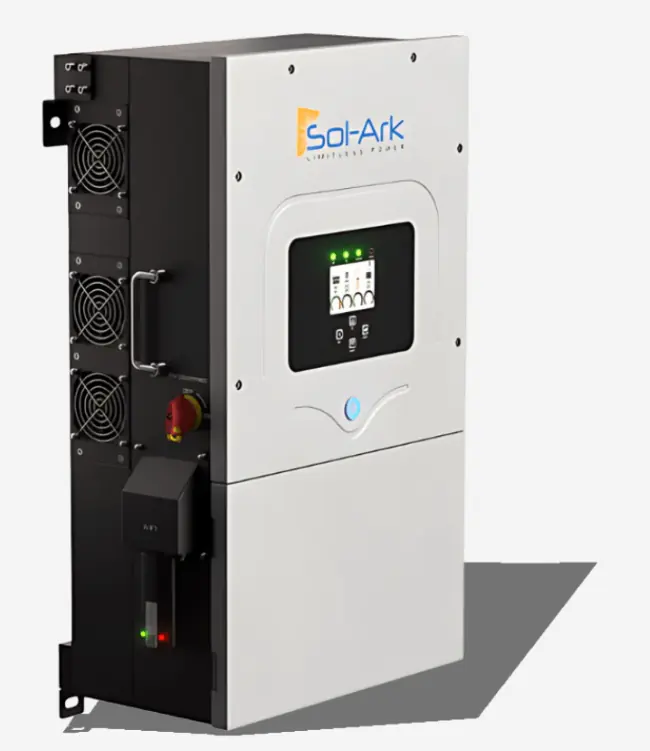

Sol-Ark 15K-2P-N Hybrid Inverter - Image 2

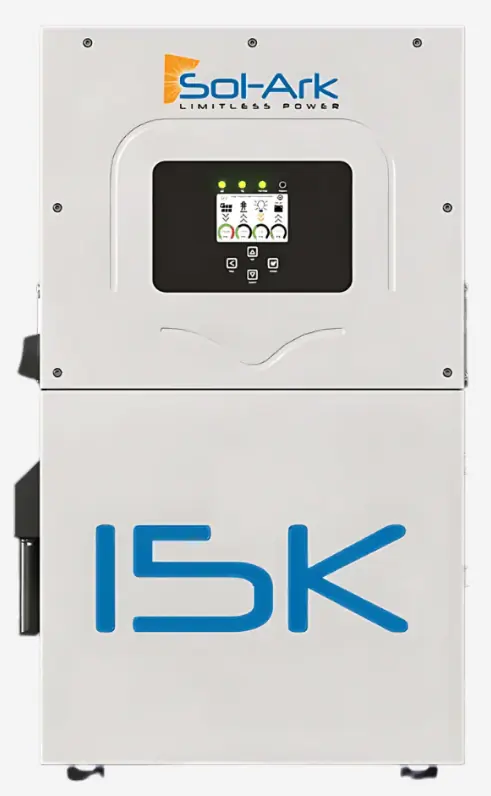

Sol-Ark 15K-2P-N Hybrid Inverter

SKU:

15K-2P-N

Brand:

SKU:

15K-2P-N

Brand:

Hybrid Inverter

15kW 48V Solar Inverter

200A Integrated Bypass

Parallel Support, FEOC-Compliant

19.5kW Max PV Input (up to 500V)

UL1741, UL1699B, IEEE 1547, UL1998

Original price was: $5,750.00.Current price is: $5,150.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

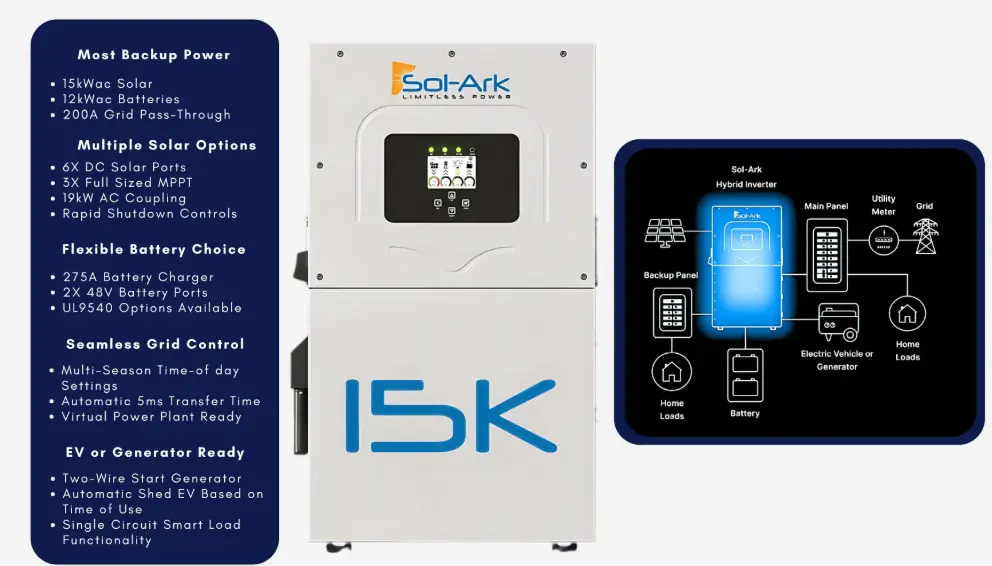

  ★ All-In-One (AIO) Solar Hybrid Inverter
  • 15 kW Continuous Pure Sine Wave Inverter
  • 200 A Integrated Bypass
  • 120V/240V split-phase and 208V three-phase compatibility
  • (3) Integrated MPPTs (26A each, Max Short Circuit Current = 44A per MPPT)
  • Rapid Shutdown (RSD) Function
  • Supports PV input sized up to 19.5 kW @ 500V
  • Supports grid-tied, off-grid, and battery-backup operation
  • WiFi-enabled for remote monitoring
  • FEOC-Compliant
  ★ Parallel Function
  • Parallel up to (12) units together, supporting up to 180 kW power output
  • Parallel function increases net inverter power and surge capacity.
  ★ Advanced AC Coupling
  • Integrates with grid-tie systems and supports smart load
  • Smart load support is suitable for one inverter
  ★ (6) Work Modes
  1. Grid Sell
  2. Limited Power to Home (Meter Zero)
  3. Limited Power to Home + Grid Sell
    • Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
  4. Limited Power to Load
    • Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
  5. Limited to Load + Grid Sell
  6. Time of Use
    • Energy Priority: 1) Solar PV Power, 2) Batteries, 3) Grid Power, 4) Generator
  ★ Battery Compatibility
  • Voltage Range: 43-63V
  • Capacity: 50 – 9900Ah
  • Continuous Battery Charge / Discharge Current: 275A
  • CANBus & RS485 MODBUS support for BMS communication
  ★ Durable & Safe
  • IP65 / NEMA 3R rated, Wall-mounted design, 10-year warranty
  • Ensure continuous power to critical loads with battery backup when the grid fails
  • Certificates: UL1741 SB, UL1741 SA11, UL1741 CRD-PCS, IEEE1547.1-2020, UL1699B, UL1998, FCC Part 15 Class B, CSIP, Ca Rule 21, HECO Rule 14H (SRD 2.0), CSA C22.2 107.1-16

Additional information

Weight135 lbs
Dimensions12 × 19.4 × 31.8 in

DATASHEET

USER MANUAL
