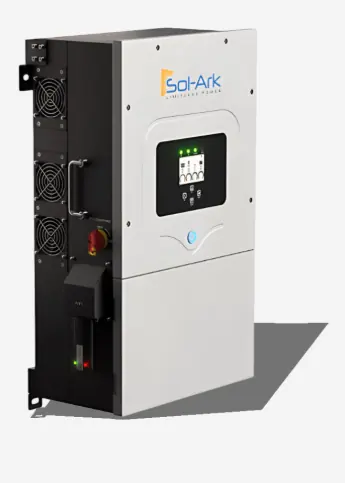

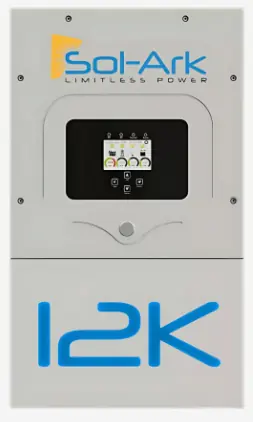

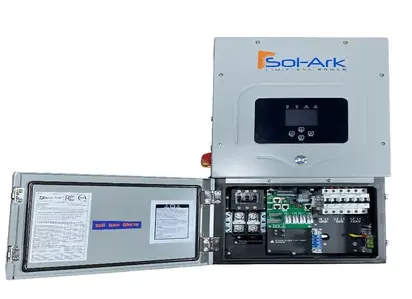

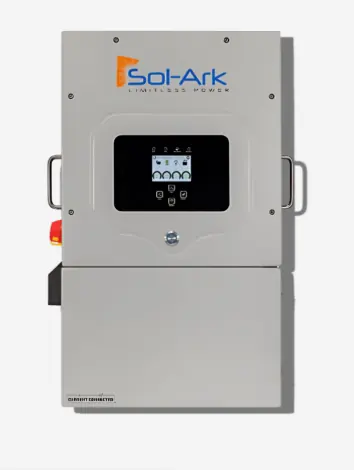

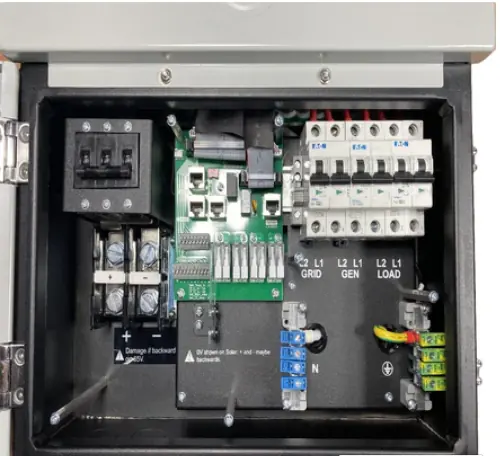

Sol-Ark 12K-2P-LV Hybrid Inverter

Sol-Ark 12K-2P-LV Hybrid Inverter - Image 2

Sol-Ark 12K-2P-LV Hybrid Inverter - Image 3

Sol-Ark 12K-2P-LV Hybrid Inverter - Image 4

Sol-Ark 12K-2P-LV Hybrid Inverter - Image 5

Sol-Ark 12K-2P-LV Hybrid Inverter

SKU:

12K-2P-LV

Brand:

SKU:

12K-2P-LV

Brand:

Hybrid Inverter

9kW 48V Solar Inverter

Parallel Support, FEOC-Compliant

13kW Max PV Input (up to 500V)

Grid Input

WiFi

UL1741, UL1699B, IEEE 1547, UL1998

Original price was: $4,350.00.Current price is: $3,898.00.

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ All-In-One (AIO) Solar Hybrid Inverter

9 kW Continuous Pure Sine Wave Inverter
63 A Integrated Bypass
120V/240V split-phase and 208V three-phase compatibility
(2) Integrated MPPTs (20A each, Self-Limiting)
Rapid Shutdown (RSD) Function
Supports PV input sized up to 13 kW @ 500V
Supports grid-tied, off-grid, and battery-backup operation
WiFi-enabled for remote monitoring
FEOC-Compliant

★ Parallel Function

Parallel up to (9) units together, supporting up to 81 kW power output
Parallel function increases net inverter power and surge capacity.

★ Advanced AC Coupling

Integrates with grid-tie systems and supports smart load
Smart load support is suitable for one inverter

★ (6) Work Modes

Grid Sell
Limited Power to Home (Meter Zero)
Limited Power to Home + Grid Sell
- Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
Limited Power to Load
- Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
Limited to Load + Grid Sell
Time of Use
- Energy Priority: 1) Solar PV Power, 2) Batteries, 3) Grid Power, 4) Generator

★ Battery Compatibility

Voltage Range: 43-63V
Capacity: 50 – 9900Ah
Continuous Battery Charge / Discharge Current: 185A
CANBus & RS485 MODBUS support for BMS communication

★ Durable & Safe

IP65 / NEMA 3R rated, Wall-mounted design, 10-year warranty
Ensure continuous power to critical loads with battery backup when the grid fails
Certificates: UL1741 SB, UL1741 SA11, UL1741 CRD-PCS, IEEE1547.1-2020, UL1699B, UL1998, FCC Part 15 Class B, CSIP, Ca Rule 21, HECO Rule 14H (SRD 2.0), CS

Additional information

Weight	78 lbs
Dimensions	29.5 × 17.7 × 10 in

DATASHEET

USER MANUAL
