Solar Kit – 12.6kW PV Input, 11.4kW Output, 600Ah Batteries

SKU:

SGH-11N3E

Brand:

SKU:

SGH-11N3E

Brand:

Solar Bundles & Kits

11.4 kW Solar Inverter

12.6 kW Solar Panel Bundle

600 Ah (30.72 kWh) LFP Capacity

Original price was: $22,343.00.Current price is: $16,757.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

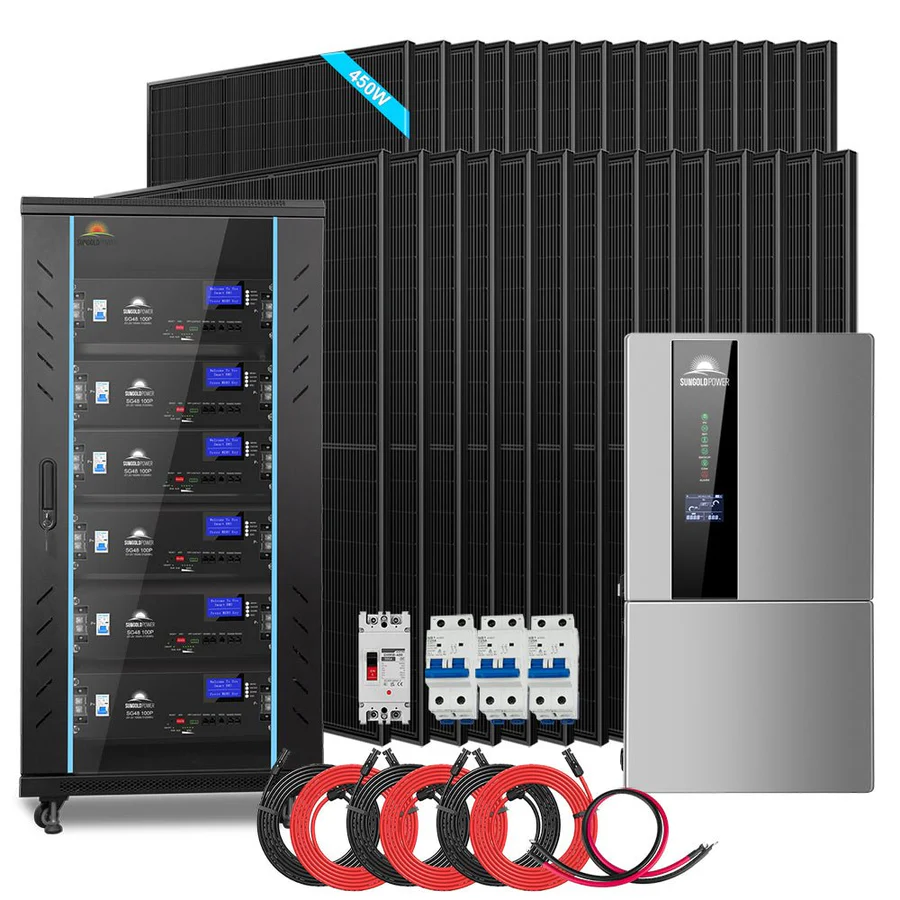

★ Solar Kit Summary
  • (1) 11.4kW 48V Split-Phase 120/240Vac Inverter (SGN11.4KHB-48)

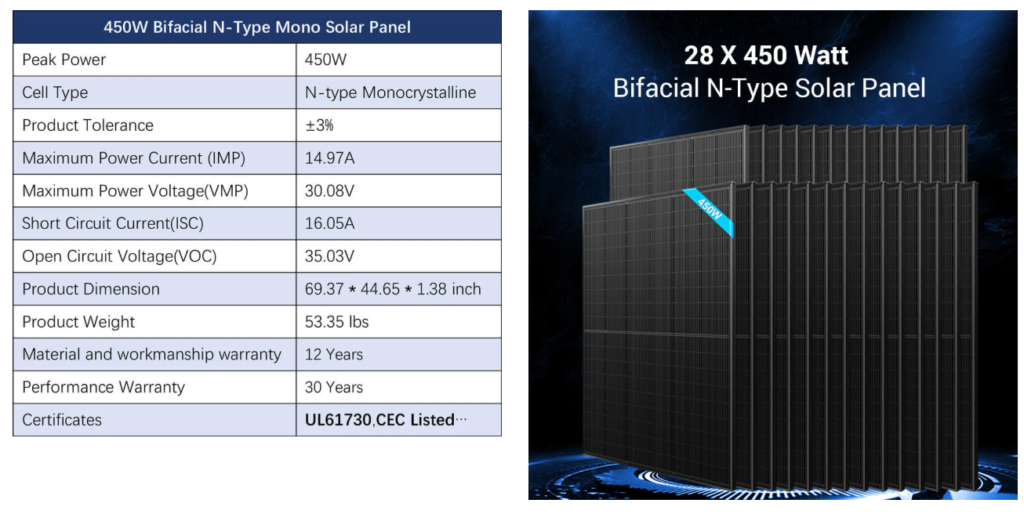

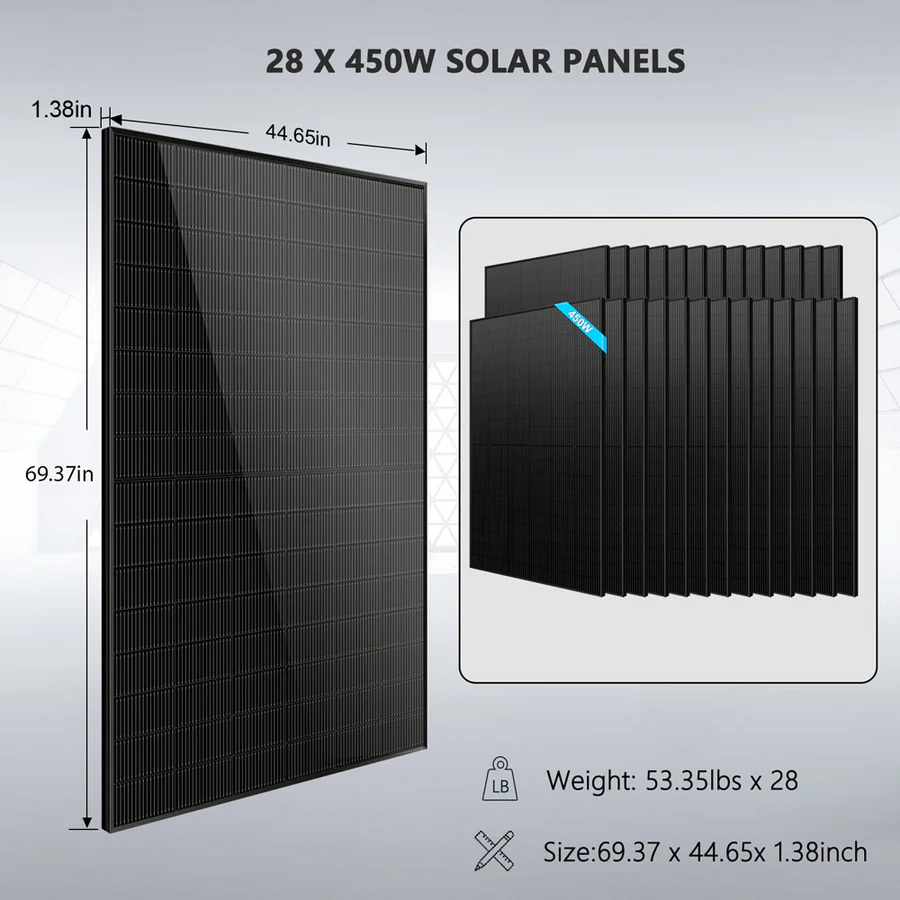

  • (28) 450W Bifacial N-Type Monocrystalline Solar Panels (SGN-450-BDG5)
  • (6) 100Ah 51.2V LFP Batteries (SG48100P)
  • (1) Enclosed Battery Cabinet (SGPBR6048)
  • (3) Sets x 50′, Solar Extension Cables (Link)
  • (1) Set of 2/0 AWG Battery Cable (Link)
  • (1) 200A DC Breaker (Link)
  • (3) 25A PV Breakers (Link)


Features

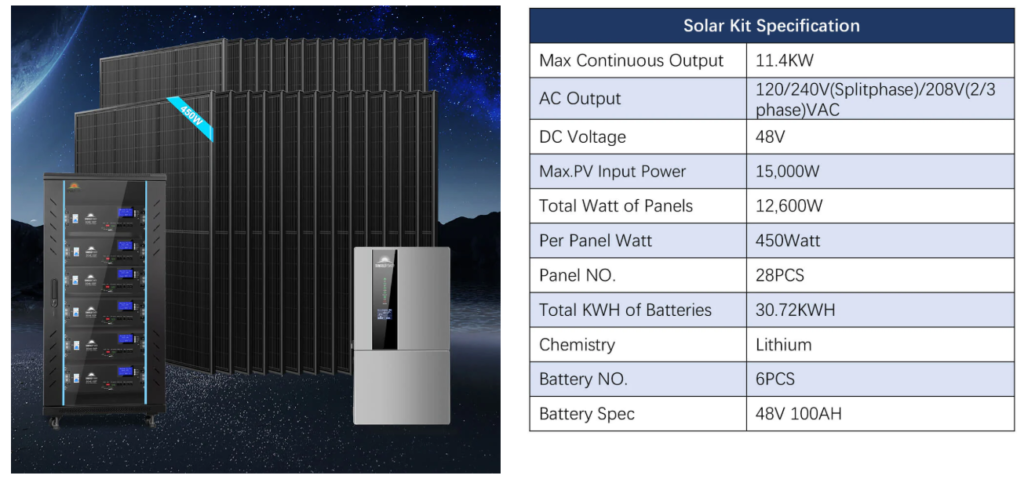

This Hybrid Solar Kit includes 12.6kW of solar panels, an 11.4kW Split-Phase Hybrid Inverter, and 30.72 kWh of LFP battery storage. The system supports flexible configurations—off-grid, hybrid, or grid-tied—enabling you to power appliances with solar energy, feed excess power back to the grid, and optionally store energy to offset bills or provide backup during outages.

Wiring Diagram

Additional information

Weight 2000 lbs

DATASHEET

USER MANUAL

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
