SunGoldPower 12kW 48V Whole Home (200A) Inverter

★ All-In-One (AIO) Solar Hybrid Inverter (SGS-12K18MAX)

• 12kW Pure Sine Wave Inverters
• 200A Whole-Home Backup Capability
• Split-Phase (120/240V)
• (2) Integrated MPPTs (32A each)
• Supports PV input sized up to 18kW @ 550V
• Supports grid-tied (AC-Charging) & off-grid system operation
• Bluetooth-enabled for monitoring & adjusting settings

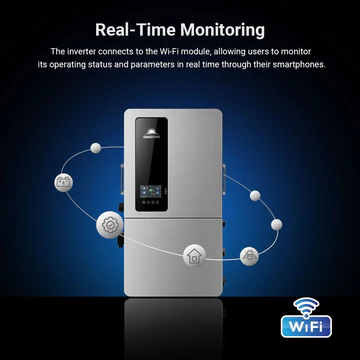

• WiFi-enabled for remote monitoring
• LED + LCD with user-friendly Interface

  ★ Parallel Function

• Parallel up to (6) units together, supporting up to 72kW power output
• (1) Unit = Single or Split-Phase (120/240V) or 2/3 Phase (208V)
• Parallel function increases net inverter power and surge capacity.

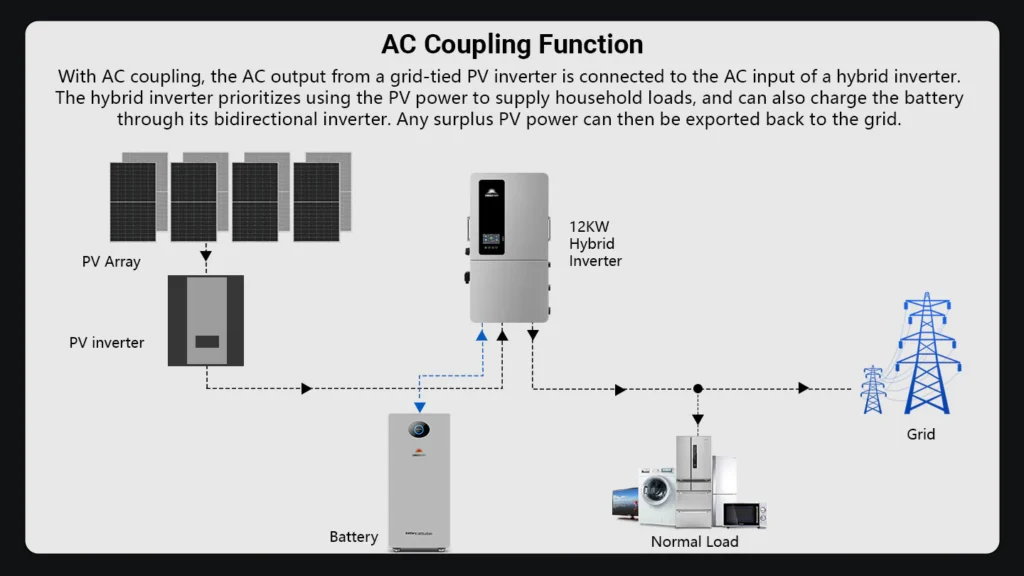

  ★ Advanced AC Coupling

• Integrates with grid-tie systems and supports smart load
• Smart load support is suitable for one inverter

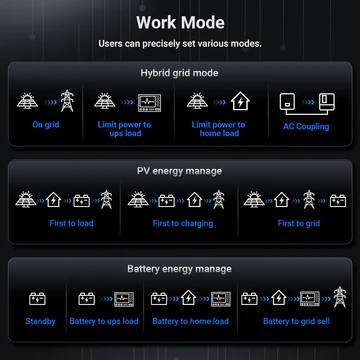

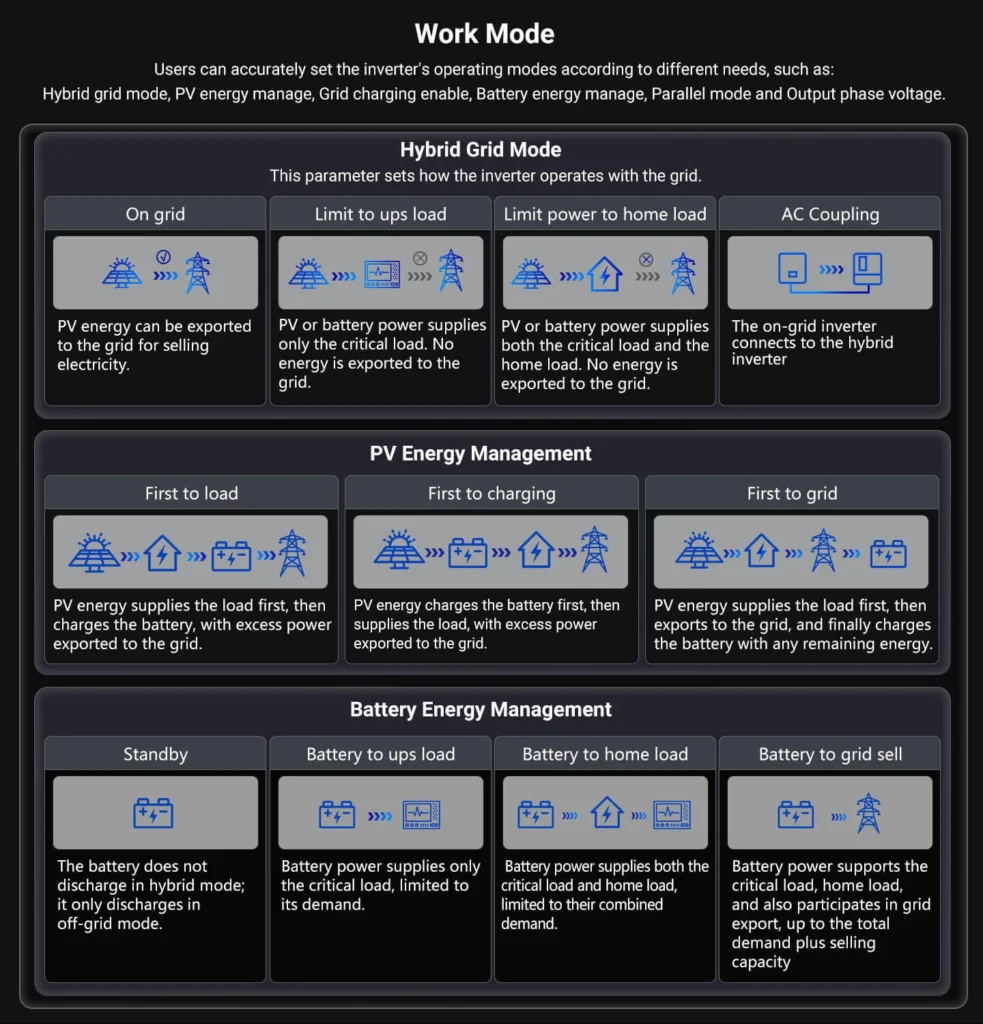

  ★ (4) Charging Modes & (4) Output Modes

• Charging Modes: AC Priority / Solar Priority / Only Solar / Mains & Solar Hybrid Charging
• Output Modes: PV Priority / Utility Priority / Inverter Priority / Hybrid Output
• Supports grid-tie operation

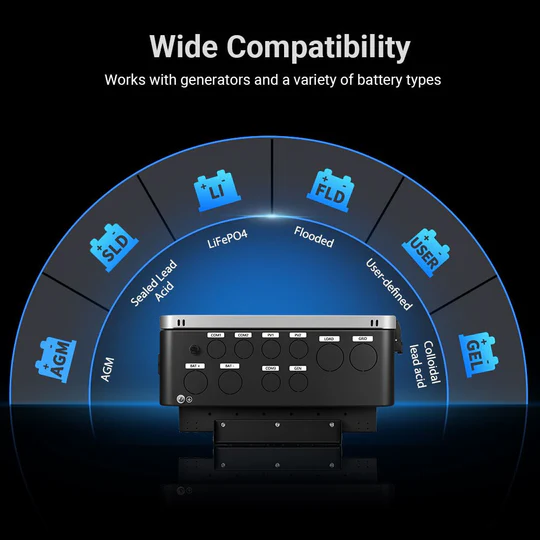

  ★ Battery Compatibility

• Voltage Range: 40-60V
• Lithium-Ion, Lead-Acid, and User-Mode for custom inputs
• RS485 & CAN-bus support for BMS communication

  ★ Durable & Safe

• IP65 rated, Wall-mounted design, 10-year warranty
• Ensure continuous power to critical loads with battery backup when the grid fails
• Certificates: UL1741, IEEE1547.1-2020, Rule 21, HECO, and CEC Listed

12kW 48V All-In-One Hybrid Inverter



Whole-Home Backup | Smart Energy Management

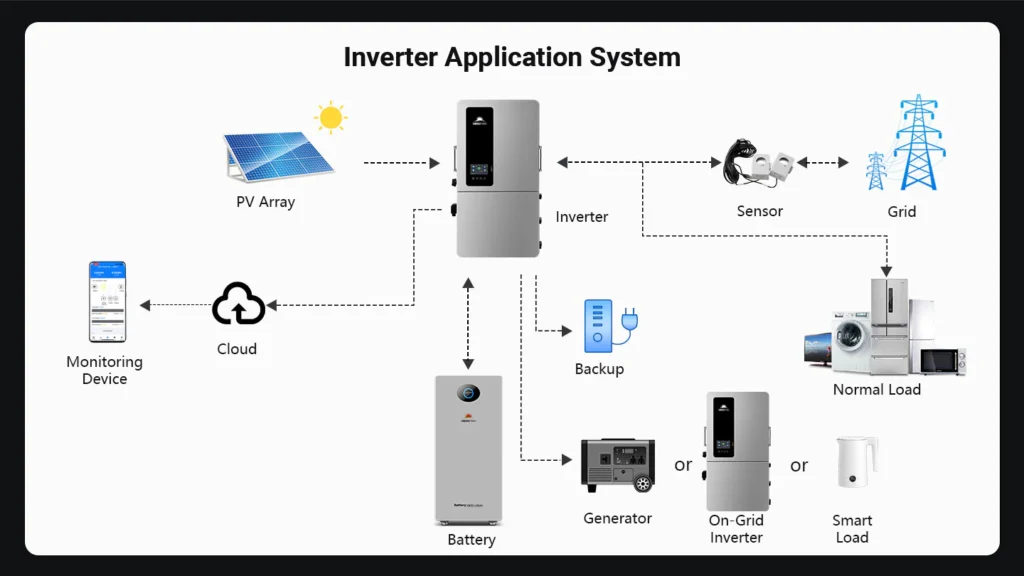

The SunGoldPower 12 kW Hybrid Inverter integrates solar, battery storage, and grid power into one compact system, ensuring reliable whole-home backup and smart energy use. With a 200 A pass-through, it powers both critical loads and entire household circuits seamlessly during outages.

Supporting up to 18 kW PV input and scalable to 72 kW with nine (6) units in parallel, this inverter is built for homes, farms, and small businesses with high energy demands. It delivers both split-phase 120/240 V and three-phase 120/208 V, adapting easily to diverse electrical environments.

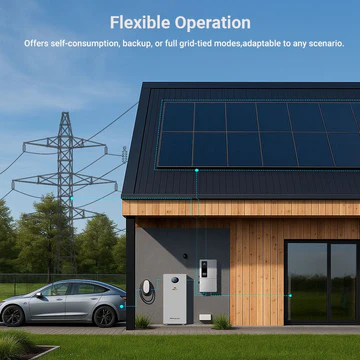

Compatible with SunGoldPower 48 V lithium batteries and other storage systems, it operates flexibly in on-grid, off-grid, or hybrid modes, even feeding excess solar power back to the grid. Designed for efficiency, reliability, and scalability, it is the perfect solution for achieving true energy independence.
