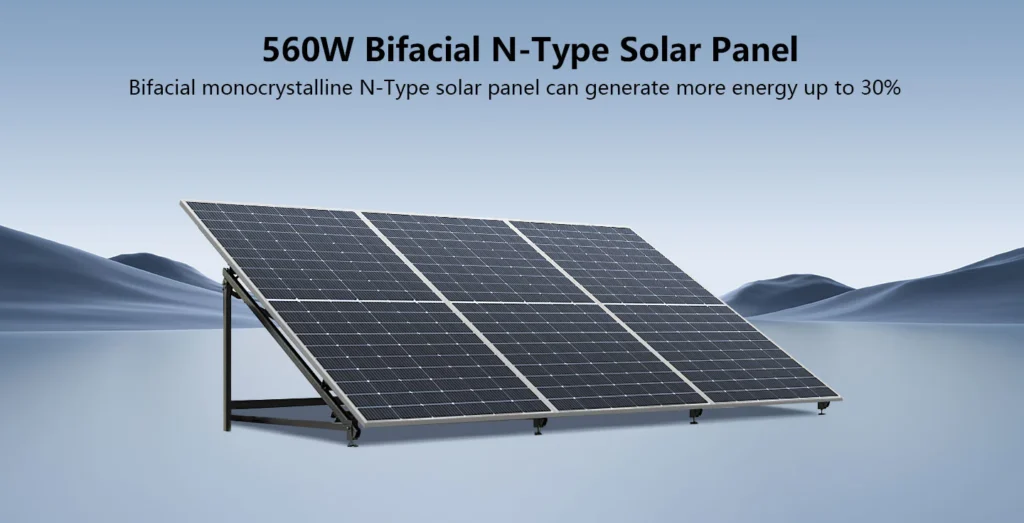

SunGoldPower 560W Bifacial N-Type Solar Panel
SKU:
SG-560WBG
Brand:
Availability: In-Stock
Price range: $980.00 through $7,199.00
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!
PRICE MATCH GUARANTEE
Contact us if you found a better deal anywhere else! We’ll beat it!
Call Us
855-386-6669
Live Chat
100% US-based Support
Authorized
Dealer
Full Warranty &
Customer Service
Free
Shipping*
Available on
most items!
Best Pricing &
Product Support
Real Engineers.
Real Support.
- 560W Monocrystalline Solar Panel
- N-Type Technology (up to 21.67% Efficiency)

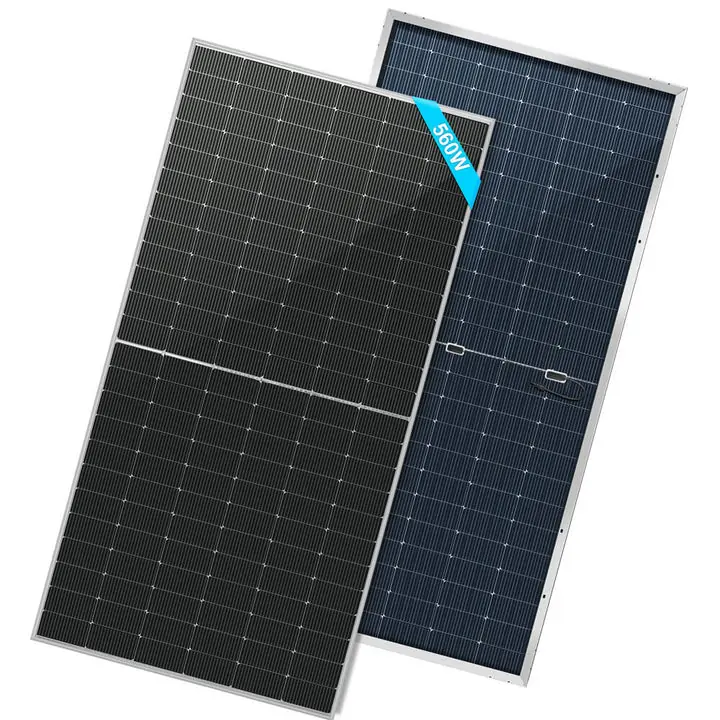

- Bifacial Dual Glass Module (gain up to 25% more energy, up to 700W)
- Aluminum Frame
- IP68 with Waterproof Connectors
- Rated to 5400 Pa (Snow Load) and 2400 Pa (Wind Pressure)
- 12 year workmanship warranty
- 25 year 80% output warranty

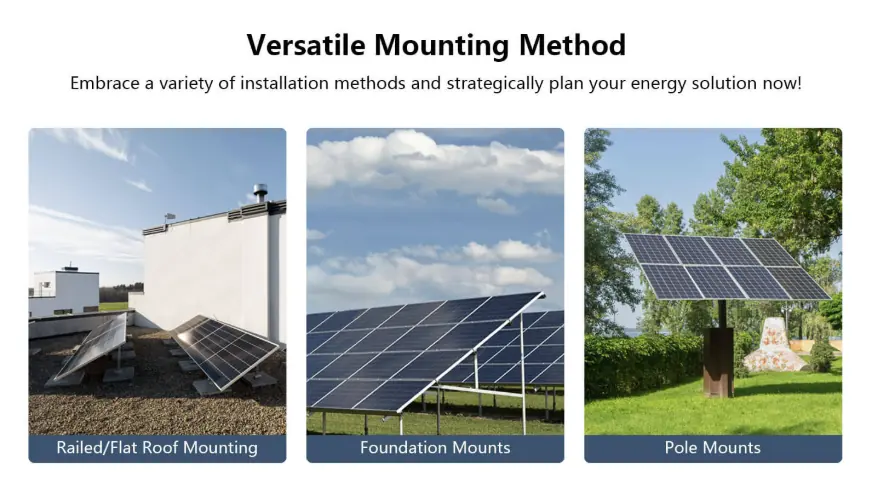

- Supports off-grid, on grid or hybrid solar systems.

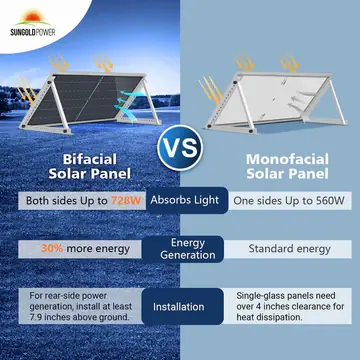

- Ideal for installations where the panels can capture sunlight on both the front & back sides, capturing reflected light and generating up to 30% more energy than conventional monofacial solar panels.
- It can be set up at any angle. no need to analyse or calculate the right mounting and tilt angle.

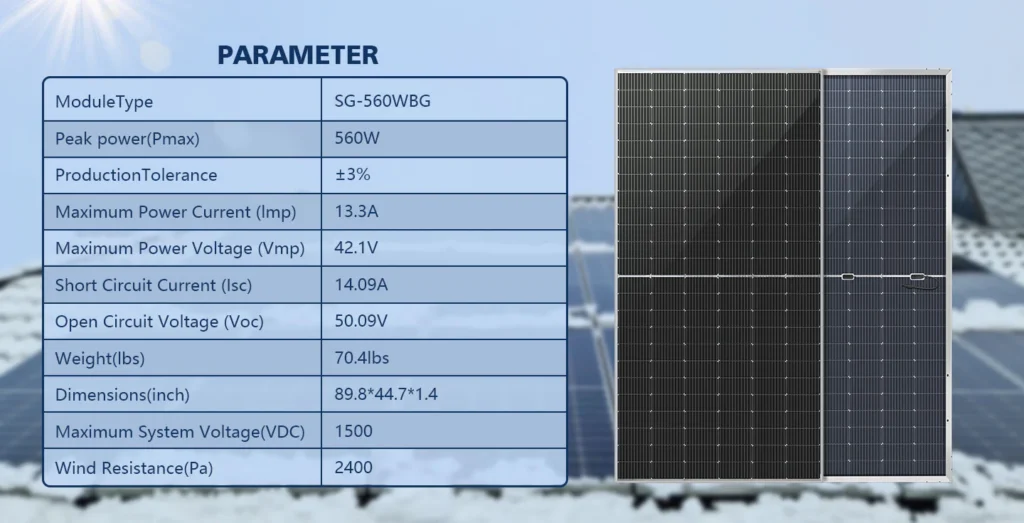

- Peak Power Output (Pmax) = 560 W ± 3%
- Max Power Current (Imp) = 13.3 A
- Max Power Voltage (Vmp) = 42.1 V
- Short-Circuit Current (Isc) = 14.90 A
- Open Circuit Voltage (Voc) = 50.09V
- Weight = 70.4 lbs

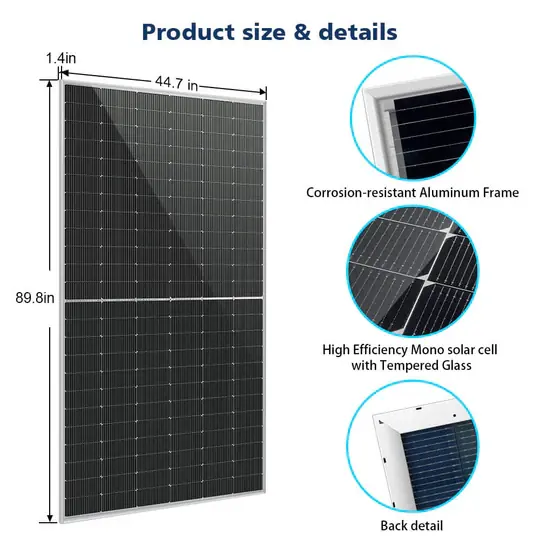

- Dimensions (inches) = 89.8″ x 44.7″ x 1.4″
- Max System Voltage (VDC) = 1500 V
Features

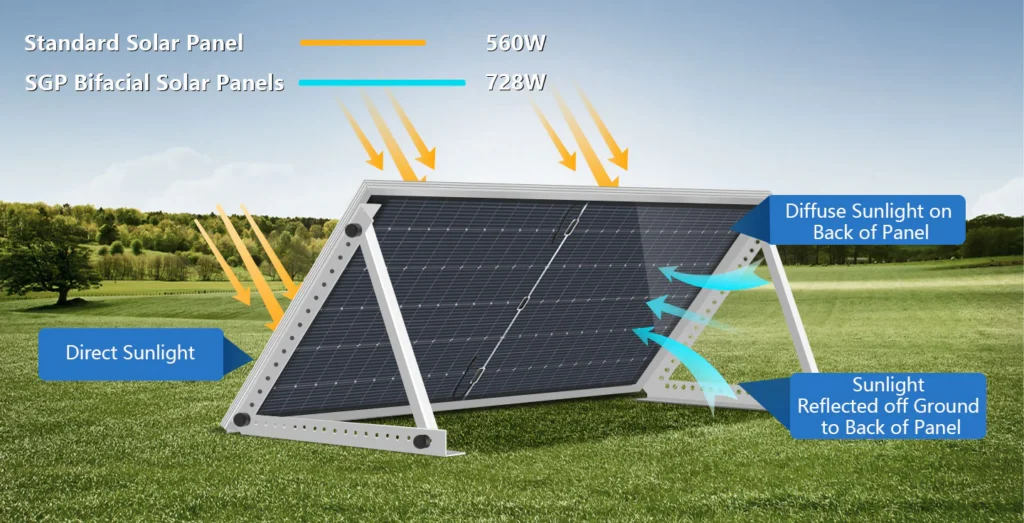

Sungoldpower Bifacial N－Type solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.

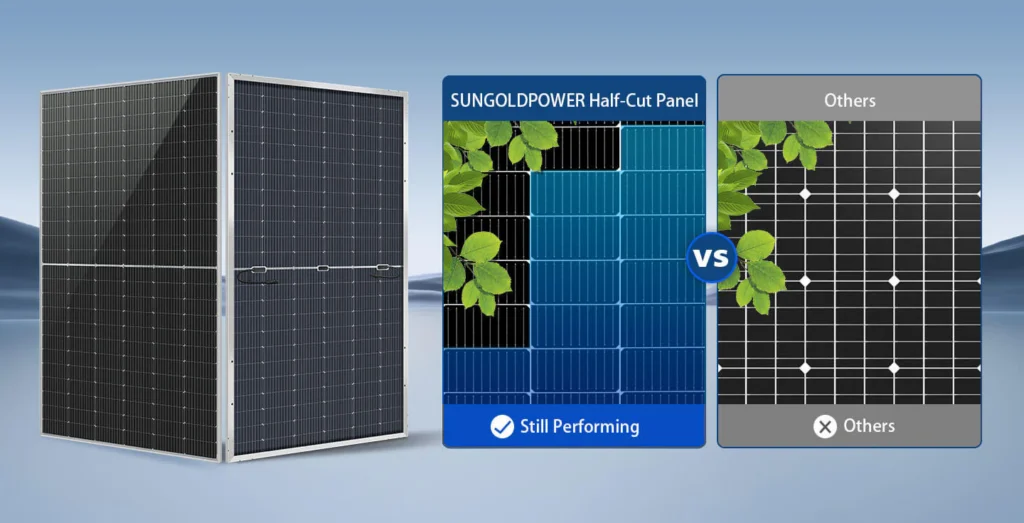

Improved PV Module Performance under Partial Shading Conditions
The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar technology to maximize energy output even under partial shading.

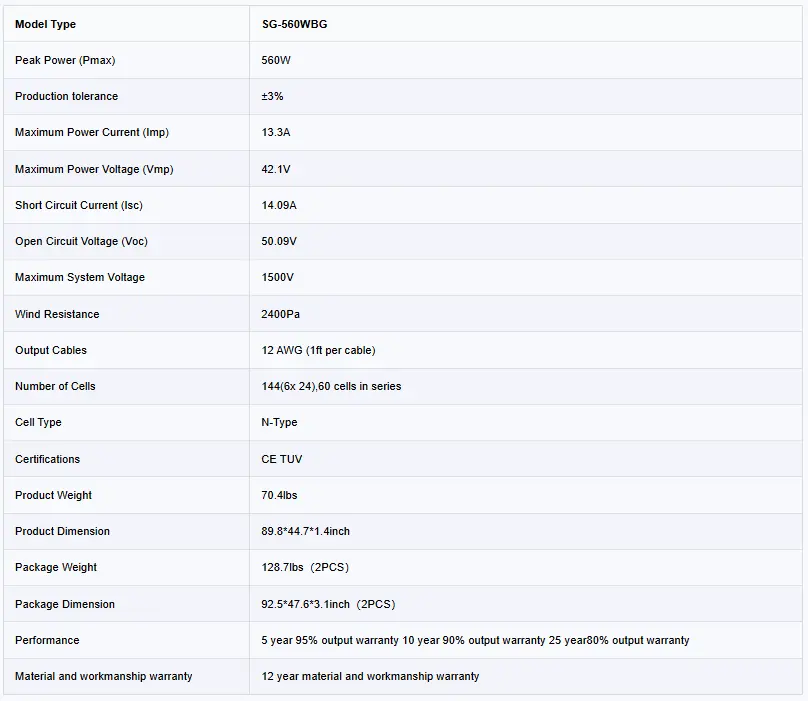

Specifications
Additional information
| Weight | 70.4 lbs |
|---|---|
| Dimensions | 89.8 × 44.7 × 1.4 in |
| Quantity | 2pcs, 4pcs, 6pcs, 8pcs, 10pcs, 12pcs, 14pcs, 16pcs, 18pcs, 20pcs, Pallet |
