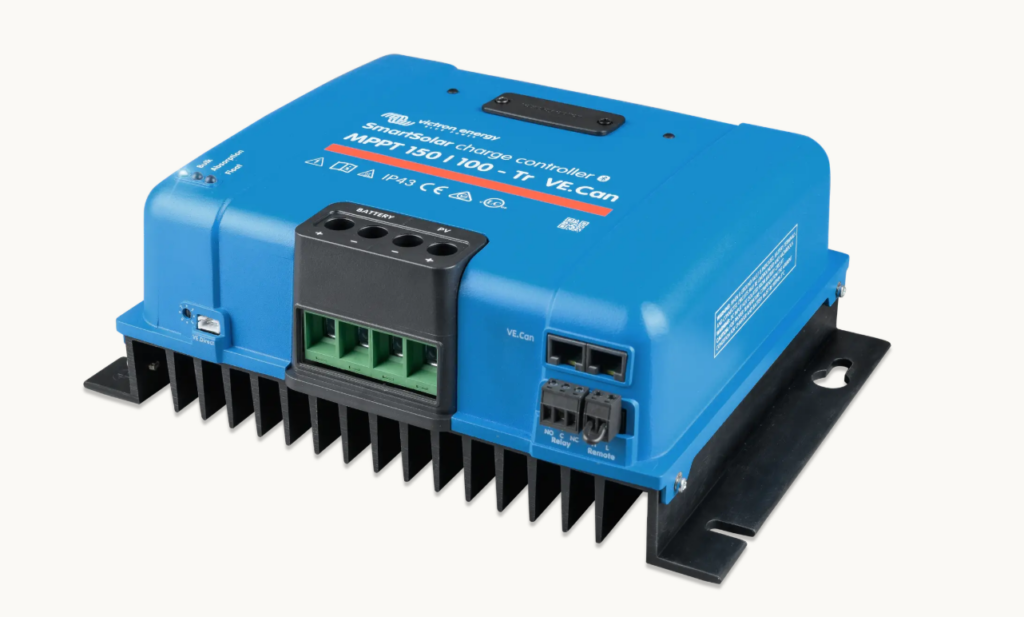

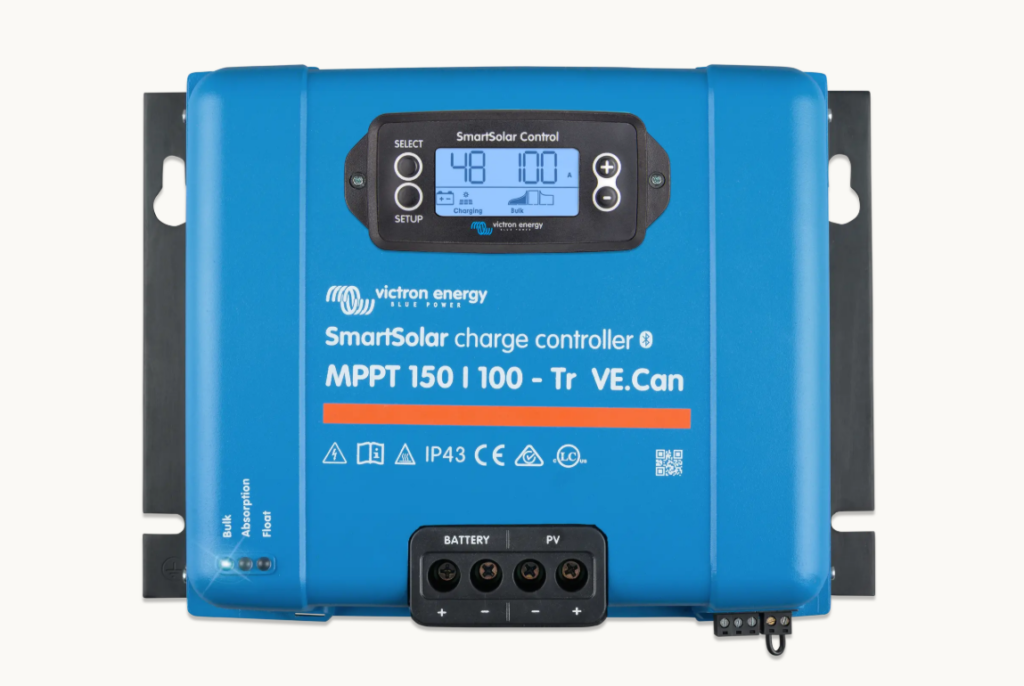

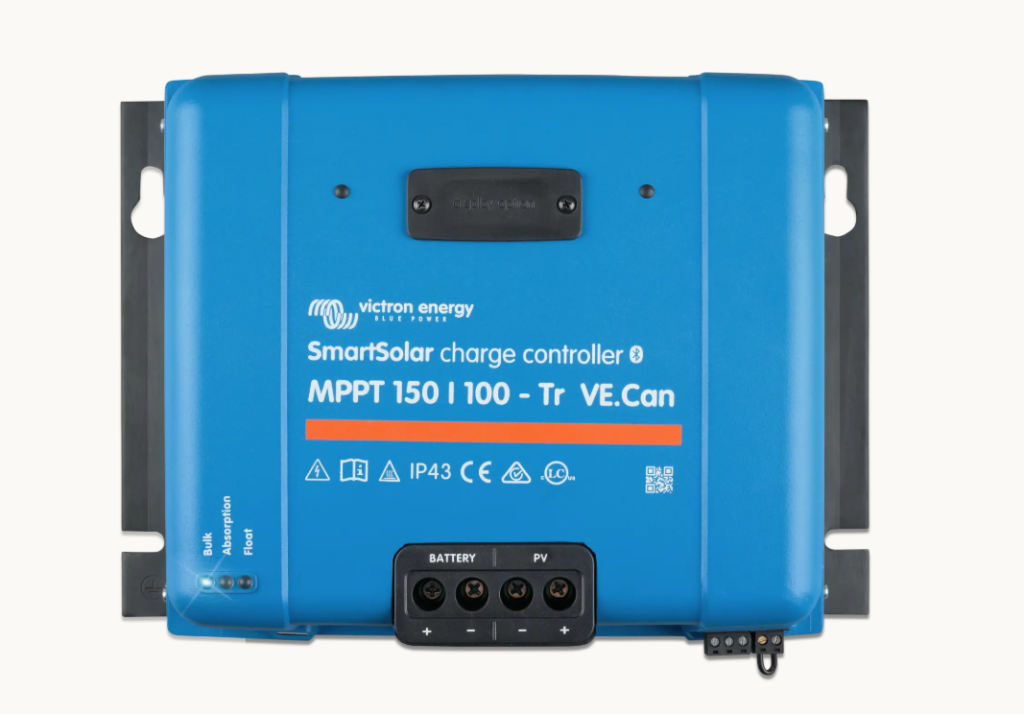

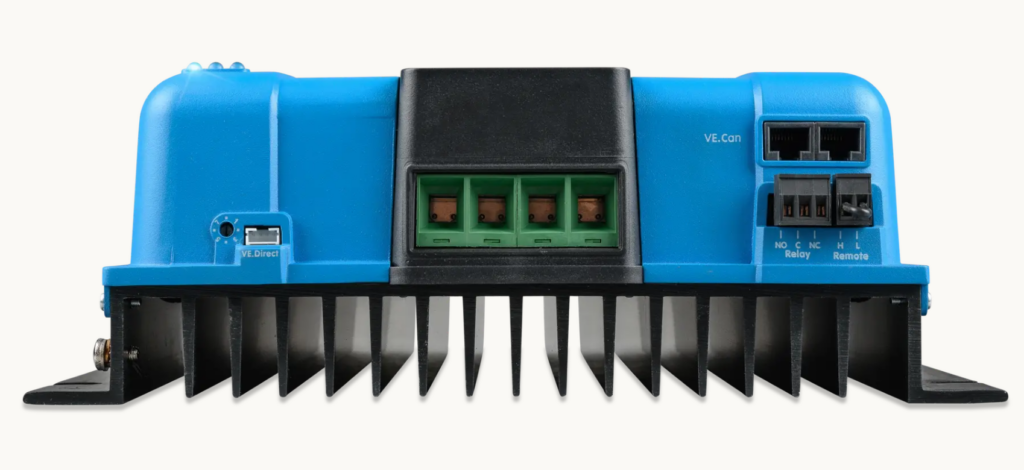

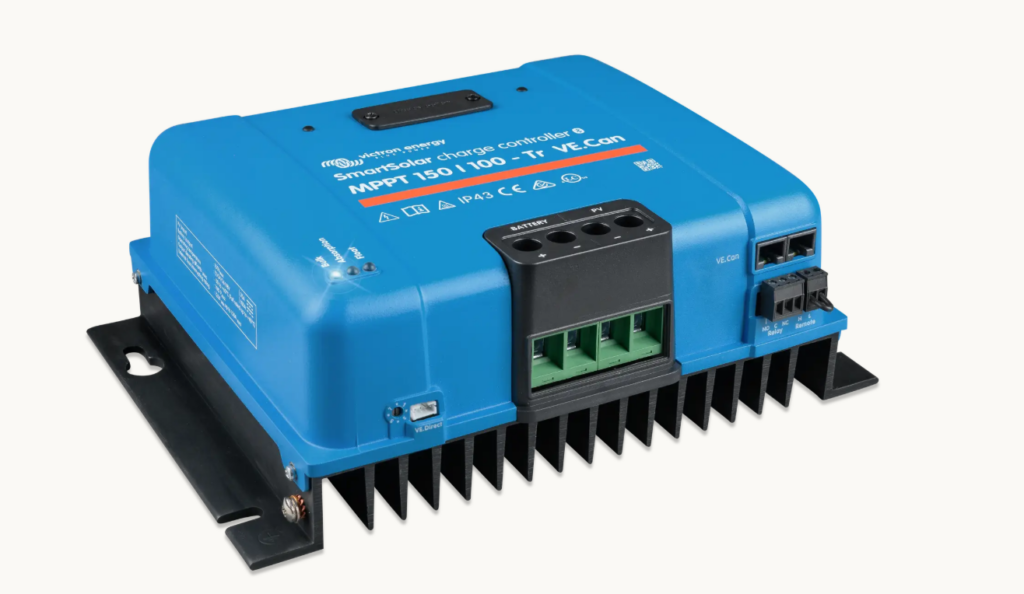

Victron Energy 150/100-Tr VE.Can Solar Charge Controller

SKU:

150/100-Tr VE.Can

Brand:

SKU:

150/100-Tr VE.Can

Brand:

Solar Charge Controller

100A MPPT Output

150V / 70A Max PV Input

12/24/36/48V Support

UL 1741

Original price was: $797.50.Current price is: $638.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary
  • 100A Rated Charge Current
  • 70A Max PV Short Circuit Current
  • Automatically detects 12V, 24V, 36V & 48V DC system voltages
    • Nominal PV Power (12V) = 1450W
    • Nominal PV Power (24V) = 2900W
    • Nominal PV Power (36V) = 4350W
    • Nominal PV Power (48V) = 5800W
  • 145V start-up & operating maximum (150V absolute maximum)
  • MPPT Tracking efficiency can be as much as 98%
  • Battery Types: Lithium, AGM, Gel, and Flooded Batteries
  • Connection Options:
    • Solar Input:             2 AWG Wiring
    • Battery:                   2 AWG Wiring
    • Communication:     VE.Can, VE.Direct, Bluetooth
  • Indoor Use Only, IP43 (Electronic Components), IP22 (Connection Area)
  • Supports parallel function (up to 25 units via VE.Can, up to 10 units via Bluetooth)
  • Integrates with Victron Remote Management (VRM) System (connects via Cerbo-GX device, sold separately)
  • SmartSolar Display Available (Sold Separately)


A fully-featured ecosystem

The Victron system is designed to give you complete control anytime, anywhere.

Additional information

Weight 10 lbs
Dimensions 8.5 × 9.9 × 4.1 in

DATASHEET

USER MANUAL

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
