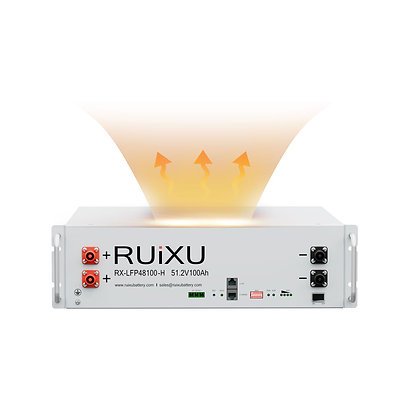

RUiXU RX-LFP48100-H 48V 100Ah (51.2V, 5.12kWh)

SKU:

RX-LFP48100-H

Brand:

SKU:

RX-LFP48100-H

Brand:

LFP Battery

51.2V 100Ah (5.12kWh) Battery

Parallel Support

Integrated BMS (CAN / RS485)

UL1973, UL9540A, UN38.3, CE

Original price was: $1,199.00.Current price is: $1,099.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Key Features
  • 51.2V 100Ah (5.12 kWh) LFP Battery
  • Self-Heating version, non-heated version available (RX-LFP48100)
  • Parallel up to (32) units together, expanding from 5 kWh to 160 kWh
  • IP20-Rated, 15-Year Design Life (≥ 6000 cycles @ 90% DOD)
  • 10-Year Warranty
  • 3U (133mm) Form Factor
  ★ Certifications
  • UL1973, UL9540A, UN38.3, CE, IEC 62619
  ★ Specifications
  • Max Charge / Discharge Current: 70 A / 100 A

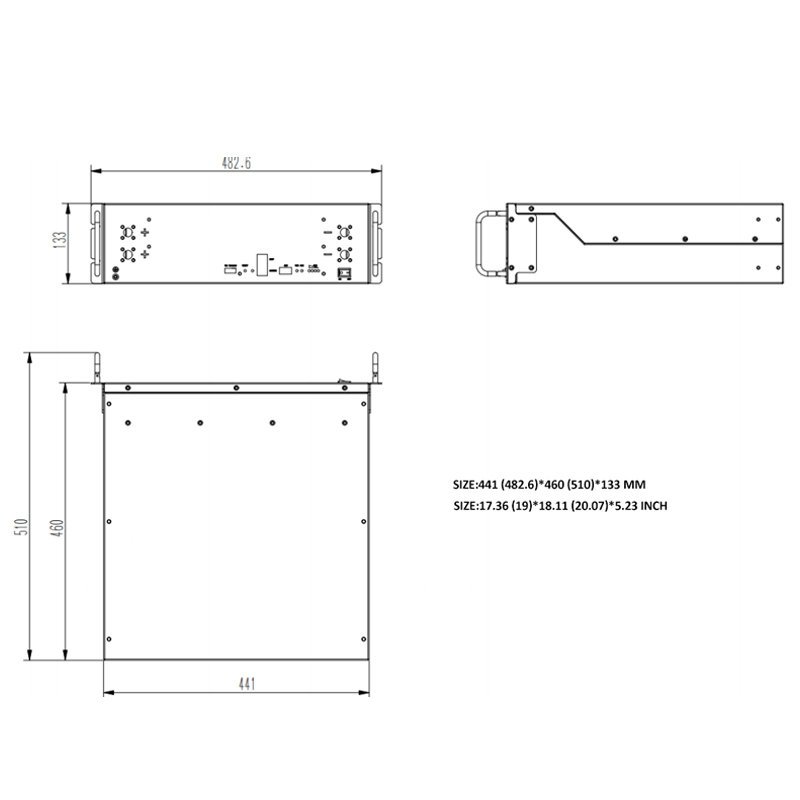

  • Dimensions: 19″ x 18.1″ x 5.23″ (482.6 x 460 x 130 mm)
  • Weight: 103.6 lbs (47 kg)
  • Heater Voltage: 56V
  • Heater Power Consumption: 480W
  • Heater Function: Self-Heating starts at < 41 °F, stops at 53.6 °F
  ★ Communication
  • RS485 / CAN with DIP address to set the RS485 baud rate and inverter protocol
  • RS485: MPP, Voltronic, RCT, Alpha Outback
  • Canbus: Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
  What’s In The Box:
  • (1) RUiXU RX-LFP48100-H
  • (1) RJ45/CAT5e Patch Cable
  • (1) Ground Cable
  • (1) Set of parallel 4 AWG cables

Additional information

DATASHEET

USER MANUAL
