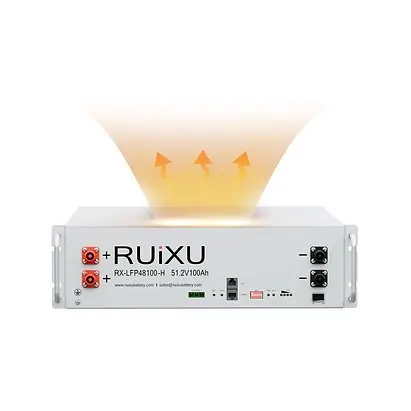

RUiXU RX-LFP48100-H 48V 100Ah (51.2V, 5.12kWh)

RUiXU RX-LFP48100-H 48V 100Ah (51.2V, 5.12kWh) - Image 2

RUiXU RX-LFP48100-H 48V 100Ah (51.2V, 5.12kWh) - Image 3

RUiXU RX-LFP48100-H 48V 100Ah (51.2V, 5.12kWh)

SKU:

RX-LFP48100-H

Brand:

SKU:

RX-LFP48100-H

Brand:

LFP Battery

51.2V 100Ah (5.12kWh) Battery

Parallel Support

Integrated BMS (CAN / RS485)

Self-Heating

UL1973, UL9540A, UN38.3, CE

Original price was: $1,249.00.Current price is: $1,149.00.

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Key Features

51.2V 100Ah (5.12 kWh) LFP Battery
Self-Heating version, non-heated version available (RX-LFP48100)
Parallel up to (32) units together, expanding from 5 kWh to 160 kWh
IP20-Rated, 15-Year Design Life (≥ 6000 cycles @ 90% DOD)
10-Year Warranty
3U (133mm) Form Factor

★ Certifications

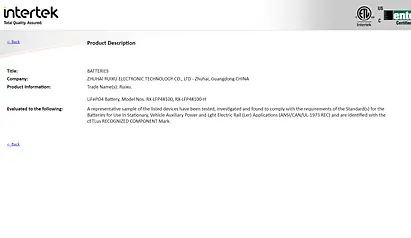

UL1973, UL9540A, UN38.3, CE, IEC 62619

★ Specifications

Max Charge / Discharge Current: 70 A / 100 A

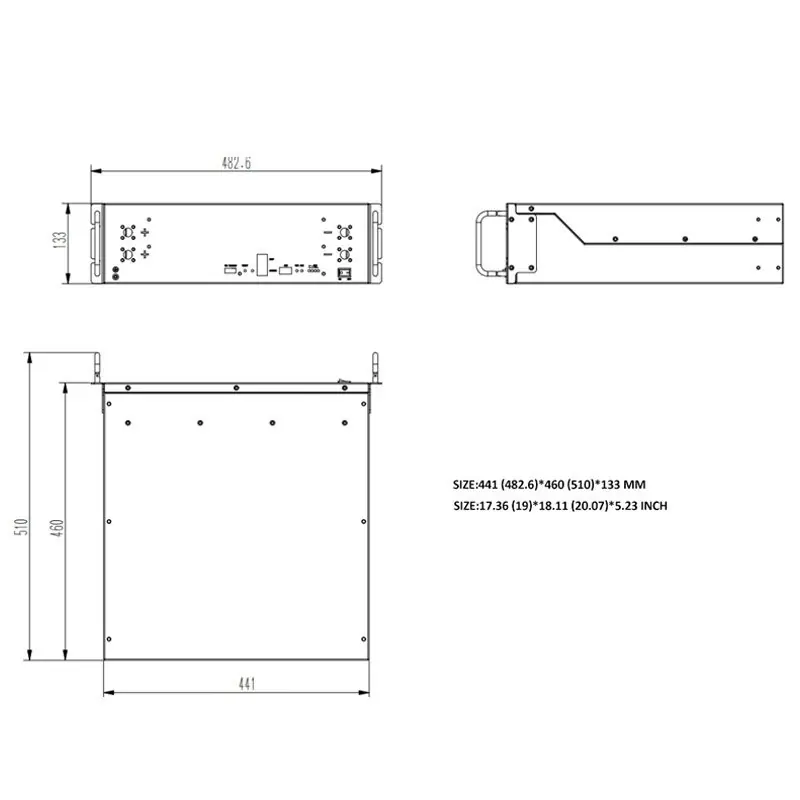

Dimensions: 19″ x 18.1″ x 5.23″ (482.6 x 460 x 130 mm)
Weight: 103.6 lbs (47 kg)
Heater Voltage: 56V
Heater Power Consumption: 480W
Heater Function: Self-Heating starts at < 41 °F, stops at 53.6 °F

★ Communication

RS485 / CAN with DIP address to set the RS485 baud rate and inverter protocol
RS485: MPP, Voltronic, RCT, Alpha Outback
Canbus: Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider

What’s In The Box:

(1) RUiXU RX-LFP48100-H
(1) RJ45/CAT5e Patch Cable
(1) Ground Cable
(1) Set of parallel 4 AWG cables

Additional information

DATASHEET

USER MANUAL
