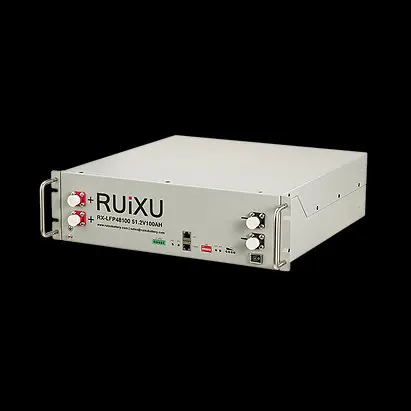

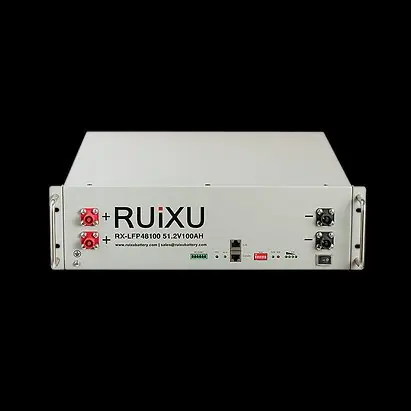

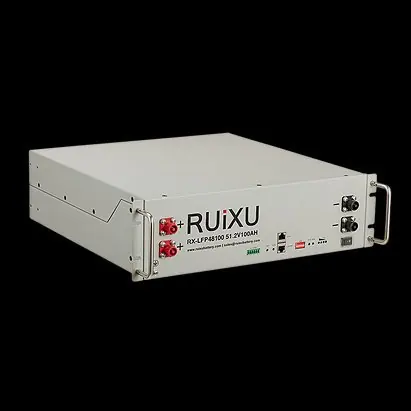

RUiXU RX-LFP48100 48V 100Ah (51.2V, 5.12kWh)
RUiXU RX-LFP48100 48V 100Ah (51.2V, 5.12kWh) - Image 2
RUiXU RX-LFP48100 48V 100Ah (51.2V, 5.12kWh) - Image 3
RUiXU RX-LFP48100 48V 100Ah (51.2V, 5.12kWh) - Image 4
RUiXU RX-LFP48100 48V 100Ah (51.2V, 5.12kWh) - Image 5

RUiXU RX-LFP48100 48V 100Ah (51.2V, 5.12kWh)

SKU:

RX-LFP48100

Brand:

SKU:

RX-LFP48100

Brand:

LFP Battery

51.2V 100Ah (5.12kWh) Battery

Parallel Support

Integrated BMS (CAN / RS485)

10-Year Warranty

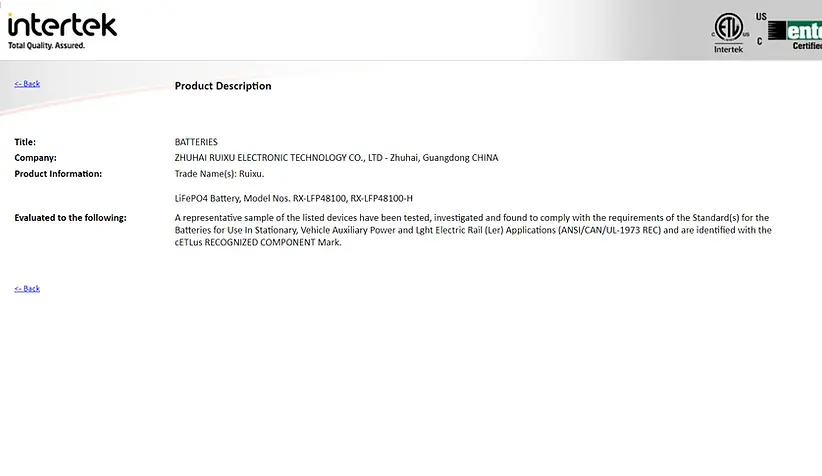

      UL1973, UL9540A, UN38.3, CE

      Original price was: $1,219.00.Current price is: $1,100.00.

      Request a Bundle
      Ordering more than one product?
      Add items to your cart
      and click "Request A Bundle"
      to secure the best price possible!

      PRICE MATCH GUARANTEE

      Contact us if you found a better deal anywhere else! We’ll beat it!

      Call Us

      855-386-6669

      Live Chat

      100% US-based Support

      Authorized
      Dealer

      Full Warranty &
      Customer Service

      Free
      Shipping*

      Available on
      most items!

      Best Pricing &
      Product Support

      Real Engineers.
      Real Support.

      ★ Key Features
      • 51.2V 100Ah (5.12 kWh) LFP Battery
      • Parallel up to (32) units together, expanding from 5 kWh to 160 kWh
      • IP20-Rated, 15-Year Design Life (≥ 6000 cycles @ 90% DOD)
      • 10-Year Warranty
      • 3U (133mm) Form Factor
      • Self-Heating version available, RX-LFP48100-H
        ★ Certifications
      • UL1973, UL9540A, UN38.3, CE, IEC 62619
        ★ Specifications
      • Max Charge / Discharge Current: 70 A / 100 A

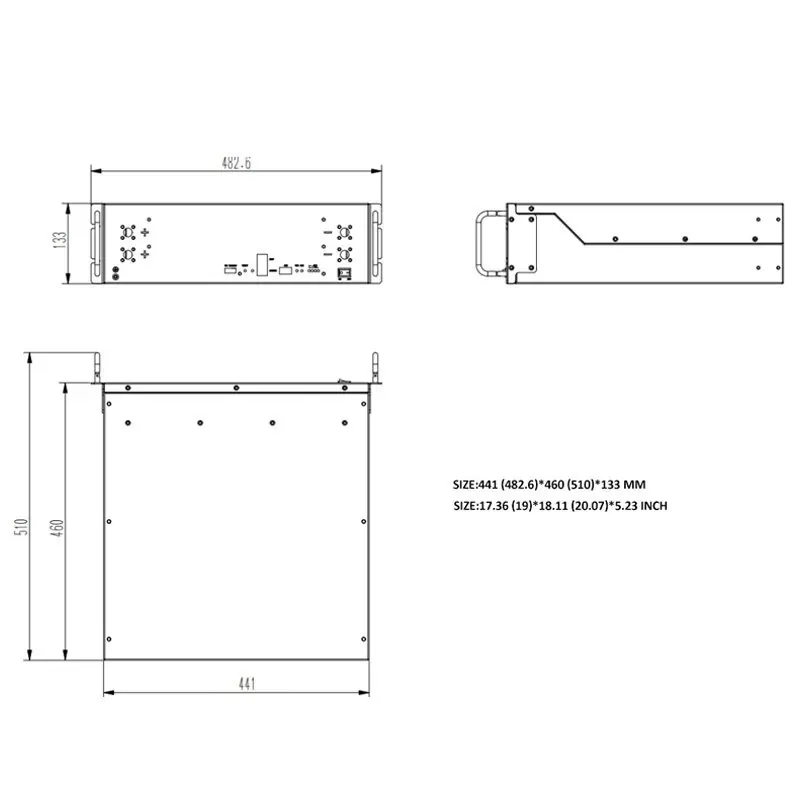

      • Dimensions: 19″ x 18.1″ x 5.23″ (482.6 x 460 x 130 mm)
      • Weight: 103.6 lbs (47 kg)
        ★ Communication
      • RS485 / CAN with DIP address to set the RS485 baud rate and inverter protocol
      • RS485: MPP, Voltronic, RCT, Alpha Outback
      • Canbus: Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
        What’s In The Box:
      • (1) RUiXU RX-LFP48100
      • (1) RJ45/CAT5e Patch Cable
      • (1) Ground Cable
      • (1) Set of parallel 4 AWG cables

      Additional information

      DATASHEET

      USER MANUAL
