HomeGrid STACK'D (48V, 9.6-38.4kWh)

HomeGrid STACK'D (48V, 9.6-38.4kWh) - Image 2

HomeGrid STACK'D (48V, 9.6-38.4kWh) - Image 3

HomeGrid STACK'D (48V, 9.6-38.4kWh) - Image 4

HomeGrid STACK’D (48V, 9.6-38.4kWh)

SKU:

STACK'D Series (Standard)

Brand:

SKU:

STACK'D Series (Standard)

Brand:

LFP Battery

48V 200-800Ah (9.6-38.4kWh)

Parallel Support

Integrated BMS (CAN / RS485)

10-Year Warranty

UL1973, UL9540A, UN 38.3

Price range: $5,600.00 through $17,300.00

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Key Features

48V LFP Batteries (200 – 800Ah, 9.6 – 38.4 kWh)

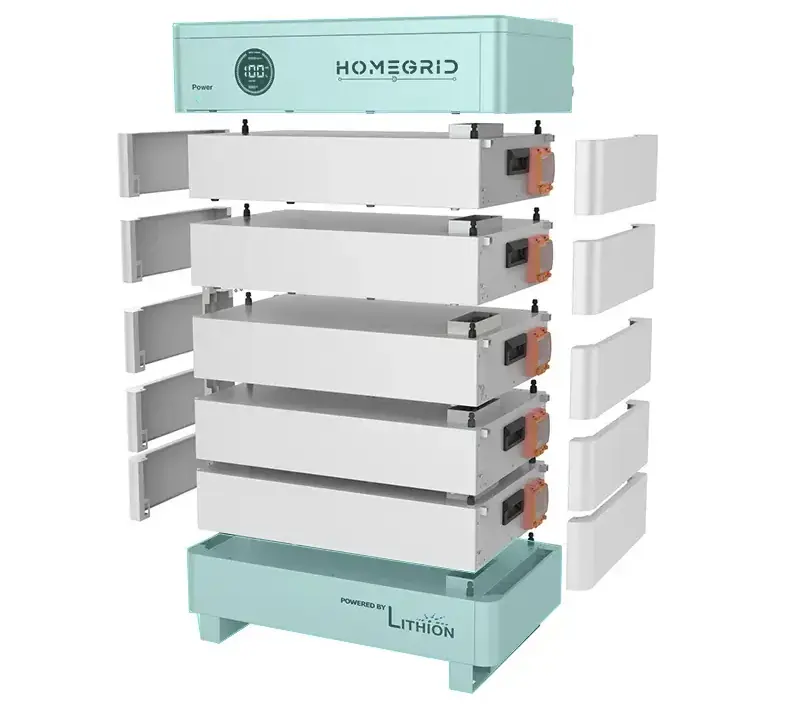

Includes All-Weather BMS + Base
Parallel up to (15) STACK’D modules together, expanding from 38.4kWh to 576kWh
Real-time Display with Mobile Monitoring App
IP55-Rated, Maximum Altitude Rating of 11,000 feet
10-Year Warranty

★ Specifications

Nominal DC Voltage: 48V
DC Voltage Range: 46-56V
Max Charge Current: 180A (Stack of 2), 270A (Stack of 3), 300A (Stack of 4 or more)
Max Continuous Discharge Current: 180A (Stack of 2), 270A (Stack of 3), 300A (Stack of 4 or more)
Max Pulse Current (10s): 300A (up to 3 stacks), 500A (Stack of 4 or more)
Efficiency: >98%
Charging Temperature Range: 32 to 113°F (0 to 45°C)
Discharging Temperature Range: 14 to 131°F (-10 to 55°Stacked4C)

★ Communication

CAN / RS485

★ Compatible Inverters

On-Grid (UL 9540): Sol-Ark 12K/15K
Off-Grid: Sol-Ark, Schneider, SMA, Victron, Outback, and more

Certificates

UL 1642, UL 1973, UN 38.3, UL 9540, UL 9540a, CEC, SGIP, OGPe

Additional information

Weight	304 lbs
Dimensions	29 × 25.25 × 15.75 in

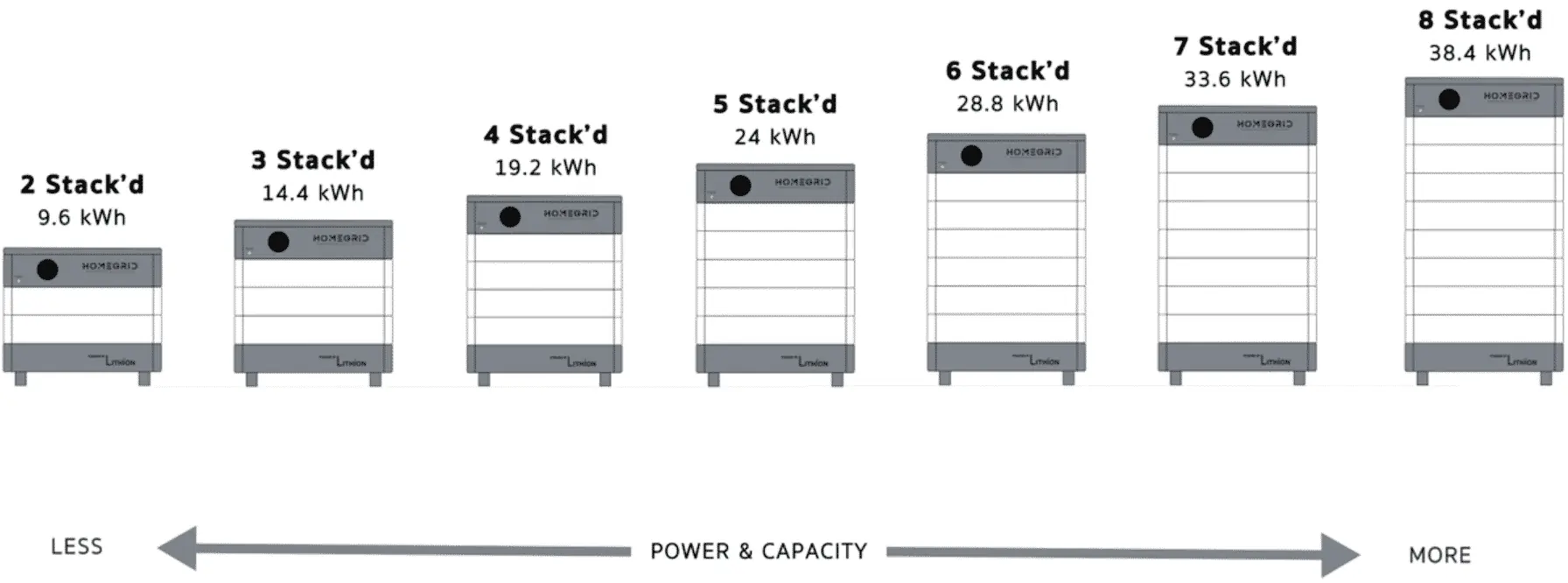

Stack Qty	2 (9.6 kWh), 3 (14.4 kWh), 4 (19.2 kWh), 5 (24 kWh), 6 (28.8 kWh), 7 (33.6 kWh), 8 (38.4 kWh)

DATASHEET

USER MANUAL
