Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter - Image 2

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter - Image 3

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter - Image 4

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter - Image 5

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter - Image 6

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter - Image 7

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter - Image 8

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter - Image 9

Amensolar N3H-X12 12kW 48V Split-Phase Solar Inverter

SKU:

N3H-X12

Brand:

SKU:

N3H-X12

Brand:

Solar Inverter

12kW 48V Solar Inverter

200A Integrated Bypass

18kW Max PV Input (up to 500V)

Grid Input

WiFi

UL1741SA, UL1699B, CSA 22.2

Original price was: $3,775.00.Current price is: $3,500.00.

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ All-In-One (AIO) Solar Hybrid Inverter

Split-Phase Inverter with 12kW output
(4) Integrated MPPTs supporting 16A (12 kW) each
Supports PV input sized up to 18kW @ 500V
200A Grid Pass-through
Supports grid-tied (AC coupling) & off-grid system operation
Remote Monitoring over WiFi using SOLARMAN app or web portal
Integrated Rapid Shutdown (RSD) button
LCD Touch Panel

★ Parallel Function

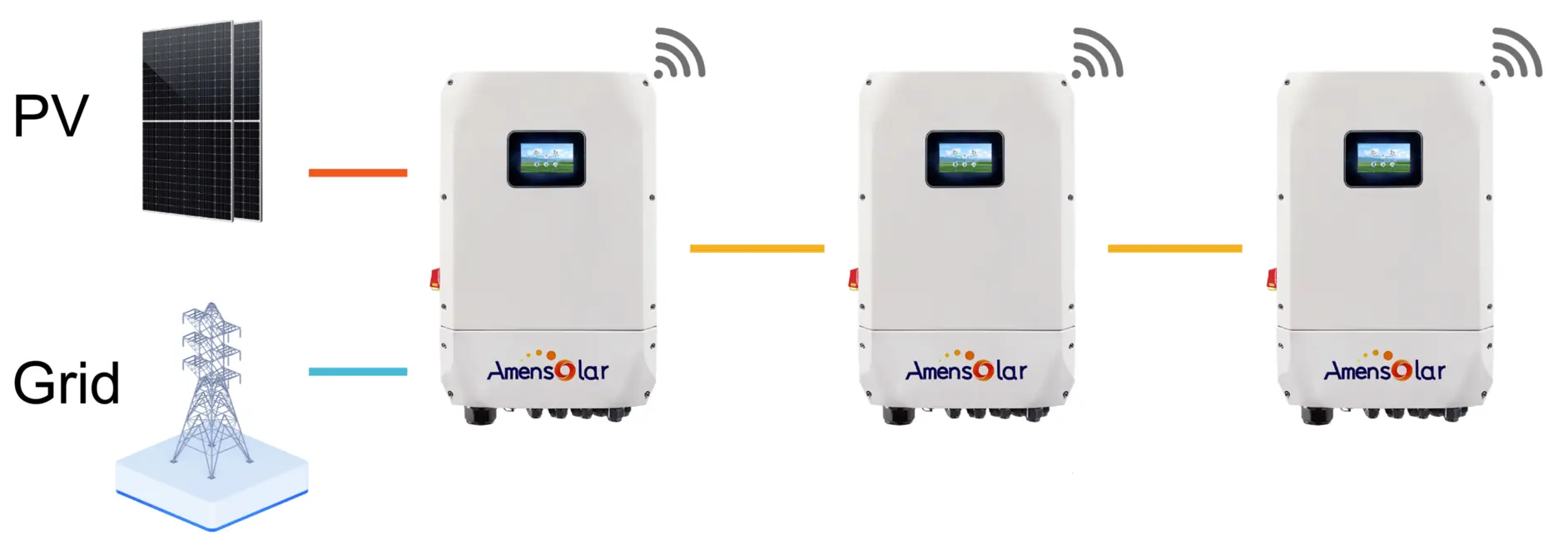

Parallel up to (3) units together, supporting up to 36kW power output
110-120/220-240V (Split-Phase) or 208V (2/3 Phase) or 230V (1-Phase)
3+ units required for 3-Phase operation
Parallel function increases net inverter power and surge capacity.

★ (4) Charging Modes & (4) Output Modes

Charging Modes: AC Priority / Solar Priority / Only Solar / Grid & Solar Hybrid Charging
Output Modes: PV Priority / Utility Priority / Inverter Priority / Hybrid Output

★ Battery Compatibility

Voltage Range: 40-58V
Lithium and Lead Acid Battery
CAN & RS485 for supporting BMS communication

description-img

Solar Hybrid Inverter Application

inverter-images

Product Highlights

The N3H-X12 hybrid inverter supports flexible application modes, including battery priority, peak shaving, and valley filling, as well as self-consumption, cater to various energy management requirements.
Supports 3 parallel connections including the simultaneous input of PV, batteries, diesel generators, power grids, and loads.
The color LCD provides users with configurable and easily accessible push button operation. with RS485/CAN port for battery communication.
Operates within an acceptable input voltage range of 120~500VAC.

Additional information

Weight	90.4 lbs
Dimensions	16.92 × 27.95 × 8.66 in

DATASHEET

USER MANUAL
