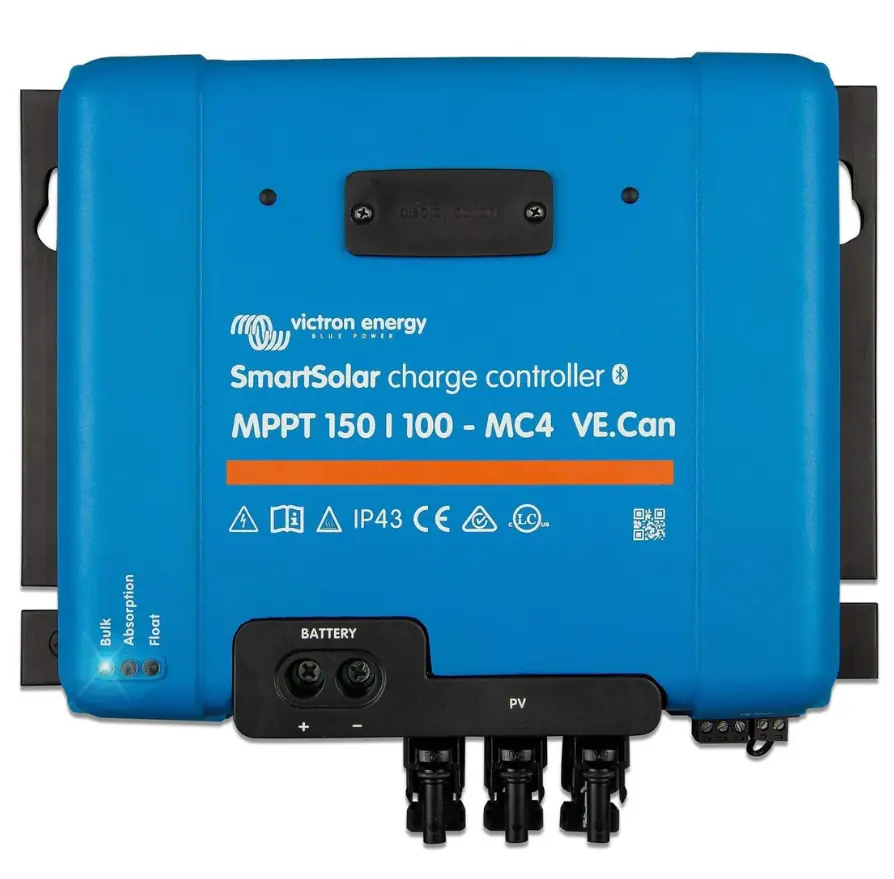

Victron Energy 150/100 MC4 VE.Can Solar Charge Controller

Victron Energy 150/100 MC4 VE.Can Solar Charge Controller

SKU:

150/100 MC4 VE.Can

Brand:

SKU:

150/100 MC4 VE.Can

Brand:

Solar Charge Controller

100A MPPT Output

150V / 70A Max PV Input

MC4 Connectors

12/24/36/48V Support

    UL 1741

    Original price was: $813.75.Current price is: $651.00.

    Request a Bundle
    Ordering more than one product?
    Add items to your cart
    and click "Request A Bundle"
    to secure the best price possible!

    PRICE MATCH GUARANTEE

    Contact us if you found a better deal anywhere else! We’ll beat it!

    Call Us

    855-386-6669

    Live Chat

    100% US-based Support

    Authorized
    Dealer

    Full Warranty &
    Customer Service

    Free
    Shipping*

    Available on
    most items!

    Best Pricing &
    Product Support

    Real Engineers.
    Real Support.

    ★ Product Summary
    • 100A Rated Charge Current
    • 70A Max PV Short Circuit Current (max 30A per MC4 connector)
    • Automatically detects 12V, 24V, and 48V DC system voltages (can manually set 36V)
      • Nominal PV Power (12V) = 1450W
      • Nominal PV Power (24V) = 2900W
      • Nominal PV Power (36V) = 4350W
      • Nominal PV Power (48V) = 5800W
    • 145V start-up & operating maximum (150V absolute maximum)
    • MPPT Tracking efficiency can be as much as 98%
    • Battery Types:                Lithium, AGM, Gel, and Flooded Batteries
    • Connection Options:
      • Solar Input:             (3) Pairs of MC4 Connectors
      • Battery:                   2 AWG Wiring
      • Communication:     VE.Can, VE.Direct, Bluetooth
    • Indoor Use Only, IP43 (Electronic Components), IP22 (Connection Area)
    • Supports parallel function (up to 25 units via VE.Can, up to 10 units via Bluetooth)
    • Integrates with Victron Remote Management (VRM) System (connects via Cerbo-GX device, sold separately)
    • SmartSolar Display Available (Sold Separately)


    A fully-featured ecosystem

    The Victron system is designed to give you complete control anytime, anywhere.

    Additional information

    Weight10 lbs
    Dimensions8.5 × 9.9 × 4.1 in

    DATASHEET

    USER MANUAL
