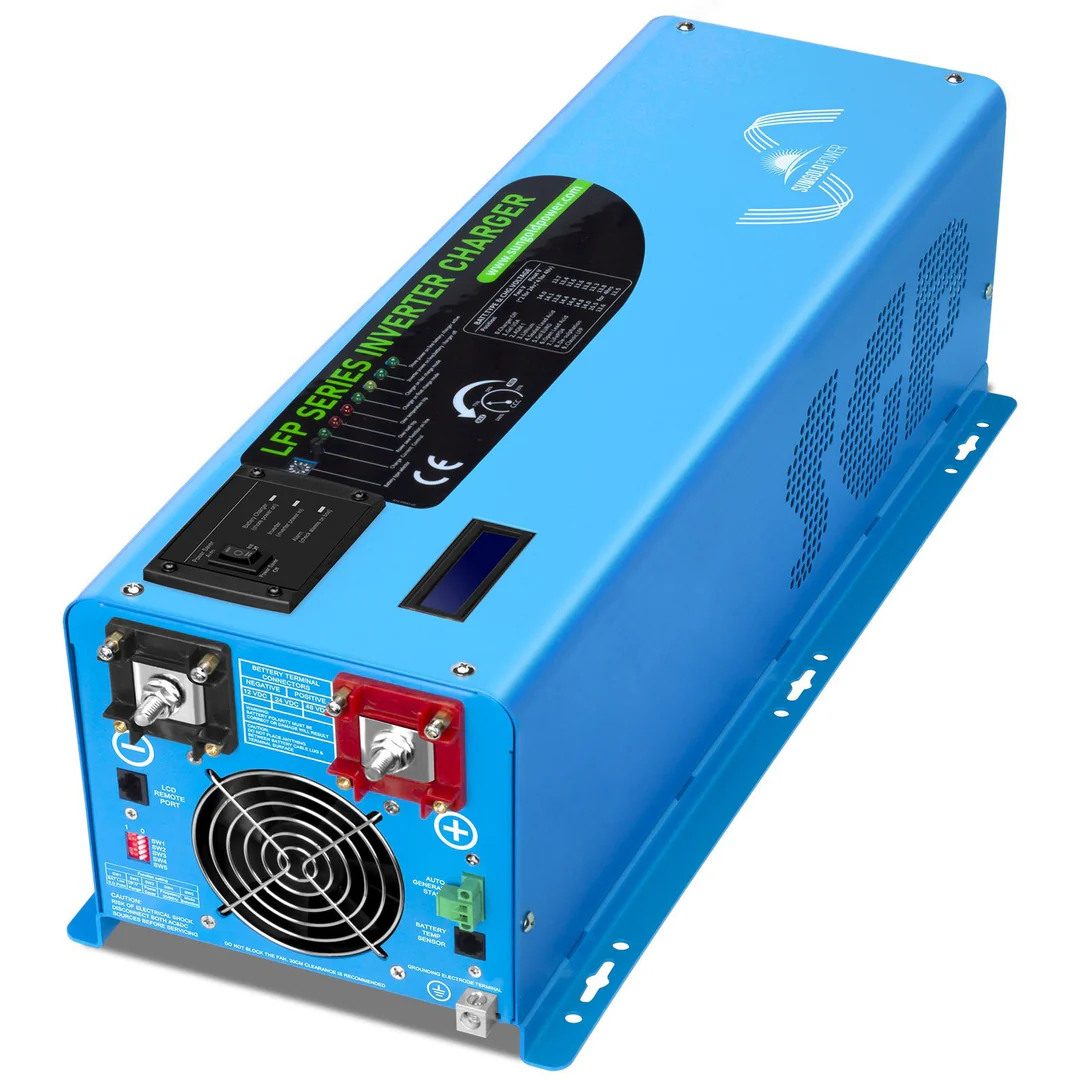

SunGoldPower 4kW Split-Phase Inverter/Charger (24VDC)

• AC priority mode by default, change to Battery priority using switch
• Max charge current can be adjusted from 0-100% via a linear switch
• Can start up a generator when the battery voltage goes low and turn it off once the battery is fully charged



Features



The SunGoldPower LFP 4000 Watt DC 24V AC 120/240 Split-Phase Inverter Charger is a top-quality low-frequency power inverter, built for running a small home, business, RV, trailer or boat application to support off-grid system functionality and/or enable emergency backup power.

The split-phase inverter requires 240VAC input and will output 110/120 or 220/230/240VAC at 50 or 60Hz settable via the SW4. It is capable of producing 2 legs of 110V, making this inverter perfect for home and business applications with a 220V panel in place.

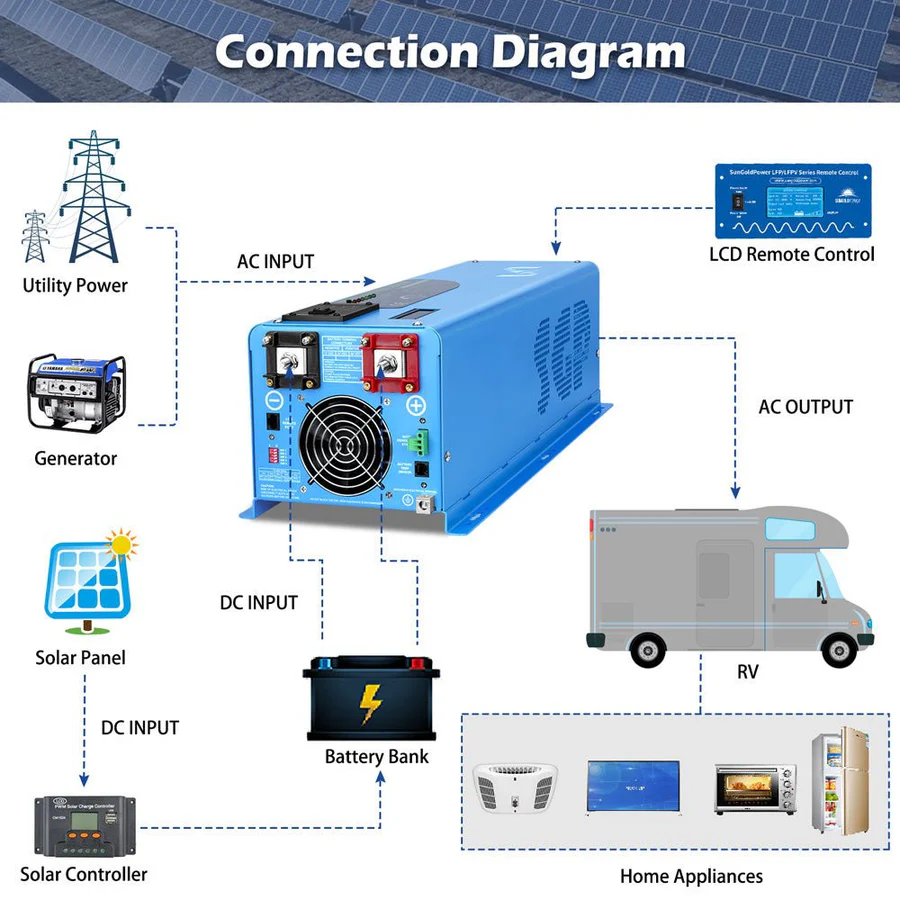

Three in one product:

★ The inverter transforms 24V DC power stored by batteries to AC electricity that can power the tools and appliances.

★ It has a built-in 50 amp battery charger which helps the grid or generator to recharge the battery.

★ The transfer switch allows the product to automatically switch between grid power and battery power within 10ms.



Specifications

Main Features

• 4000W Low Frequency Pure Sine Inverter With Charger.
• AC/Battery Priority Selector.
• Automatic Generator Start.
• Safety and Convenient.
• The low frequency inverter can power all kinds of appliances.
• LCD Display, Remote Control, BTS including.
• Low Idle Consumption.
• 9 battery type settings for charger.
• Multi Stage Smart charger 50+/-5A, charger can be disable.
• 10msec typical transfer time.

Inverter Output

• Continuous Output Power: 4000W
• Surge Rating: 12000W (20 Seconds)
• AC Output: AC 120V and AC 240V
• AC Input: 240V
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%

DC Input

• Nominal Input Voltage: 24.0Vdc
• Minimum Start Voltage: 20.0Vdc
• Low Battery Alarm: 21.0Vdc-22.0Vdc
• Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
• High Voltage Alarm: 32.0Vdc
• Low battery Voltage Restart: 26Vdc
• Idle Consumption: 48W
• Power Saver Mode Idle Consumption: 19W

AC Charger

• Charger Rate: 50+/-5A
• AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)
• Over Charge Protection Shutdown: 31.4V
• Selectable Charge Setting based on battery type
• Adjustable charge current: off 0%-100%
• 3-step intelligent battery charger

Packaging

• 4000W 12V Low Frequency Pure Sine Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight: 55LB
• Unit Size: 22 x 9.1 x 7.5 inch
• Shipping Weight:  64LB
• Shipping Size: 27 x 13.4 x 13 inch
