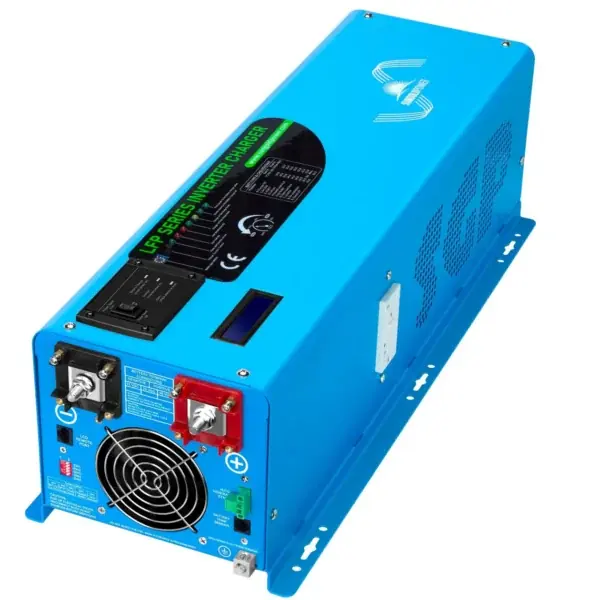

★ Product Summary- Combines pure sine wave inverter, battery charger, and AC auto-transfer switch.
- Converts 120Vac input to 4kW 120Vac output (50/60 Hz)
- Surge output up to 12kW (20 seconds)
- Compatible with 12V batteries
- Low frequency, low idle current
- Automatic Generator Start capable
- Includes LCD Display, Remote Control, and BTS cable
★ Other Properties- AC priority mode by default, change to Battery priority using switch
- Max charge current can be adjusted from 0-100% via a linear switch
- Can start up a generator when the battery voltage goes low and turn it off once the battery is fully charged
Features
If you are looking for a high pure sine-wave inverter and high capacity charger, SunGoldPower’s low frequency inverter is your best choice. It is a combination of an inverter, battery charger and transfer switch into one complete system, This 12V dc to 120v ac inverter boasts a 300% surge capacity for 20 seconds to reliably support tools and equipment longer. the inverter charger is found on practically every RV, trailer, motorhome, truck camper and is a good solution for backup or off grid power solutions. This inverter requires 120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.
.
Specifications
Main Features- 4000W Low Frequency Pure Sine Inverter With Charger.
- AC/Battery Priority Selector.
- Automatic Generator Start.
- GFCI Socket, Safety and Convenient.
- The low frequency inverter can power all kinds of appliances.
- LCD Display, Remote Control, BTS including.
- Low Idle Consumption.
- 9 battery type settings for charger.
- Multi Stage Smart charger 120+/-5A, charger can be disable.
- 10msec typical transfer time.
Inverter Output- Continuous Output Power: 4000W
- Surge Rating: 12000W (20 Seconds)
- AC Output: 120VAC
- AC Input: 120VAC
- Output Wave: Pure Sine Wave (bypass mode)
- Typical Transfer Time: 10ms (MAX)
- Nominal Efficiency: >88%
DC Input- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
- High Voltage Alarm: 16.0Vdc
- Low battery Voltage Restart: 13Vdc
- Idle Consumption: 45W
- Power Saver Mode Idle Consumption: 18W
AC Charger - Charger Rate: 120+/-5A
- AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2)
- Over Charge Protection Shutdown:15.7V
- Selectable Charge Setting based on battery type Adjustable charge current: off 0%-100%
- 3-step intelligent battery charger
Packaging- 4000W 12V Low Frequency Pure Sine Inverter
- English Manual
- Remote Control
- BTS Cable
- Unit Weight: 62.2LB
- Unit Size: 25.6 x 9.1 x 7.5 inch
- Shipping Weight: 71LB
- Shipping Size: 30.3 x 13.4 x 12.8 inch
