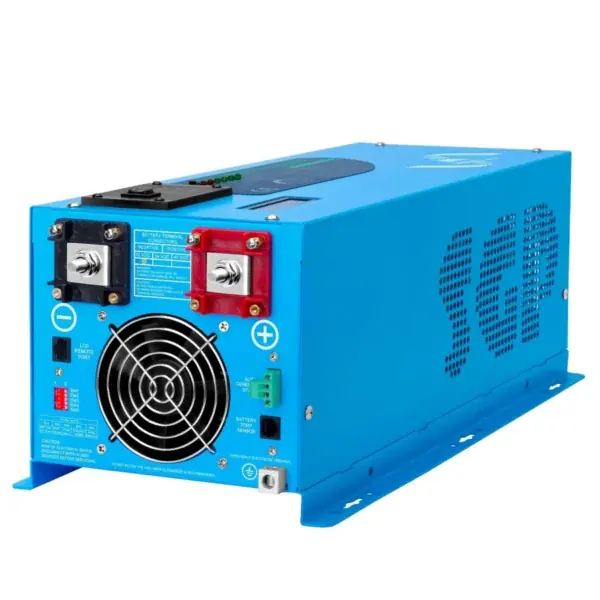

SunGoldPower 2kW Inverter/Charger (12VDC)

• AC priority mode by default, change to Battery priority using switch
• Max charge current can be adjusted from 0-100% via a linear switch
• Can start up a generator when the battery voltage goes low and turn it off once the battery is fully charged



Features



If you are looking for a pure sine-wave inverter/charger, the 2000W SunGoldPower low-frequency pure sine-wave inverter is an excellent choice. It combines inverter, battery charger and transfer switch functionality into one complete system, This 12V DC to 120V AC inverter boasts a 300% surge capacity for 20 seconds to reliably support tools and equipment longer.



Specifications

Main Features

• 2000W Low Frequency Pure Sine Inverter With Charger.
• AC/Battery Priority Selector.
• Automatic Generator Start.
• GFCI Socket, Safety and Convenient.
• The low frequency inverter can power all kinds of appliances.
• LCD Display, Remote Control, BTS including.
• Low Idle Consumption.
• 9 battery type settings for charger.
• Multi Stage Smart charger 70+/-5A, charger can be disable.
• 10msec typical transfer time.

Inverter Output

• Continuous Output Power: 2000W
• Surge Rating: 6000W (20 Seconds)
• AC Output: 20Vac
• AC Input: 120Vac
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%

DC Input

• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
• High Voltage Alarm: 16.0Vdc
• Low battery Voltage Restart: 13Vdc
• Idle Consumption: 28W
• Power Saver Mode Idle Consumption: 13W

AC Charger

• Charger Rate: 70+/-5A
• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2)
• Over Charge Protection Shutdown: 15.7V
• Selectable Charge Setting based on battery type
• Adjustable charge current: off 0%-100%
• 3-step intelligent battery charger

Packaging

• 2000W 12V Low Frequency Pure Sine Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight:  41.9LB
• Unit Size: 22 x 9.1 x 7.5 inch
• Shipping Weight: 50.3 LB
• Shipping Size: 26.8 x 13.4 x 13 inch
