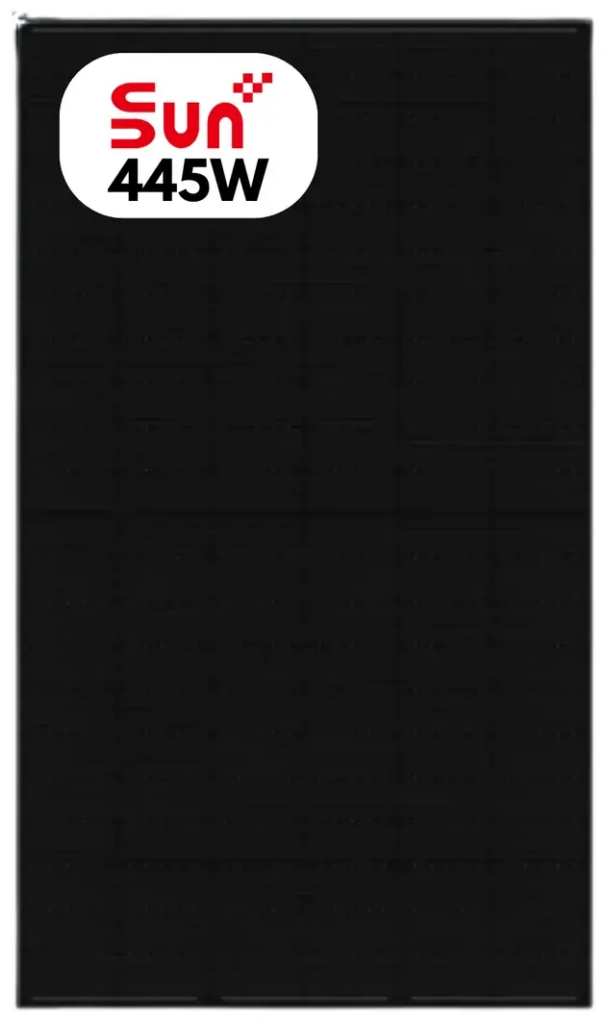

SUNPLUS 445W Bifacial Black N-Type Solar Panels (Pallet)

SKU:

SR4-54HTB-445M

Brand:

SKU:

SR4-54HTB-445M

Brand:

Solar Panel

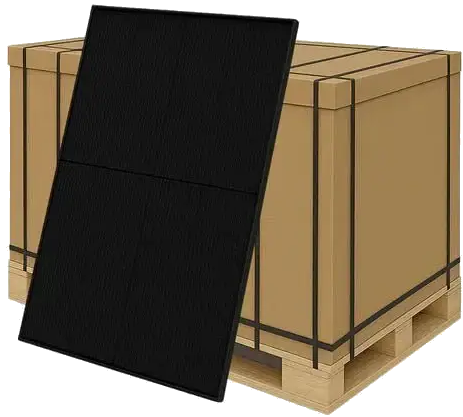

(36) 445W Solar Panels

Black Finish

Efficiency: 22.70%

UL Certified

Original price was: $5,265.00.Current price is: $4,050.00.

8 in stock

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary
  • (36) 445W Monocrystalline Solar Panels
  • Bifacial Module (gain up to 10% more energy, up to 493W)
  • TOPcon N-Type Technology (Efficiency: 22.7%)
  • Black Frame
  • MC4 Connectors (IP68)
  • Rated to 5400 Pa (Mechanical Load Test)
  • 30 year 87.40% output warranty
  • UL Certified (UL61730-1,2)
  ★ Application
  • Supports off-grid, on grid or hybrid solar systems.
  • Ideal for installations where the panels can capture sunlight on both the front & back sides, capturing reflected light and generating up to 10% more energy than conventional monofacial solar panels.

★ Detailed Specifications
  • Peak Power Output (Pmax) = 445 W
  • Max Power Current (Imp) = 14.84 A
  • Max Power Voltage (Vmp) = 33.22 V
  • Short-Circuit Current (Isc) = 14.19 A
  • Open Circuit Voltage (Voc) = 39.20 V
  • Weight = 54.01 lbs
  • Dimensions (inches) = 67.80″ x 44.64″ x 1.18″
  • Max System Voltage (VDC) = 1500 V

Additional information

Weight 1998 lbs
Dimensions 67.8 × 44.64 × 44 in
