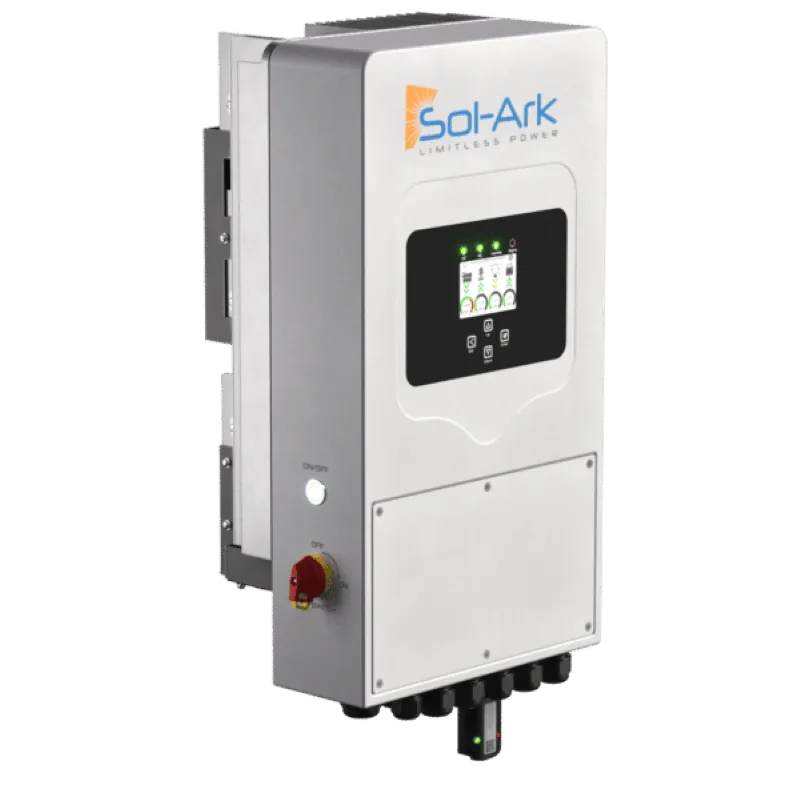

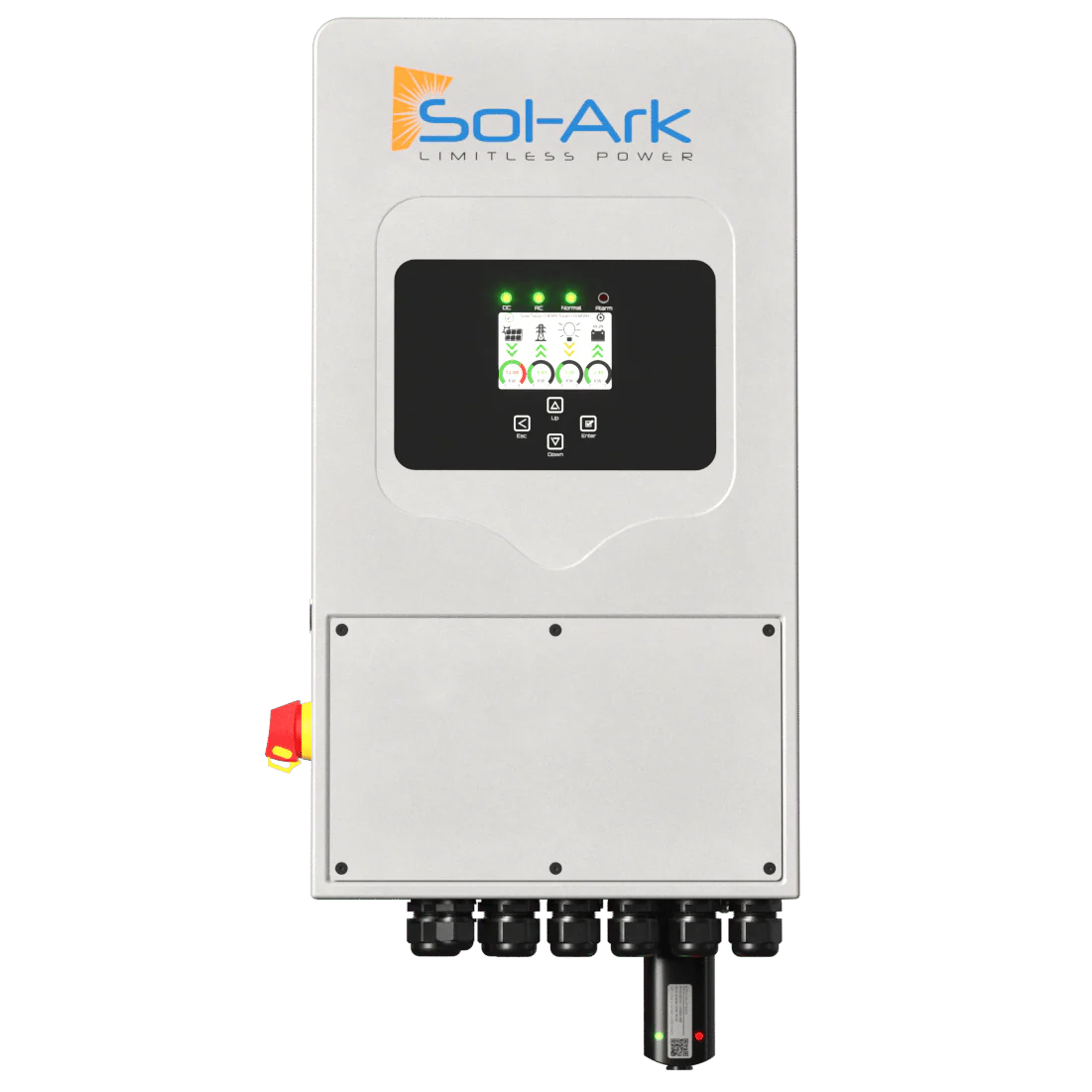

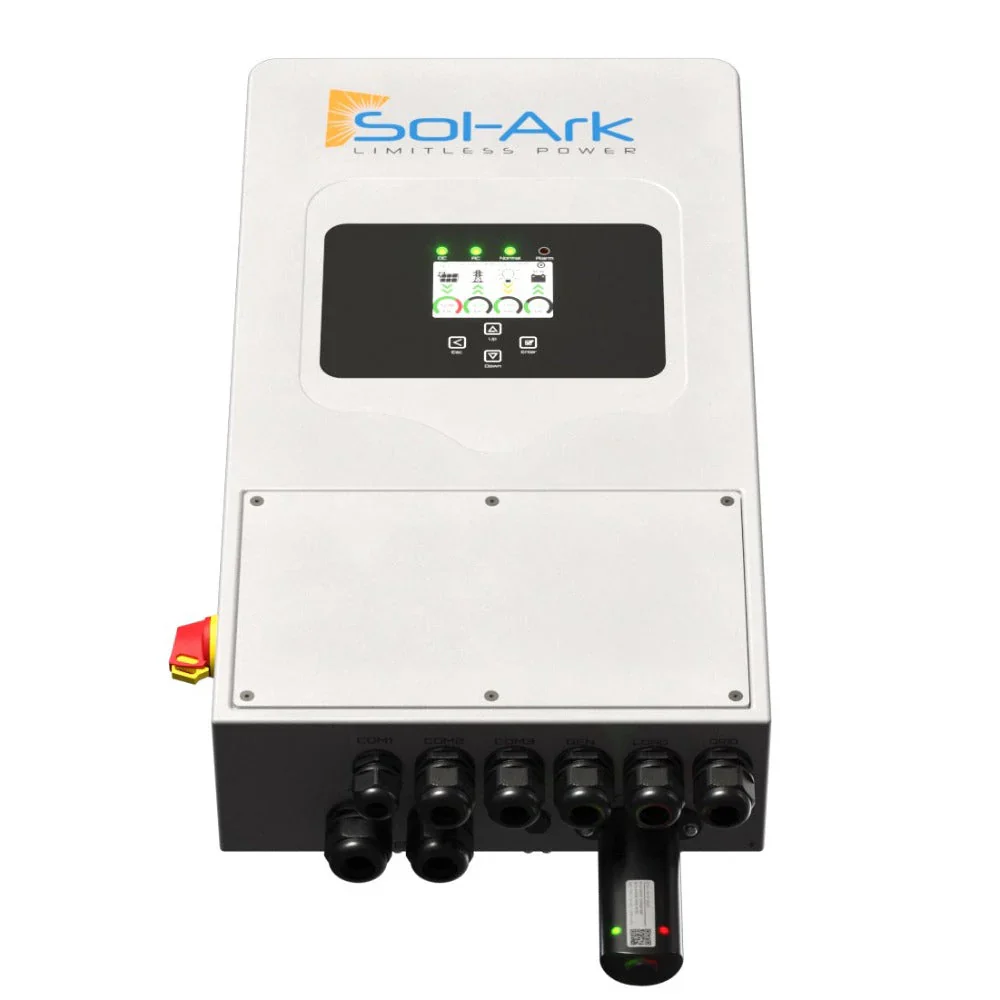

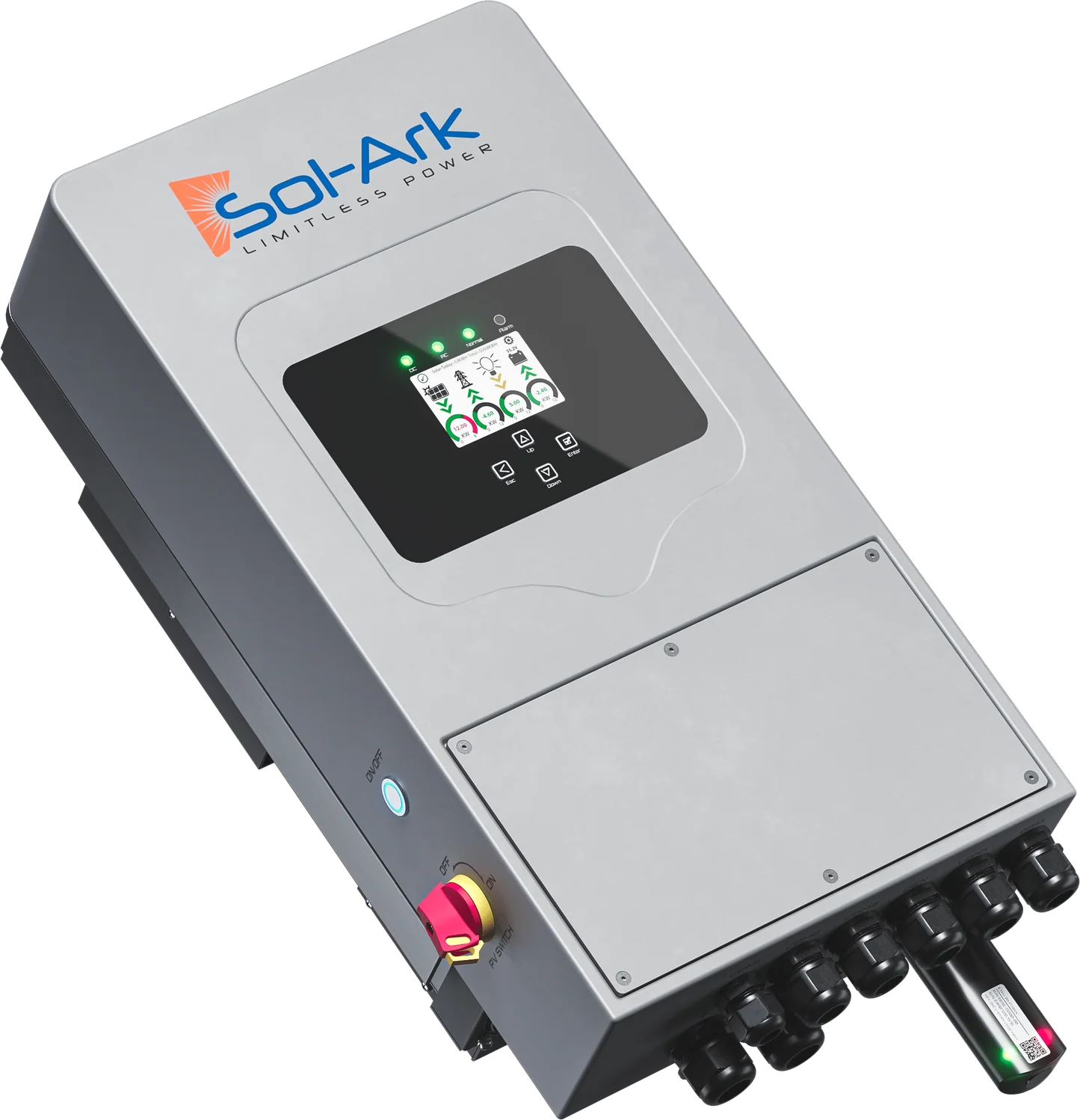

Sol-Ark 5K-1P-N || Single-Phase 48V Hybrid Inverter
SKU:
5K-1P-N
Brand:
Availability: In-Stock
Original price was: $1,500.00.$1,345.00Current price is: $1,345.00.
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!
PRICE MATCH GUARANTEE
Contact us if you found a better deal anywhere else! We’ll beat it!
Call Us
855-386-6669
Live Chat
100% US-based Support
Authorized
Dealer
Full Warranty &
Customer Service
Free
Shipping*
Available on
most items!
Best Pricing &
Product Support
Real Engineers.
Real Support.
★ All-In-One (AIO) Solar Hybrid Inverter – Sol-Ark 5K-1P-N
- 4.8 kW Continuous Pure Sine Wave Inverter
- 50 A Integrated Bypass
- 120V Single Phase Output
- (2) Integrated MPPTs with (2) String Inputs per MPPT
- 20A MPPT Operating Input Current
- 26A MPPT Max Short Circuit Current per MPPT
- Rapid Shutdown (RSD) Function
- Supports PV input sized up to 10.4 kW @ 500V
- Supports grid-tied, off-grid, and battery-backup operation
- WiFi-enabled for remote monitoring
- FEOC-Compliant
- Parallel up to (8) units together, supporting up to 38.4 kW power output
- Parallel function increases net inverter power and surge capacity.
- Integrates with grid-tie systems and supports smart load
- Smart load support is suitable for one inverter
- Grid Sell
- Limited Power to Home (Meter Zero)
- Limited Power to Home + Grid Sell
- Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
- Limited Power to Load
- Energy Priority: 1) Solar PV Power, 2) Grid Power, 3) Batteries, 4) Generator
- Limited to Load + Grid Sell
- Time of Use
- Energy Priority: 1) Solar PV Power, 2) Batteries, 3) Grid Power, 4) Generator
- Voltage Range: 40-60V
- Capacity: 50 – 9900Ah
- Continuous Battery Charge / Discharge Current: 120A
- CANBus & RS485 MODBUS support for BMS communication
- IP65 / NEMA 3R rated, Wall-mounted design, 10-year warranty
- Ensure continuous power to critical loads with battery backup when the grid fails
- Certificates: UL1741 SB, UL1741 IEEE1547a-2003/2014
