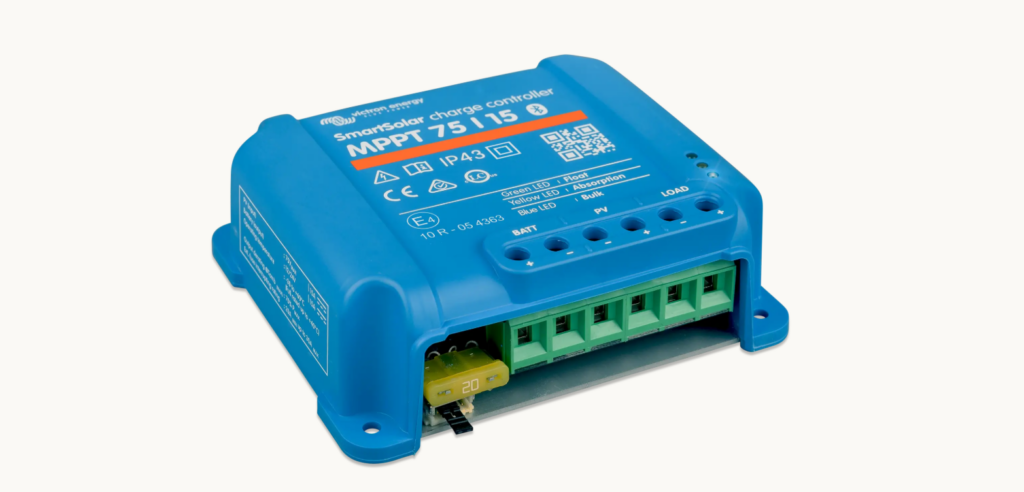

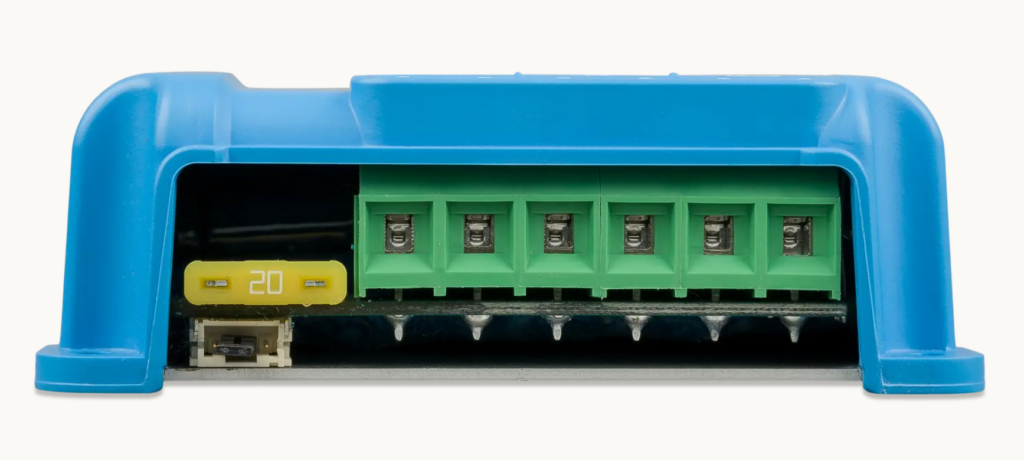

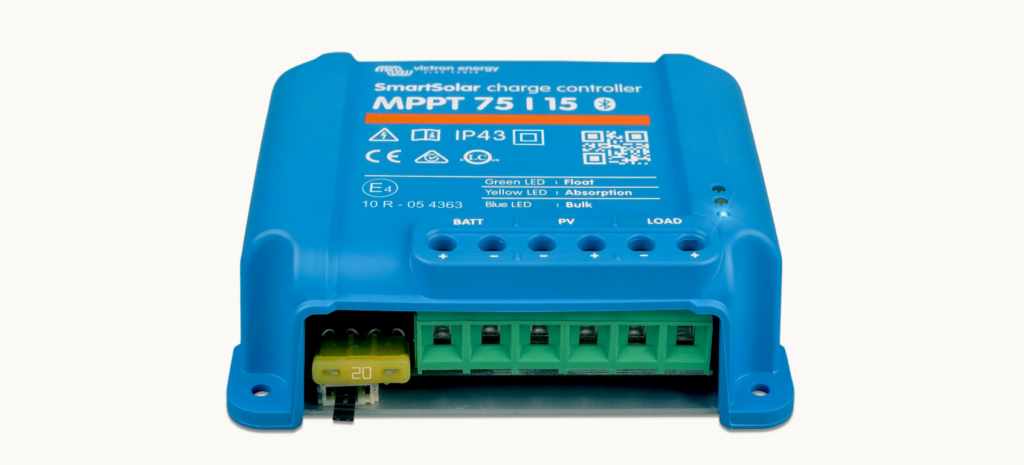

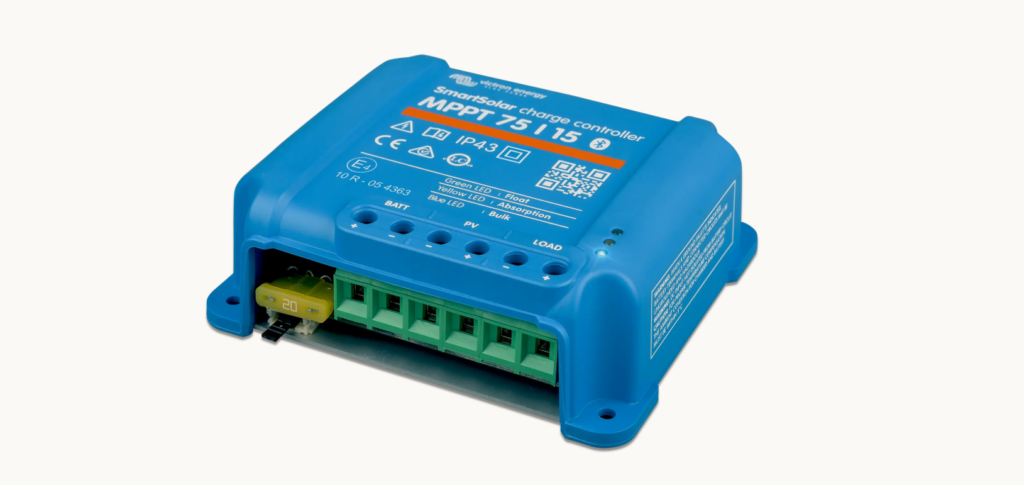

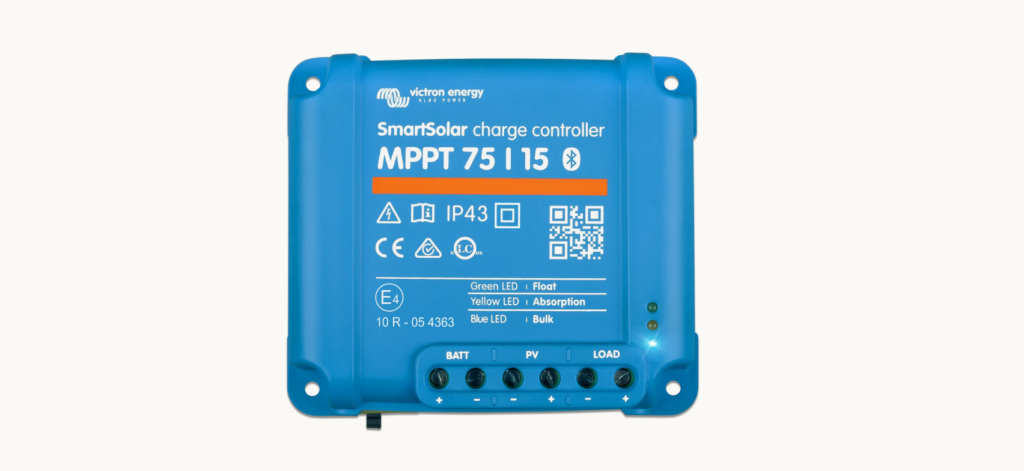

Victron Energy 75/15 Solar Charge Controller

SKU:

75/15 (Tr)

Brand:

SKU:

75/15 (Tr)

Brand:

Solar Charge Controller

15A MPPT Output

75V / 15A Max PV Input

12/24V Support

UL 1741

Original price was: $103.75.Current price is: $83.00.

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary
  • 15A Rated Charge Current
  • 15A Max PV Short Circuit Current
  • Automatically detects 12V, 24V DC system voltages
    • Nominal PV Power (12V) = 220W
    • Nominal PV Power (24V) = 440W
  • 75V max Open Circuit Voltage
  • MPPT Tracking efficiency can be as much as 98%
  • Battery Types: Lithium, AGM, Gel, and Flooded Batteries
  • Connection Options:
    • Solar Input:             10 AWG Wiring
    • Battery:                   10 AWG Wiring
    • Communication:     VE.Direct
  • Indoor Use Only, IP43 (Electronic Components), IP22 (Connection Area)
  • Integrates with Victron Remote Management (VRM) System (connects via Cerbo-GX device, sold separately)


Additional information

Weight 1.0 lbs
Dimensions 4 × 4.1 × 1.6 in
