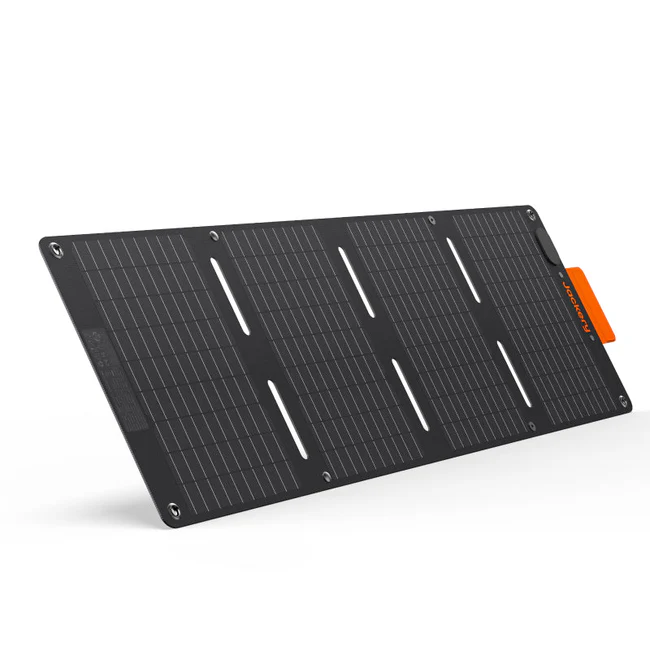

Jackery SolarSaga 40W Mini Solar Panel

SKU:

SolarSaga 40W Mini Solar Panel

Brand:

SKU:

SolarSaga 40W Mini Solar Panel

Brand:

Solar Panel

40W Solar Panel

Foldable & Ruggedized

Efficiency: 23%

$129.00

Request a Bundle
Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else! We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary
  • 40W Monocrystalline (Mono) Solar Panel
  • Monofacial, up to 23% efficiency
  • Rugged, outdoor-ready design
  • Folds down quickly for easy maneuverability

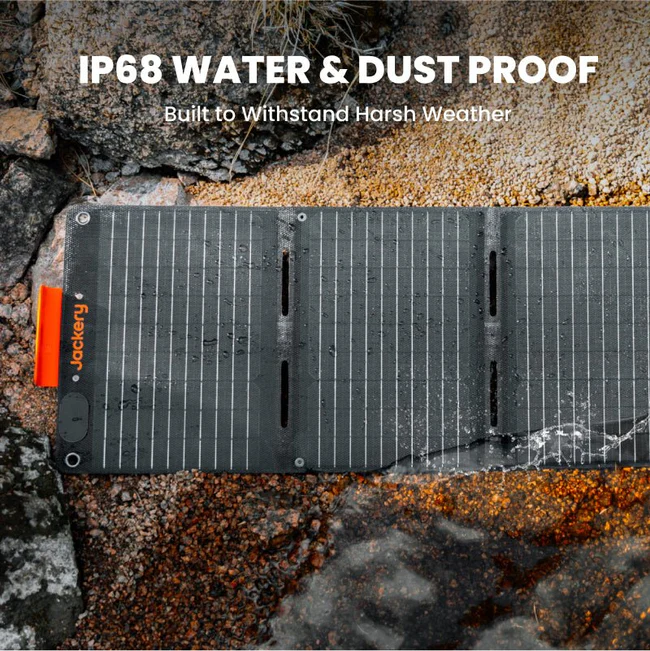

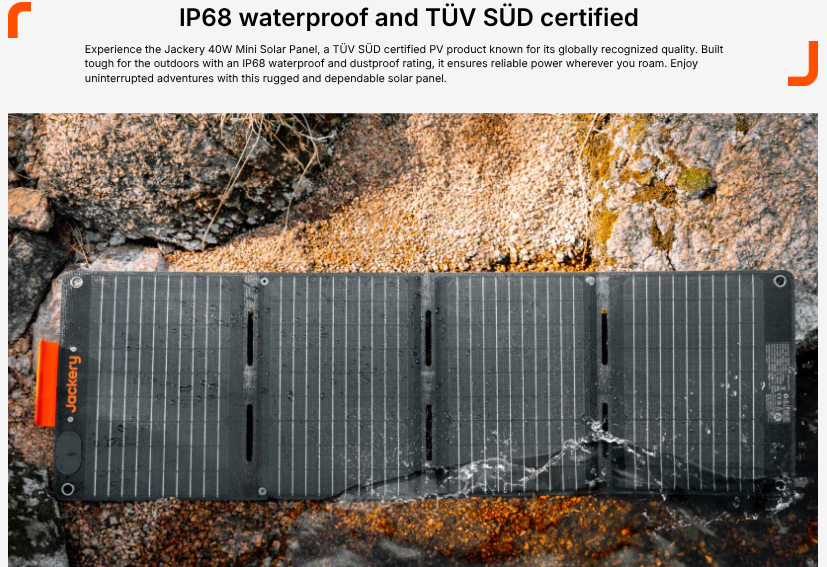

  • IP68 waterproof rating
  • Includes multifunctional solar charging cable, DC8020 to USB-C Adapter, (2) Carabiner, Accessories Bag
  • 3+2 Year Warrenty
  ★ Application
  • Ideal for on-the-go use

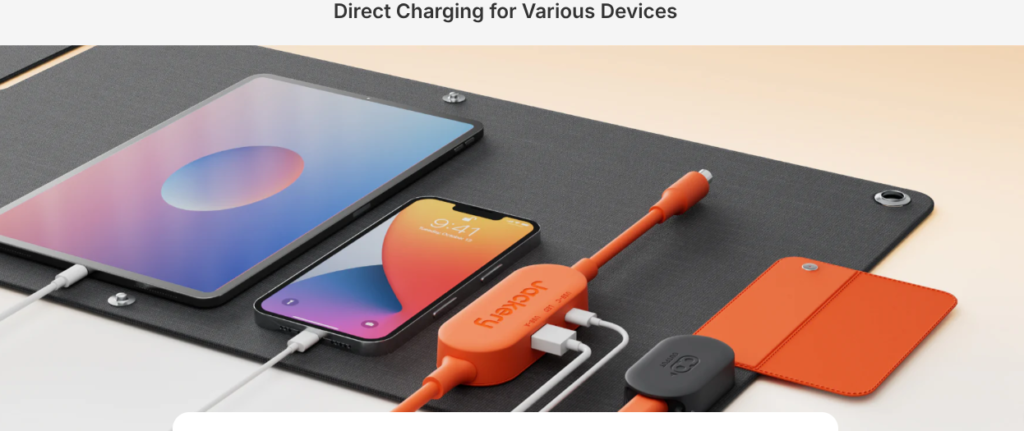

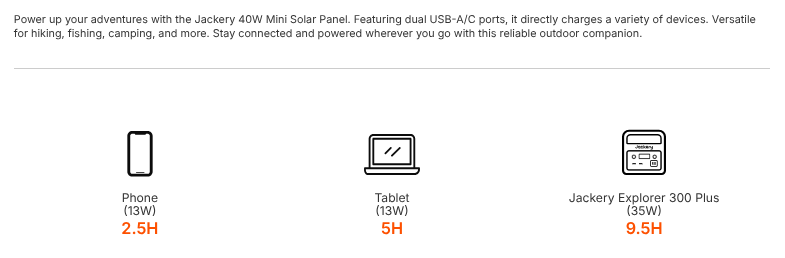

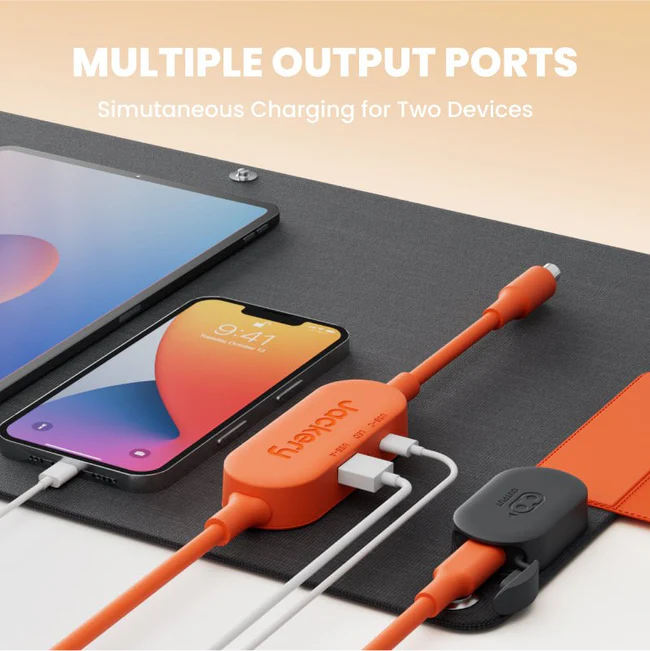

  • With USB-C/USB-A ports and a DC8020 port, it serves as a versatile companion for the Jackery Explorer 100 Plus/240 v2/300 Plus Power Stations. A DC8020 to DC7909 adapter is required for older models such as the Explorer 290/300/500/550/880/1000.

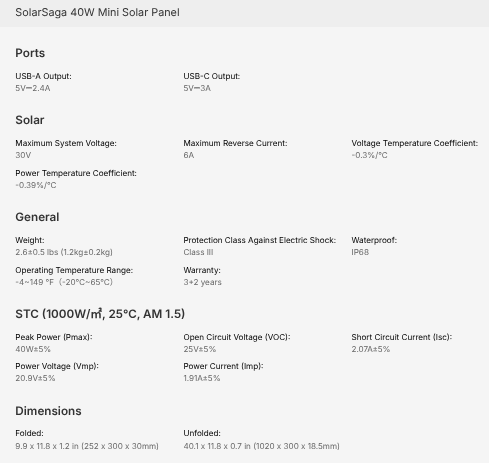

★ Detailed Specifications
  • Peak Power Output (Pmax) = 40W±5%
  • Max Power Current (Imp) = 1.91A±5%
  • Max Power Voltage (Vmp) = 20.9V±5%
  • Short-Circuit Current (Isc) = 2.07A±5%
  • Open Circuit Voltage (Voc) = 25V±5%
  • Weight = 2.6±0.5 lbs

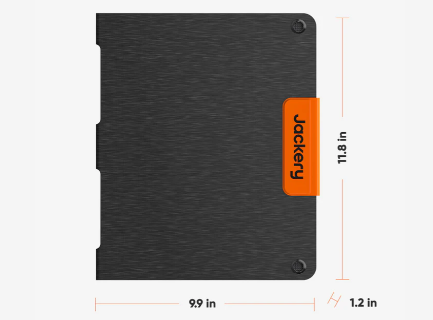

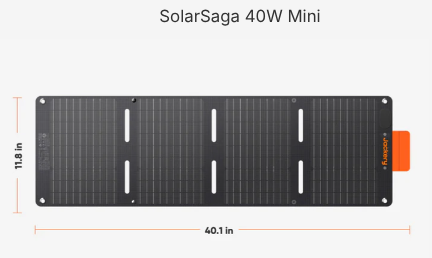

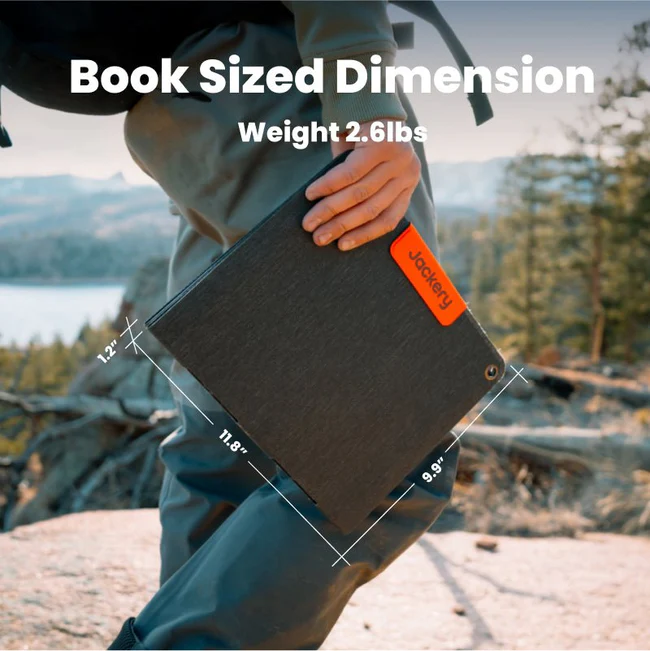

  • Dimensions (inches) = 9.9″ x 11.8″ x 1.2″ (Folded), 40.1″ x 11.8″ x 0.7″ (Unfolded)
  • Max System Voltage (VDC) = 30 V


Features













Product Details

Additional information

Weight 2.6 lbs
Dimensions 9.9 × 11.8 × 1.2 in

DATASHEET

USER MANUAL
