SunGoldPower 450W Mono PERC Solar Panel

SKU:

SG450WM

Brand:

SKU:

SG450WM

Brand:

450W Solar Panels

Aluminum Frame

Efficiency: 20.79%

PERC Type

Monofacial

UL61730, CEC Listed

Price range: $899.00 through $5,950.00

Quantity

Clear

PRICE MATCH GUARANTEE

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary

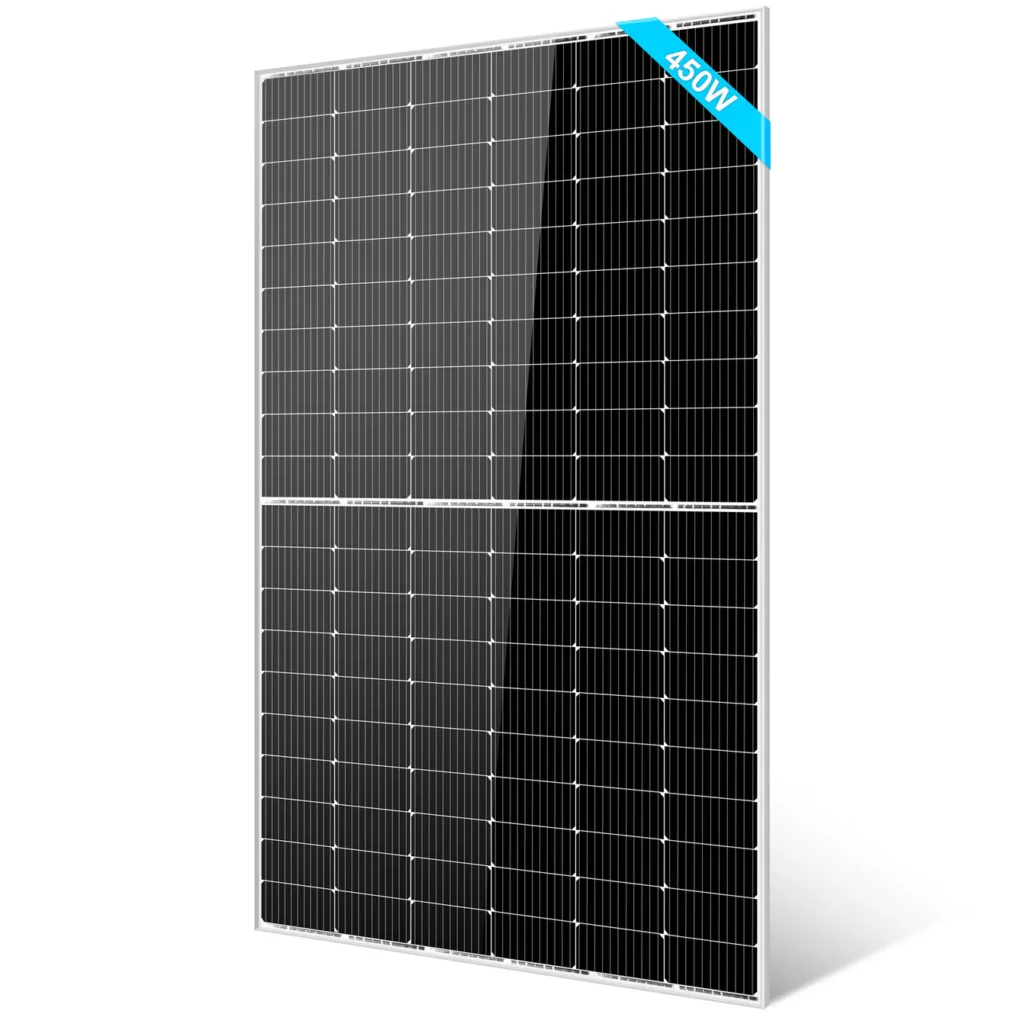

450W Monocrystalline (Mono) Solar Panel
PERC Half-Cut Technology (Efficiency: 20.79%)
Monofacial
Aluminum Frame

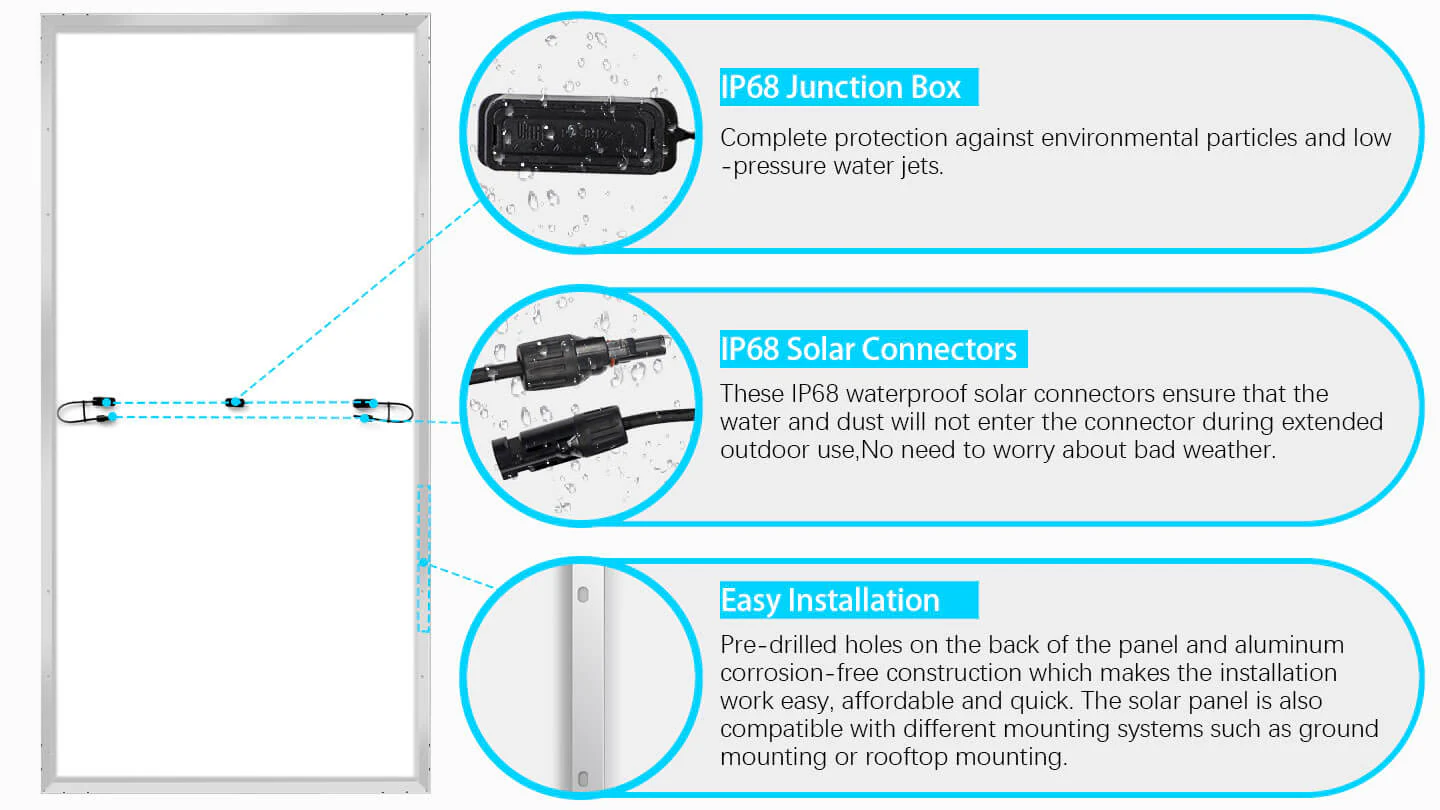

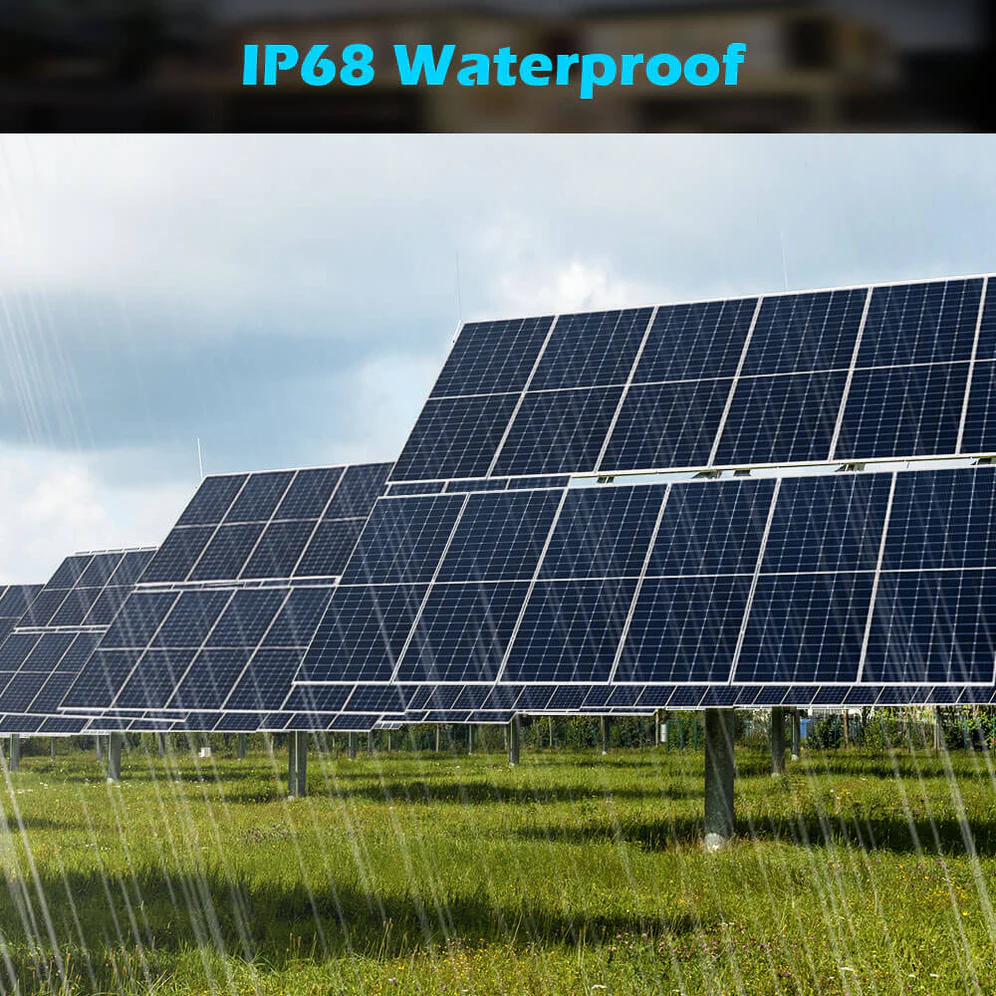

IP68 with Waterproof Connectors

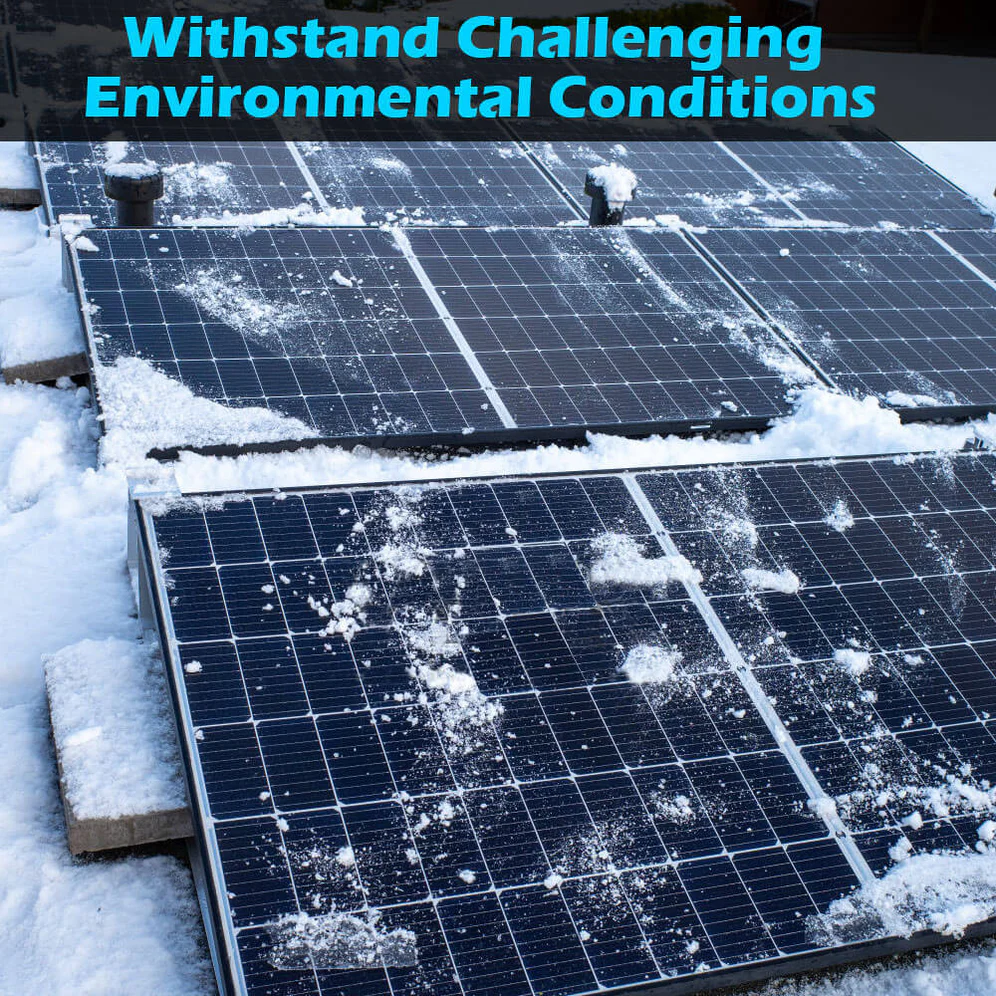

Rated to 5400 Pa (Snow Load) and 2400 Pa (Wind Pressure)
10 year workmanship warranty
25 year 80% output warranty
UL 61730 Certified, CEC Listed

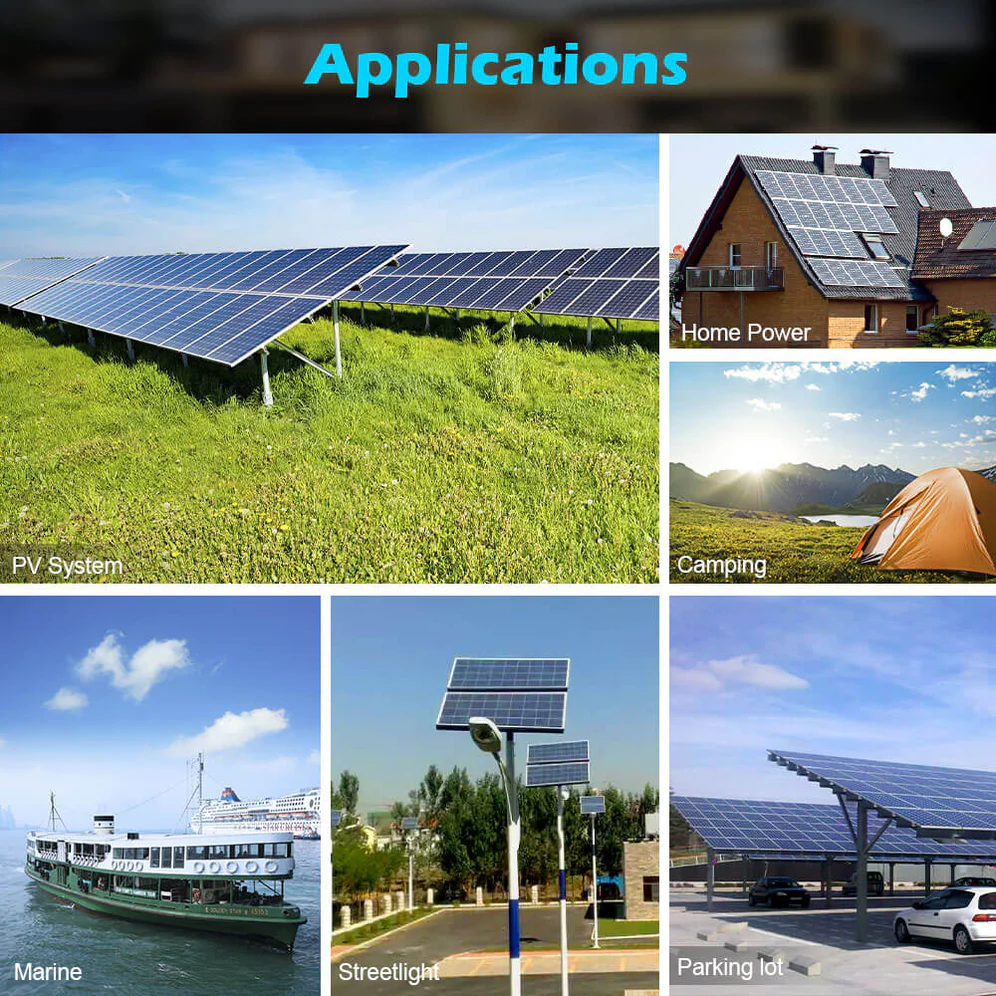

★ Application

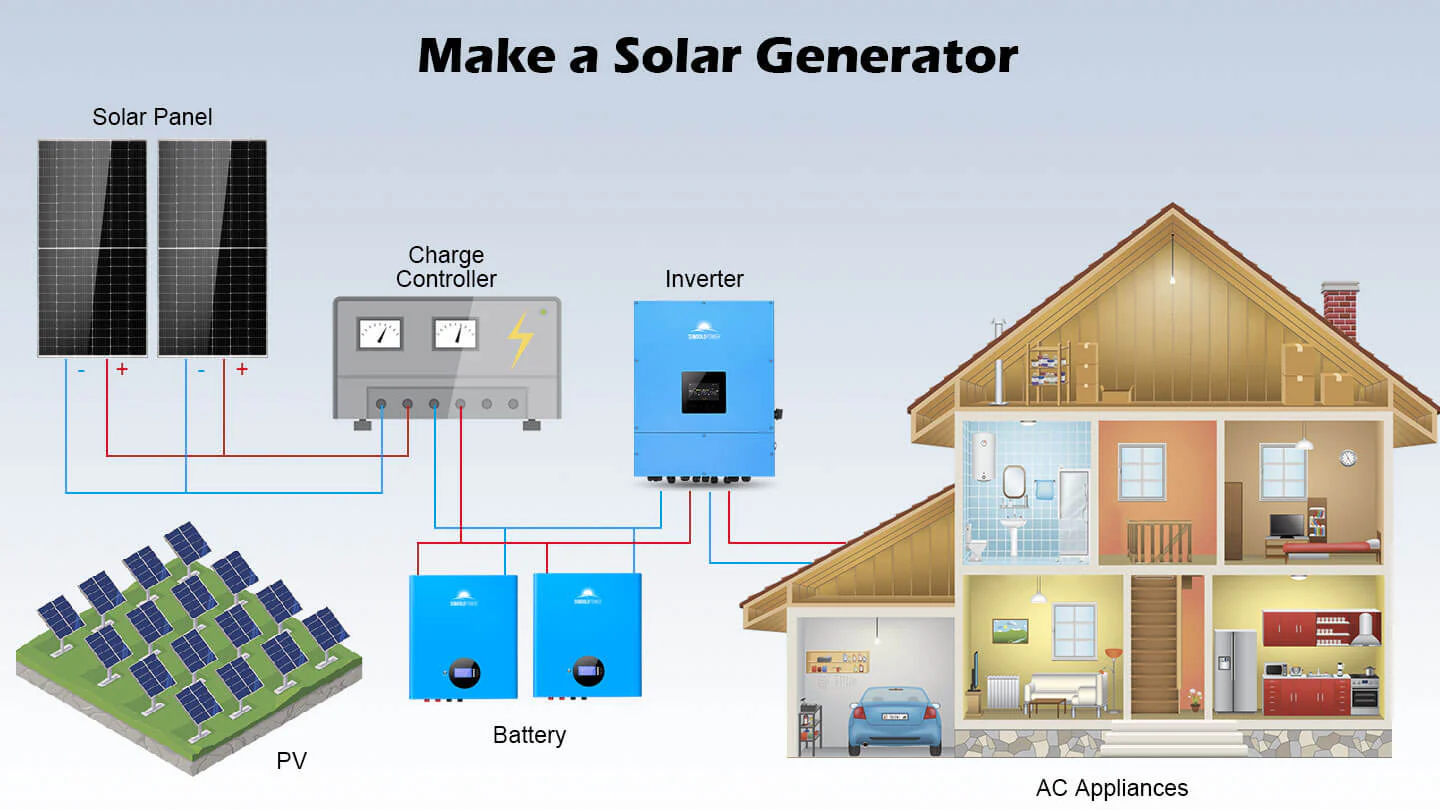

Ideal for off-grid, on grid or hybrid solar systems.

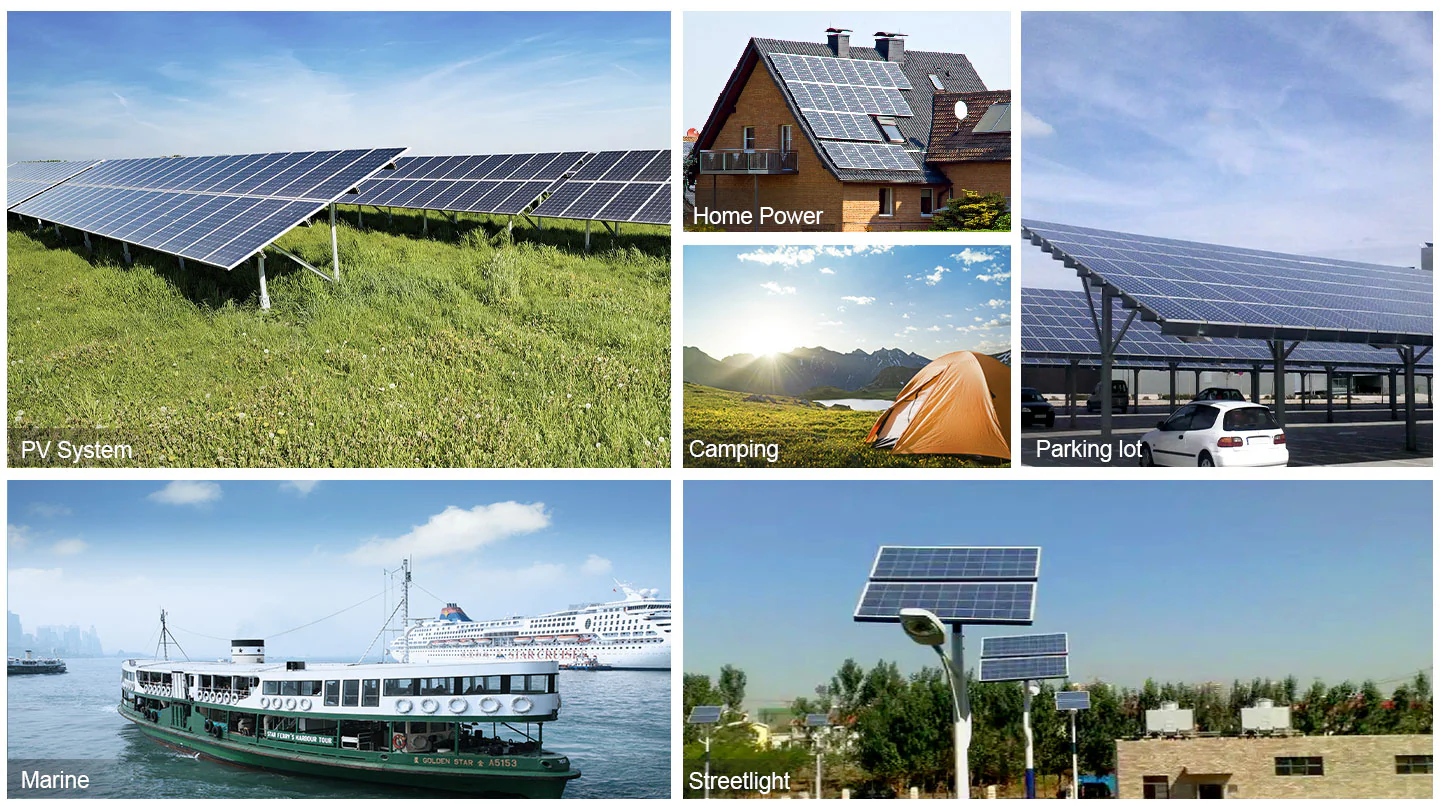

Supports use in residential households, RVs, tiny homes, marine vessels, and commercial buildings

★ Detailed Specifications

Peak Power Output (Pmax) = 450 W ± 3%
Max Power Current (Imp) = 13.16 A
Max Power Voltage (Vmp) = 34.20 V
Short-Circuit Current (Isc) = 13.82 A
Open Circuit Voltage (Voc) = 41.72 V
Weight = 49.2 lbs

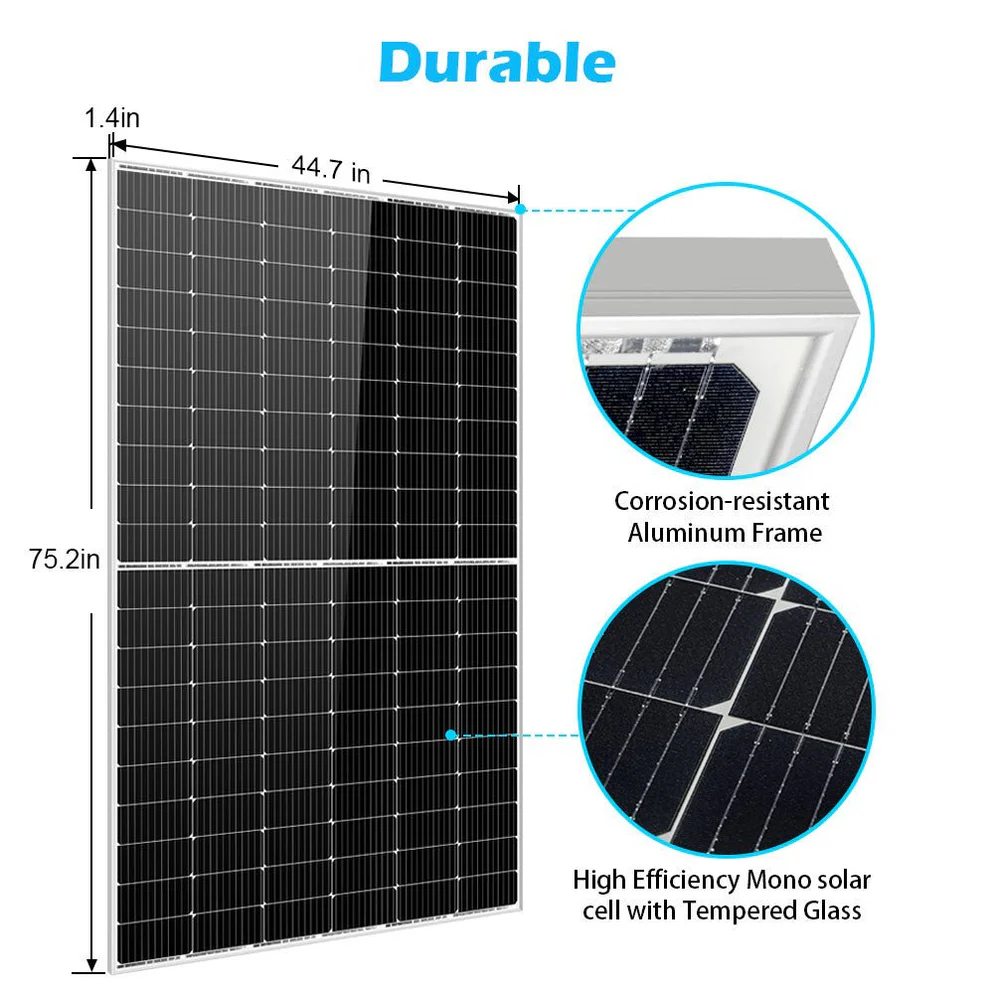

Dimensions (inches) = 75.2″ x 44.7″ x 1.4″
Max System Voltage (VDC) = 1500 V

Features

450W Monocrystalline PERC Solar Panel for Off-Grid Systems

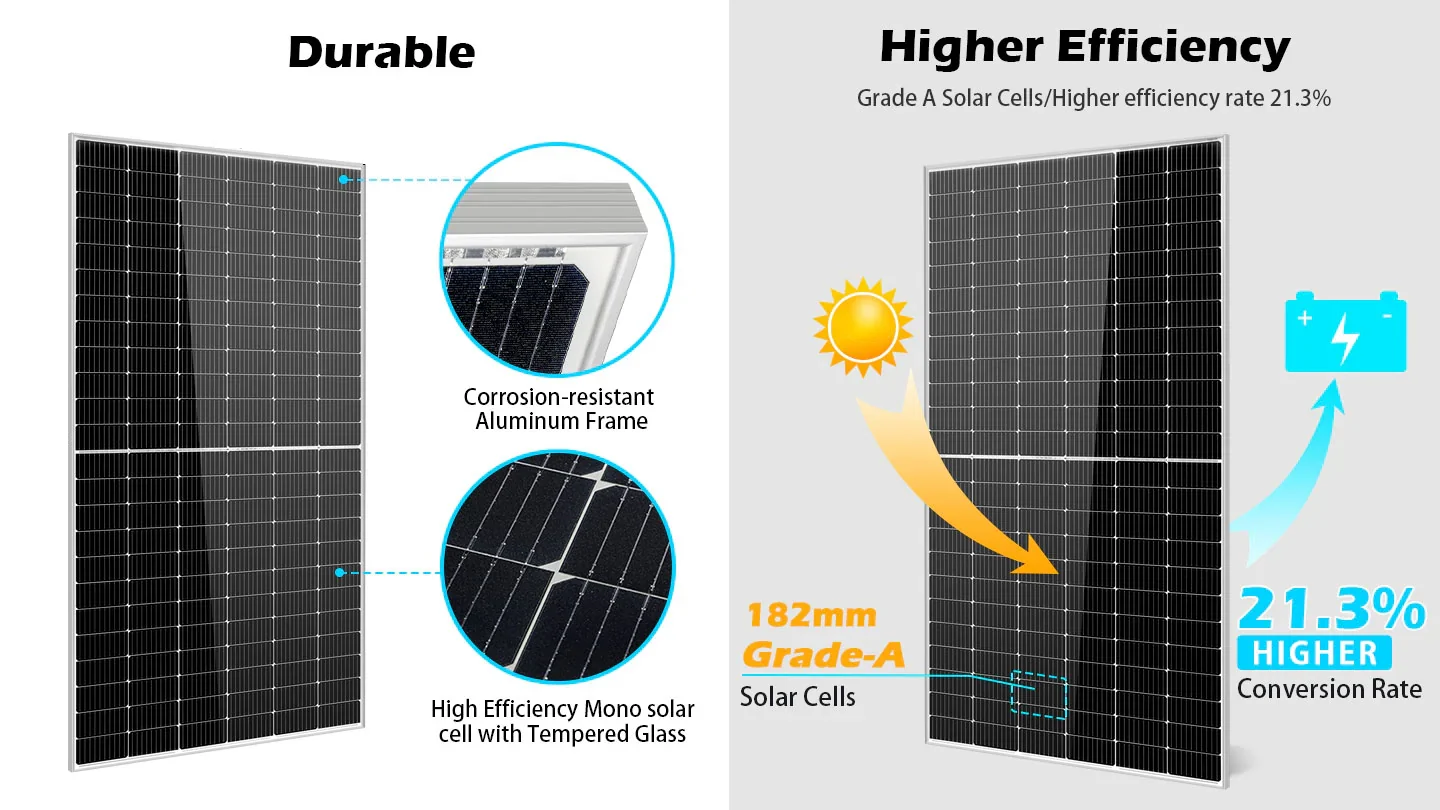

The 450W SunGoldPower PERC solar panel provides quiet, clean energy, which makes it easy to get all the electrical power you need for the sun to supply a cabin, camper, RV, or boat. Each panel features highly efficient silicon solar cells. It also comes with an IP68-rated junction box, making it suitable for marine applications. The aluminum frame (corrosion-resistant) is ideal for extended outdoor use, enhancing the overall lifespan of a solar panel.

Generating power by using solar panels is the best utilization of the amount of sunlight. By doing so, you can minimize your energy bills and get free energy for an extended period.

Specifications

Model Type		SG450WM
Peak Power (Pmax)		450W
Production tolerance		±3%
Maximum Power Current (Imp)		13.16A
Maximum Power Voltage (Vmp)		34.2V
Short Circuit Current (Isc)		13.82A
Open Circuit Voltage (Voc)		41.72V
Maximum System Voltage		1500V
Wind Resistance		2400Pa
Output Cables		12 AWG (1ft per cable)
Number of Cells		120(6x 20),60 cells in series
Cell Type		PERC Monocrystalline (7.2x 3.6 in)
Certifications		UL 61730 CE TUV CEC Listed
Product Weight		49.2lbs
Product Dimension		75.244.71.4inch
Package Weight		113.5lbs（2PCS）
Package Dimension		78.047.23.1inch（2PCS）
Performance warranty		5 years 95% output warranty 10 years 90% output warranty 25 years 80% output warranty
Material and workmanship warranty		12 years
