SunGoldPower 16kW 48V Solar Inverter (2 Units Parallel)

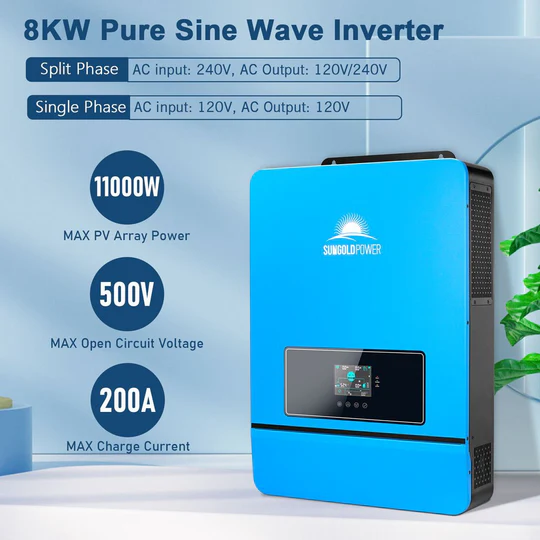

• (2) 8kW Watt Pure Sine Wave Inverter
• Single or Split-Phase (120/240V)
• (2) Integrated 22A MPPT each
• Supports PV input sized up to 22kW @ 500V
• Supports grid-tied & off-grid system operation
• Smart-enabled (WiFi) for remote app control

• Includes (2) units to support 16kW power output

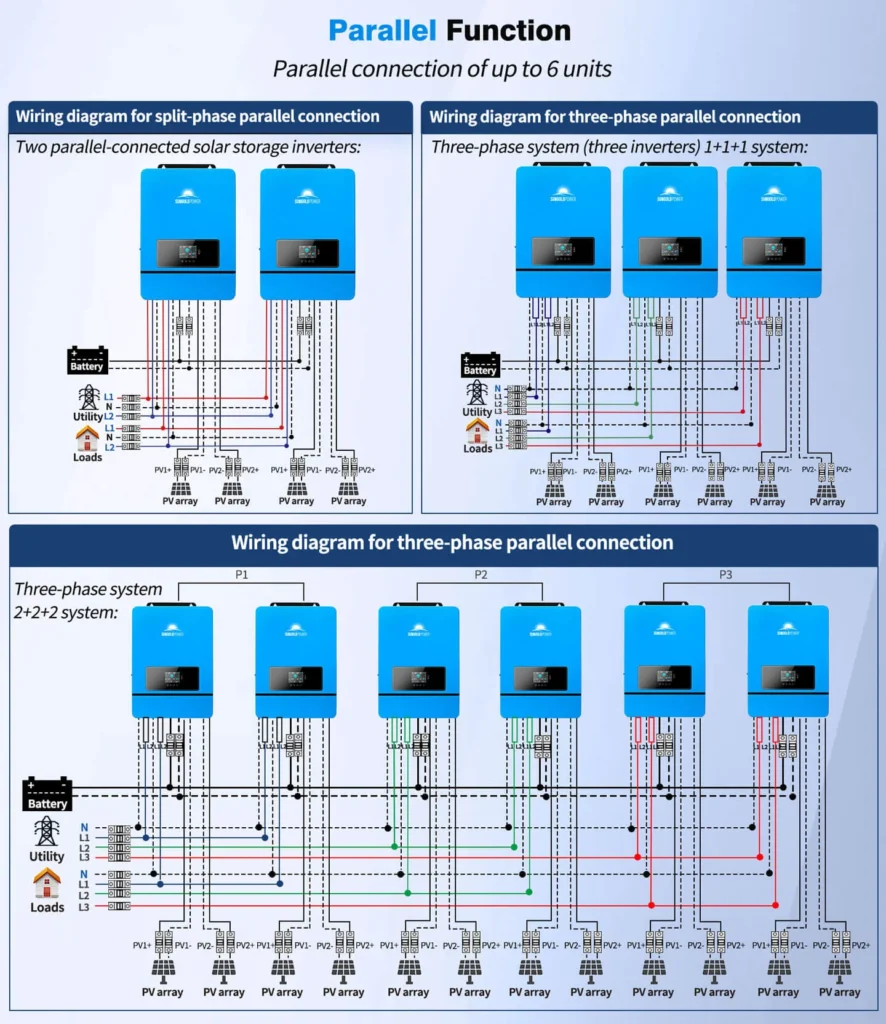

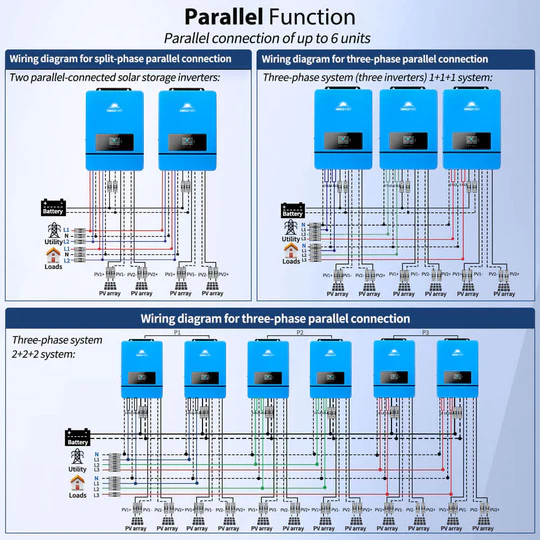

• Up to (4) additional units can be added to yield 48kW power output
• Add (1) or more units to support 3-Phase (208V) operation
• Parallel function increases net inverter power and surge capacity.

• 16kW Inverter Pure Sine Wave output @ 120/240V AC
• 32kW Peak Capacity
• Supports up to 5HP of motor load capacity
• PV input over-voltage / current protection, AC input over-voltage protection, Battery over-voltage protection, Overload protection
• Powers various household / office loads including refrigerators, computers, televisions, ovens, air conditioners, etc.

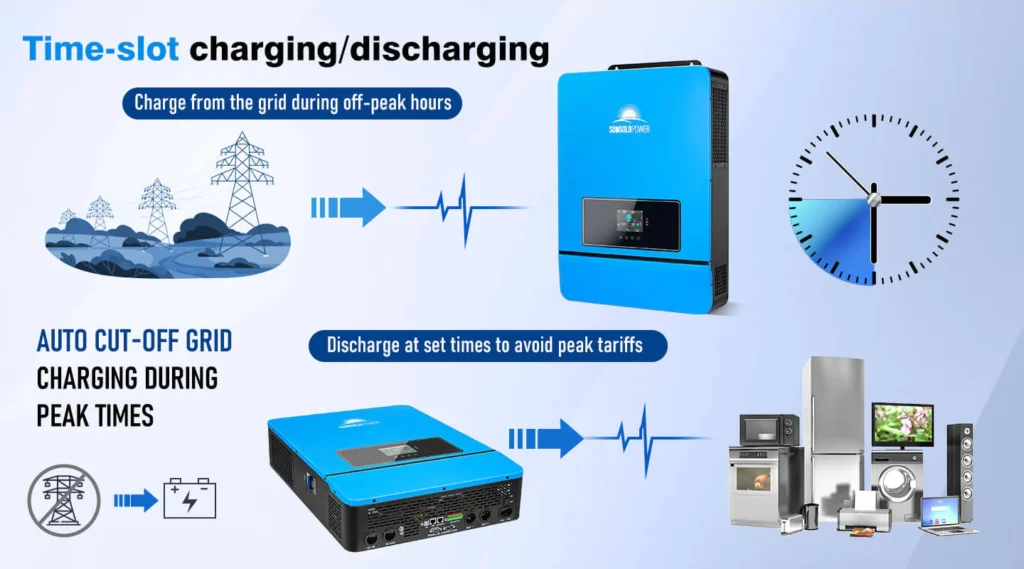

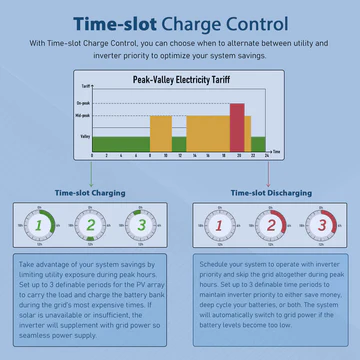

• The SPH series is equipped with a time-slot charging and discharging function which allows users to set different charging and discharging periods according to the local peak and valley tariffs so that the utility power & PV energy can be used rationally.

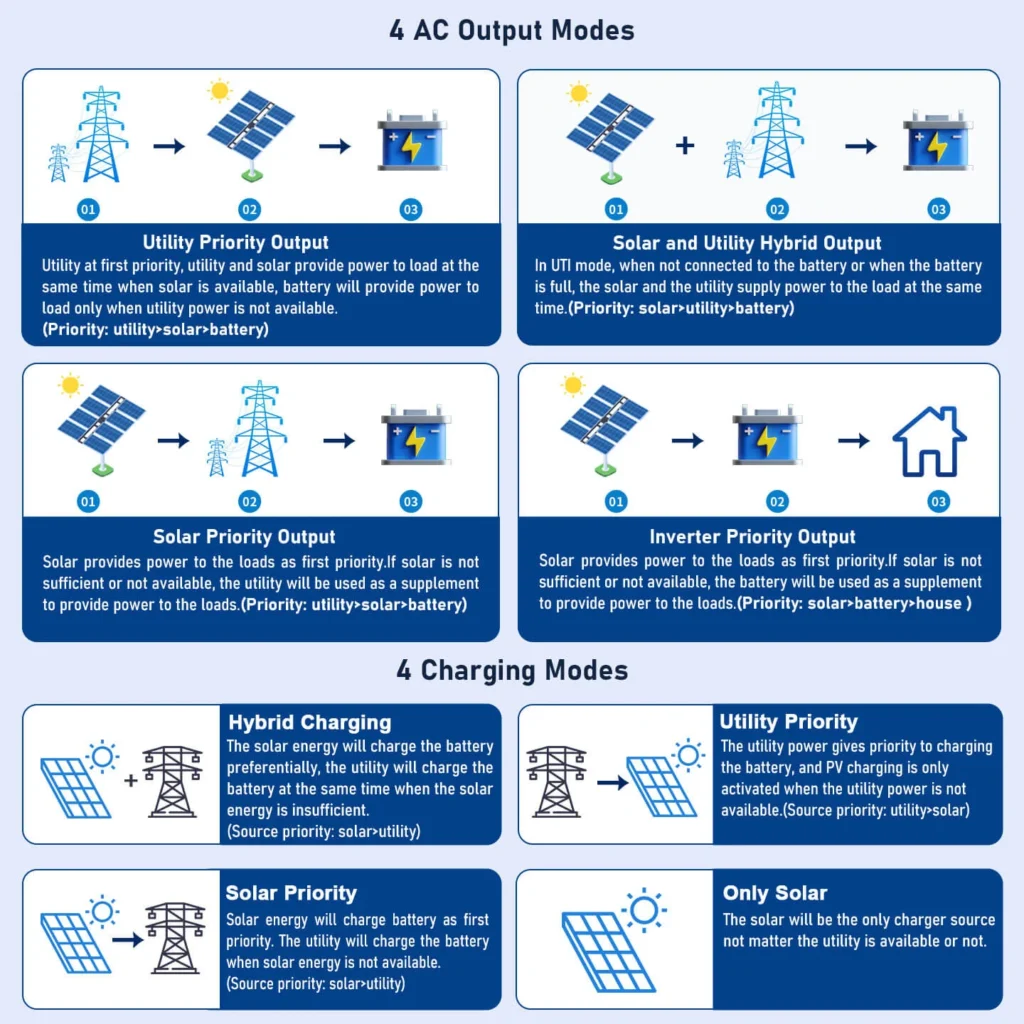

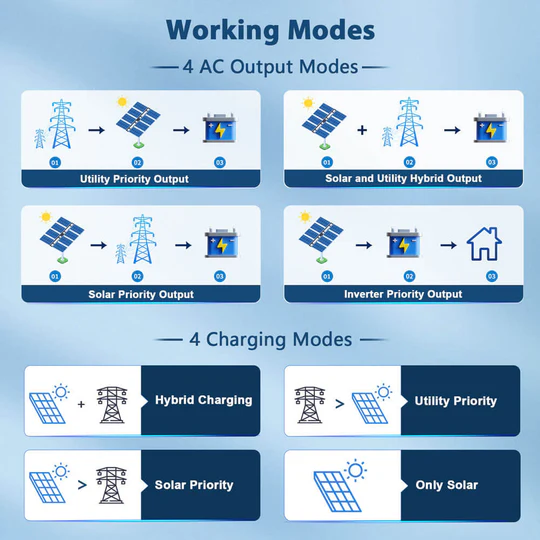

• Charging Modes: Hybrid Charging / Utility Priority / Solar Priority / Solar Only
• Output Modes: Utility Priority / Solar & Utility Hybrid / Solar Priority / Inverter Priority
• Supports grid-tie operation

• Rated Voltage: 48V
• Voltage Range: 40-60V

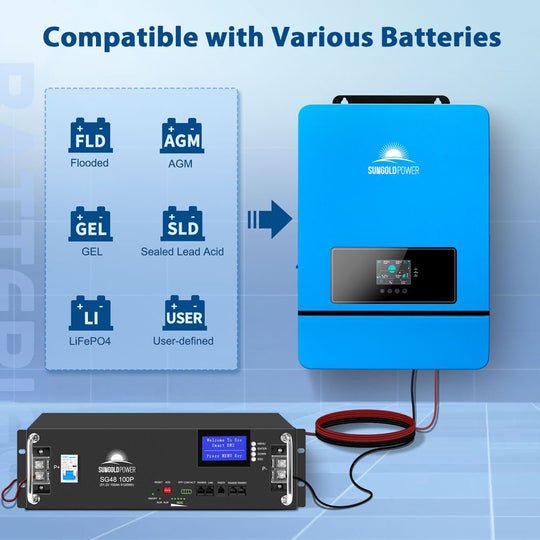

• AGM / Sealed, Gel, Flooded, Lithium, and User-Mode for custom inputs
• CAN, USB, RS485 port for supporting BMS communication with SunGoldPower batteries

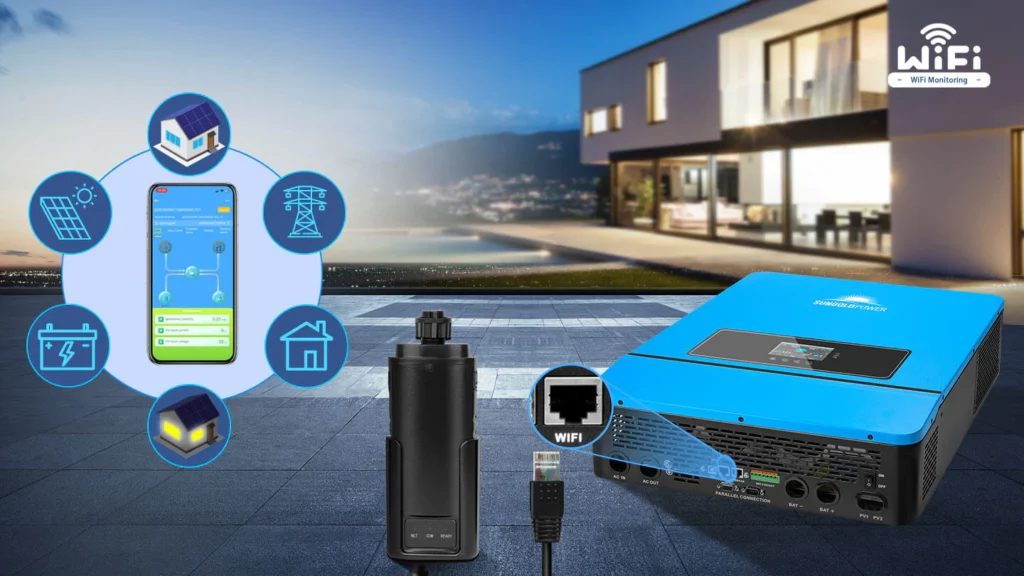

WiFi Monitoring

Easily configured using WiFi, providing users quick and easy access to inverter data on their mobile phone.

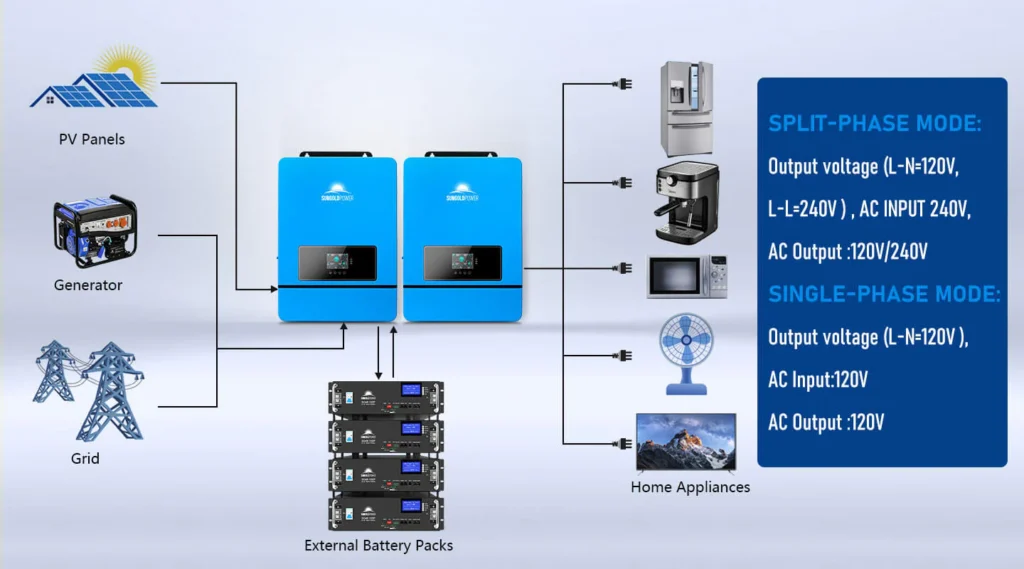

System Connection

PV can charge the battery and the inverter can supply power to the load; however, if the battery has insufficient power, the grid or generator can power the load and charge the battery.
