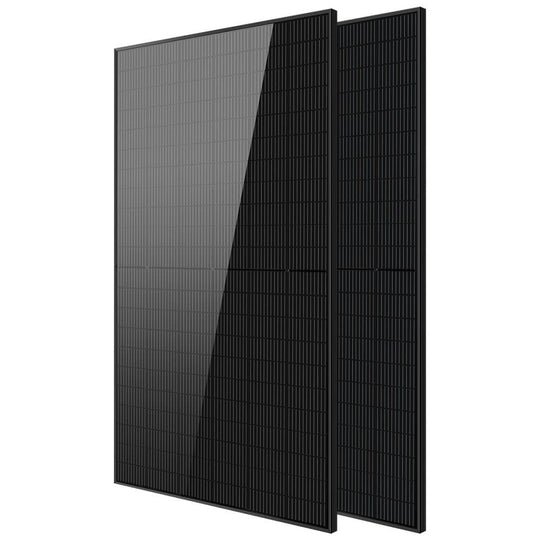

SunGoldPower 500W Mono Black PERC Solar Panel

SunGoldPower 500W Mono Black PERC Solar Panel - Image 2

SunGoldPower 500W Mono Black PERC Solar Panel - Image 3

SunGoldPower 500W Mono Black PERC Solar Panel - Image 4

SunGoldPower 500W Mono Black PERC Solar Panel

Name: SunGoldPower 500W Mono Black PERC Solar Panel
Brand: SunGoldPower (SGP)
SKU: SG500WM
Availability: OutOfStock

SKU:

SG500WM

Brand:

SKU:

SG500WM

Brand:

Solar Panel

500W Solar Panels

Black Finish

Efficiency: 21.05%

PERC Type

Monofacial

UL61730, CE, TUV, CEC Listed

Price range: $935.00 through $5,690.00

PRICE MATCH GUARANTEE

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

★ Product Summary

500W Monocrystalline (Mono) Solar Panel
PERC Half-Cut Technology (Max Efficiency: 21.05%)
Monofacial with Black Finish
IP68 with Waterproof Connectors
Rated to 5400 Pa (Snow Load) and 2400 Pa (Wind Pressure)
12 year workmanship warranty
25 year 80% output warranty
UL 61730 Certified

★ Application

Ideal for off-grid, on grid or hybrid solar systems.
Supports use in residential households, RVs, tiny homes, marine vessels, and commercial buildings

★ Detailed Specifications

Peak Power Output (Pmax) = 500 W ± 3%
Max Power Current (Imp) = 13.30 A
Max Power Voltage (Vmp) = 37.60 V
Short-Circuit Current (Isc) = 14.09 A
Open Circuit Voltage (Voc) = 44.36 V
Weight = 56.2 lbs
Dimensions (inches) = 82.44″ x 44.65″ x 1.38″
Max System Voltage (VDC) = 1500 V

Features

Off-Grid, Grid-Tied, and Hybrid System Support

This high-efficiency PERC Solar Panel supports on-grid & off-grid systems. This can be used for reducing power bills, storing energy in batteries for back-up, or powering a completely off-grid home.

415-01.jpg__PID:4b24737b-12c5-4f4a-b07d-c2b1bda5d259

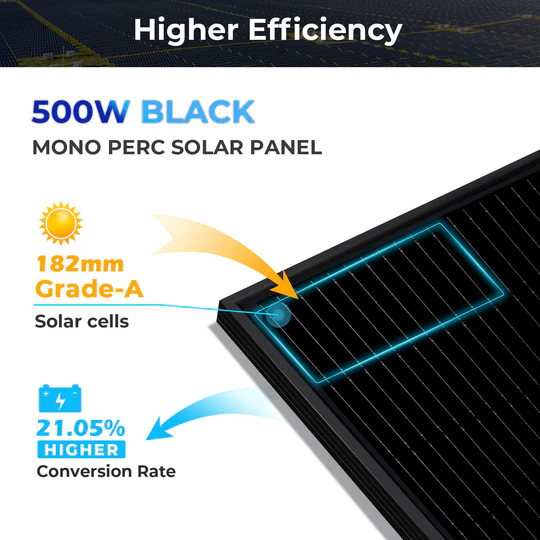

High-Efficiency

High-efficiency monocrystalline PERC module, 182 mono half-cells with an all-black design.

详情002.jpg__PID:46fbf983-f213-4c0c-904f-3349a8ce946a

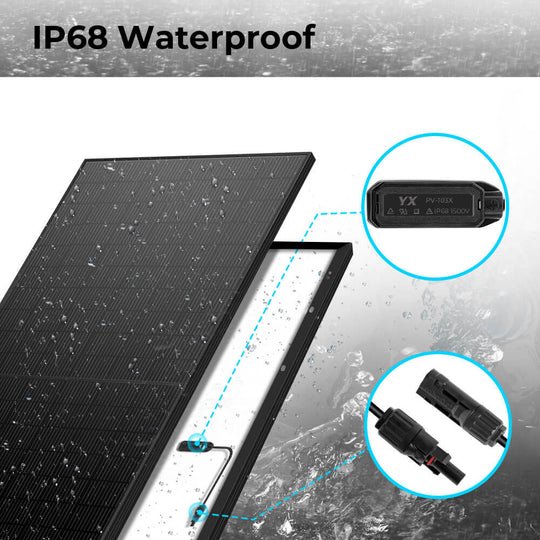

Waterproof

The solar junction box and solar connectors are IP68 rated, completely protecting from dust and providing function after temporary immersion in water (up to 1m deep).

详情03.jpg__PID:a4d82478-8ba1-48bc-a3fe-e263292db547

Snow & Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.

04-02.jpg__PID:788ba168-bc63-4ee2-a329-2db547a0418b

Home Solar System

With balanced power, improved stability, and economical electricity costs.

详情05.jpg__PID:d824788b-a168-4c63-bee2-63292db547a0

Wide Application

Offering balanced power, improved stability, and economical electricity costs.

Specifications

500W-A+05-合并CEC.jpg__PID:25ef15b7-42e3-4dcd-bf7c-d7afb15e9c40

Peak Power (Pmax)
- 500W
Production tolerance
- ±3%
Maximum Power Current (Imp)
- 13.30A
Maximum Power Voltage (Vmp)
- 37.60V
Short Circuit Current (Isc)
- 14.09A
Open Circuit Voltage (Voc)
- 44.36V
Maximum System Voltage
- 1500V
Wind Resistance
- 2400Pa
Output Cables
- 12 AWG (1ft per cable)
Number of Cells
- 132(6*22)
Cell Type
- PERC Mono182*91mm
Certifications
- UL 61730 CE TUV CEC Listed
Product Weight
- 56.2lbs
Product Dimension
- 82.44*44.65*1.38inch
Package Weight
- 124.6lbs（2PCS)
Warranty
- 12 years Material and workmanship warranty and 25 years 80% output Performance warranty
