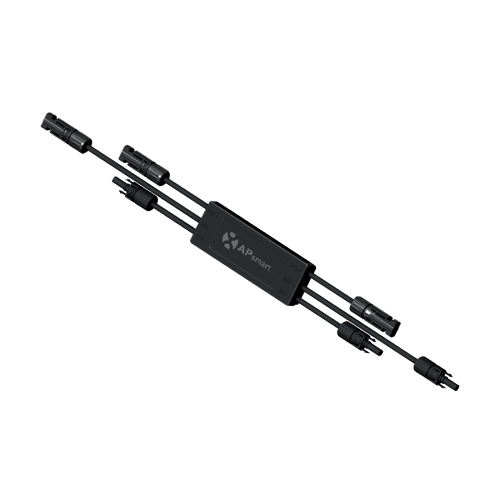

APsmart Rapid Shutdown (RSD) – RSD-D-20 Dual Panel Module

The APsmart RSD-D is a module-level rapid shutdown device designed to add fire-safety functionality to new or existing PV systems. One RSD-D connects to two solar modules, helping reduce the number of rapid shutdown devices required across an array while providing reliable module-level shutdown. When used with a APsmart RSS Transmitter or an inverter with a built-in APsmart-certified transmitter, the RSD-D supports NEC 2017 and 2020 690.12 rapid shutdown requirements.

Key Benefits:

• Rapid Shutdown for Two Modules: One RSD-D connects to two PV modules, providing module-level rapid shutdown functionality while simplifying system installation.
• Supports High-Current Solar Modules: Rated for up to 20A per input
• Automatic Safety Response: Uses PLC signaling from the RSS Transmitter to enable module output. If the keep-alive signal is lost, the RSD-D reduces module and string voltage to safe levels.
• Built for Outdoor PV Systems: Features an IP68 outdoor rating

Use Case:

• Ideal for residential, commercial, and larger PV installations that require module-level rapid shutdown.

Tech Specs:

• Modules Supported: 2
• Cable Lengths: 2.4m
• Connector Type: MC4
• Maximum Input Voltage: 8-65V per input
• Operating Voltage Range: 16–130V (Total)
• Maximum Input Current: 20A per input (Imax)
• Recommended Fuse Rating: 30A
