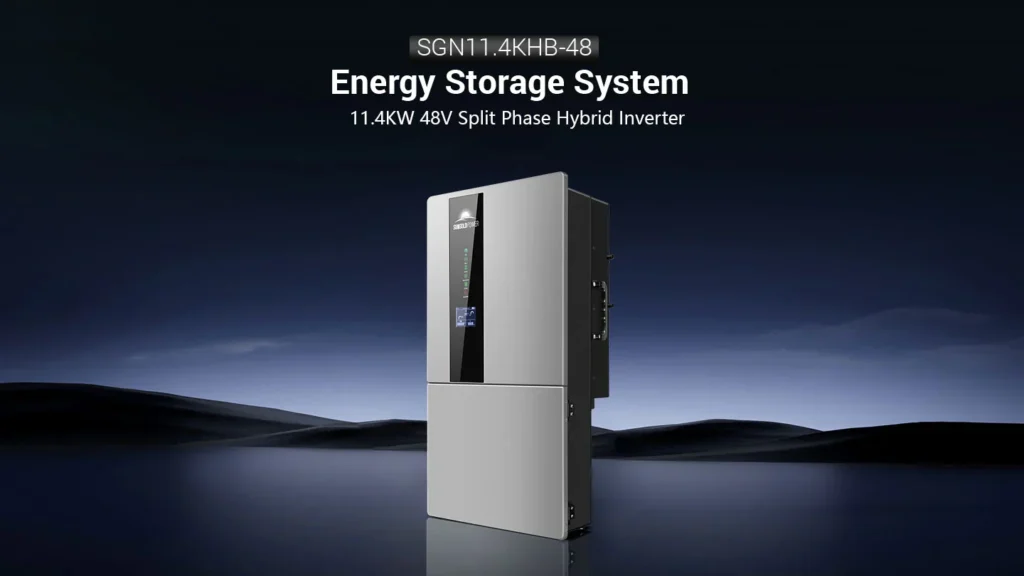

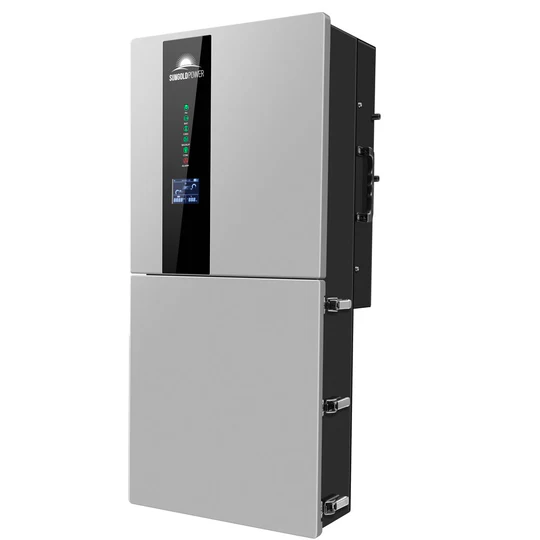

SunGoldPower 11.4KW 48V Split-Phase Hybrid Inverter

SKU:

SGN11.4KHB-48

Brand:

11.4kW 48V Solar Inverter

Parallel Support

15kW Max PV Input (up to 600V)

Grid Input

Bluetooth/WiFi

Hybrid Inverter

Original price was: $3,688.00.Current price is: $2,950.00.

PRICE MATCH GUARANTEE

We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

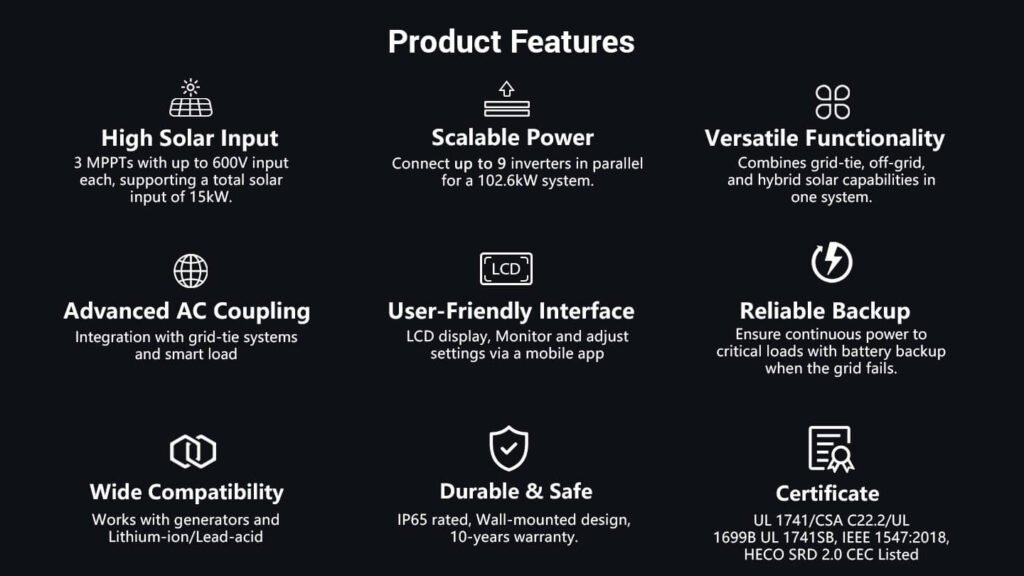

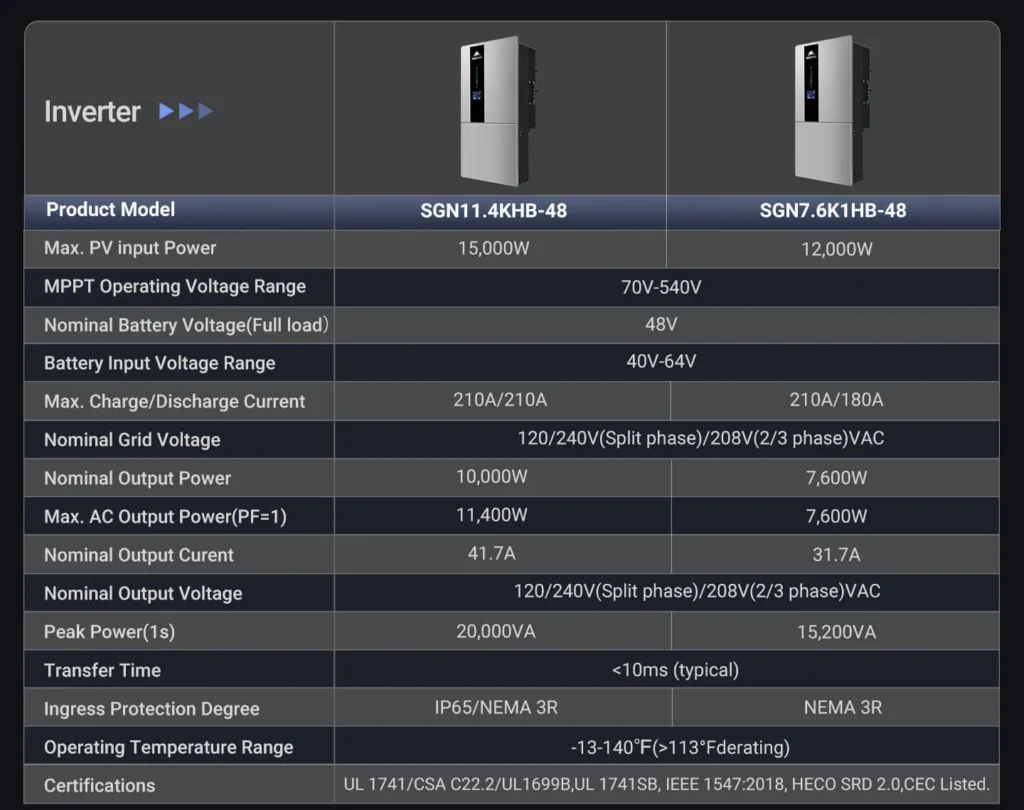

★ All-In-One (AIO) Solar Hybrid Inverter

11.4kW Pure Sine Wave Inverters
Split-Phase (120/240V)
(3) Integrated MPPTs (30A / 22A / 22A)

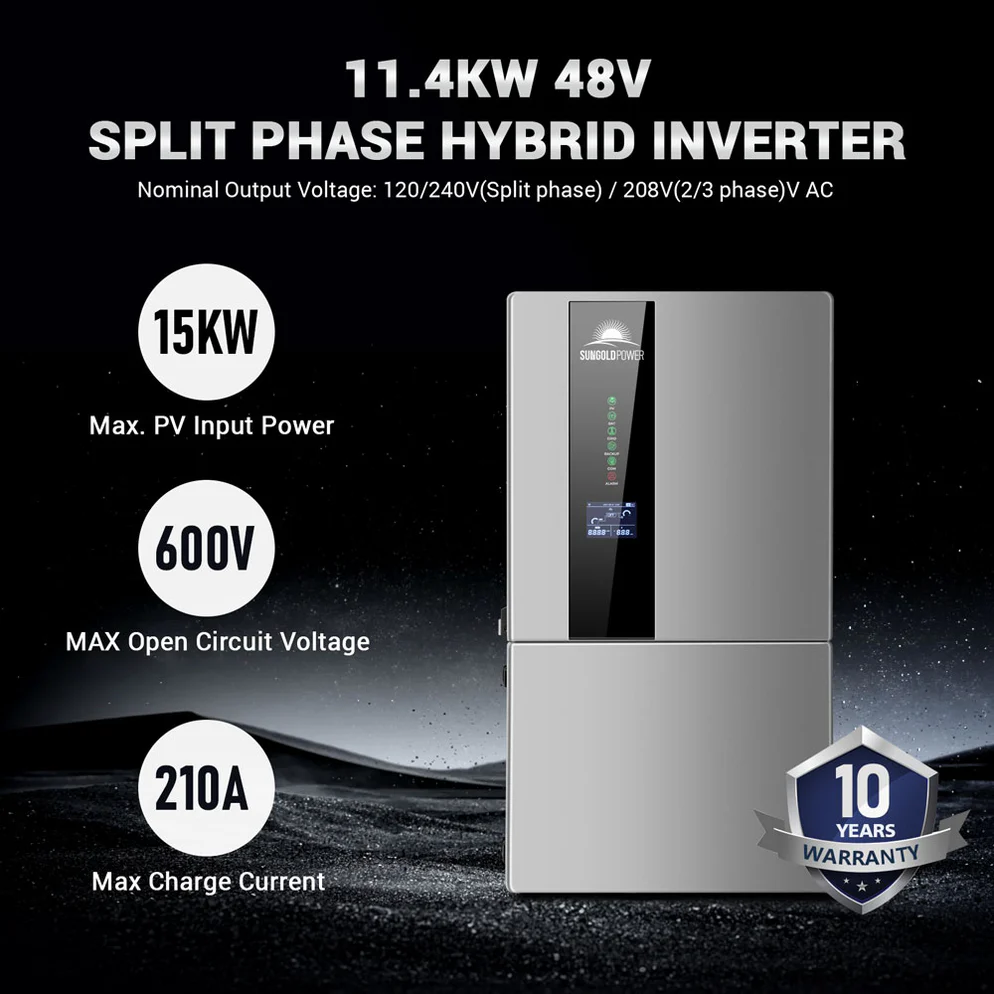

Supports PV input sized up to 15kW @ 600V
Supports grid-tied (AC-Charging) & off-grid system operation

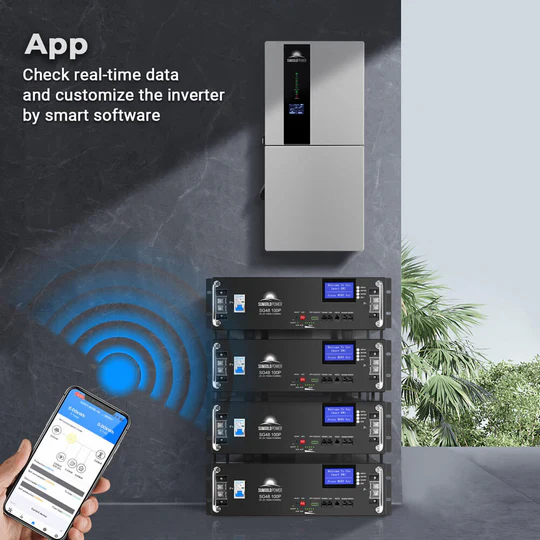

Bluetooth-enabled for monitoring & adjusting settings
WiFi-enabled for remote monitoring

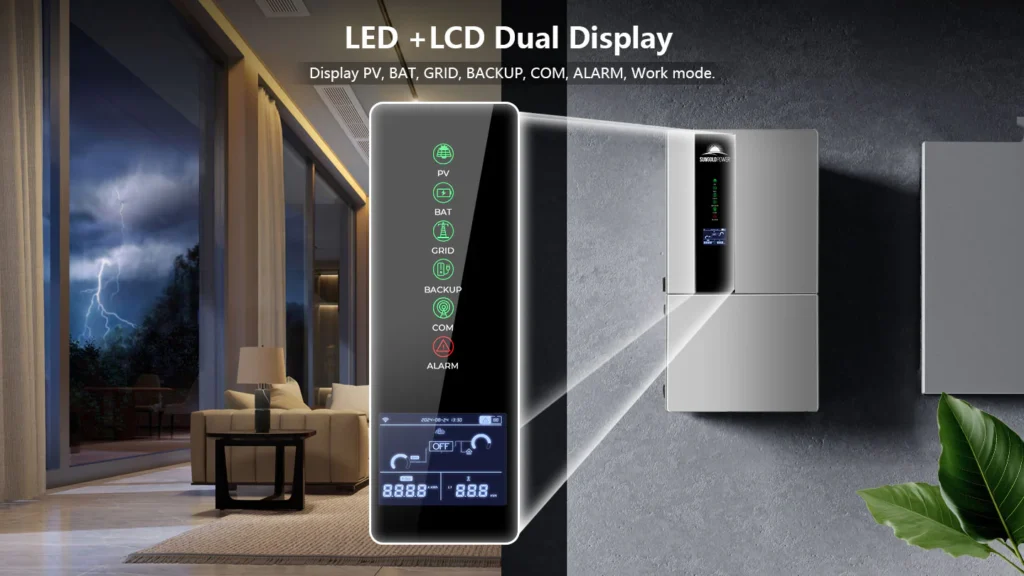

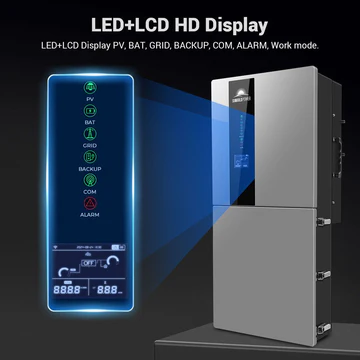

LCD with user-friendly Interface

★ Parallel Function

Parallel up to (9) units together, supporting up to 102.6kW power output
(1) Unit = Single or Split-Phase (120/240V) or 2/3 Phase (208V)
Parallel function increases net inverter power and surge capacity.

★ Advanced AC Coupling

Integrates with grid-tie systems and supports smart load
Smart load support is suitable for one inverter

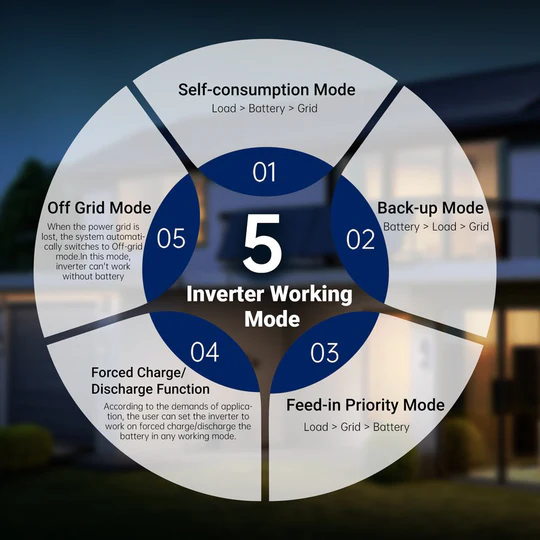

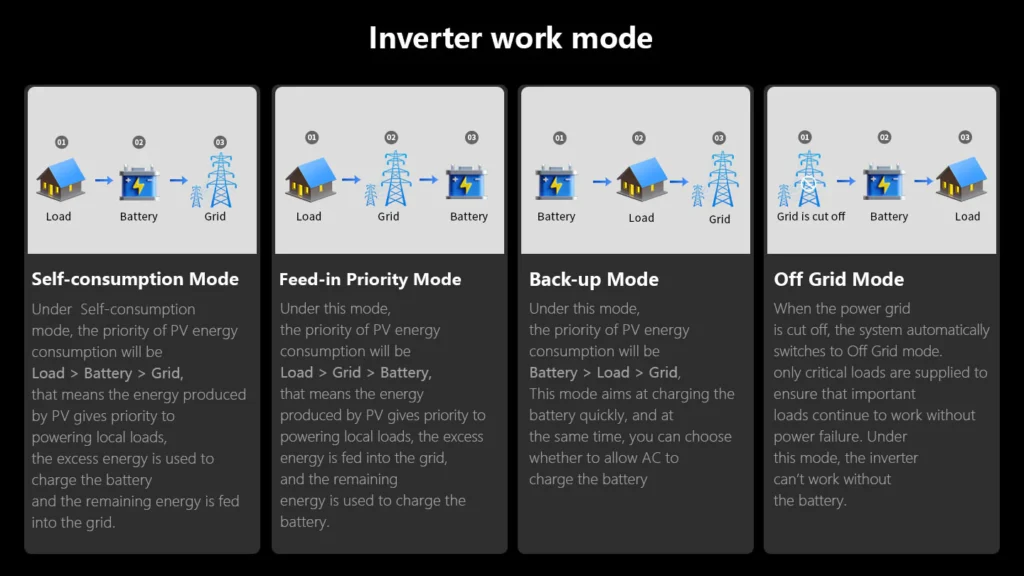

★ (4) Work Modes

Self-Consumption / Feed-In Priority / Back-Up Mode / Off-Grid Mode
Supports grid-tie operation

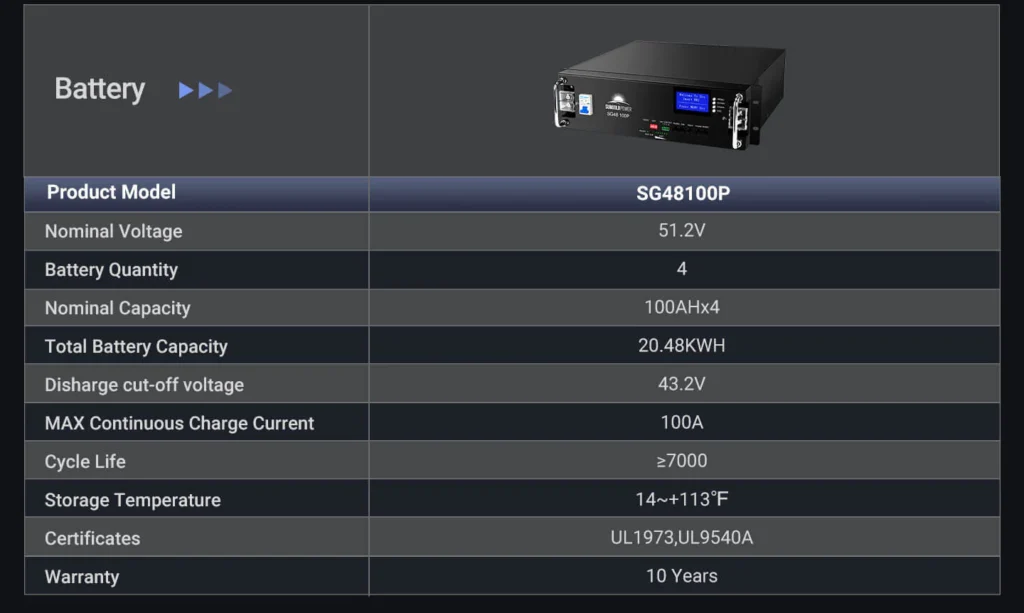

★ Battery Compatibility

Voltage Range: 40-64V

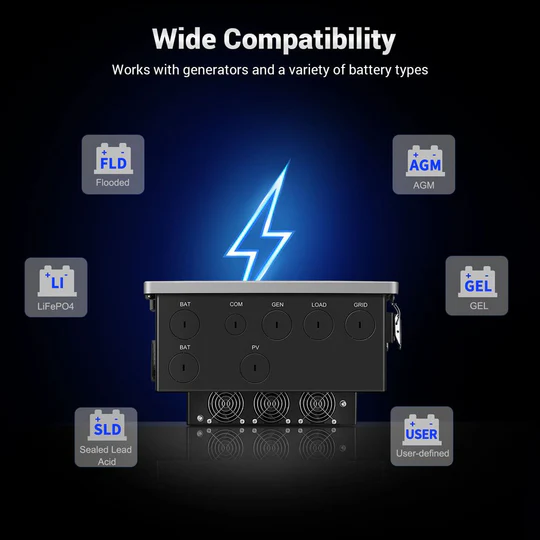

AGM / Sealed, Gel, Flooded, Lithium, and User-Mode for custom inputs
RS485 & CAN-bus support for BMS communication

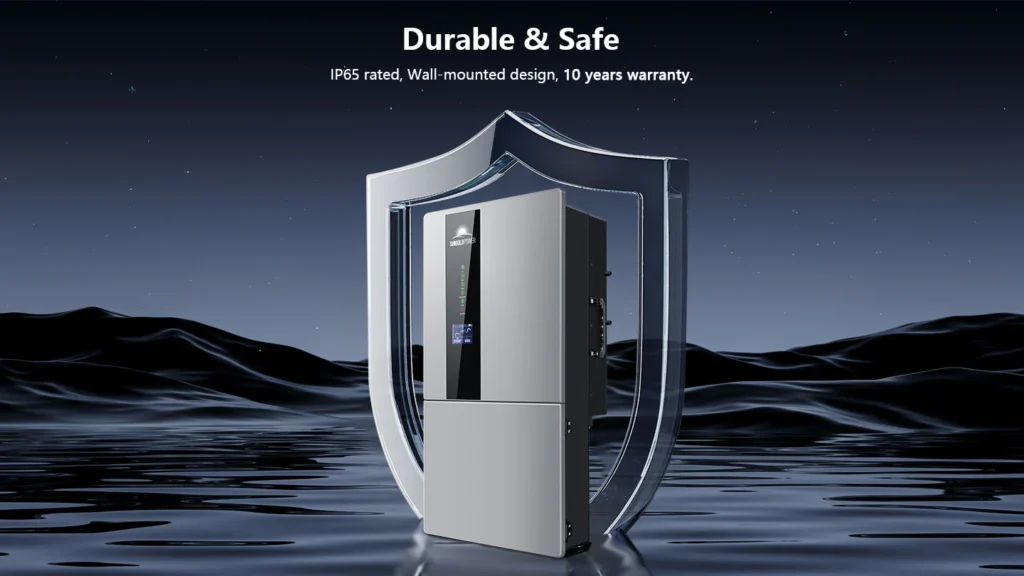

★ Durable & Safe

IP65 rated, Wall-mounted design, 10-year warranty
Ensure continuous power to critical loads with battery backup when the grid fails
Certificates: UL1741/SB, UL1699B, CSA C22.2, IEEE 1547:2018, HECO SRD2.0

11.4kW 48V Split-Phase Hybrid Inverter

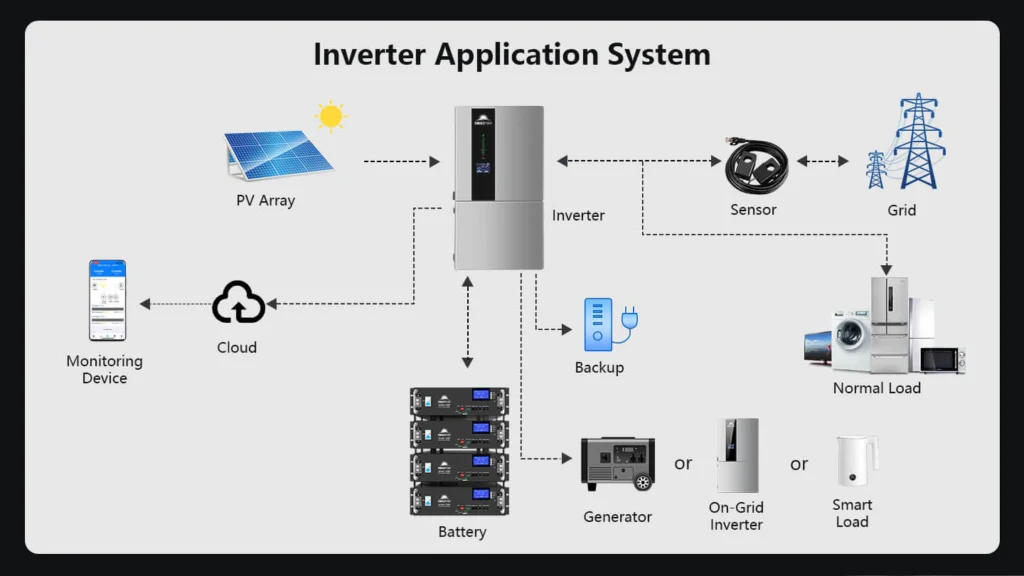

This high-quality inverter designed to convert solar energy into AC power, store energy in a battery for future use or feed it into the public grid. With 15kW solar input and 11.4kW continuous output, this unit offers the flexibility to go off-grid, implement a hybrid solar system, or sell excess energy back to the grid, providing a range of options to suit your energy needs.
