SunGoldPower 12KW 48V Split-Phase Hybrid Inverter

• 12kW Pure Sine Wave Inverters
• Split-Phase (120/240V)
• (2) Integrated MPPTs (22A each)
• Supports PV input sized up to 13.2kW @ 500V
• Supports grid-tied (AC-Charging) & off-grid system operation
• 6HP Motor Load Capacity

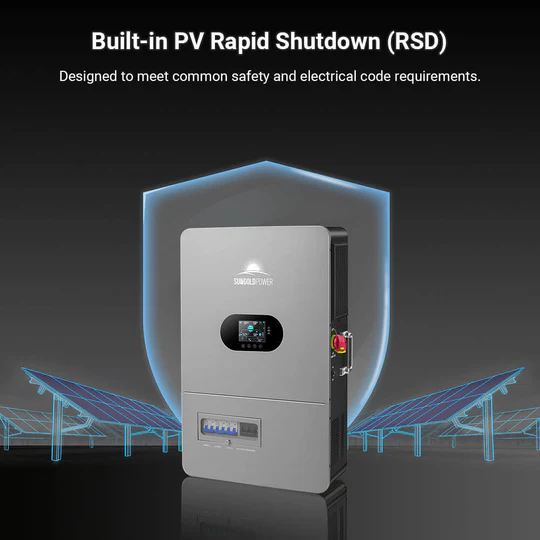

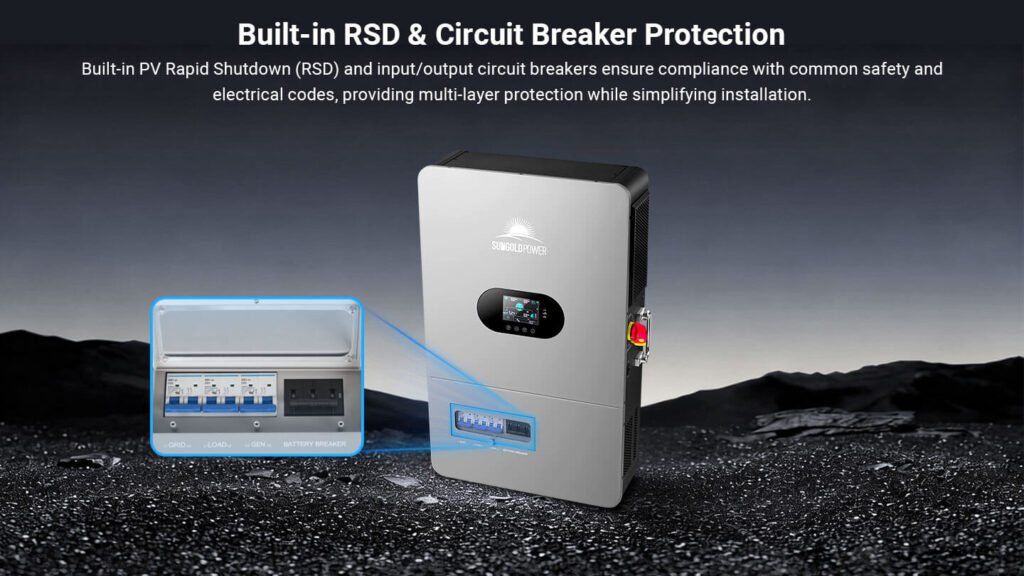

• Built-in PV Rapid Shutdown (RSD)

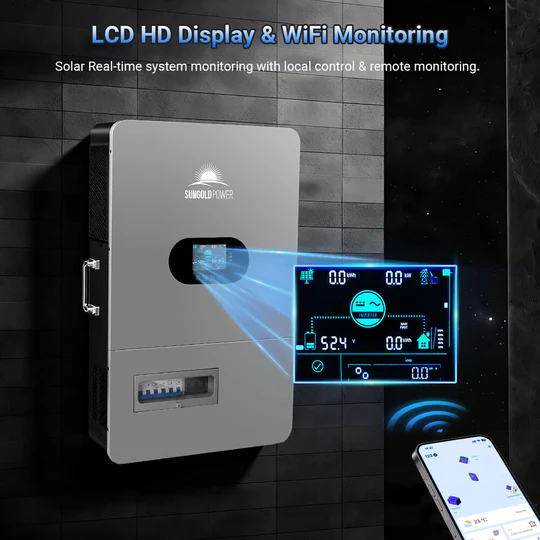

• WiFi-enabled for remote monitoring
• LCD with user-friendly Interface

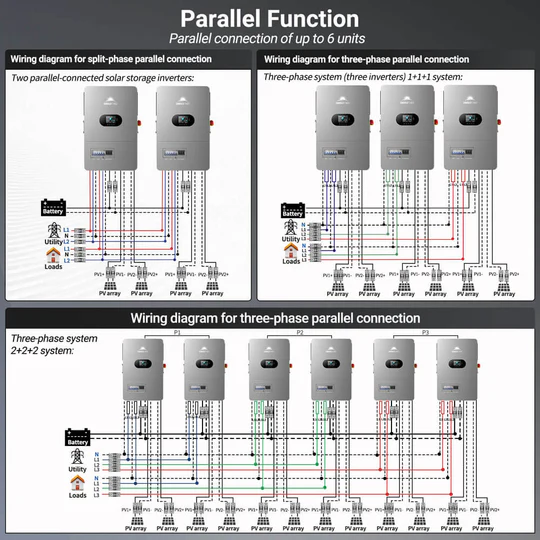

• Parallel up to (6) units together, supporting up to 72kW power output
• (1) Unit = Single or Split-Phase (120/240V) or 2/3 Phase (208V)
• Parallel function increases net inverter power and surge capacity.

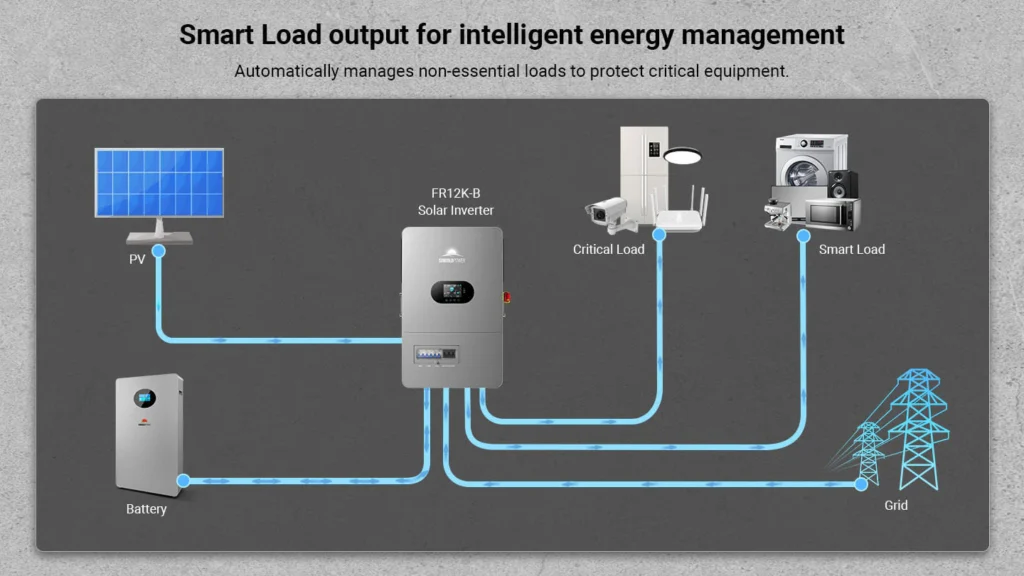

• Integrates with grid-tie systems and supports smart load

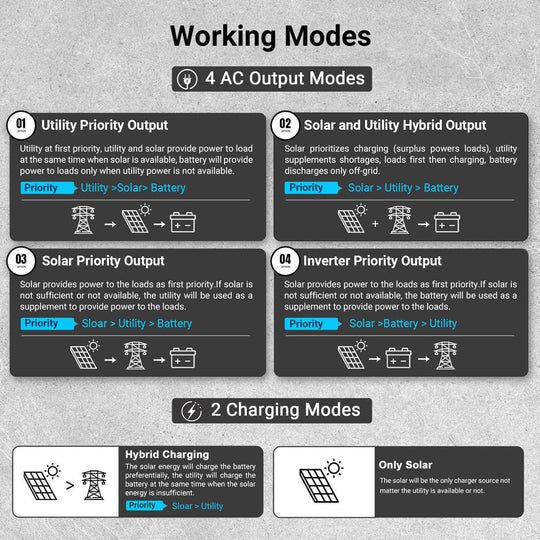

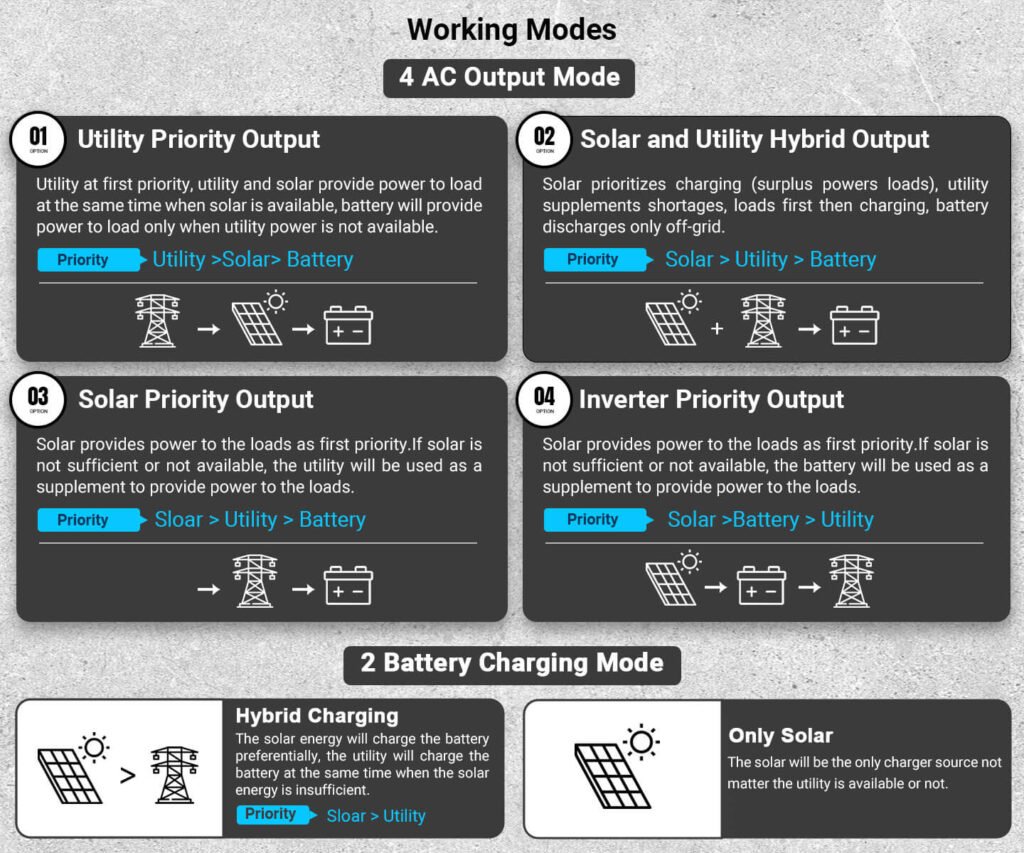

• AC Output Modes: Utility Priority / Solar & Utility Hybrid / Solar Priority / Inverter Priority
• Charging Modes: Hybrid Charging / Only Solar
• Supports grid-tie operation

• Voltage Range: 40-60V

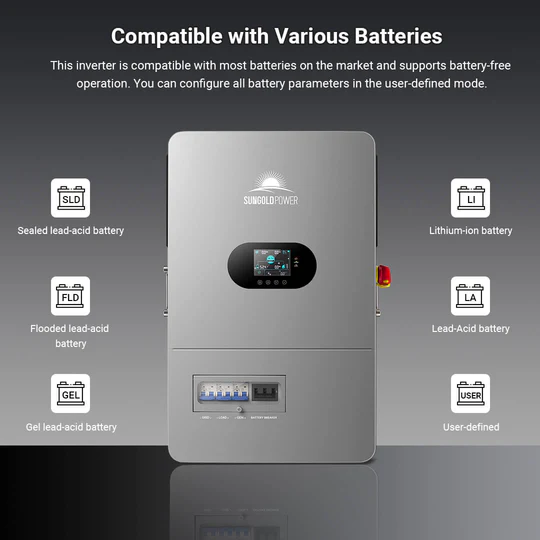

• Lithium-Ion, Lead-Acid, and User-Mode for custom inputs
• RS485 & CAN-bus support for BMS communication

• IP20 rated (indoor use only), Wall-mounted design, 2-year warranty
• Ensure continuous power to critical loads with battery backup when the grid fails
• Certificates: UL1741/SB, UL1699B, CSA C22.2, IEEE 1547:2018, HECO SRD2.0

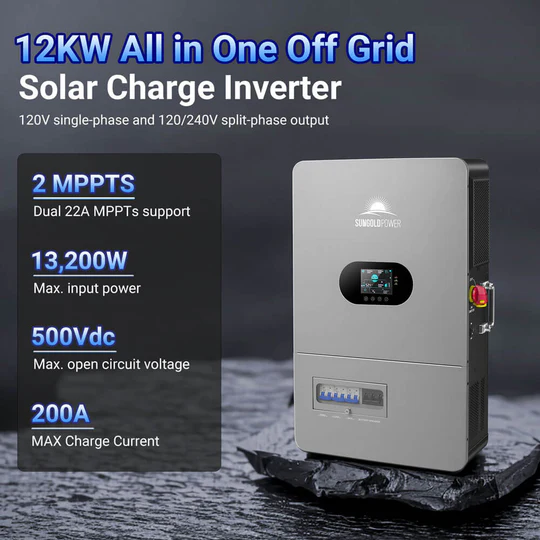

12KW 48V Split Phase Solar Inverter FR12K-B

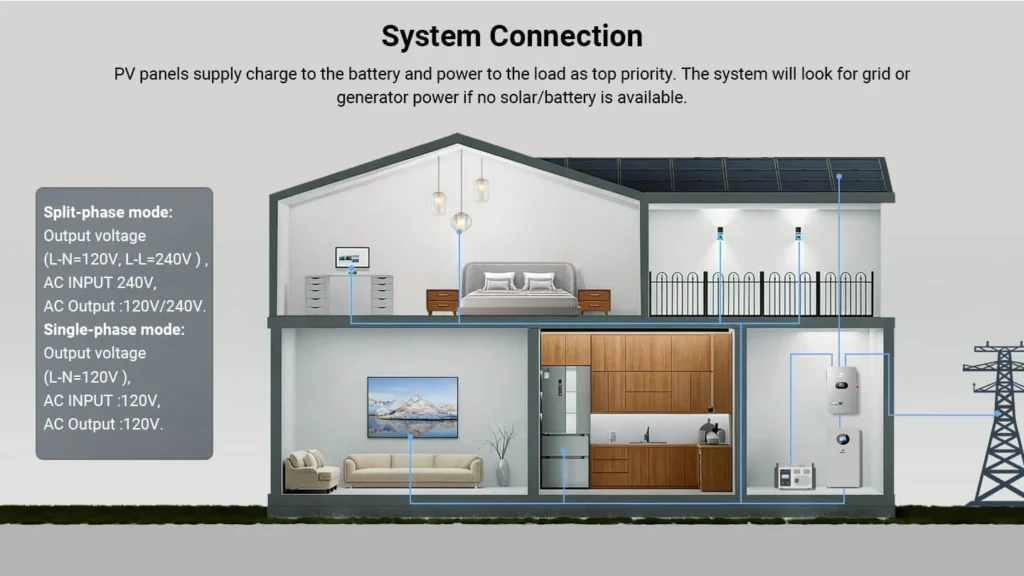

This high-performance all-in-one off-grid inverter delivers 12kW of continuous output (24kW peak), supporting 120V single-phase and 120V/240V split-phase input—perfect for homes and small businesses. Up to 6 units can be connected in parallel for a total output of 72kW. Dual 22A MPPTs support up to 13.2kW of solar input, enabling both PV-only and hybrid charging modes. The inverter includes an independent generator port that can double as a second load output, making it easy to manage critical and non-critical loads. Built-in PV Rapid Shutdown (RSD) protection ensures safe and reliable off-grid operation.
